Abbeywood First School
Naturalspan Dual pitch
Project Description

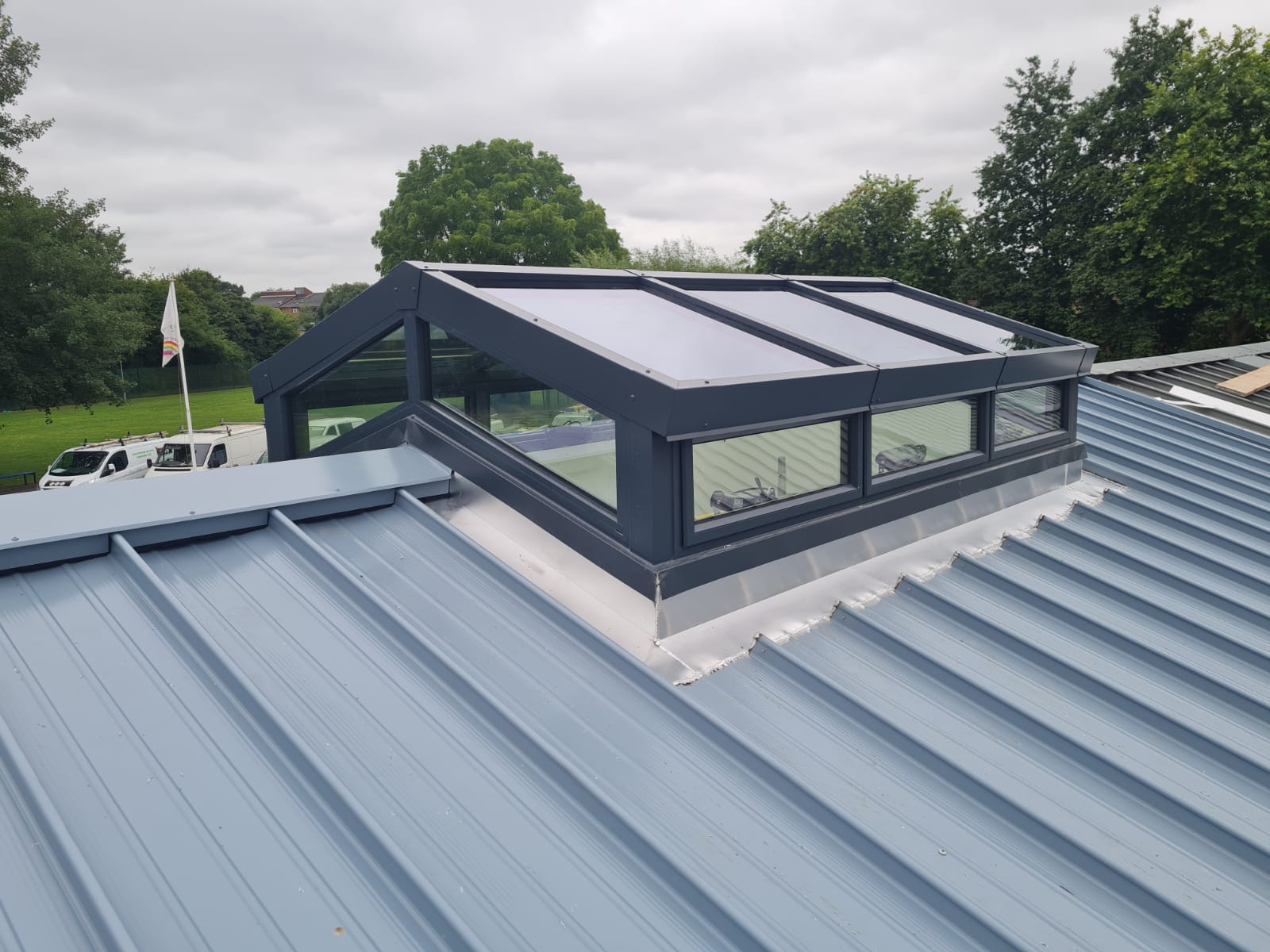

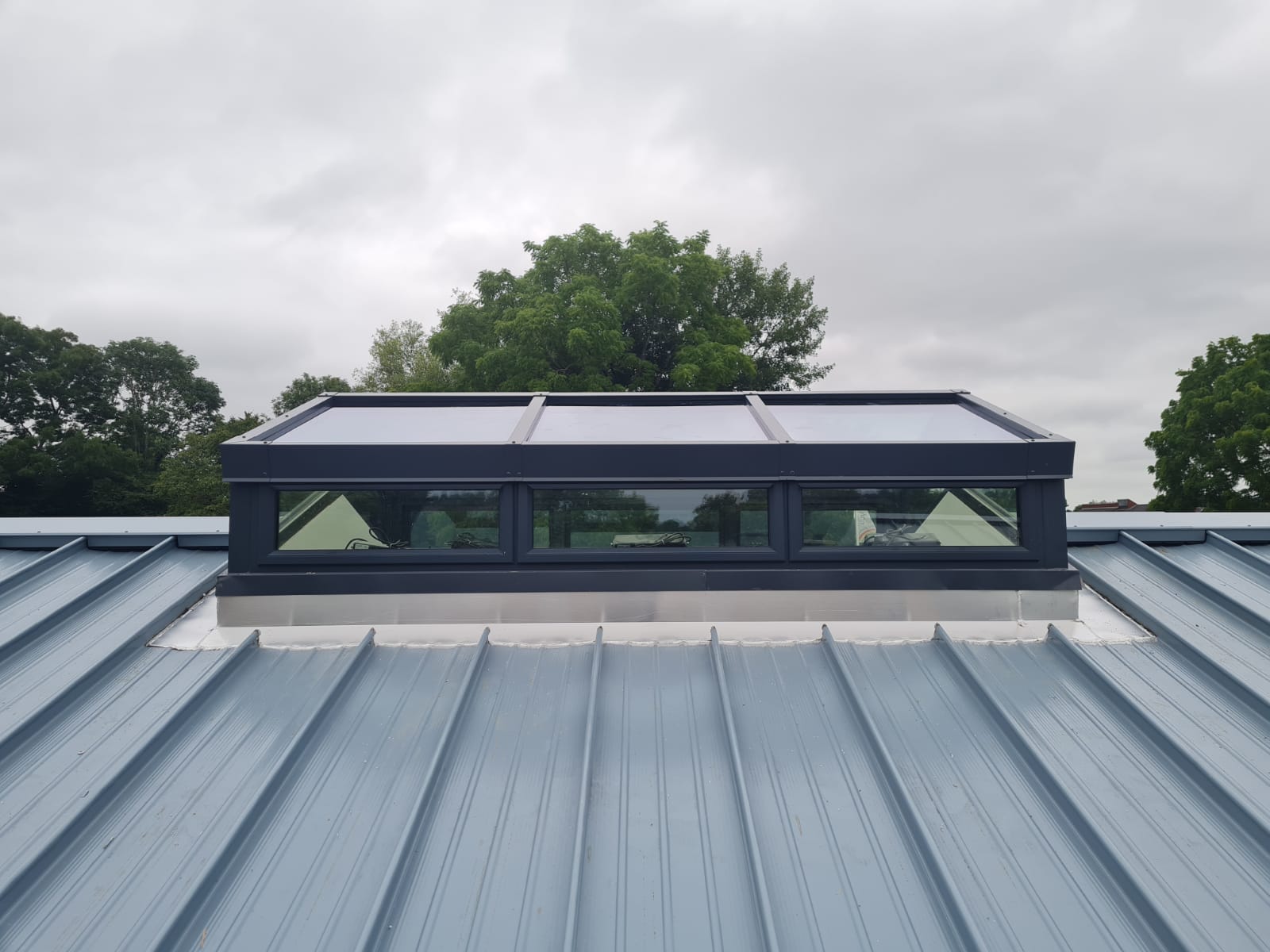

Project: Naturalspan installation at Abbeywood First school

Location: Redditch, England

Main contractor: Howard Yarnold

Specification: NLS Dual-Pitch NaturalSpan

1No 3140mm x 1125mm (slope) overall size NLS Dual pitch NaturalSpan glass roof, aluminium glazing bar gasketed system with secondary water management, pressure plates and capping’s including aluminium perimeter flashings to suit, all polyester powder coated paint finished to BS 6496 colour tint RAL 7016 Matt. Vertical sections and glazing supplied by Howard Yarnold.

Glazing Specification
28.4mm double glazed low e glass units comprising of 6mm neutral solar control toughened outer, 6.4mm clear laminated inner with 16mm argon filled cavity
