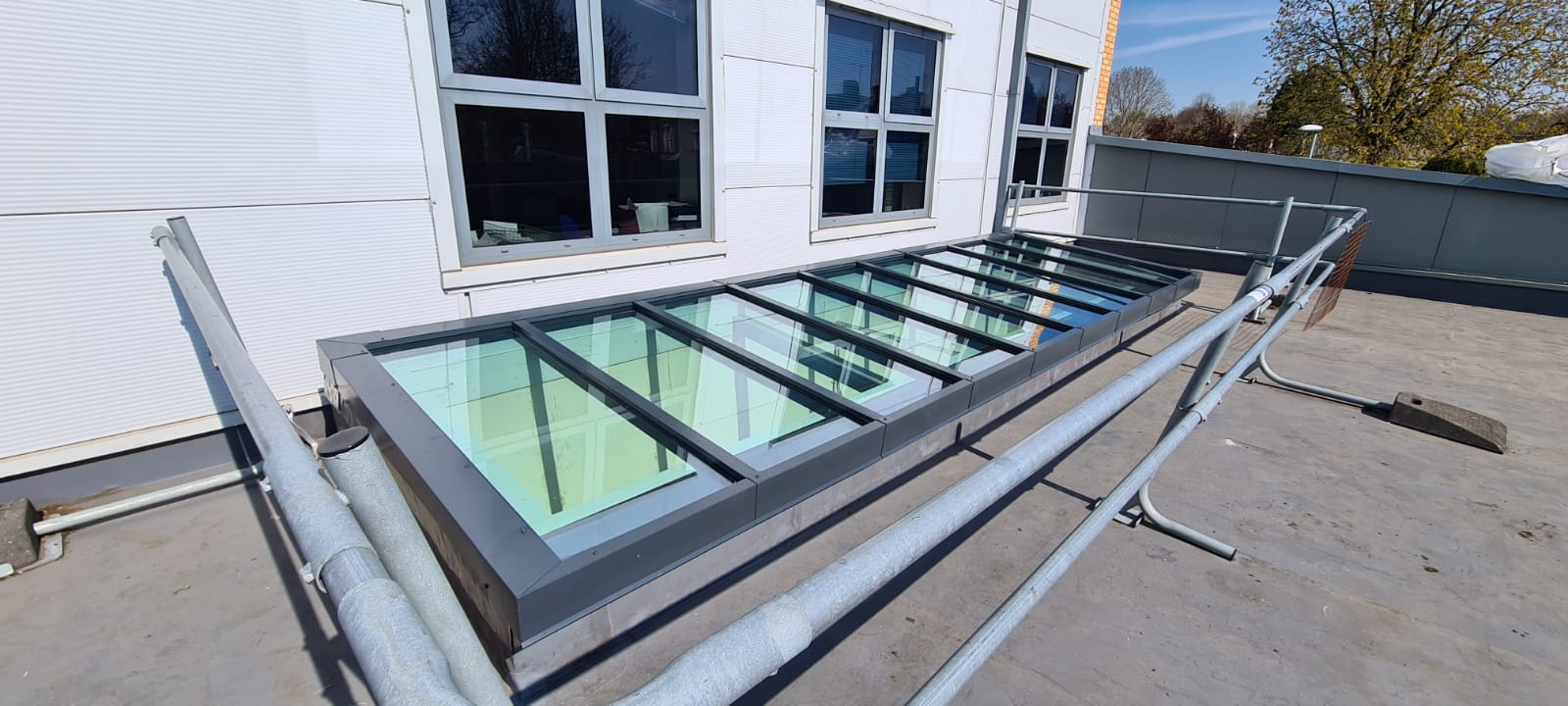

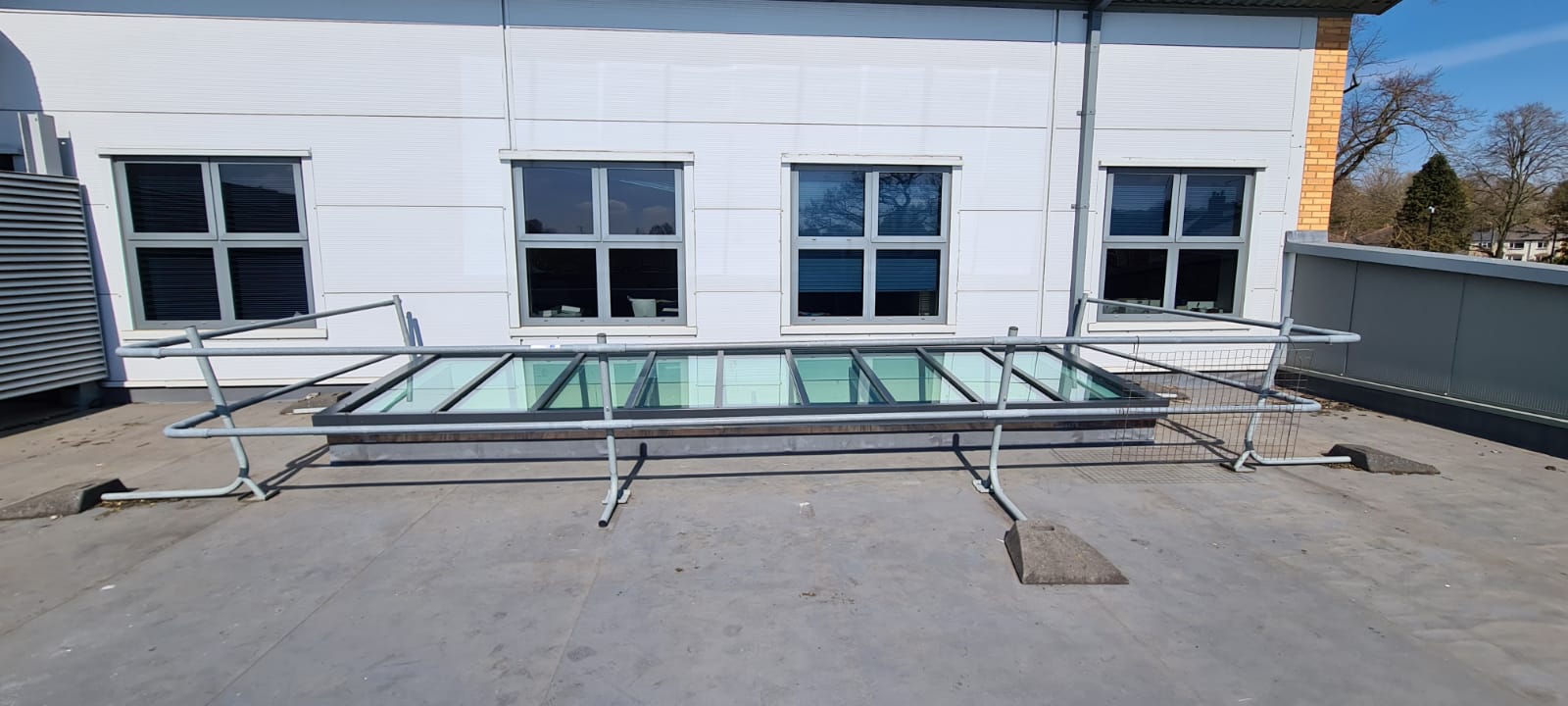

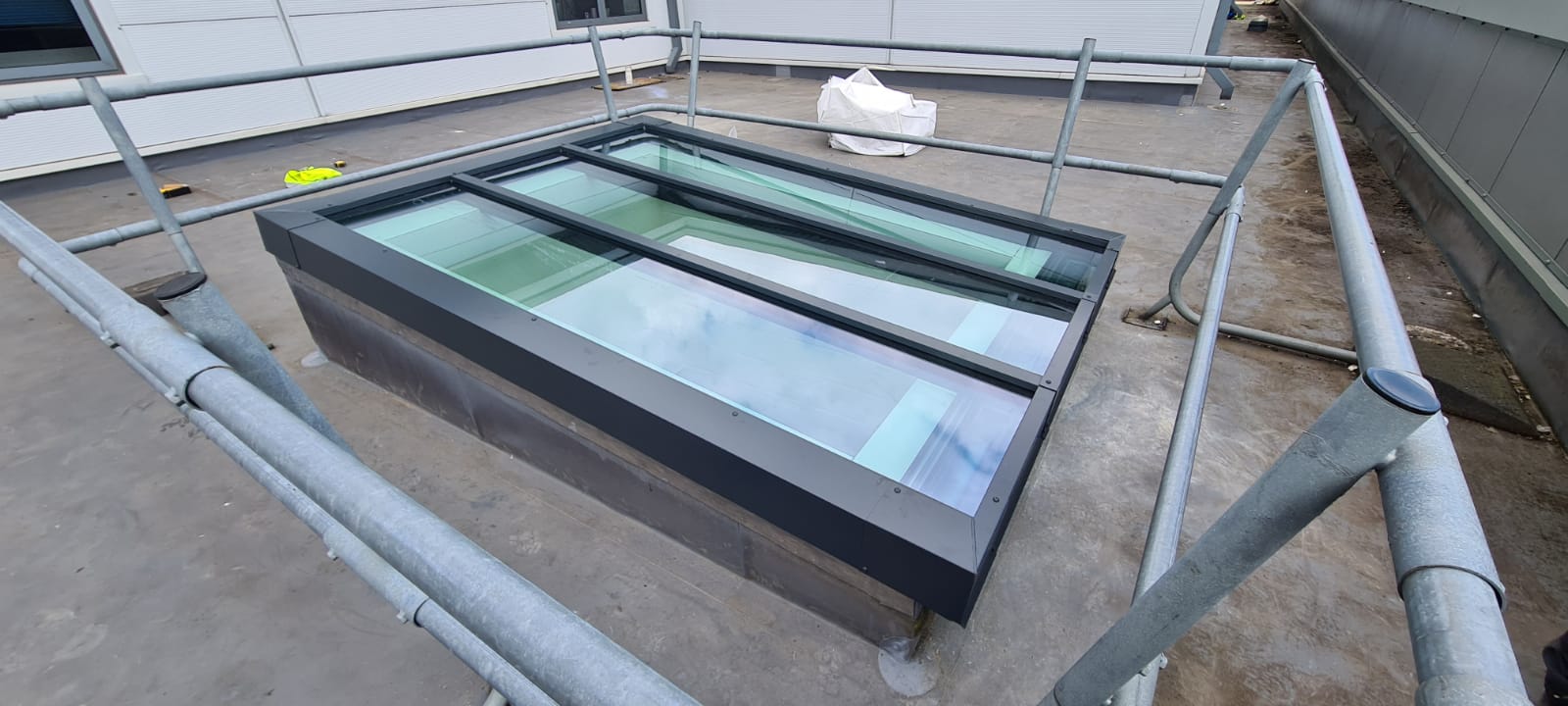

Project: Allen’s Croft Primary School

Location: Birmingham, England

Main contractor: M&J Construction Group

Specification: 1No 2,000mm x 2,850mm, 1No 2,800mm x 2,200mm, 1No 6,500mm x 1,800mm overall size, NLS NaturalSpan glass mono-pitch rooflight, aluminium glazing bar gasketed system with secondary water management including aluminium flashings to suit. All polyester powder coated paint finished to BS 6496 colour tint Anthracite grey. Unit to be fixing onto prepared upstand by others.

Glazing Specification

28.4mm, double glazed glass units, 6mm clear toughened low e outer, 16mm argon filled cavity, 6.4mm clear laminated inner.
