Project: Browns Restaurant

Location: Oxford, England

Main contractor: Radmat Building Product Ltd

Specification:NLS NaturalSpan Glass Lantern light

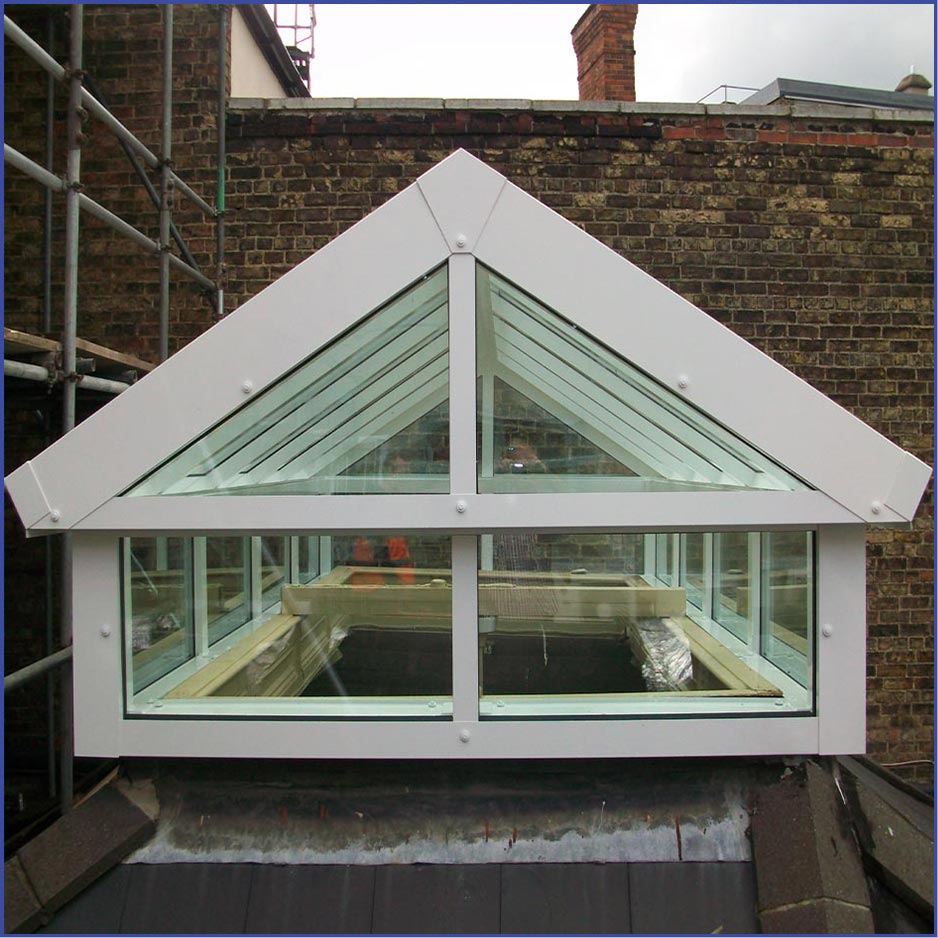

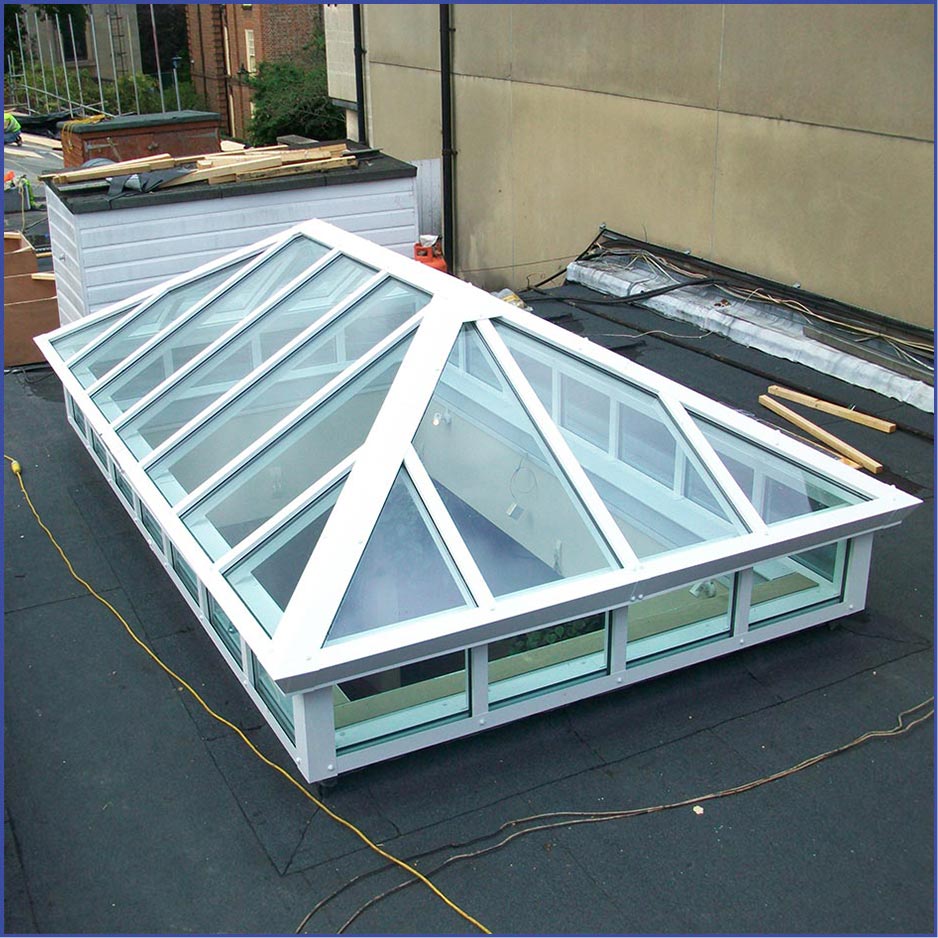

1No 3,600mm x 1,800mm & 1No 4,400mm x 2,600mm roof opening size, NLS NaturalSpan glass lantern light with hipped ends and 500mm high vertically glazed sidewalls, aluminium glazing bar gasketed system with secondary water management including aluminium flashings to suit, all polyester powder coated paint finished to BS 6496 colour tint White, fixing to prepared upstand provided by others.

Glazing Specification

24.4mm double glazed low e glass units comprising of 6mm clear toughened outer, 6.4mm clear laminated inner with 16mm air cavity.
