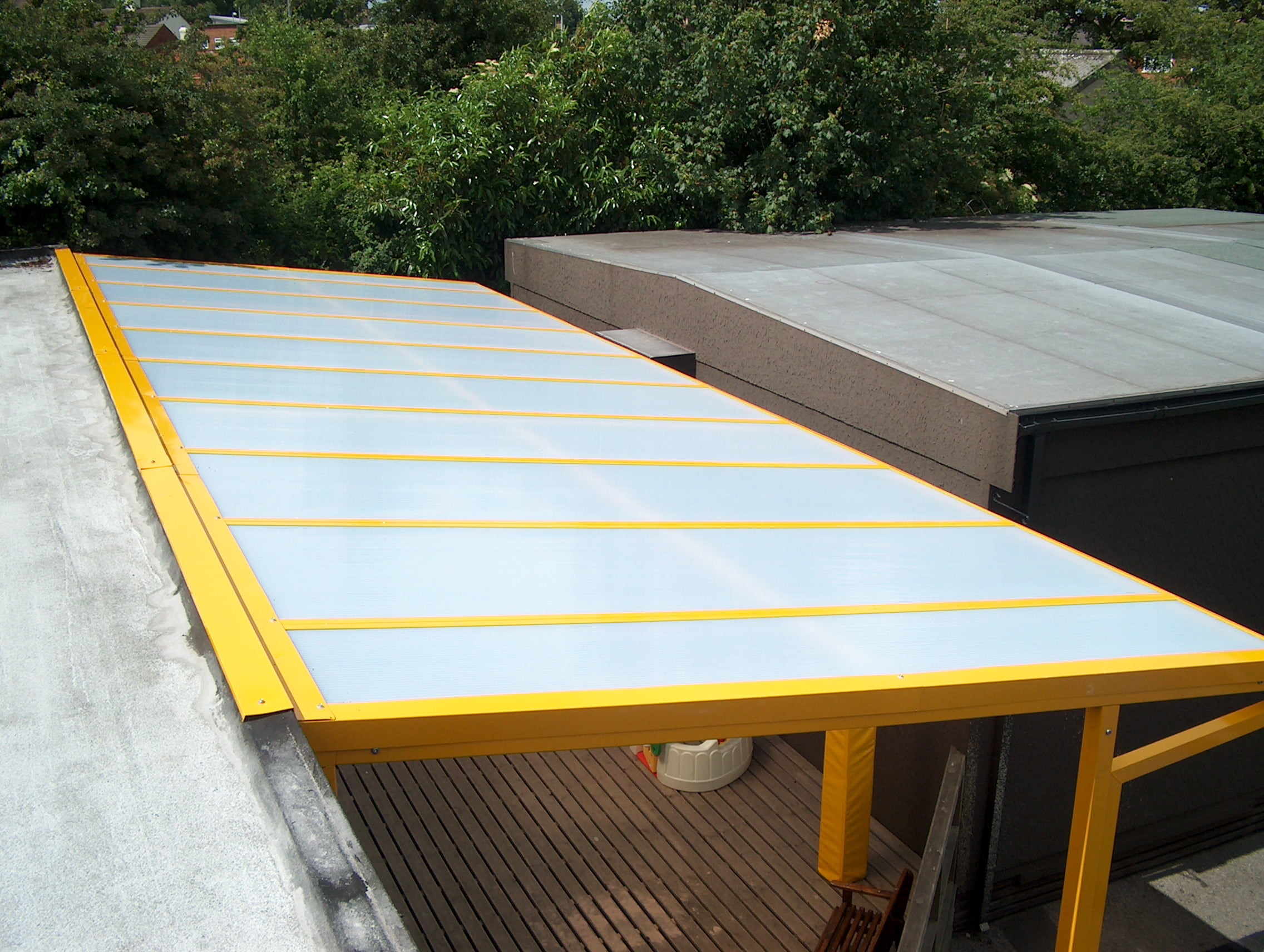

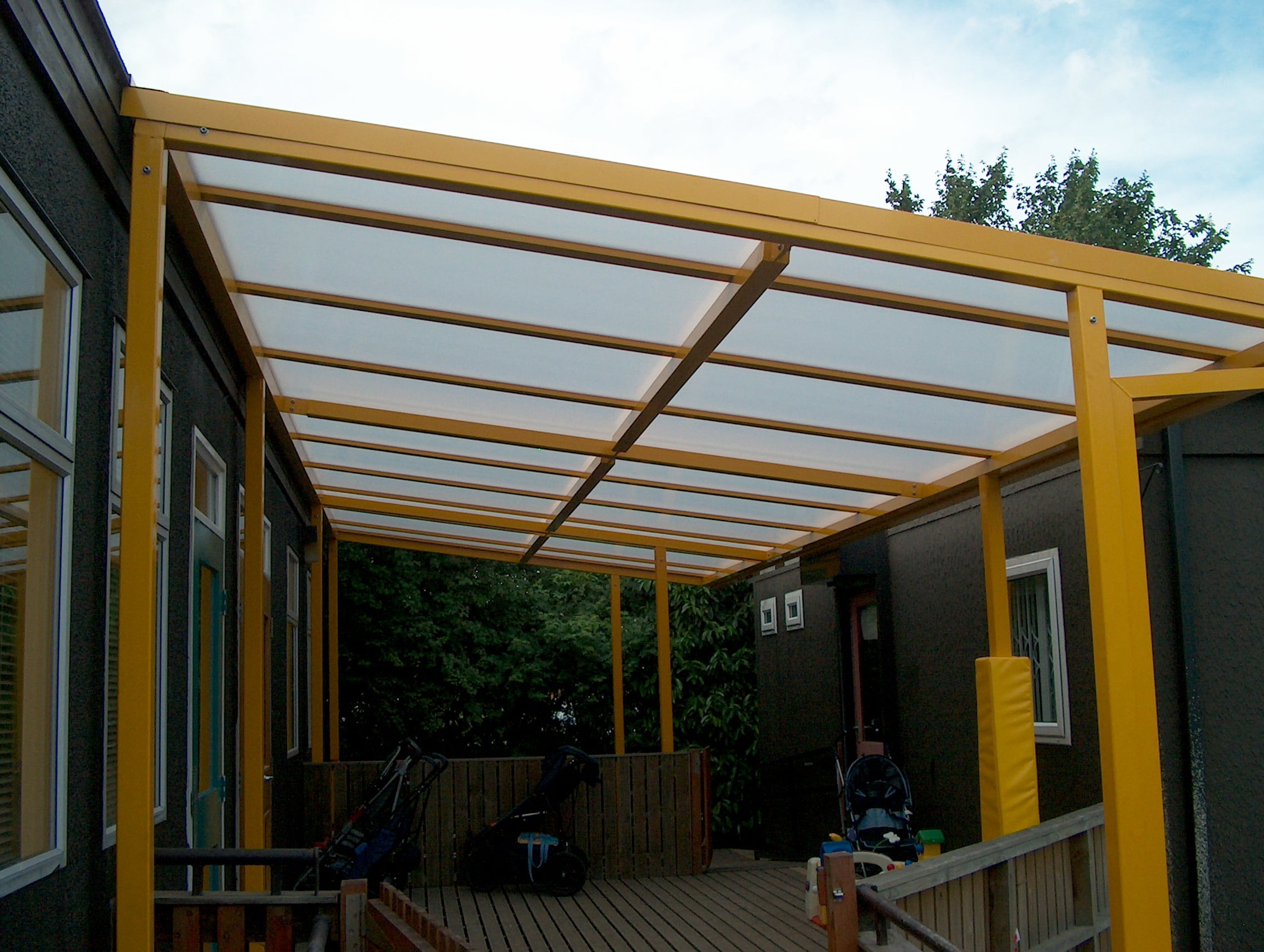

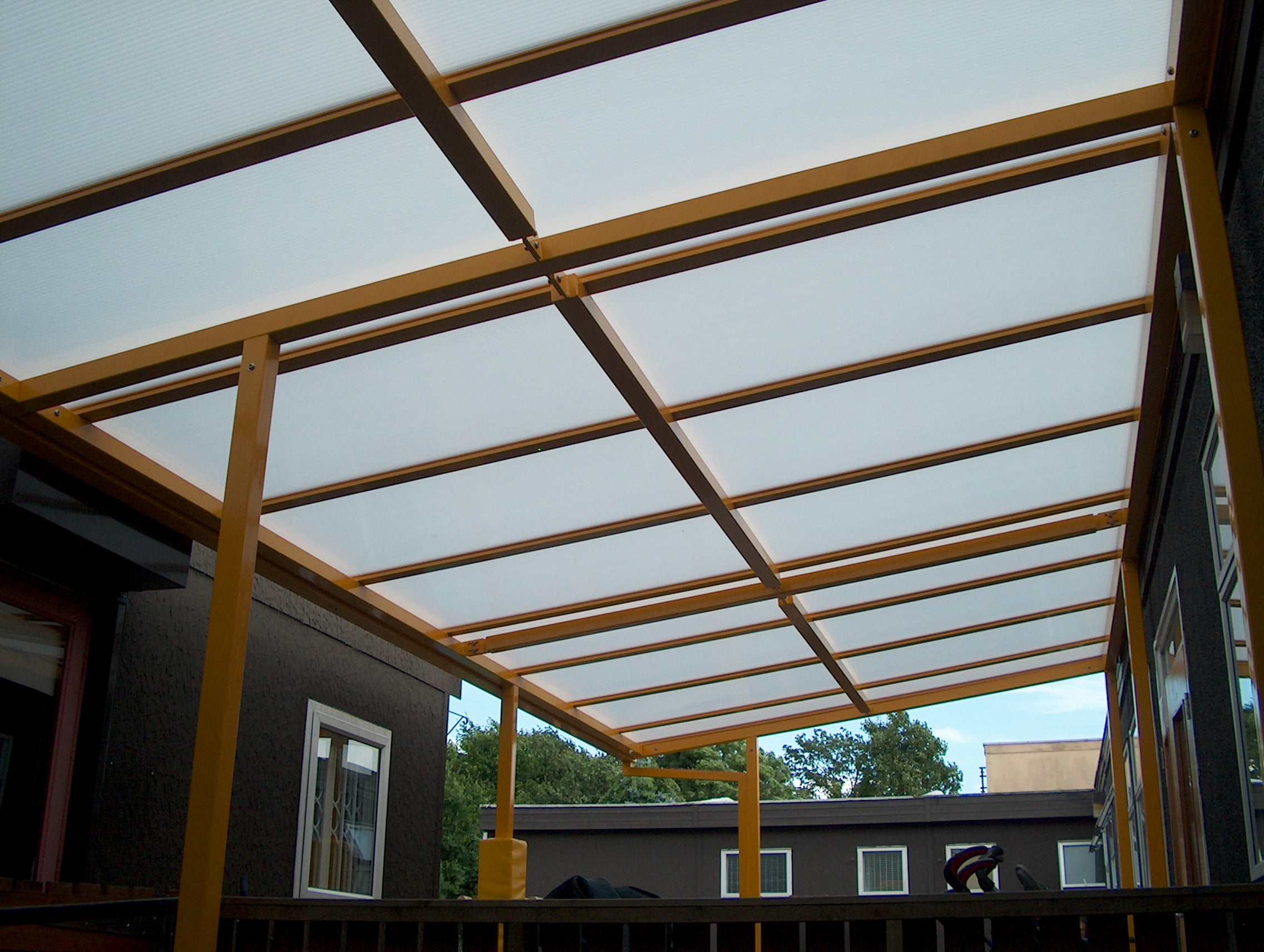

The Castle Children’s Centre
Fastlock Mono-pitch Canopy
Project Description

Project: The Castle Children’s Centre

Location: Wakefield, England

Main contractor: Naturalight Systems Ltd

Specification: 1NO 3.000 x 5.000m NLS mono-pitch 16mm FastLock structural steel canopy with 4no posts, constructed from 80 x 80 x 3mm steel box section uprights, cross ties and ring beam, 300 x 300 x 10mm base plates for bolting to concrete pads supplied by NLS, 1no gutter to one side of canopy with 1no downpipe outlet, all steelwork to be shot blasted, zinc primed to inter zinc 72, all polyester powder coated paint finished to BS 6496 colour Yellow.

Glazing Specification

16mm FastLock glazing system, factory assembled interlocking panels with secondary water management including aluminium flashings to suit, glazed with 16mm UV protected triple-wall polycarbonate colour tint Opal.
