Filton High School
NLS Naturalspan Northlight's
Project Description

Project: Filton High School

Location: Bristol, England

Main contractor: BAM Construction UK Ltd

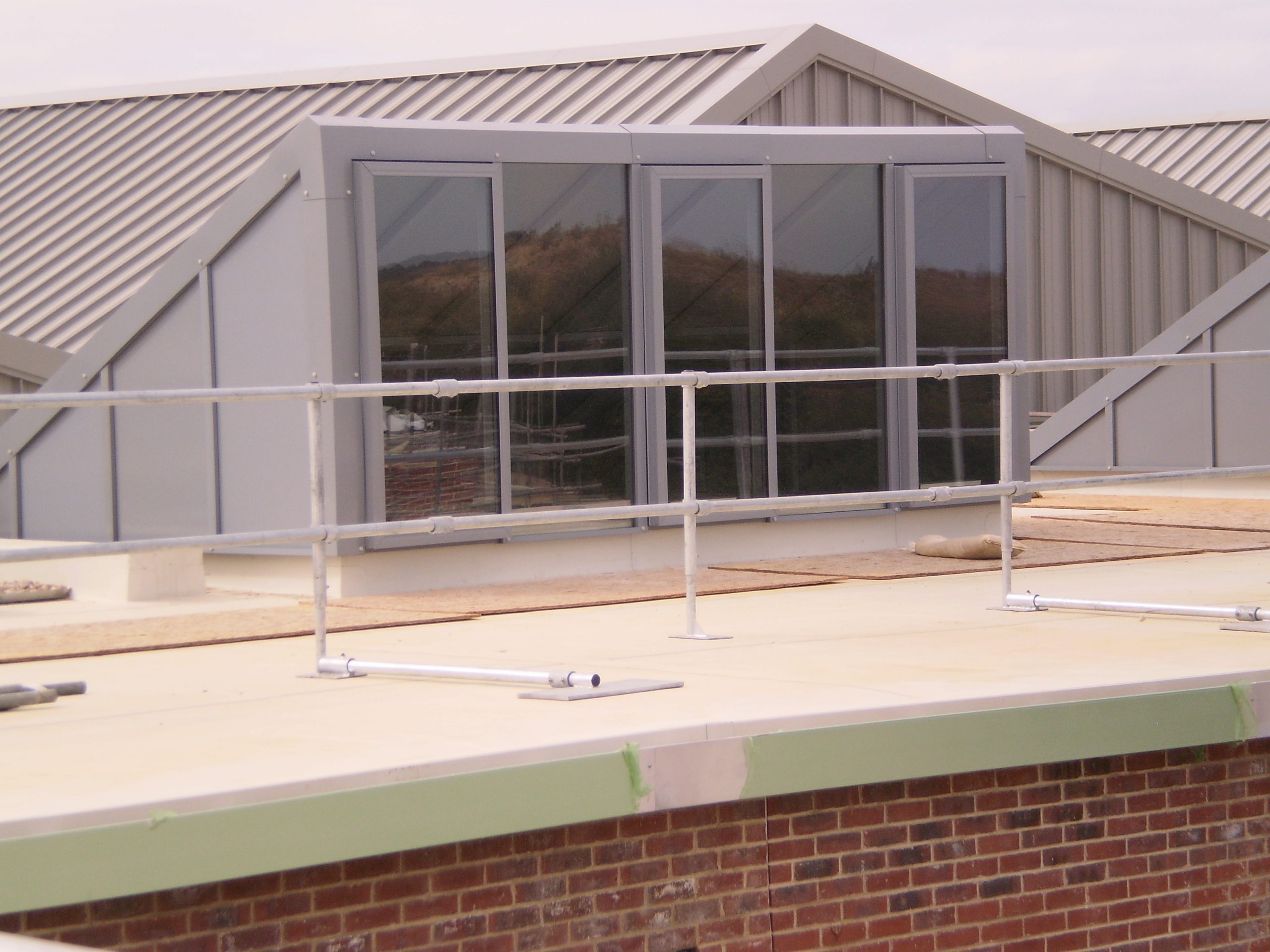

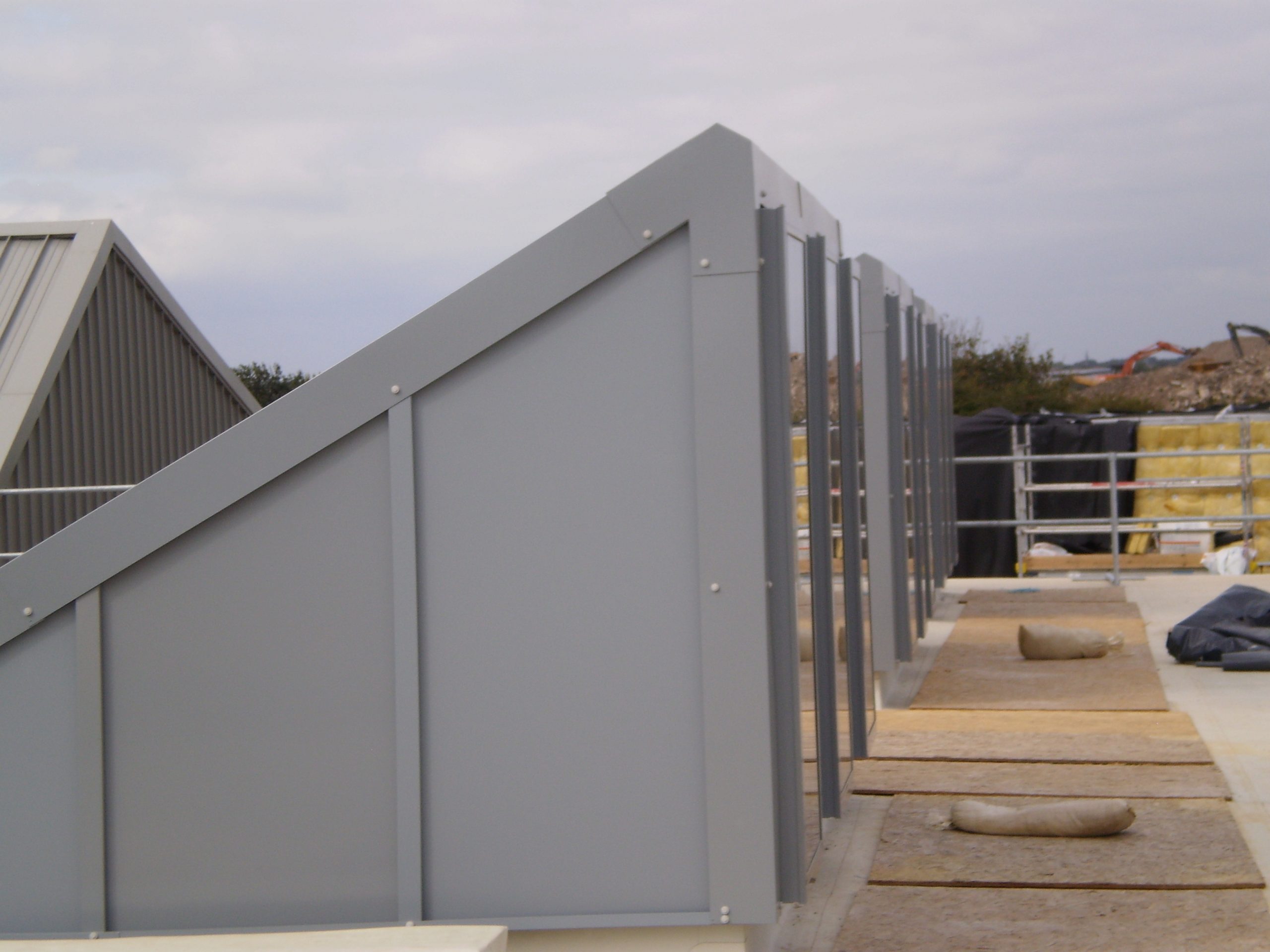

Specification: 4No 3.50m wide x 5.00m long x 1.95m high, NLS wedge-shaped Northlight, aluminium glazing bar gasketed system with secondary water management including aluminium flashings to suit, vertical face to be glazed with glass as specified below, top and sides to be glazed with aluminium insulated panels. Each unit to incorporate 5No bays of which 3No are opening, electrically operated via chain motors (all wiring by others) 1No Northlight unit has fixed bays. All polyester powder coated paint finished to BS 6496 colour tint: Grey. Units to be fitted to a prepared upstand supplied by others.

Glazing Specification

24.4mm double glazed ‘k’ glass units comprising of 6mm clear toughened outer, 6.4mm clear laminated inner with 12mm air cavity.
