Finedon Muslo Junior School

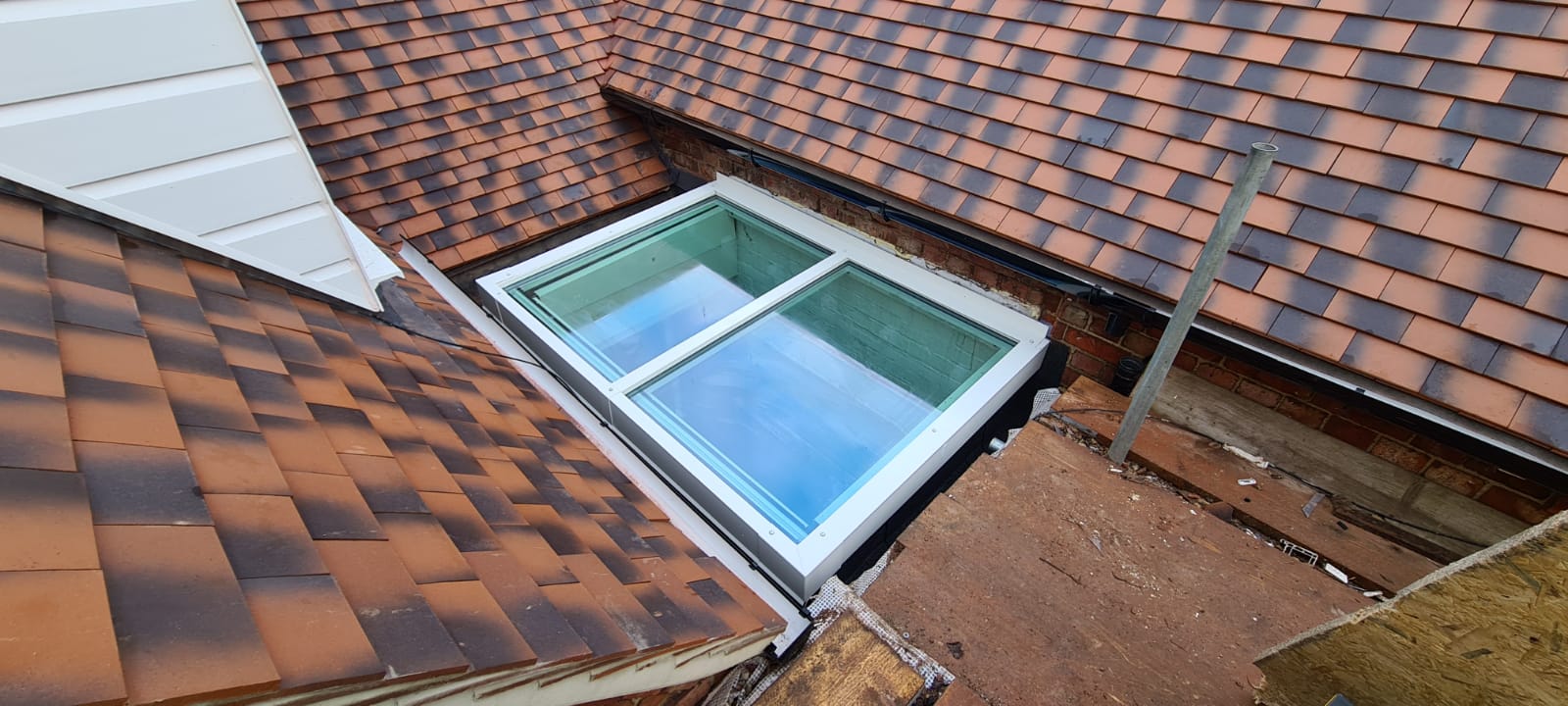

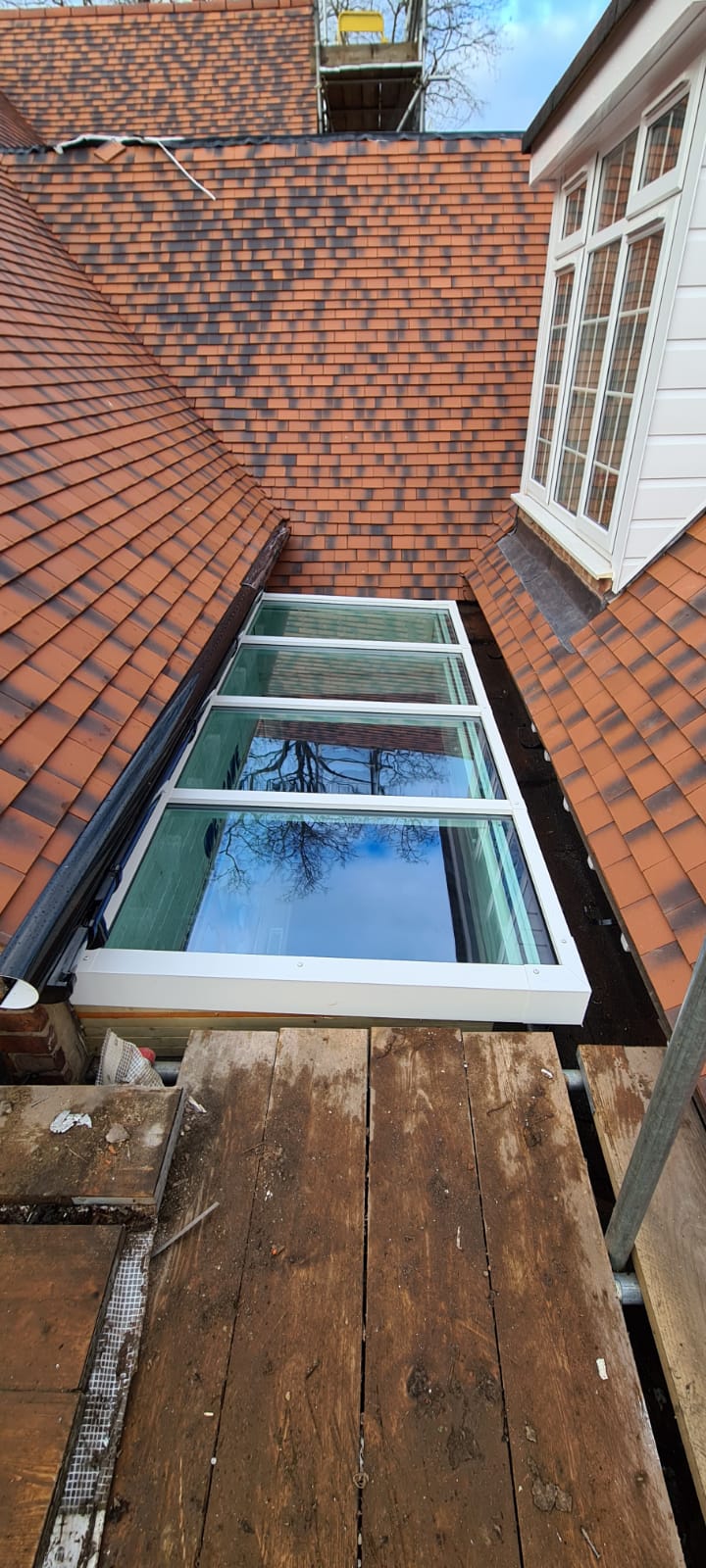

Naturalspan mono-pitch
Project Description

Project: Finedon Muslo Junior School

Location: Finedon, England

Main contractor: M & J Group

Specification: 1No 1950mm x 1330mm, 1No 3250mm x 1330mm slope overall size NLS Monopitch NaturalSpan glass roof light, aluminium glazing bar gasketed system with secondary water management including aluminium flashings to suit, all polyester powder coated paint finished to BS 6496 colour tint White. Unit fixing to a prepared upstand supplied by others.

Glazing Specification

28.4mm double glazed low e glass units comprising of 6mm neutral solar control toughened outer, 6.4mm clear laminated inner with 16mm argon filled cavity.
