Gosforth Shopping Centre

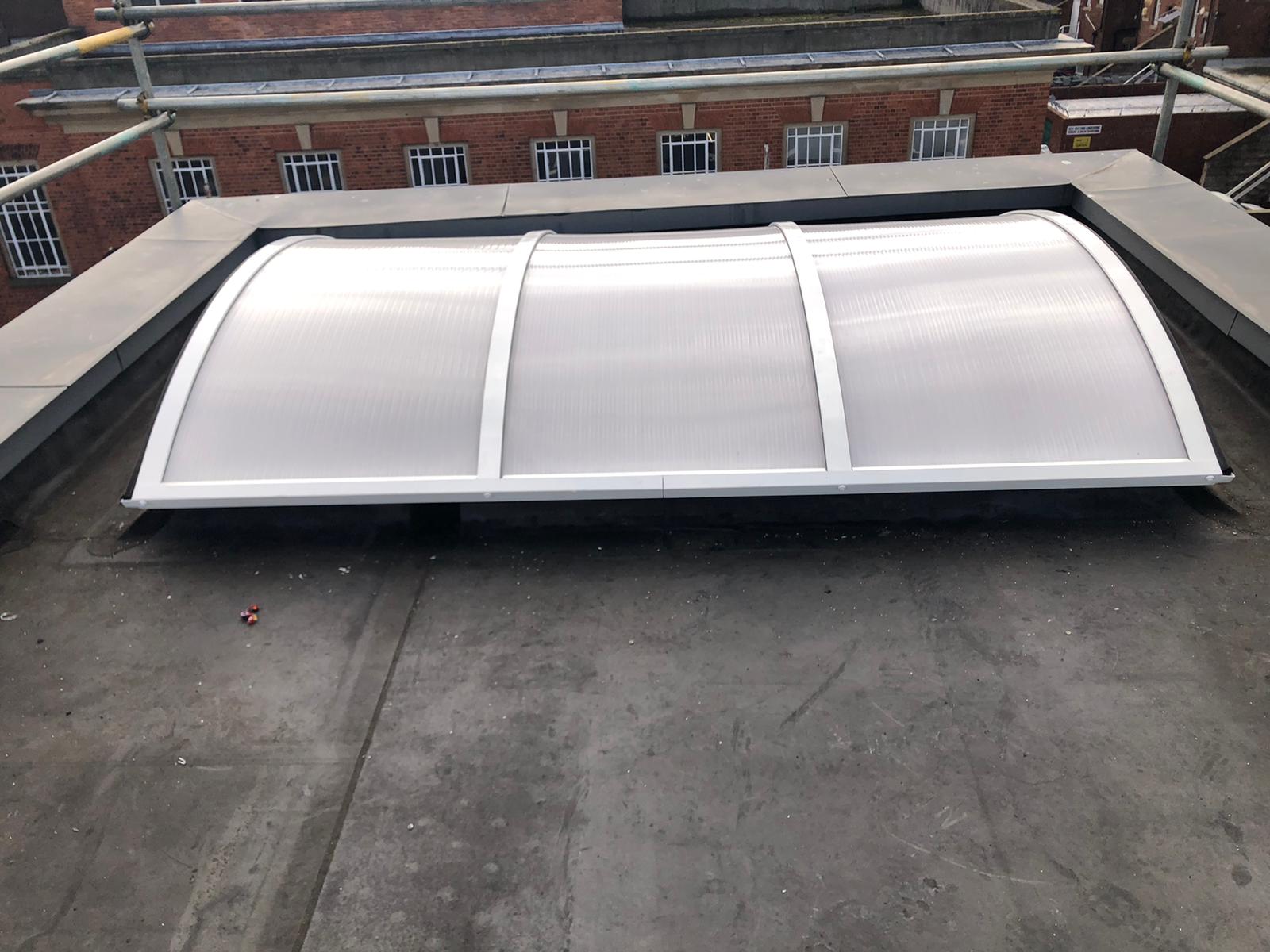

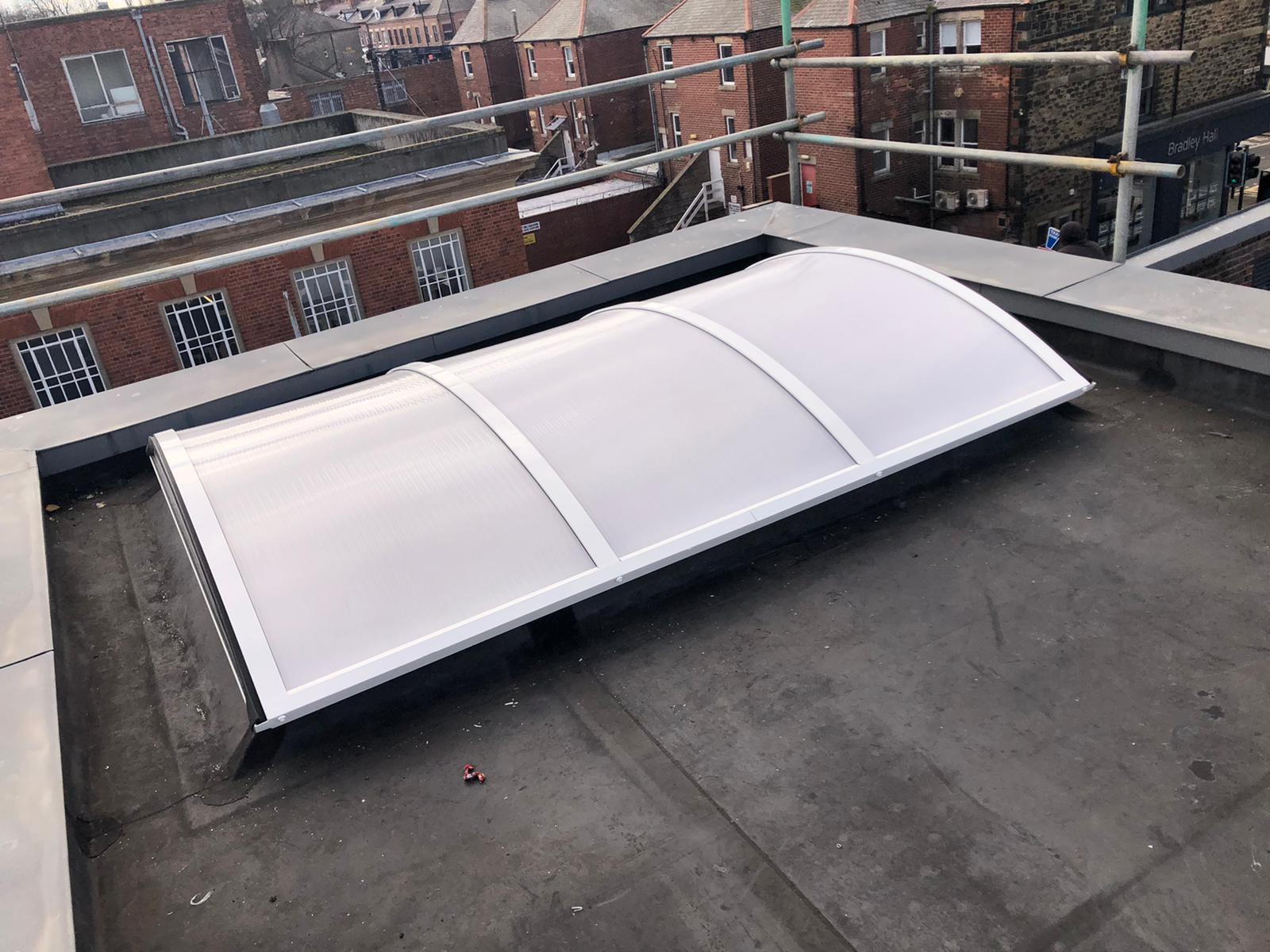

Naturalspan Barrel vault
Project Description

Project: Gosforth Shopping Centre

Location: Newcastle-upon-Tyne, England

Main contractor: JAR Roofing

Specification: 1No 2750mm x 1850mm overall size, NLS NaturalSpan barrel vault rooflight with vertically glazed gable ends, aluminium glazing bar gasketed system with secondary water management including cill adapter condensation tray. All aluminium polyester powder coated paint finished to BS 6496 colour tint White. Unit fixing to an upstand supplied by others.

Glazing Specification

16mm UV protected triple-wall polycarbonate colour tint Opal.
