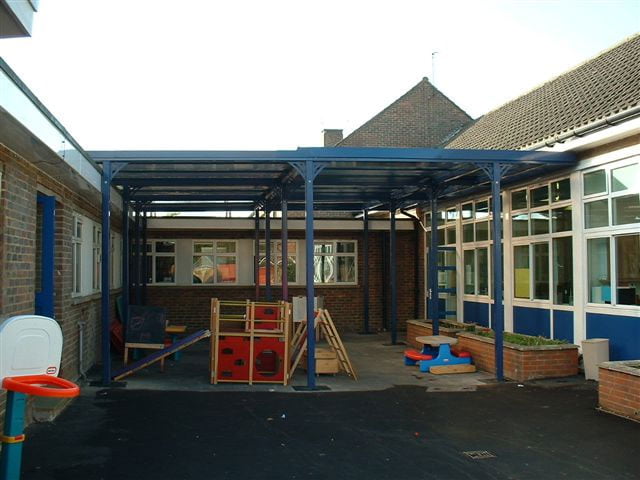

The Greville Primary School
Fastlock Canopy
Project Description

Project: The Greville Primary School

Location:  Ashtead, England

Main contractor: Naturalight Systems Ltd

Specification: 1No 20450mm x 2500mm x 2750mm, 1No 6.600 x 7.250 x 3.100m high to underside of ring beam fastlock steel canopy, constructed from 100 x 100mm steel box section uprights cross ties and ring beam, 250 x 250 x 10mm base plates for bolting to concrete pads supplied by others with flashings to suit, all steelwork to be shot blasted zinc primed inter zinc 72 polyester powder coated paint finish BS/6496 colour blue

Glazing Specification

16mm Fastlock glazing system, factory assembled interlocking panels with secondary water management glazed with 16mm UV protected structural multi-wall polycarbonate.
