Highbury Grove School
Naturalspan Dual Pitch
Project Description

Project: Highbury Grove School

Location: London, England

Main contractor: 5M

Specification: 1No 3,435mm x 50,4060mm R.O.S. NLS Dual-pitch NaturalSpan glass rooflight at 30º pitch giving approximately 2.00m per slope and 1.00m height, aluminium glazing bar gasketed system with secondary water management including aluminium flashings to suit, glazed with glass to one slope and 24mm insulated, aluminium panels with 1No section of 11.0m glazed with glass as specification below to the other slope.  All aluminium polyester powder coated paint finished to BS 6496 colour tint Brown fixing to existing upstand by others.

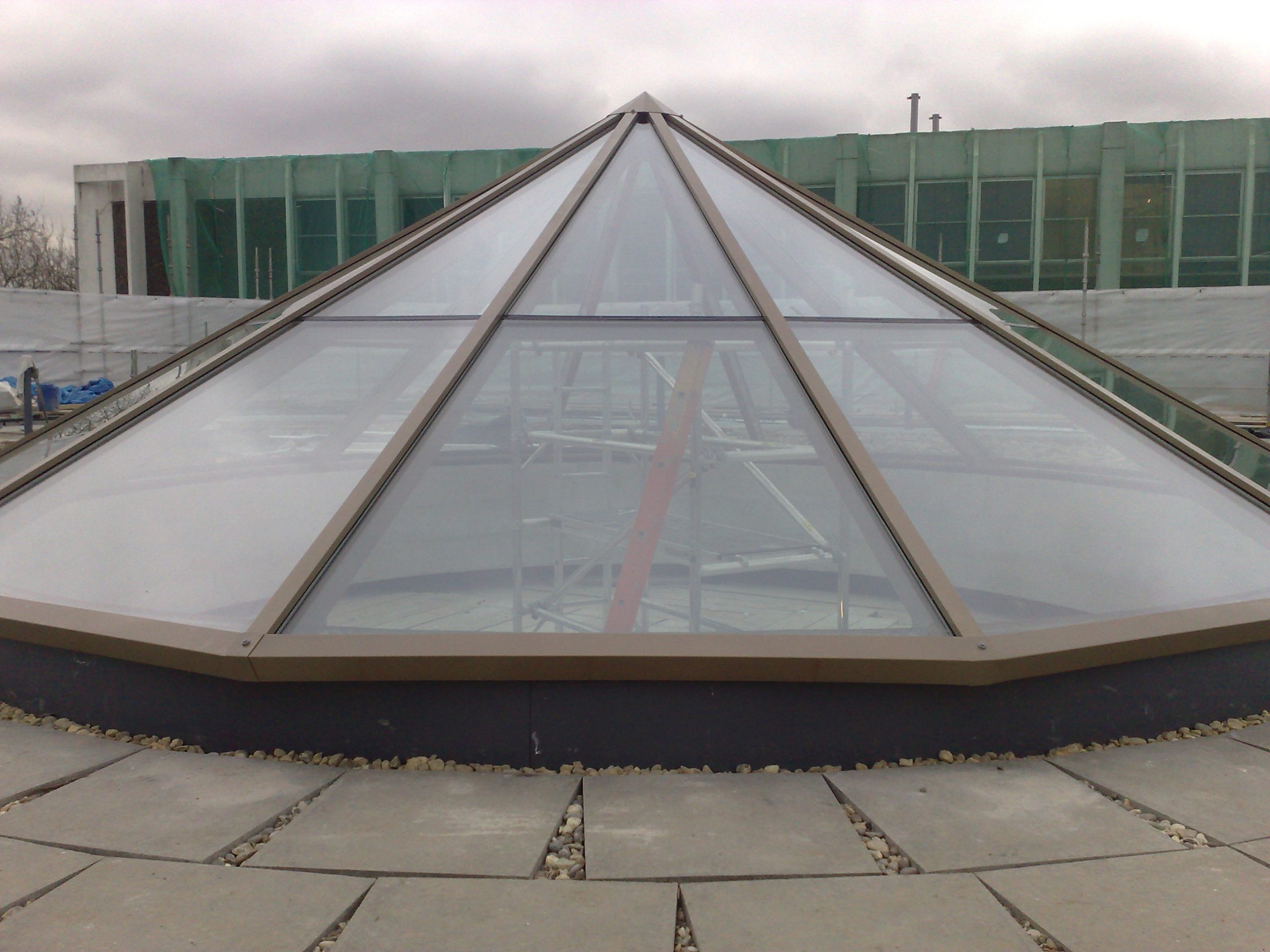

4No 2,100mm diameter, 10No  1,400mm diameter, NLS Hexagonal NaturalSpan glass rooflight, aluminium glazing bar gasketed system with secondary water management including aluminium flashings to suit, all polyester powder coated paint finish to BS 6496 colour tint Brown fixing to existing upstand by others.

Glazing Specification

24.4mm double glazed ‘k’ glass units comprising of 6mm clear toughened outer, 6.4mm clear laminated inner with 12mm air cavity.
