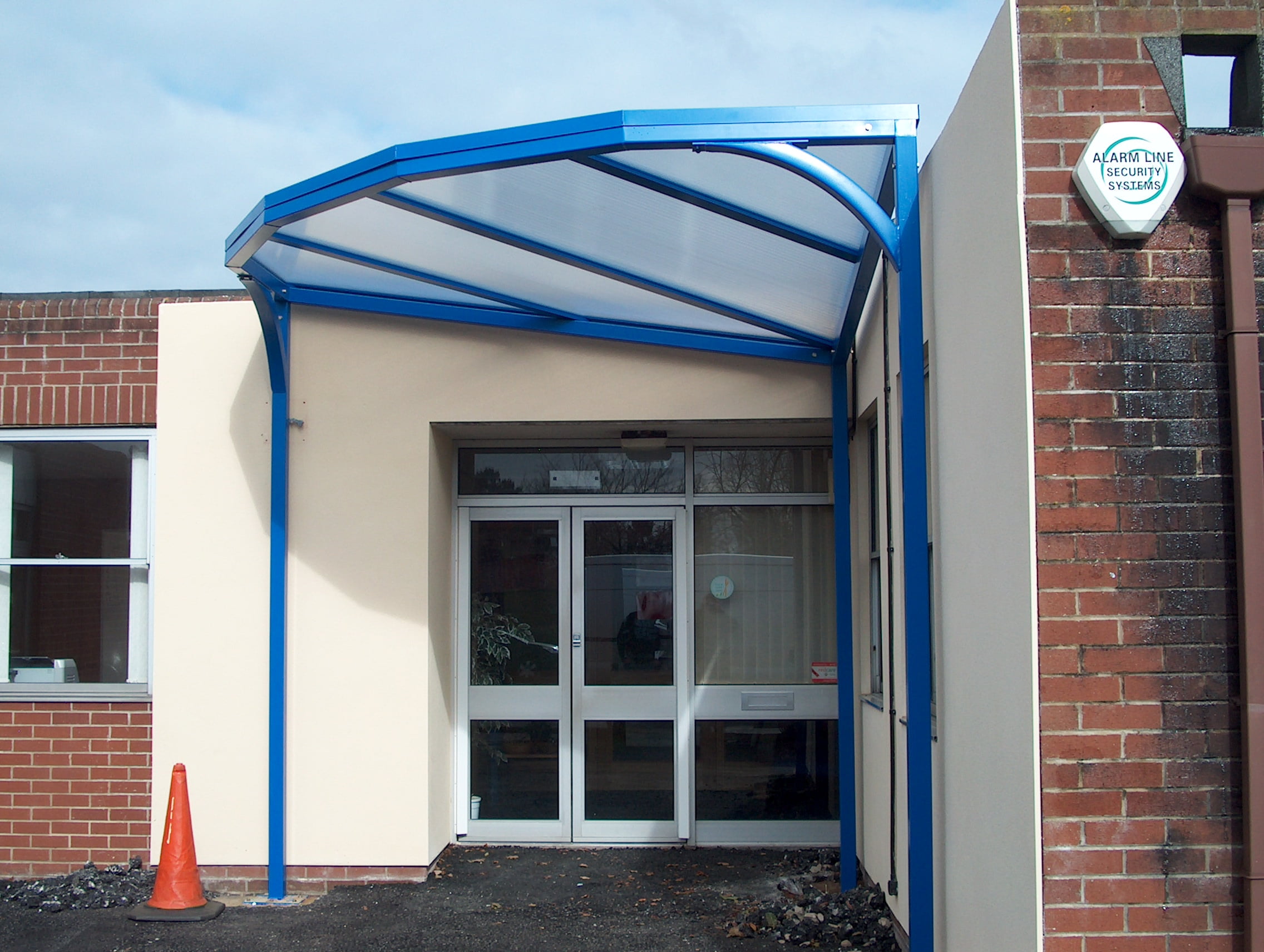

The Horncastle St Lawrence School
Fastlock Canopy
Project Description

Project: The Horncastle St Lawrence School

Location:  Horncastle, England

Main contractor: Naturalight Systems Ltd

Specification: 1NO    6.000 x 8.000m NLS dual-pitch 16mm FastLock structural steel canopy, constructed from 100 x 100 x 3mm steel box section uprights (8no), cross ties, ridge section and ring beam, 300 x 300 x 10mm base plates for bolting to concrete pads supplied by others, 1no gutter to one side of canopy with 2no downpipe outlet, all steelwork to be shot blasted, zinc primed to inter zinc 72, all polyester powder coated paint finished to BS 6496 colour Blue.

Glazing Specification

16mm FastLock glazing system, factory assembled interlocking panels with secondary water management including aluminium flashings to suit, glazed with 16mm UV protected triple-wall polycarbonate colour tint Opal.
