Huntingdon Youth Centre

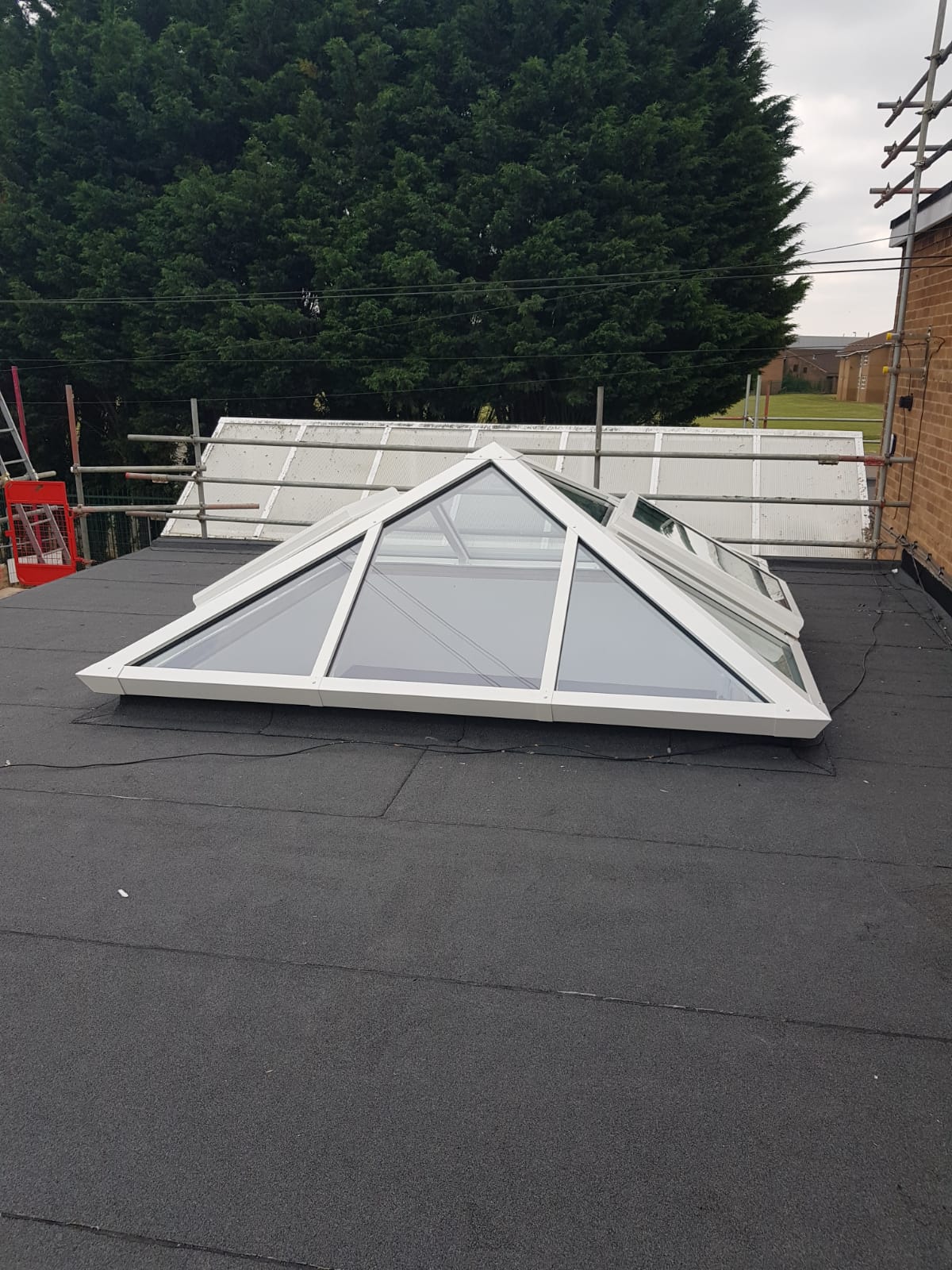

Naturalspan Glass Pyramid
Project Description

Project: Huntingdon Youth Centre

Location: Huntingdon, England

Main contractor: Naturalight Systems Ltd

Specification: 1No 3000mm x 3000mm overall size, NLS Pyramid NaturalSpan glass rooflight. Each face comprising of 3no shaped bays. Aluminium glazing bar gasketed system with secondary water management including aluminium flashings to suit and 2no electric 230v opening vents (wiring and controls by others) All polyester powder coated paint finish to BS 6496 colour tint White. Unit fixing onto a prepared upstand supplied by others

Glazing Specification
28.4mm double glazed low e glass units comprising of 6mm clear toughened outer, 6.4mm clear laminated inner with 16mm argon cavity.
