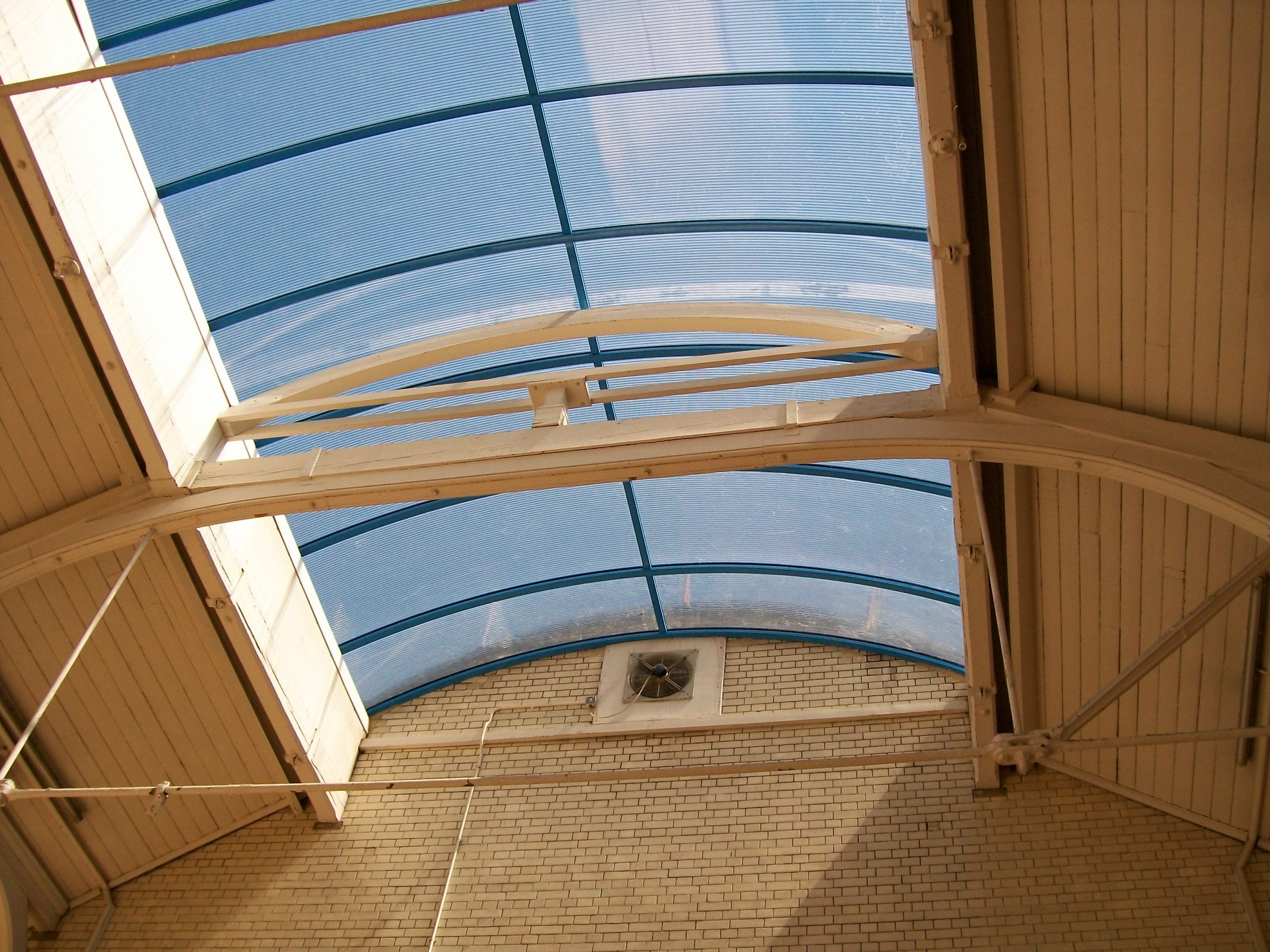

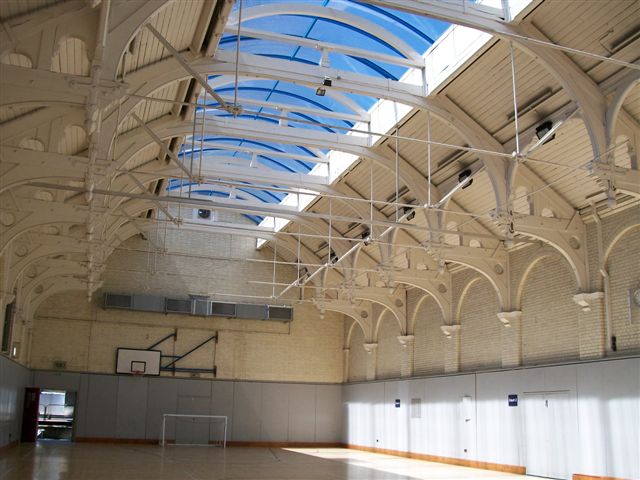

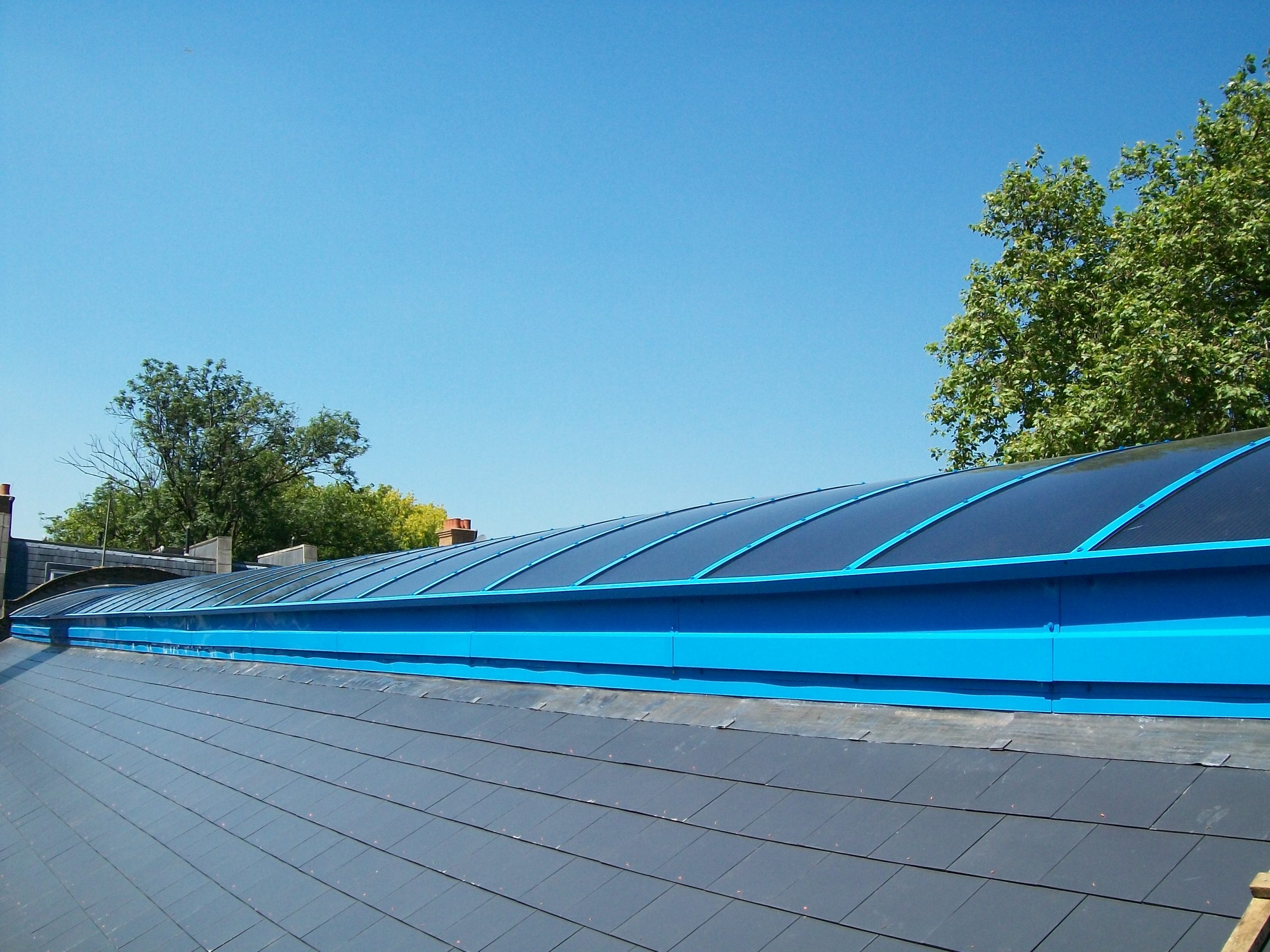

Kings Hall Leisure Centre
Naturalspan Barrel vault
Project Description

Project: Kingshall Leisure Centre

Location: Horsham, England

Main contractor: WAA Roofing Ltd

Specification: 1NO 29.8m x 5.2m x 0.80m high Overall size kerb (size to be confirmed) NLS NaturalSpan barrel vault rooflight with vertically glazed gable ends, aluminium glazing bar gasketed system with secondary water management including cill adapter condensation tray, aluminium cover flashing along both sides situated at the base of the unit approx 0.35m deep and 1no expansion joint halfway along, all polyester powder coated paint finished to BS 6496 colour tint Blue, fixing to the existing structure provided by others.

Glazing Specification

16mm UV protected triple-wall polycarbonate colour tint Bronze
