Lister Community School – Phase 1
Naturalspan Canopies
Project Description

Project: Lister Community School

Location: London, England

Main contractor: Laing O’Rourke Construction

Specification:

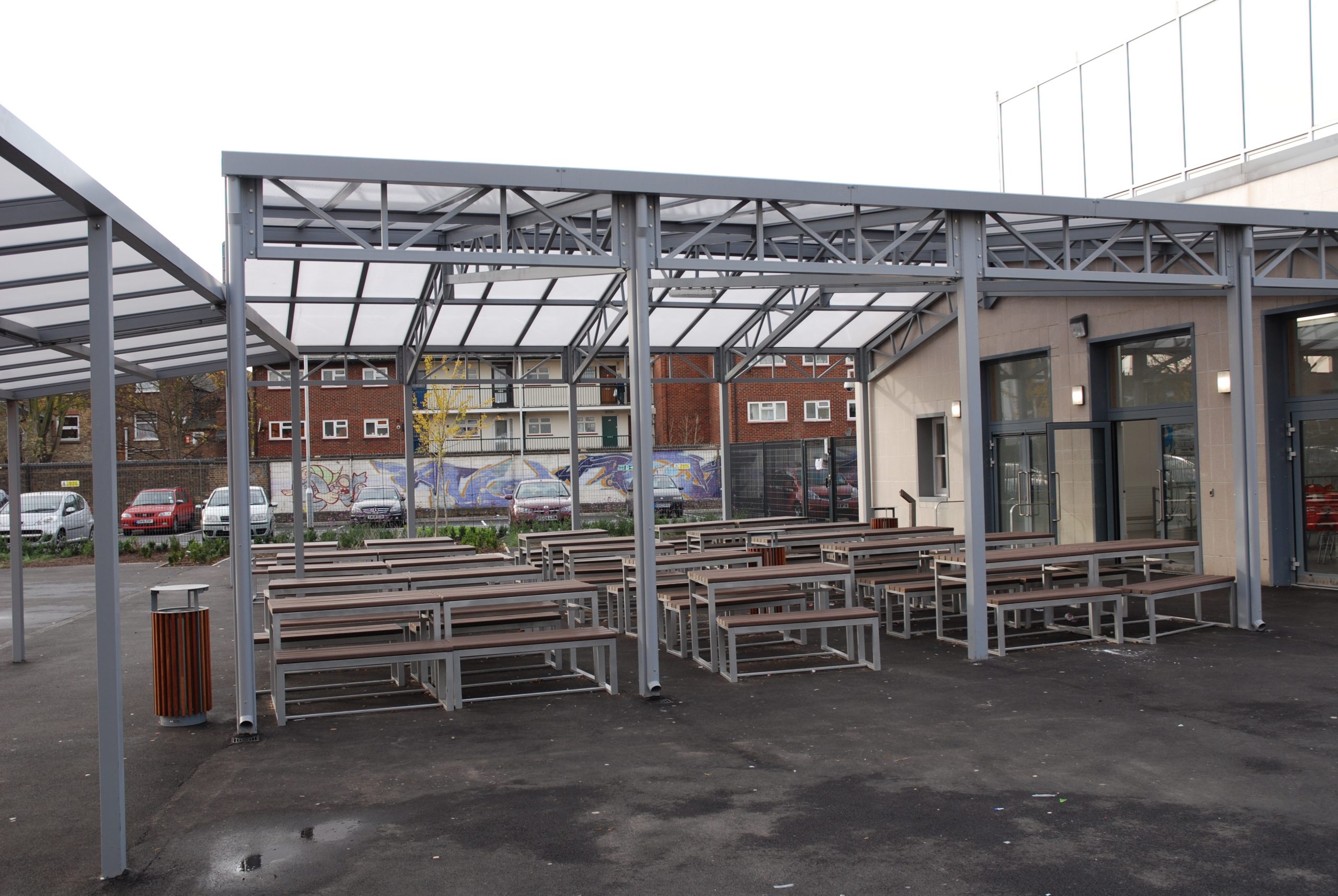

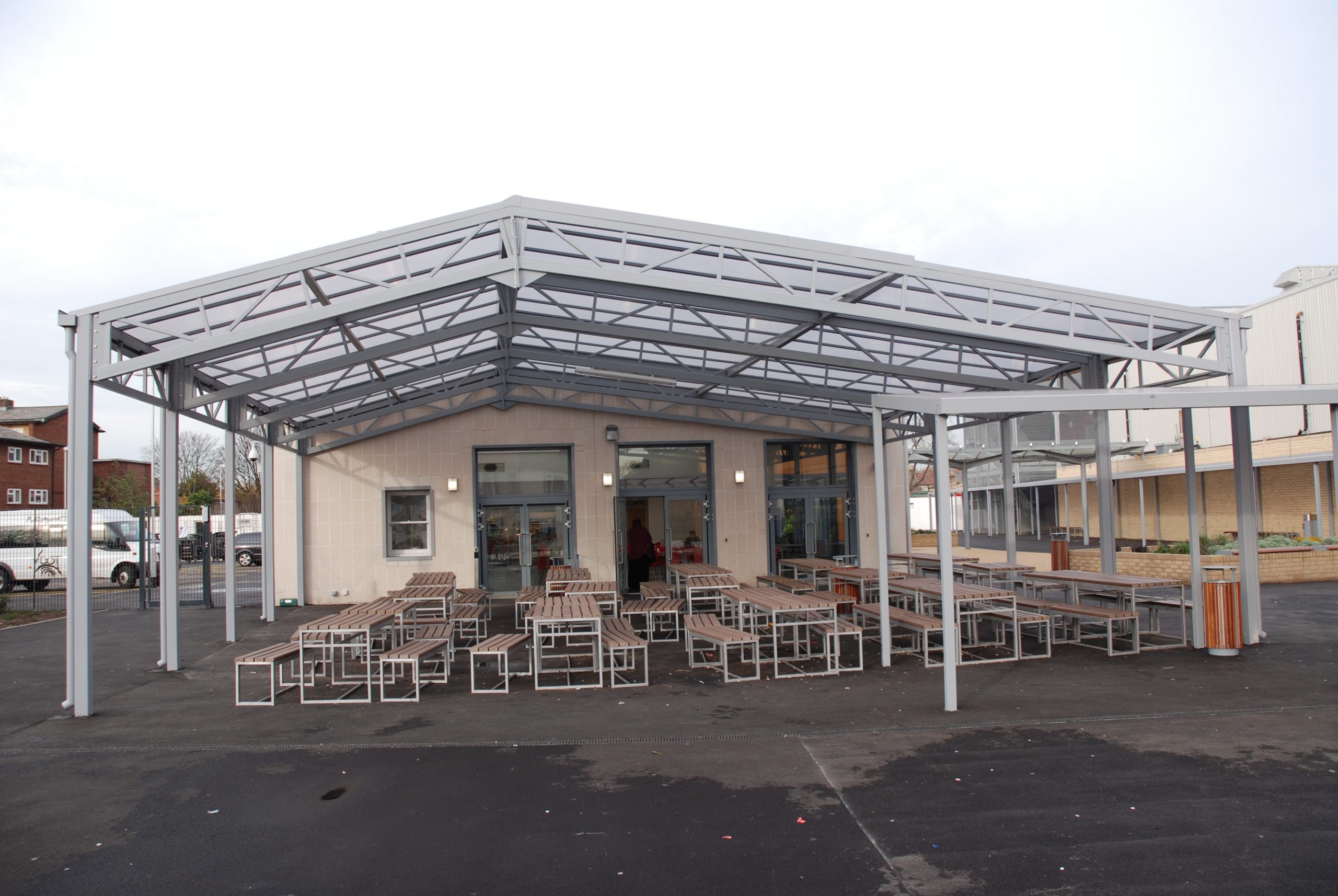

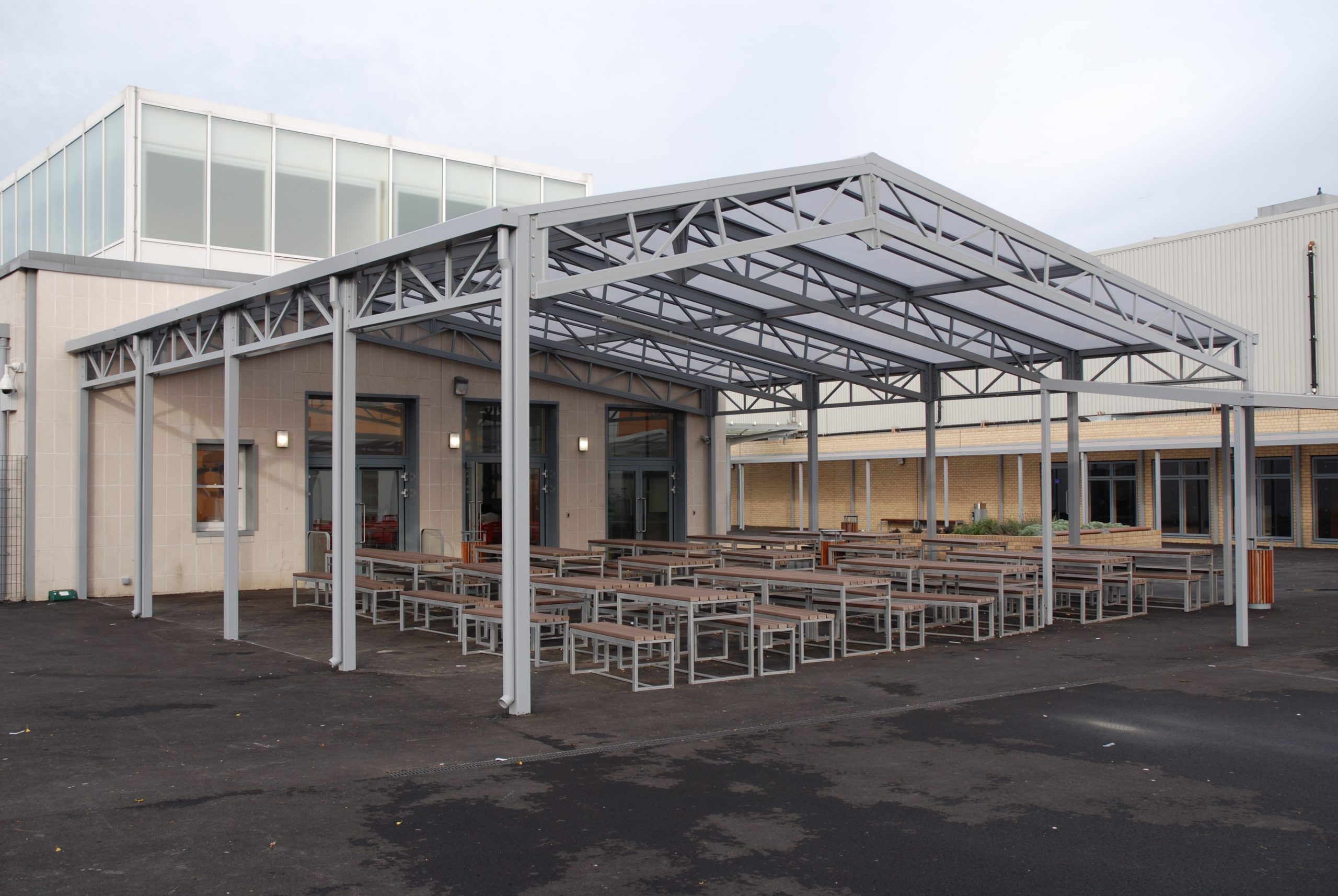

NLS NaturalSpan Steel Canopy

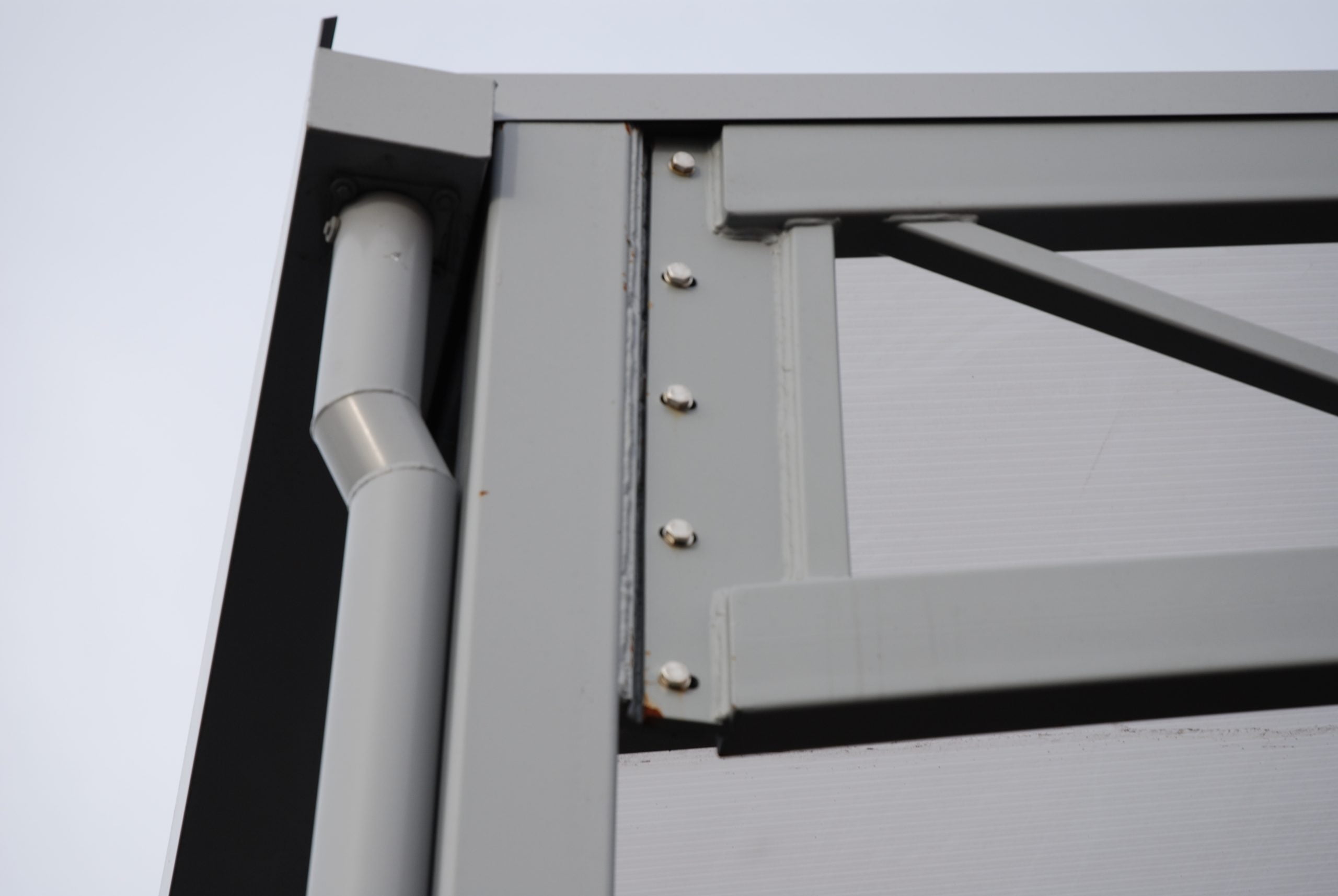

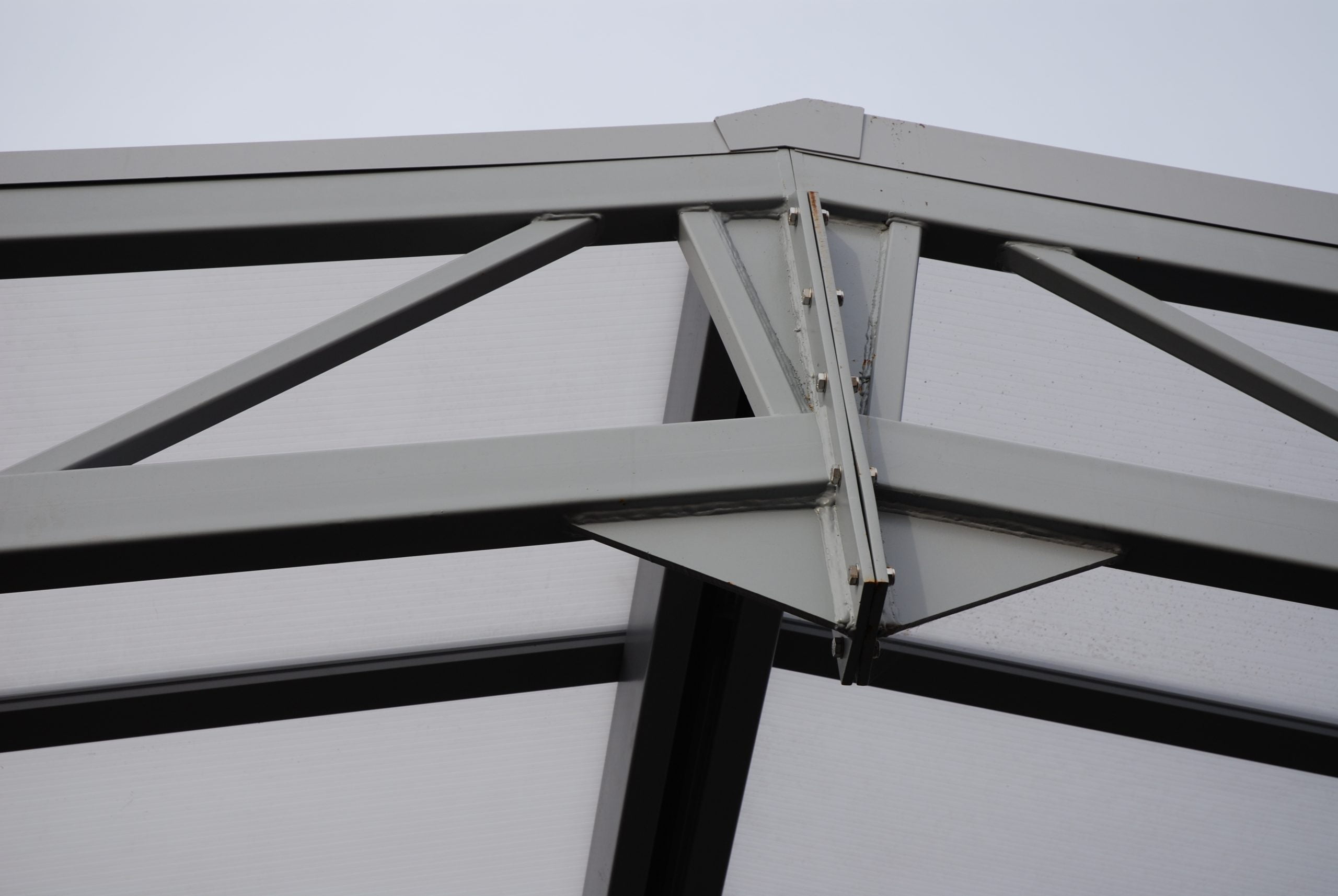

1No 12000mm x 11800mm & 14000mm x 3000mm & 11200mm x 6000mm NLS structural steel canopies and walkway, constructed from 80 x 80 x 3mm steel box section uprights, cross ties and ring beam, 300 x 300 x 10mm base plates for bolting to concrete pads supplied by NLS, gutters to two sides of canopy with 2no downpipe outlets. Canopy supplied with 2No cable support trays. All steelwork to be shot blasted, zinc primed to inter zinc 72, all polyester powder coated paint finish to BS 6496 colour Grey.

Glazing Specification

Canopies: 11500mm x 11100mm & 11200mm x 6000mm, 16mm FastLock asymmetric Glazing System factory assembled interlocking panels with secondary water management including aluminium flashings to suit, glazed with 16mm UV protected triple-wall polycarbonate colour tint Opal.

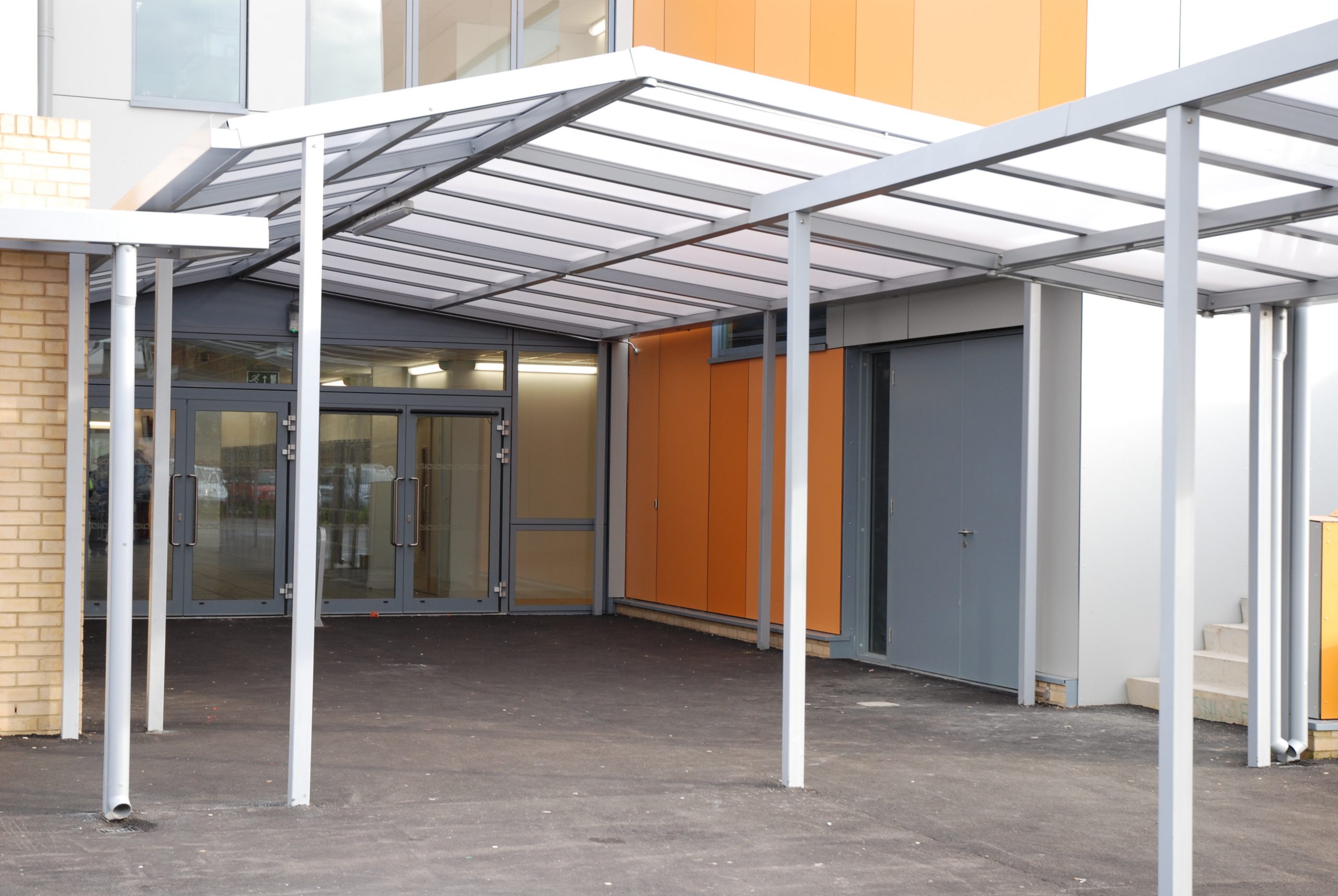

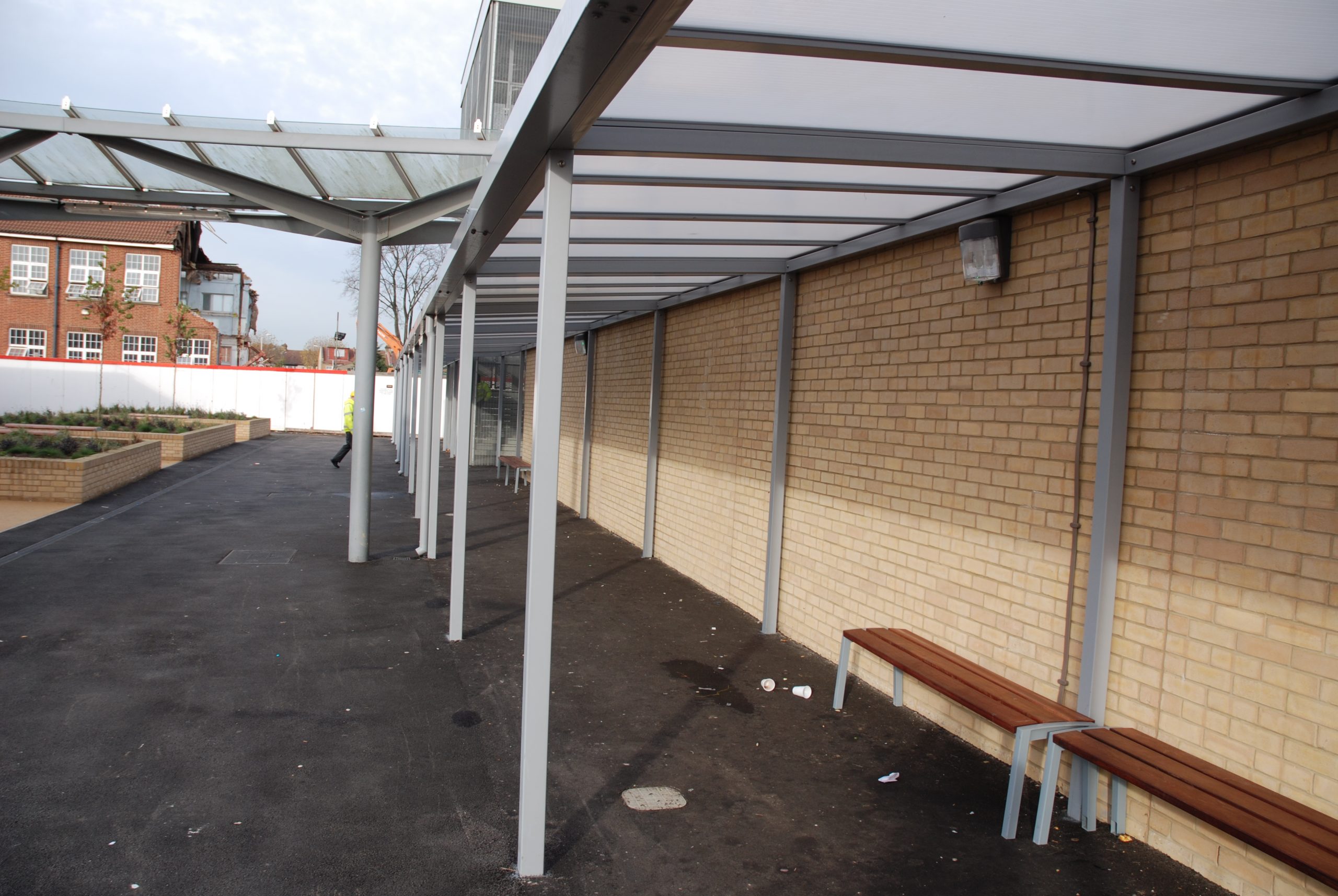

NLS Steel Canopy with curved roof

1No 6000mm x 6000mm + 46000mm x 2230mm overall size NLS structural steel canopy, constructed from 80 x 80 x 3mm steel box section uprights, cross ties and ring beam, 300 x 300 x 10mm base plates for bolting to concrete pads supplied by NLS, 2no gutters to two sides of canopy with 2no downpipe outlets, all steelwork to be shot blasted, zinc primed to inter zinc 72, all polyester powder coated paint finished to BS 6496 colour Grey.

Glazing Specification

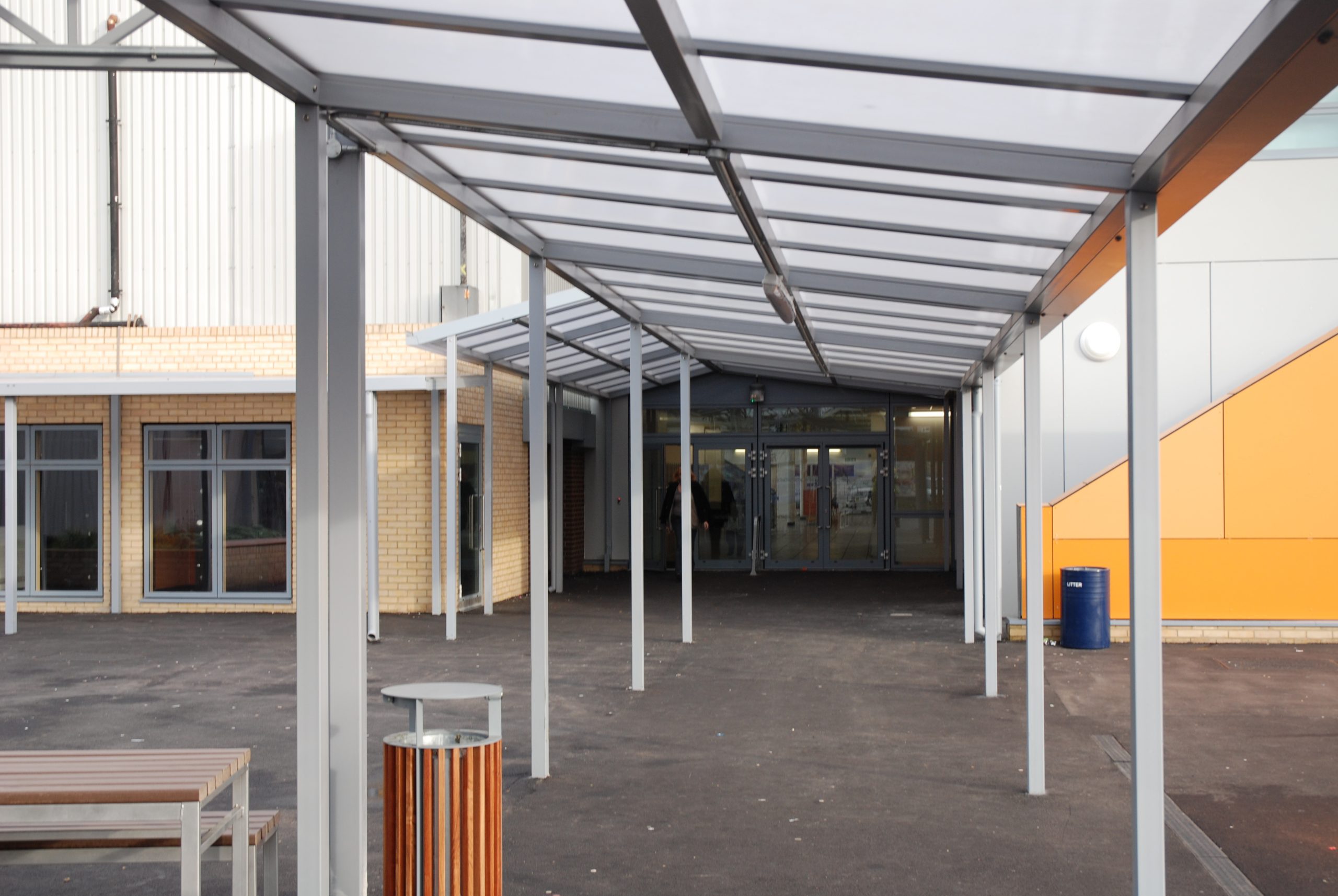

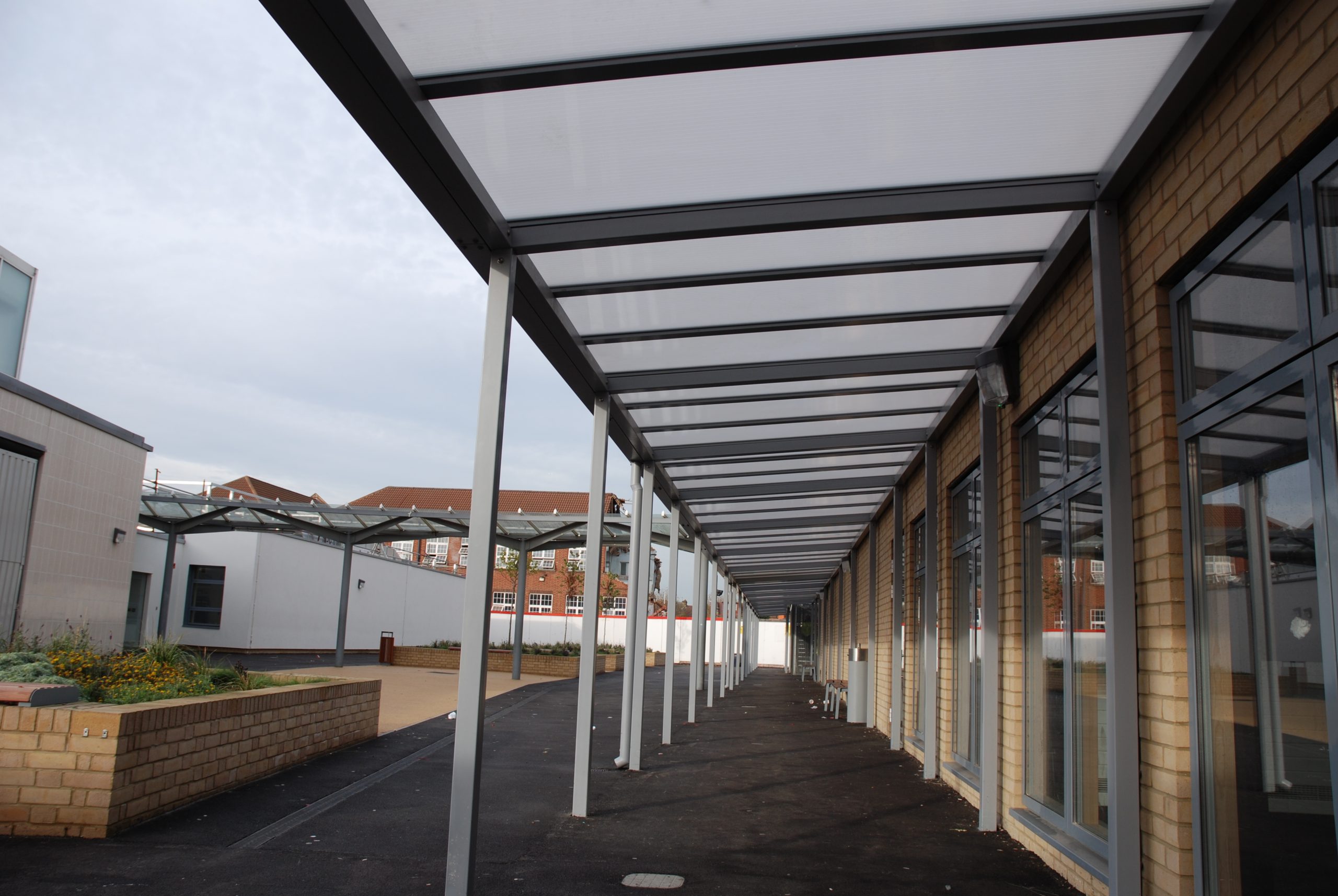

Walkway: 6000mm x 6000mm + 46000mm x 2230mm overall size, 16mm FastLock Mono-Pitch Glazing System factory assembled interlocking panels with secondary water management including aluminium flashings to suit, glazed with 16mm UV protected triple-wall polycarbonate colour tint Opal.
