M.E.C.D Manchester Engineering Campus Development
Naturalspan mono-pitch
Project Description

Project: M.E.C.D

Location: Manchester, England

Main contractor:  Mac Roofing & Contracting

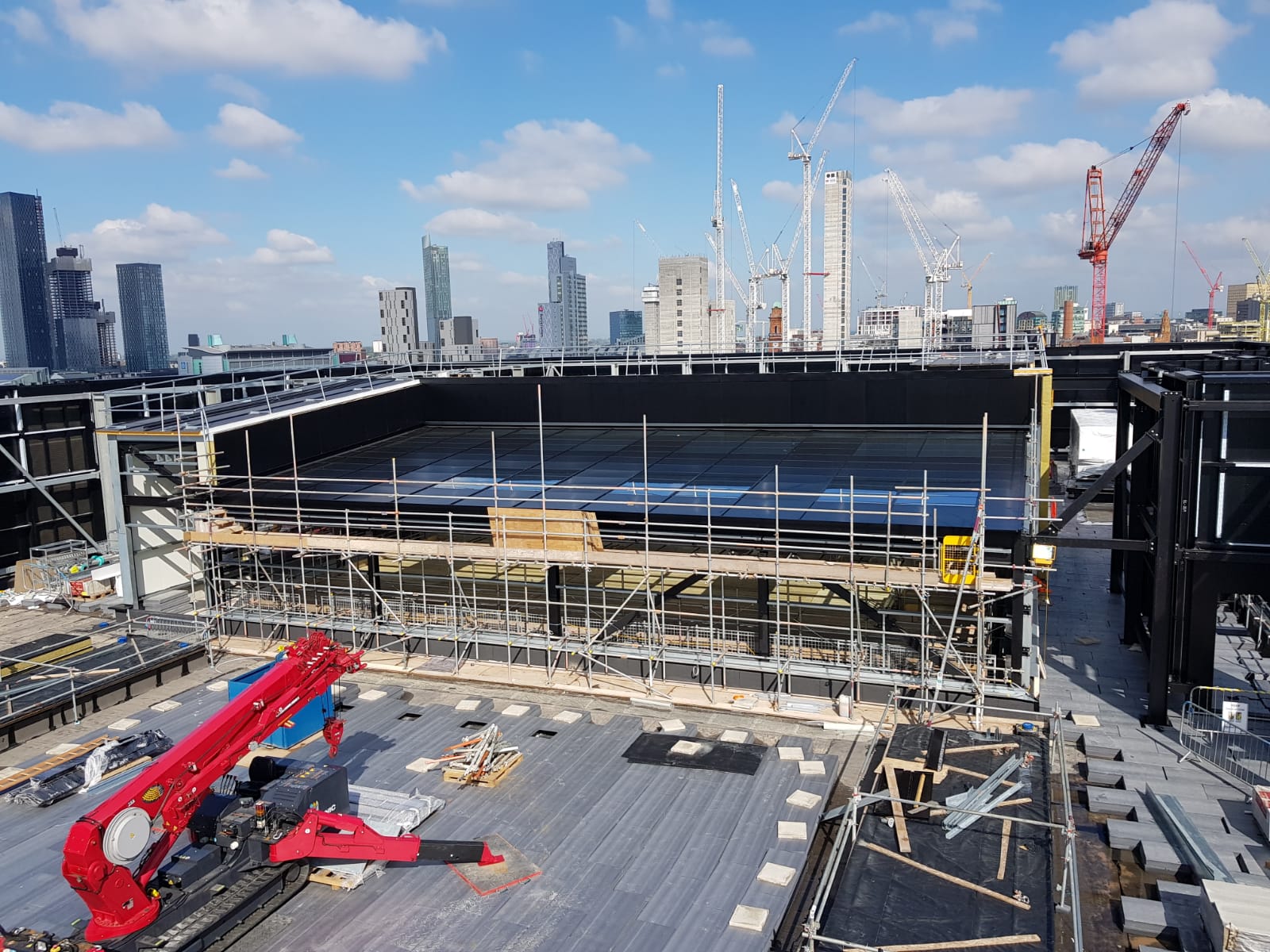

Specification4No 21200mm x 10930mm overall size NLS Mono-pitch NaturalSpan glass rooflight, aluminium glazing bar gasketed system with secondary water management including aluminium flashings to suit. The unit comprised of all bays fixed. All polyester powder coated paint finished to BS 6496 colour tint Black. Fixing to steel support structure supplied by others.

Glazing Specification

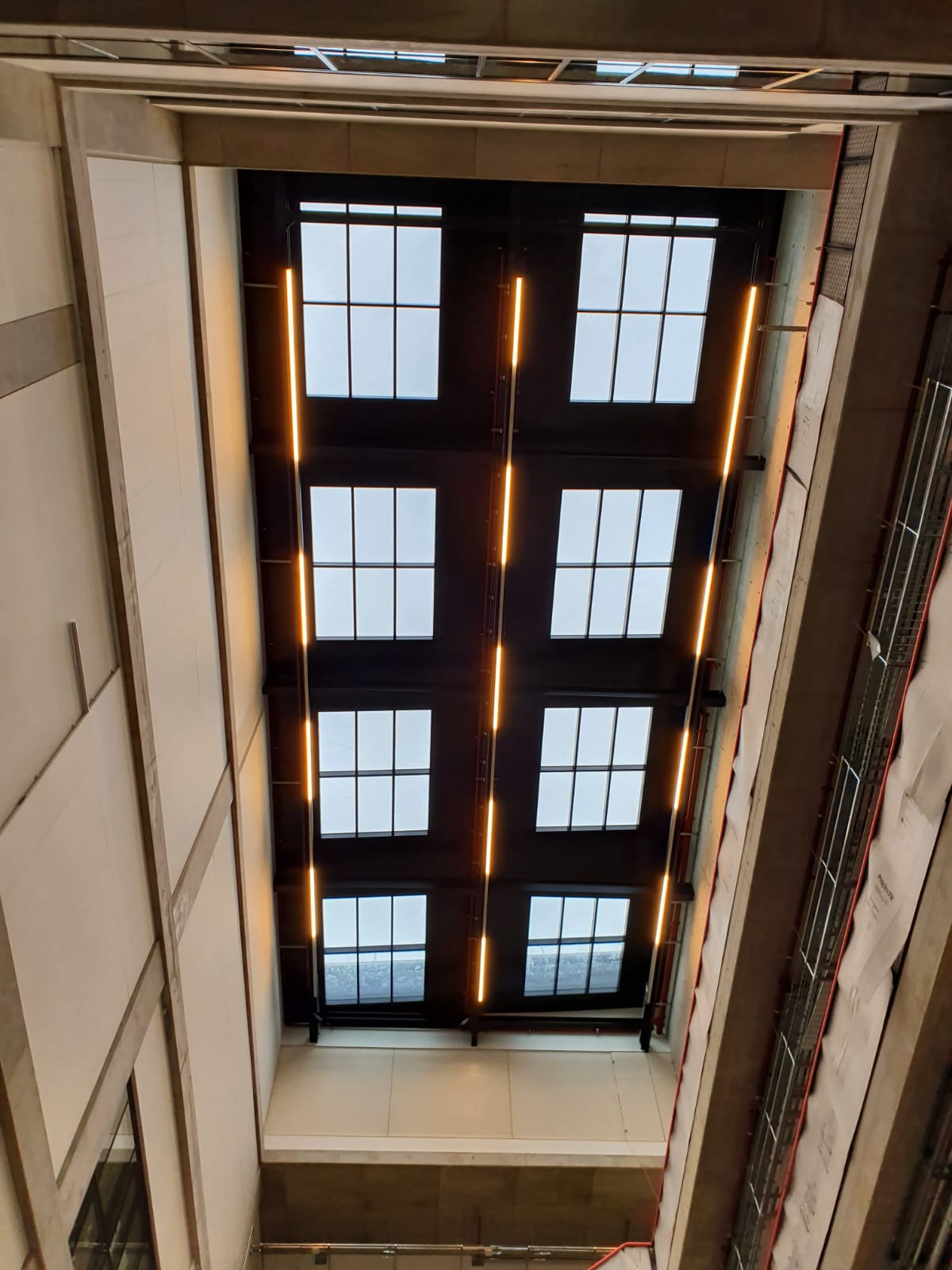

Pattern as supplied drawing, glazed with:-

Clear – 78m²

32.8mm double glazed low e glass units comprising of 8mm SN70/35 heat  toughened outer, 16mm argon cavity and 8.8mm clear laminated inner

Obscure– 147m²

Aluminium insulated panels, polyester powder coated paint finished to BS 6496 colour tint T.B.C.
