Mithras House, Brighton University
Naturalspan Barrel vault
Project Description

Project: Mithras House

Location: Brighton, England

Main contractor: CRC Ltd

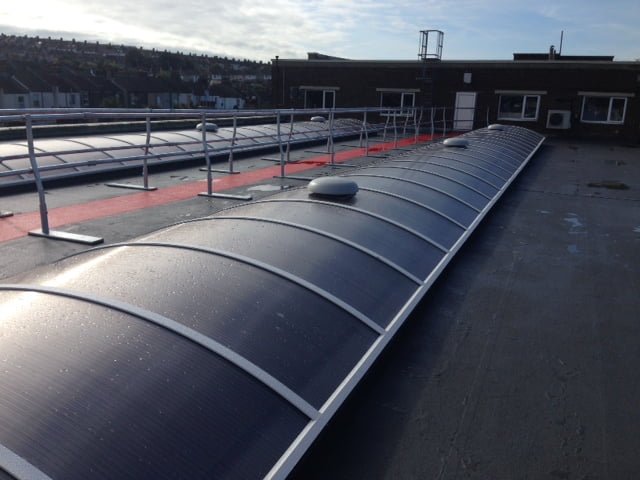

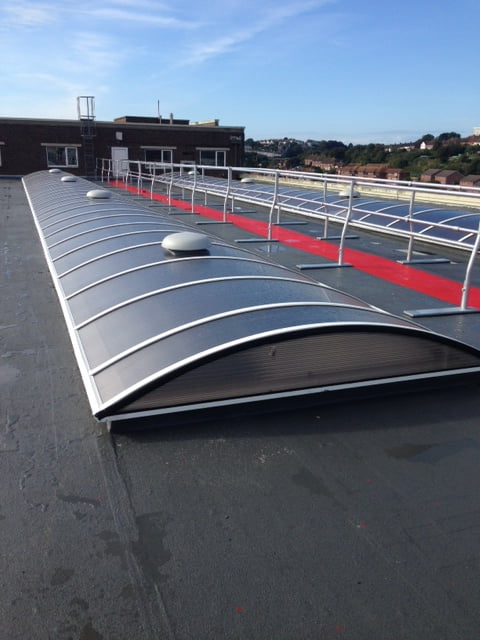

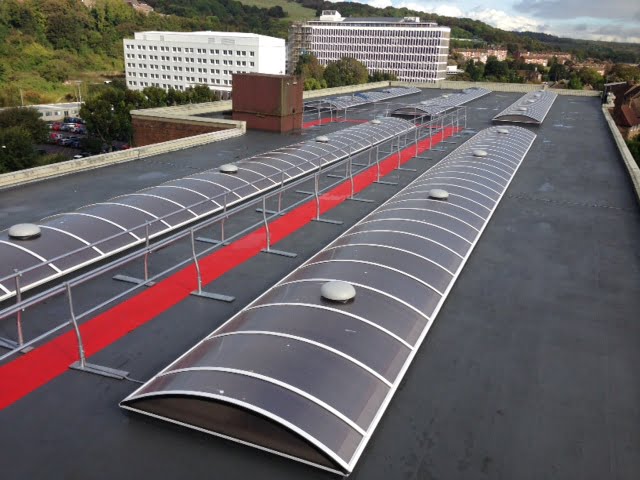

Specification: 4No 27250mm x 2550mm, 1No 22700mm x 2550mm Overall kerb size, NLS NaturalSpan barrel vault rooflight with vertically glazed 530mm high gable ends, aluminium glazing bar gasketed system with secondary water management including cill adapter condensation tray. Unit fitted with 4No 12’’ Vortice fans (all wiring and control by others).  All aluminium polyester powder coated paint finished to BS 6496 colour tint White, fixing onto a prepared upstand provided by others.

Glazing Specification

16mm UV protected triple-wall polycarbonate colour tint bronze
