Project: Pallister Park Primary School
Location: Middlesbrough, England
Main contractor: Naturalight Systems Ltd

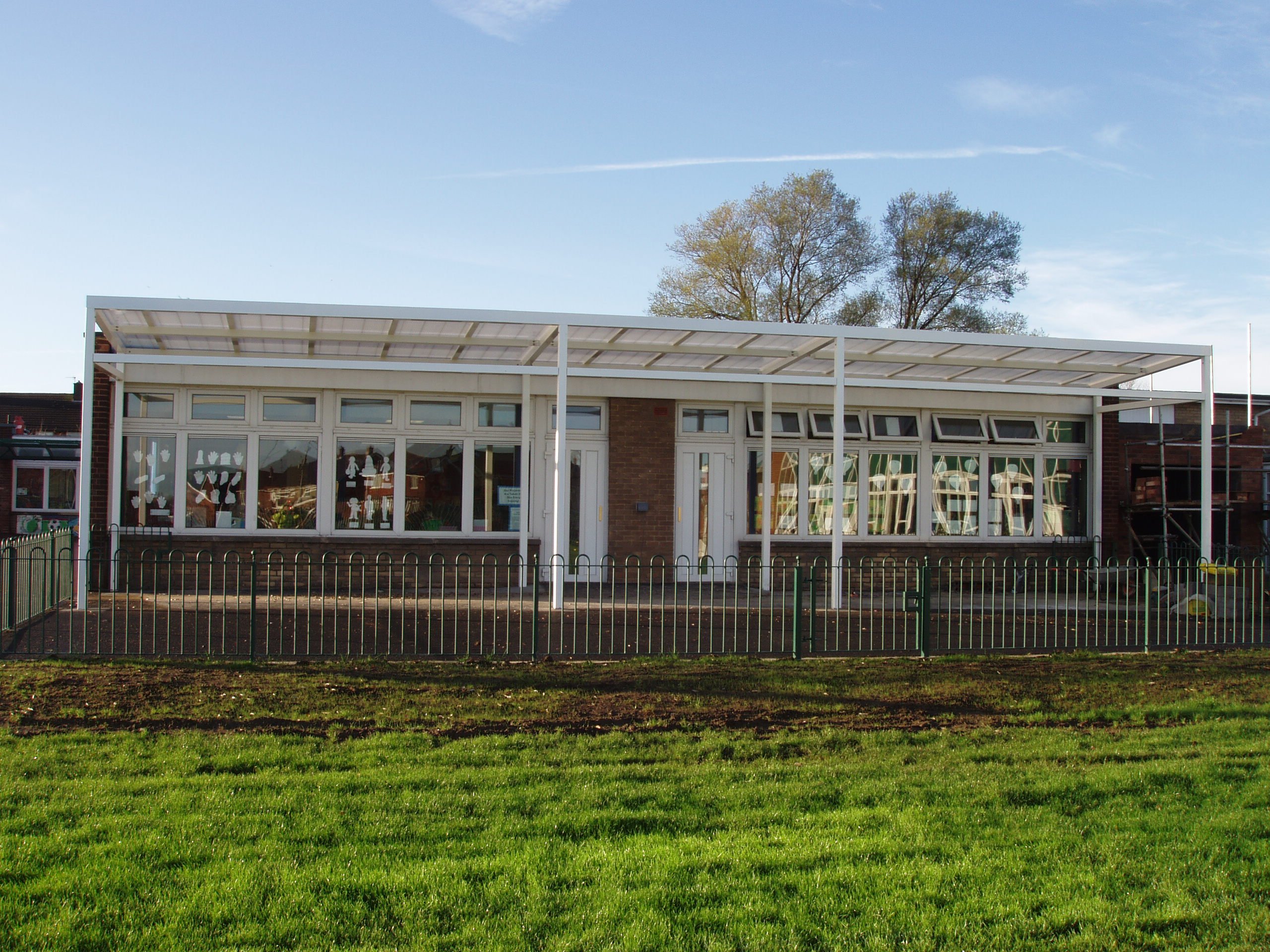

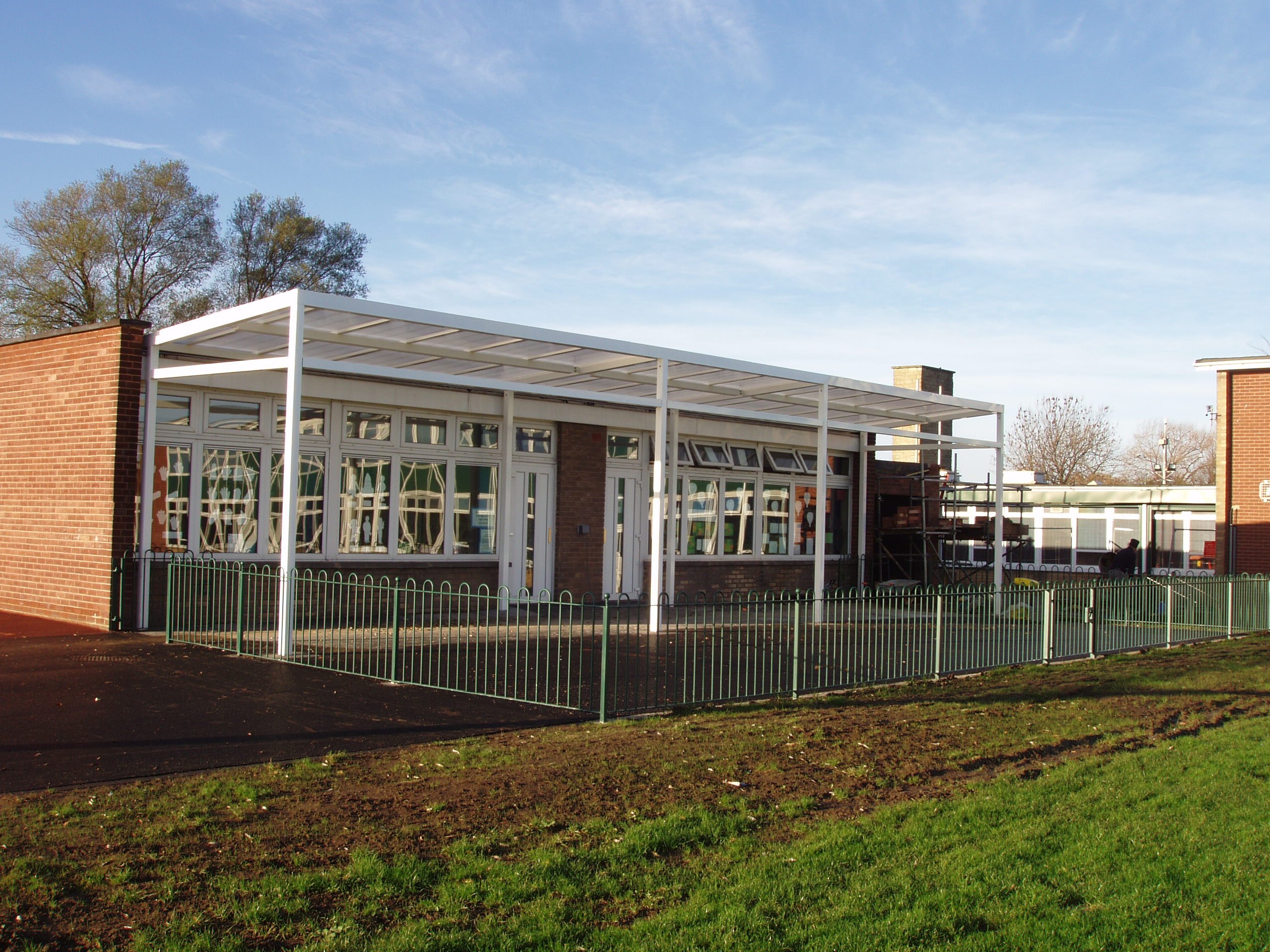

Specification: 1No 10640mm Length x 5200mm wide x 3700mm high at the rear of canopy with a minimum of 5º fall to the front, NLS mono-pitch 25mm FastLock structural steel canopy, constructed from 100 x 100 x 5mm steel box section uprights (4no), steel box section cross ties and support framework, 1no aluminium gutter to the front of canopy with 1no downpipe, 300 x 300 x 10mm base plates for bolting to concrete pad supplied by others. All steelwork to be shot blasted, zinc primed to inter zinc 72, all polyester powder coated paint finish to BS 6496 colour White.
Glazing Specification

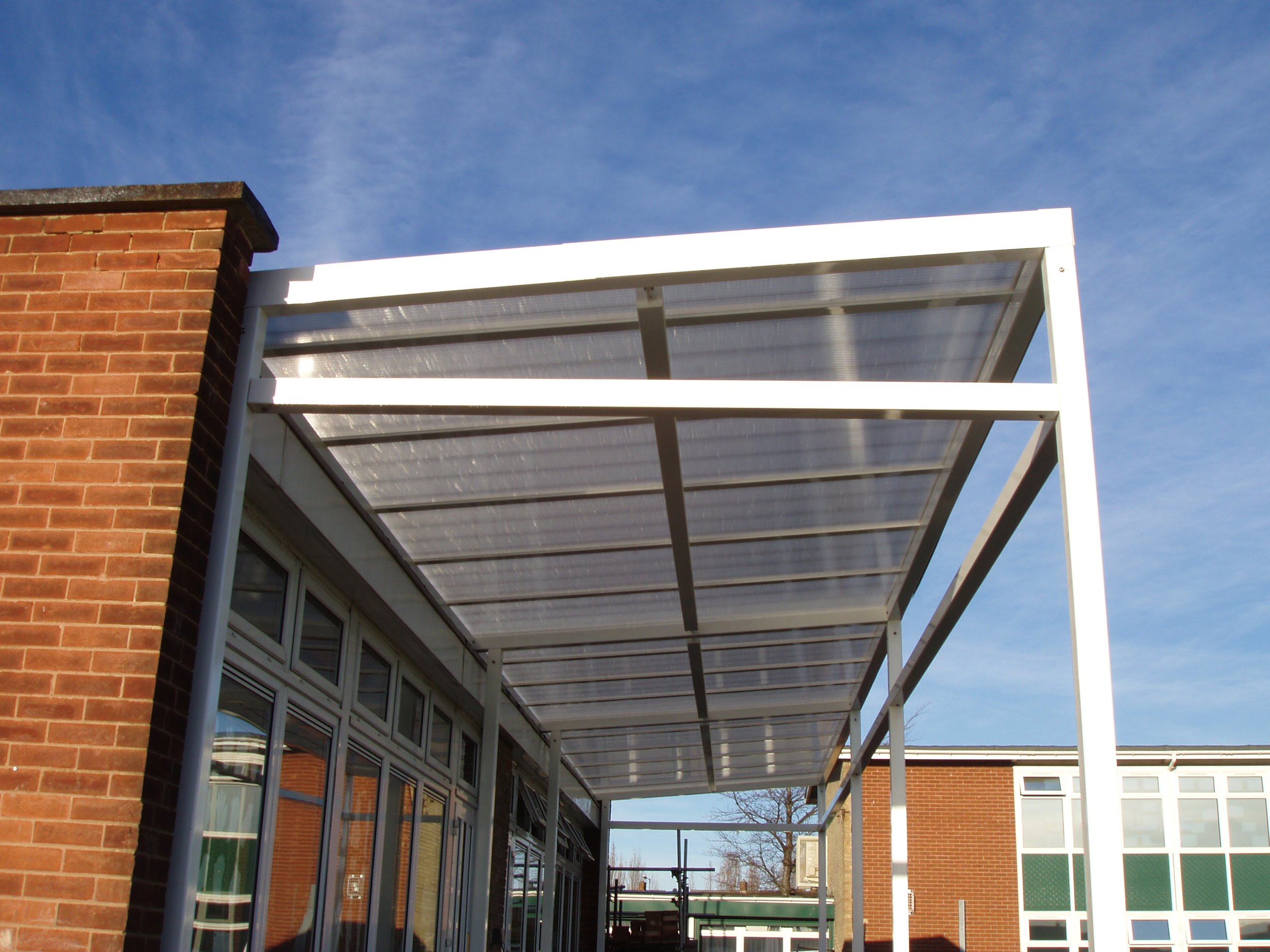

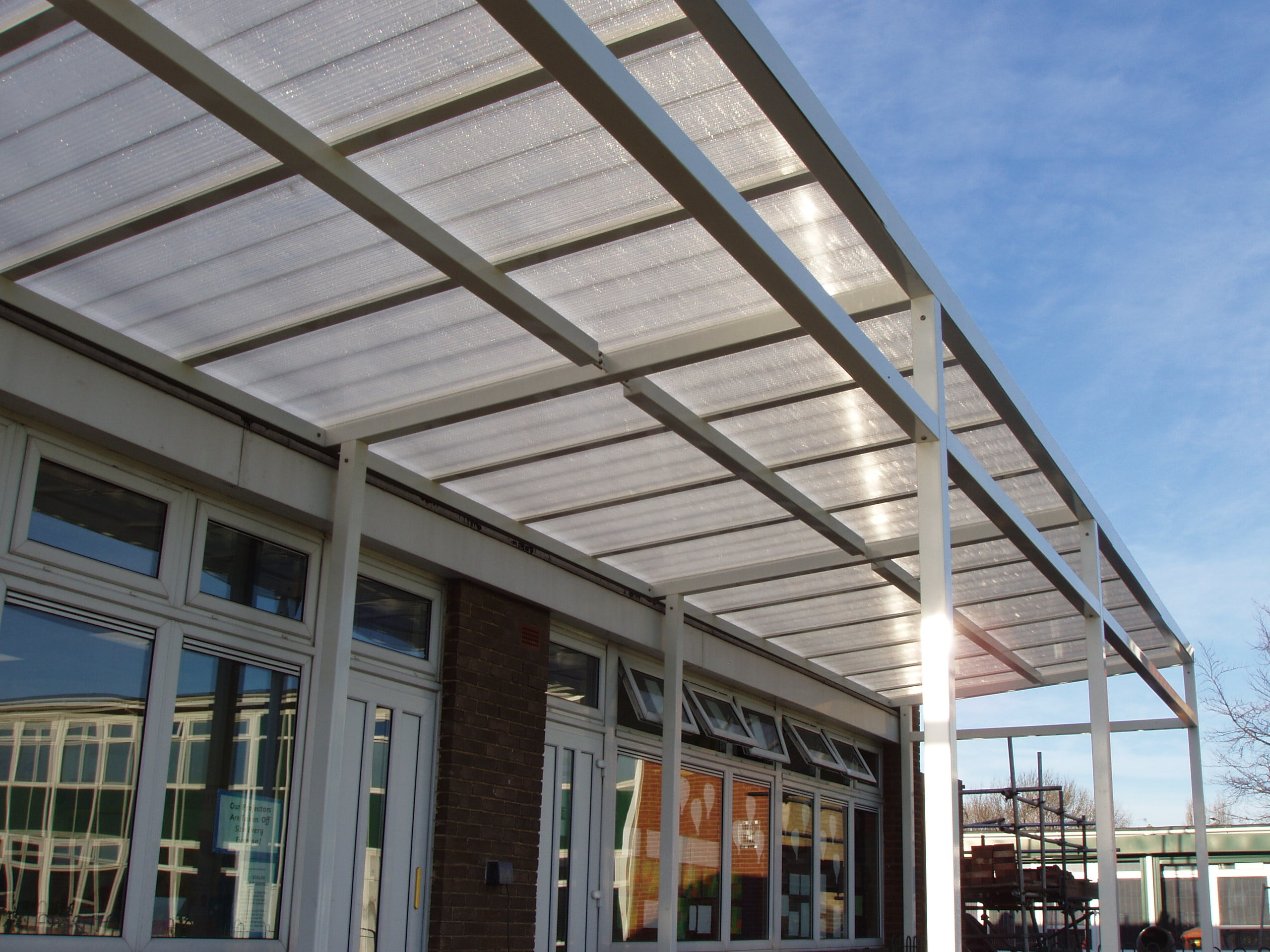

25mm FastLock glazing system to the roof of canopy, factory assembled interlocking panels with secondary water management including aluminium flashings to suit, glazed with 25mm UV protected multi-wall polycarbonate colour tint Bronze. (glazing achieves a Class B non-fragile rating)
