Project: Private Residence Mono-Pitch

Location: Worcestershire, England

Main Contractor: Weatherark Ltd

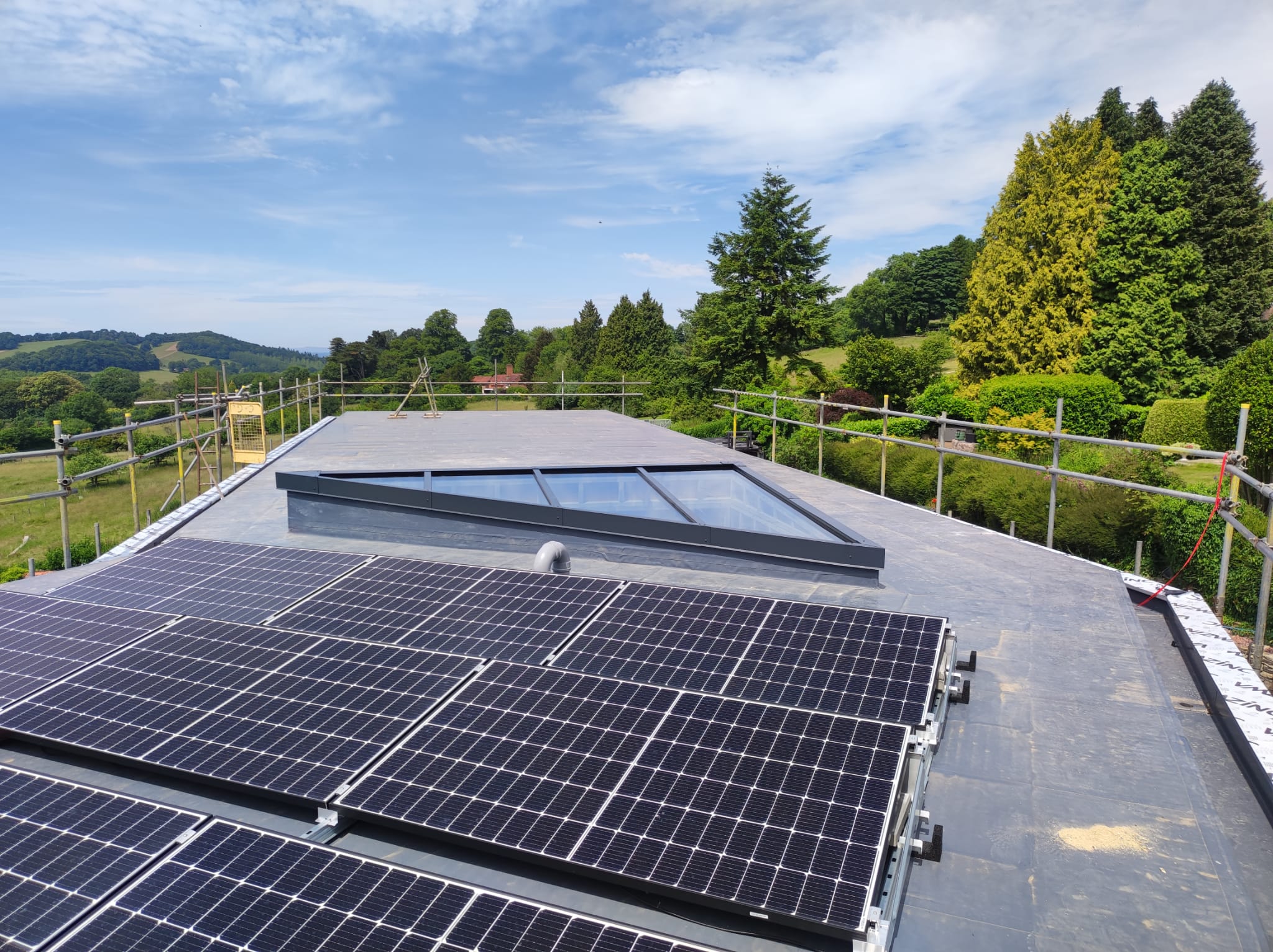

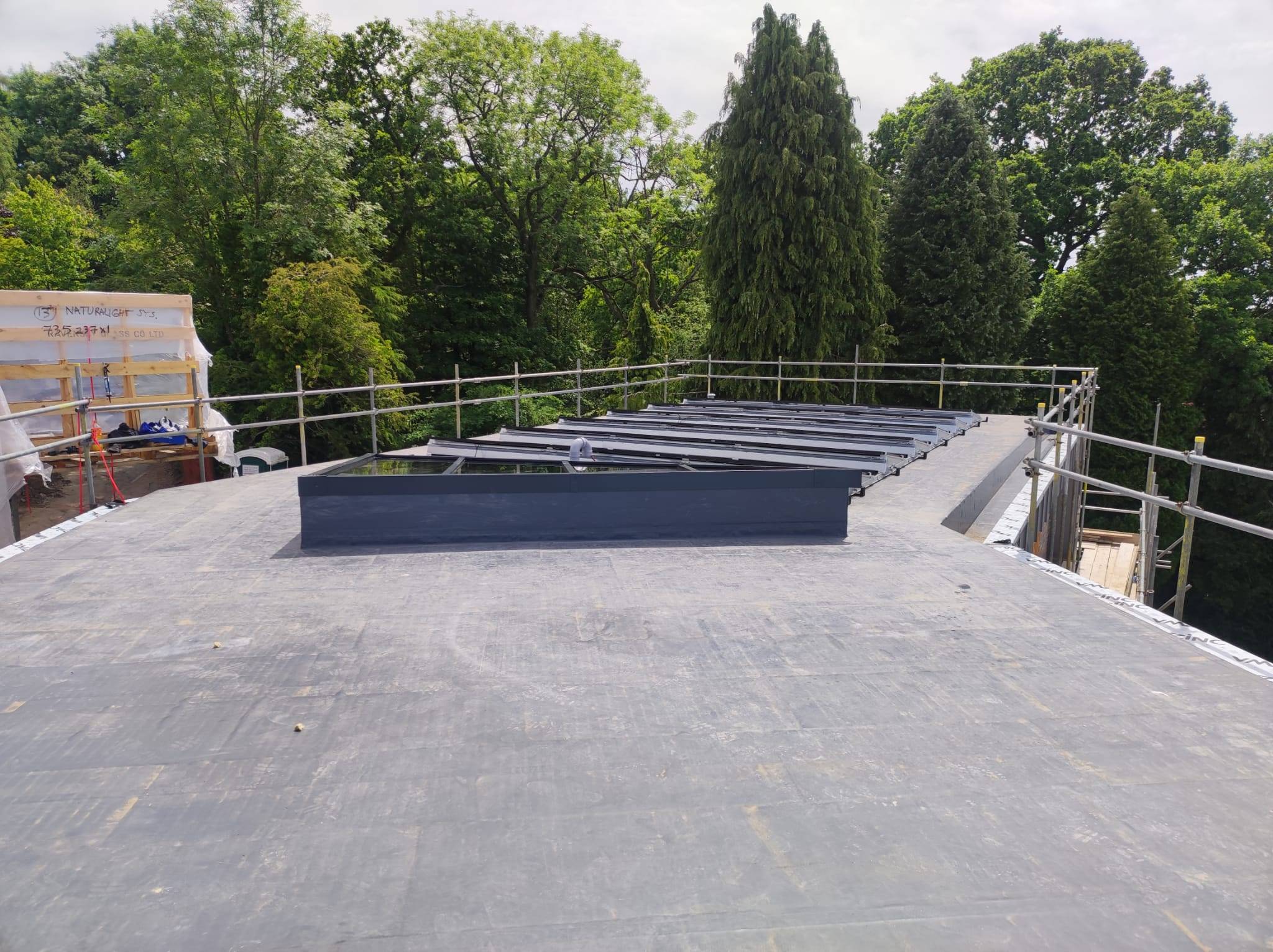

Specification: Mono-Pitch NaturalSpan Triangular Glass Rooflight

1No 2,680mm x 4,660mmx 3,830mm Roof Opening Size. Mono-Pitch Naturalspan Triangular Glass Rooflight, Aluminium Glazing Bar Gasketed System with Secondary Water Management Including Aluminium Flashings to Suit, All Polyester Powder Coated Paint Finished to BS 6496 Colour Tint Anthracite Grey. Unit Fixing to a Prepared Upstand Supplied by Others. Unit to be Split into Approximately 4 No. 1,000mm Bays. Appropriate Glass Lifting Equipment is Required on Site, Provided by Others.

Glazing Specification
32.8mm Double Glazed Low ‘E’ Glass Units Comprising of 8mm Clear Toughened Outer, 8.8mm Clear Laminated Inner with 16mm Argon Filled Cavity.
