Private Residence – Newcastle
NaturalSpan Ridgelight, Naturalspan Pyramid
Project Description

Project: Private Residence

Location: Gosforth, Newcastle-upon-Tyne, England

Main contractor: Naturalight Systems Ltd

Specification:

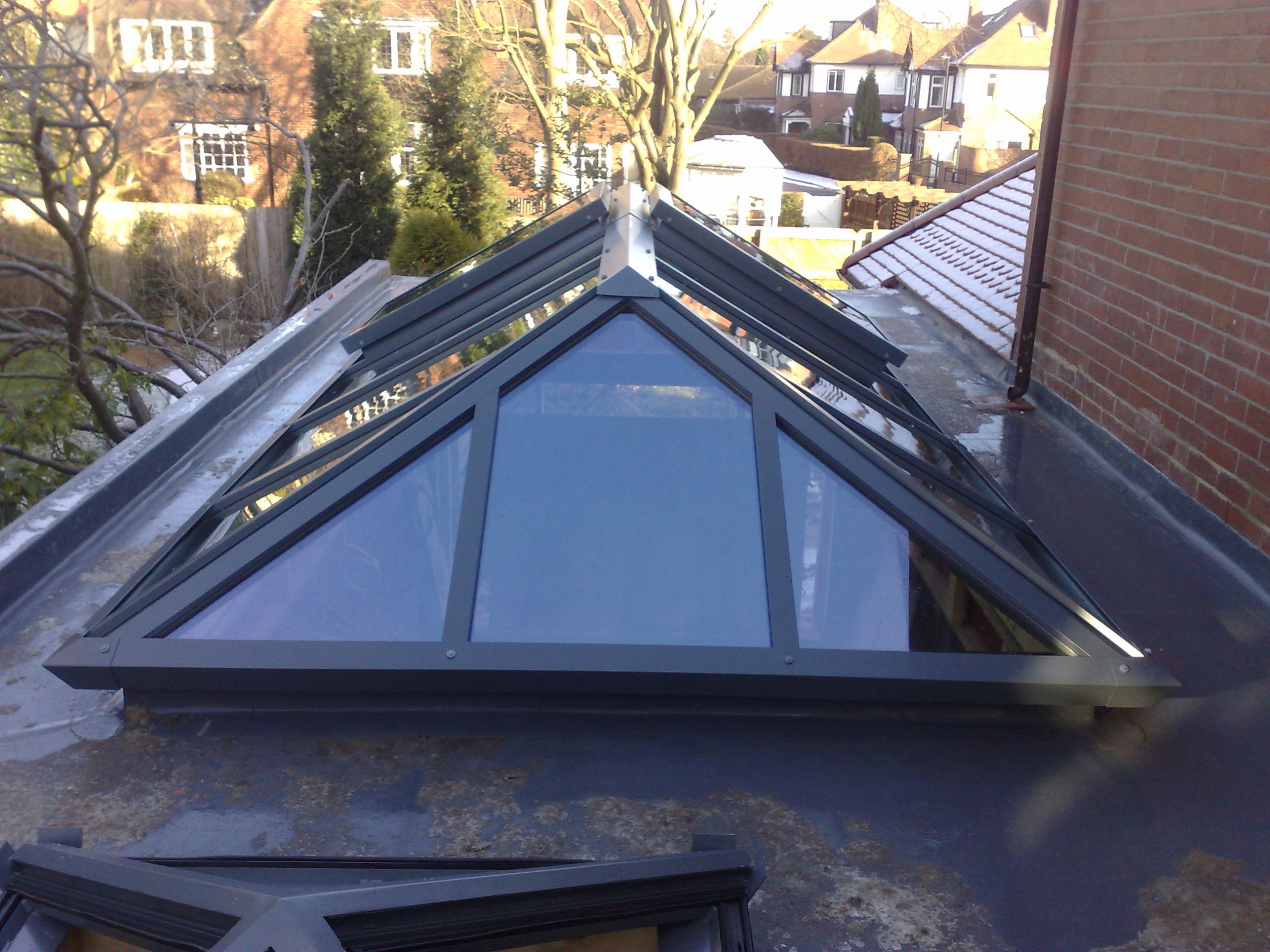

NLS NaturalSpan Glass Ridgelight

1NO    5200mm x 2800mm Roof Opening Size, NLS NaturalSpan glass ridgelight with hipped ends, aluminium glazing bar gasketed system with secondary water management including aluminium flashings to suit, fitted with 2No opening bays electrically operated by chain motors (all wiring by others), all aluminium polyester powder coated paint finished to BS 6496 colour Anthracite Grey. To be fitted to prepared upstand supplied by others.

Glazing Specification

24.4mm double glazed ‘K’ glass units comprising of 6mm clear toughened Activä outer, 6.4mm clear laminated inner with 12mm air cavity.

NaturalSpan  Pyramid Glass Rooflight

1NO    1000 x 1000mm Roof Opening Size, NLS NaturalSpan Pyramid glass rooflight, aluminium glazing bar gasketed system with secondary water management including aluminium flashings to suit, fitted with 1No opening bay electrically operated by chain motor (all wiring by others), all aluminium polyester powder coated paint finished to BS 6496 colour, Anthracite Grey.

Glazing Specification

24.4mm double glazed ‘K’ glass units comprising of 6mm clear toughened Activä outer, 6.4mm clear laminated inner with 12mm air cavity.
