Project: Private Residence

Location: Linton, Northumberland, England

Main contractor: Naturalight Systems Ltd

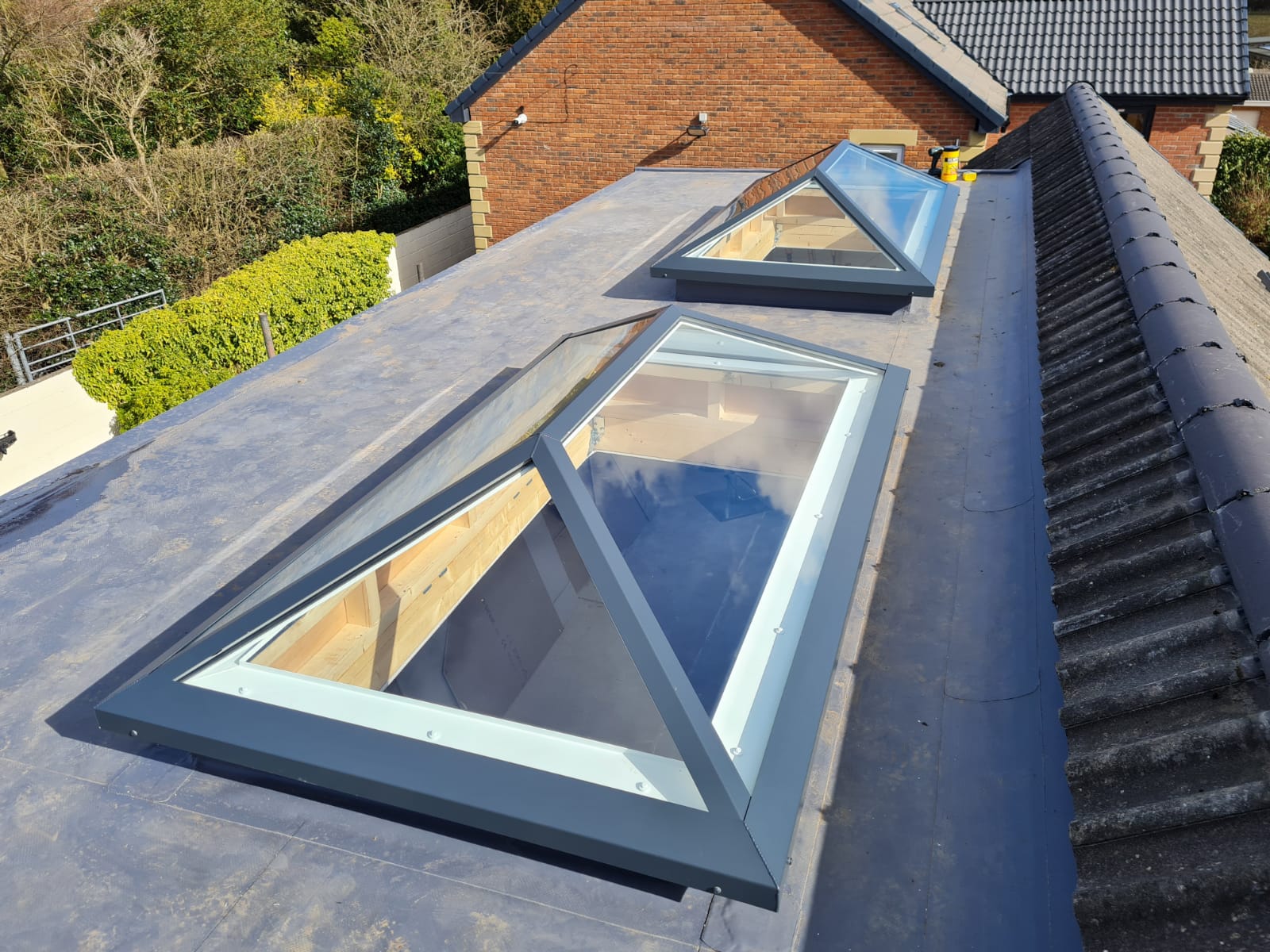

Specification: 2no 1200mm x 2800mm overall upstand size. Glass Ridgelight comprising of 4no bays (1no bays per
each short side and 1no bays per each long side) aluminium glazing bar frame with gaskets including
aluminium external hip, ridge, and perimeter flashings. All aluminium polyester powder coated paint
finished to BS 6496 colour tint Anthracite Grey. Unit fixing to a prepared upstand supplied by others.
Glazing Specification
28mm double glazed glass units, consisting of 6mm solar controlled toughened outer, 16mm argon
cavity, 6mm toughened inner.
