Private Residence – London

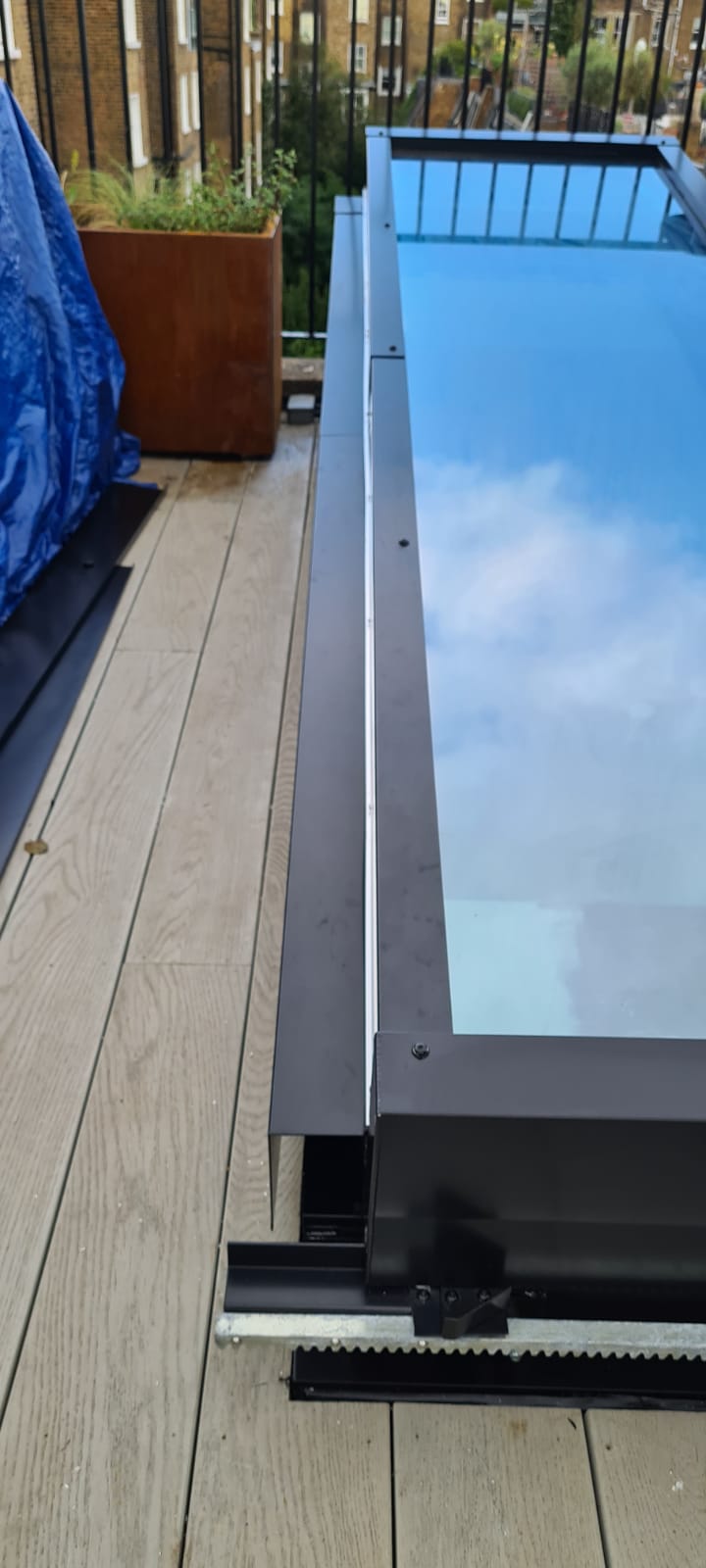

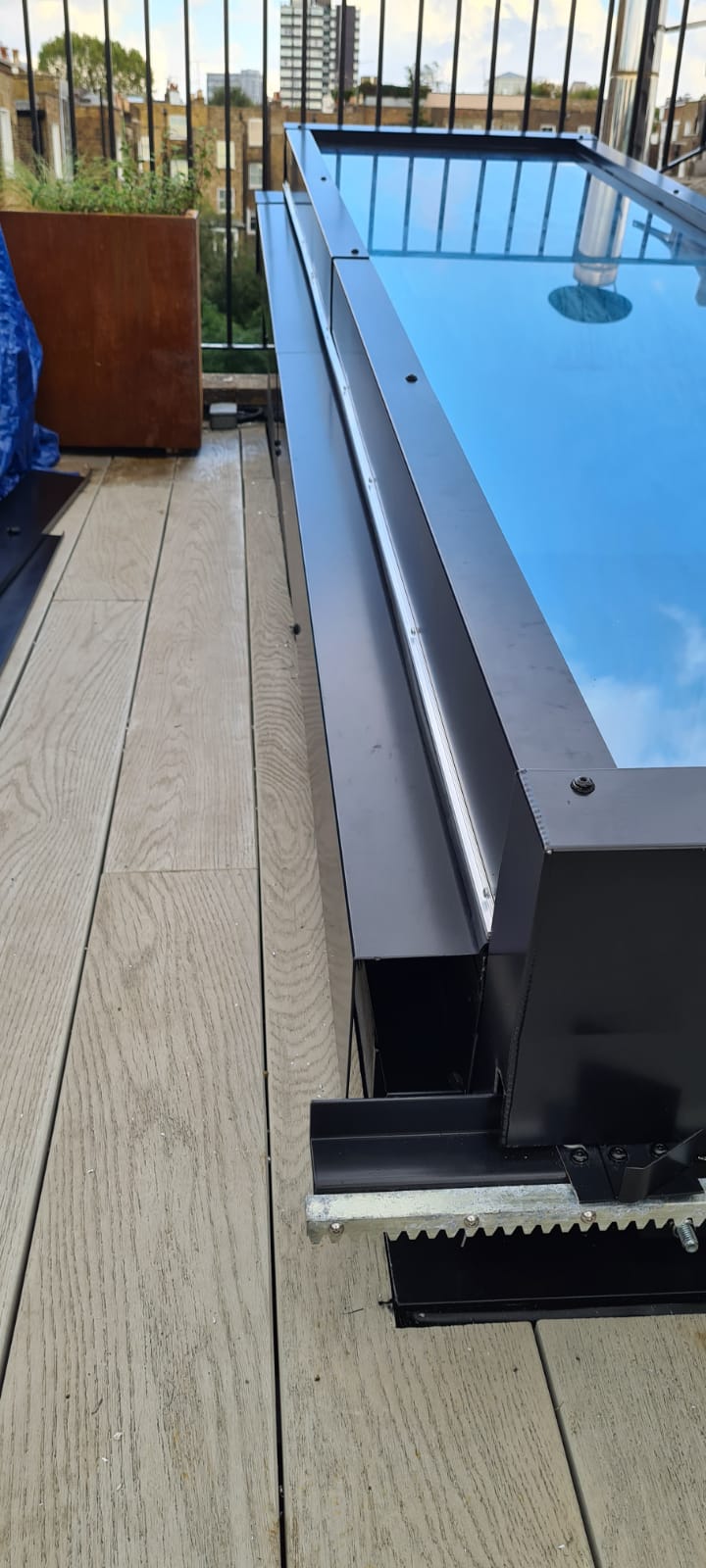

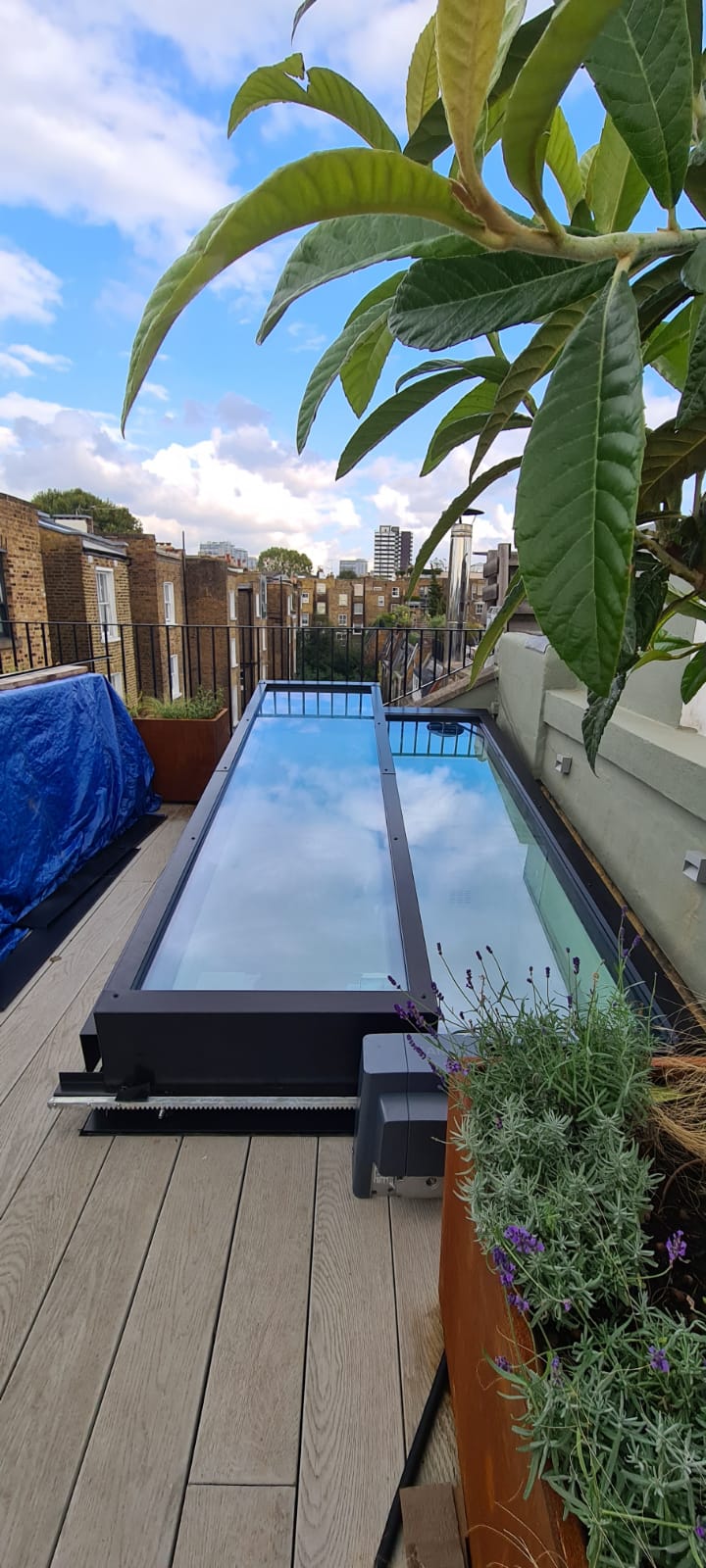

Naturalspan Mono-pitch Slider
Project Description

Project: Private Residence

Location: London, England

Main contractor: Naturalight Systems Ltd

Specification: 1No 3400mm x 1500mm ROS mono-pitch electric sliding rooflight. Unit manufactured from aluminium glazing bar gasketed system with secondary water management including aluminium flashings to suit.  All aluminium polyester powder coated paint finished to BS 6496 colour tint T.B.C. Fixing to prepared upstand supplied by others. Unit comprising 1no fixed section and 1no sliding section (1700mm sliding over fixed section) electrically operated via 230volt electric gate motor

Unit comprising 1no sliding sections 3.4m x 1.5m, electrically operated via 1no 230volt electric gate motor which is supplied with remote(all wiring by others).

Glazing Specification

28.4mm double glazed low ‘e’ glass units comprising of 6mm toughened outer, 6.4mm clear inner laminated with 16mm argon cavity.
