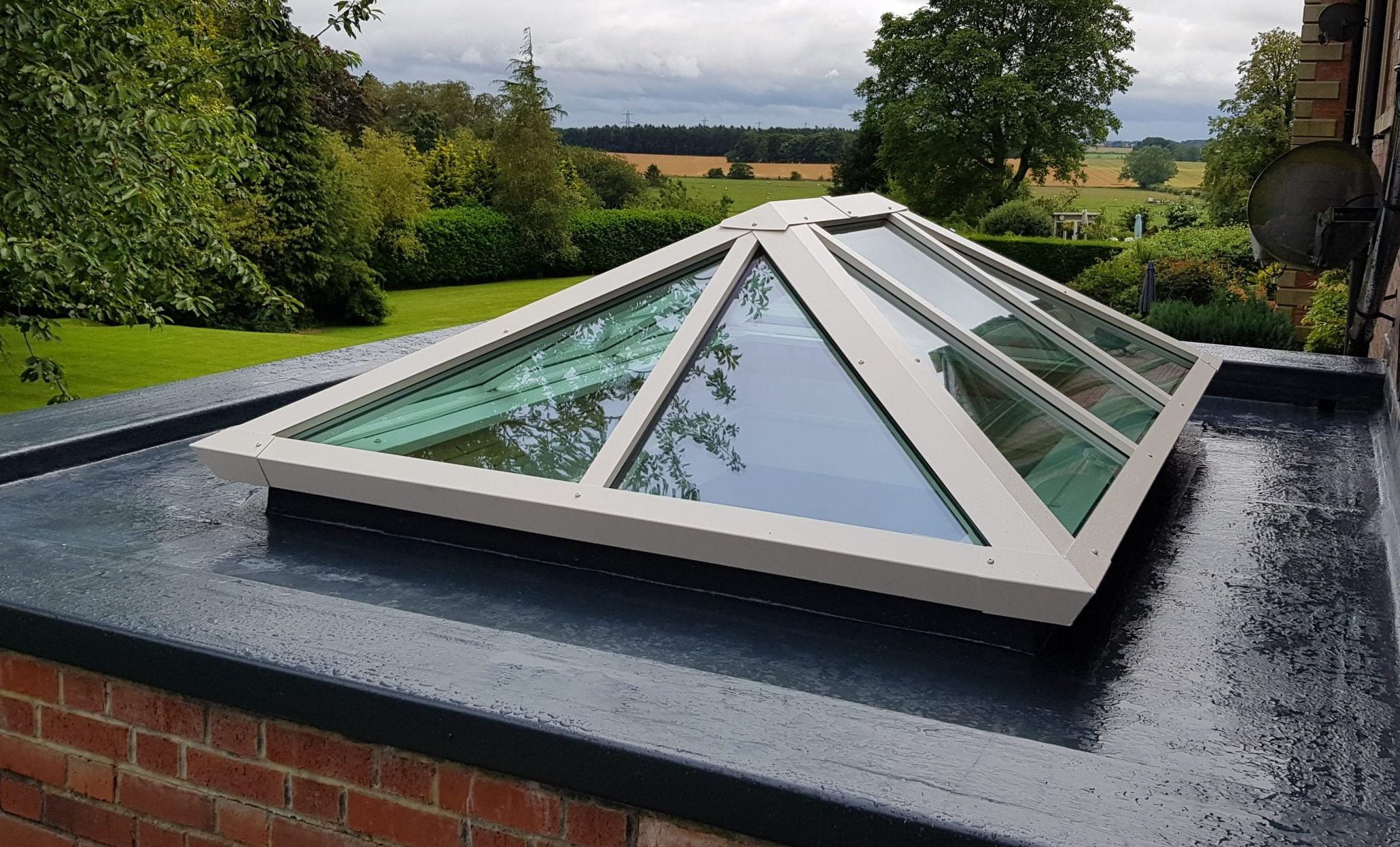

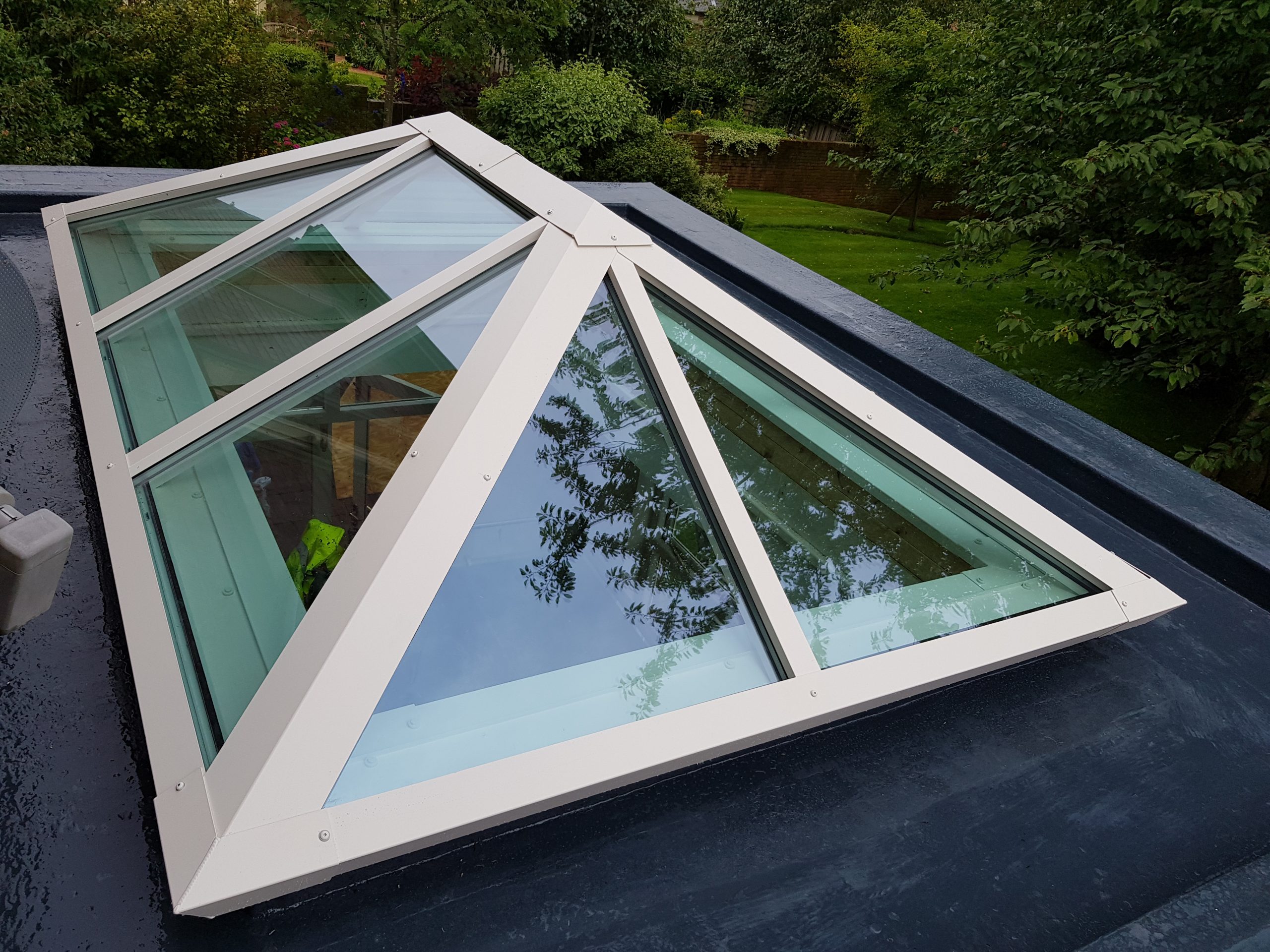

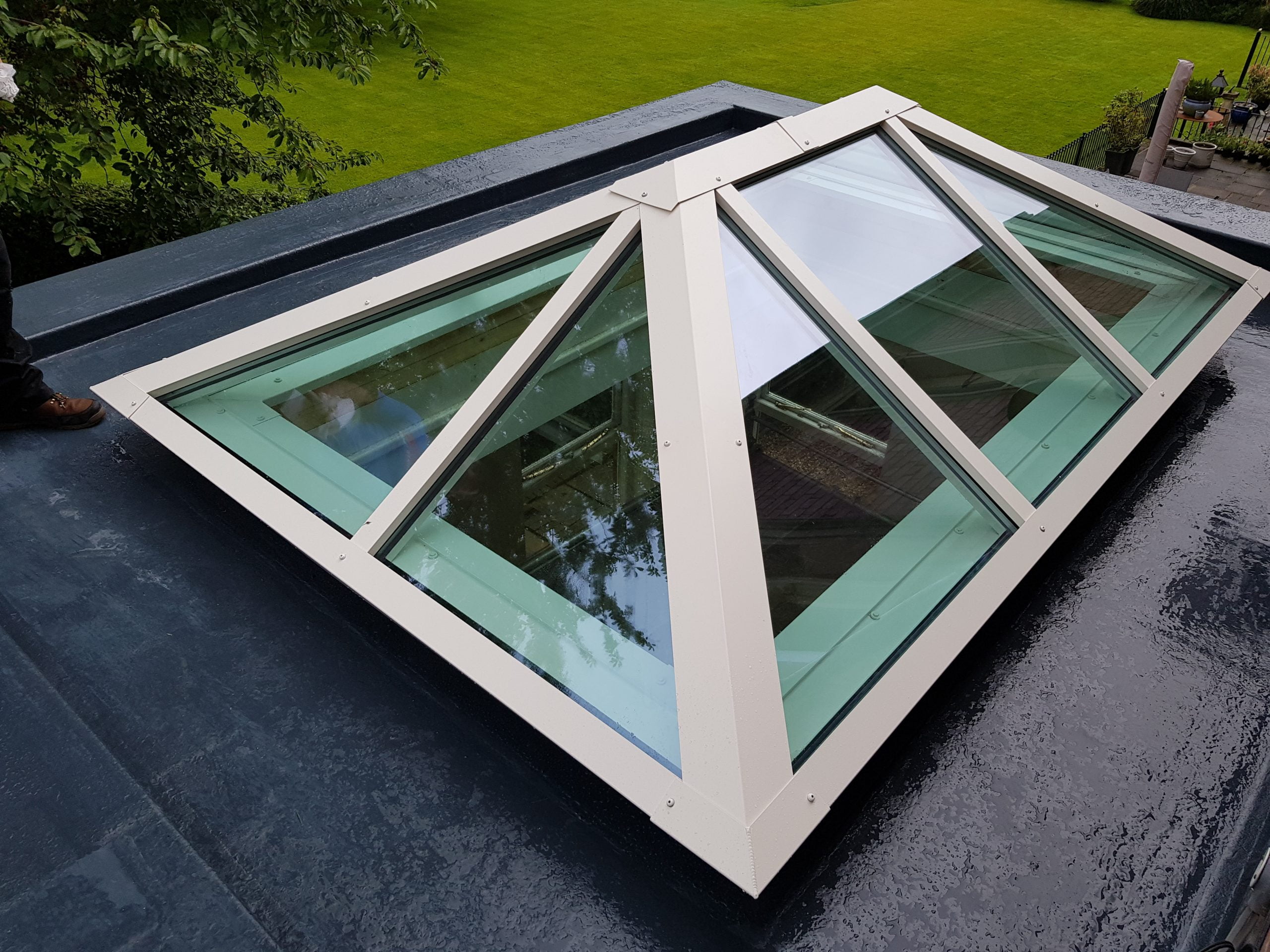

Private Residence – Whalton Park
NaturalSpan Ridgelight
Project Description

Project: Private Residence Whalton Park

Location: Whalton Park,  Northumberland, England

Main contractor: Ron Robinson Roofing

Specification:  1750mm x 2700mm overall size NLS NaturalSpan glass ridgelight with hipped ends. Manufactured from aluminium glazing bar gasketed system with secondary water management including aluminium flashings to suit, all polyester powder coated paint finished to BS 6496 colour tint White. Unit fixing to a prepared upstand supplied by others.

Glazing Specification

28.4mm double glazed glass units, consisting of 6mm clear toughened low e outer, 16mm argon cavity, 6.4mm clear laminated inner
