Reed’s School – Sixth form

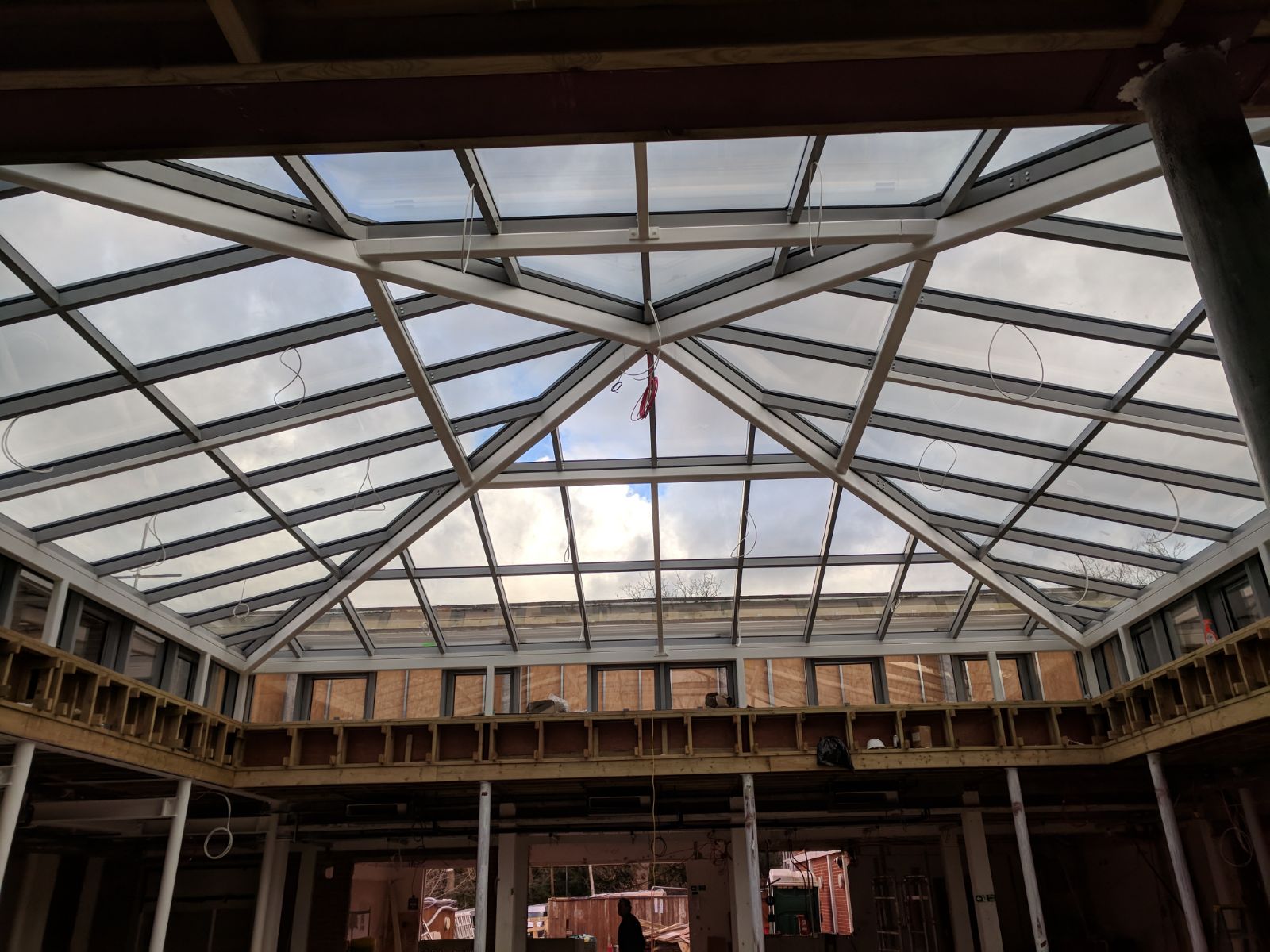

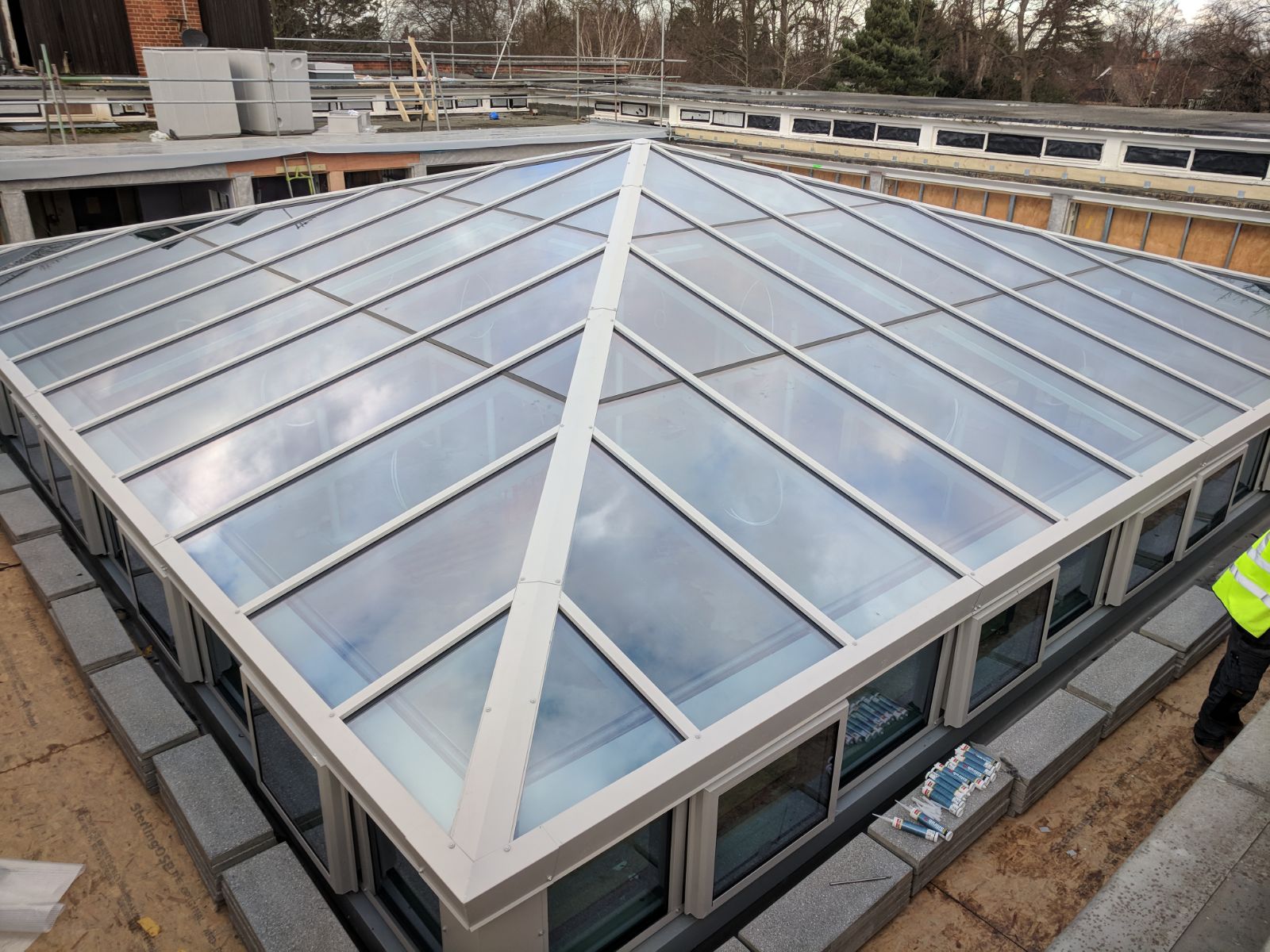

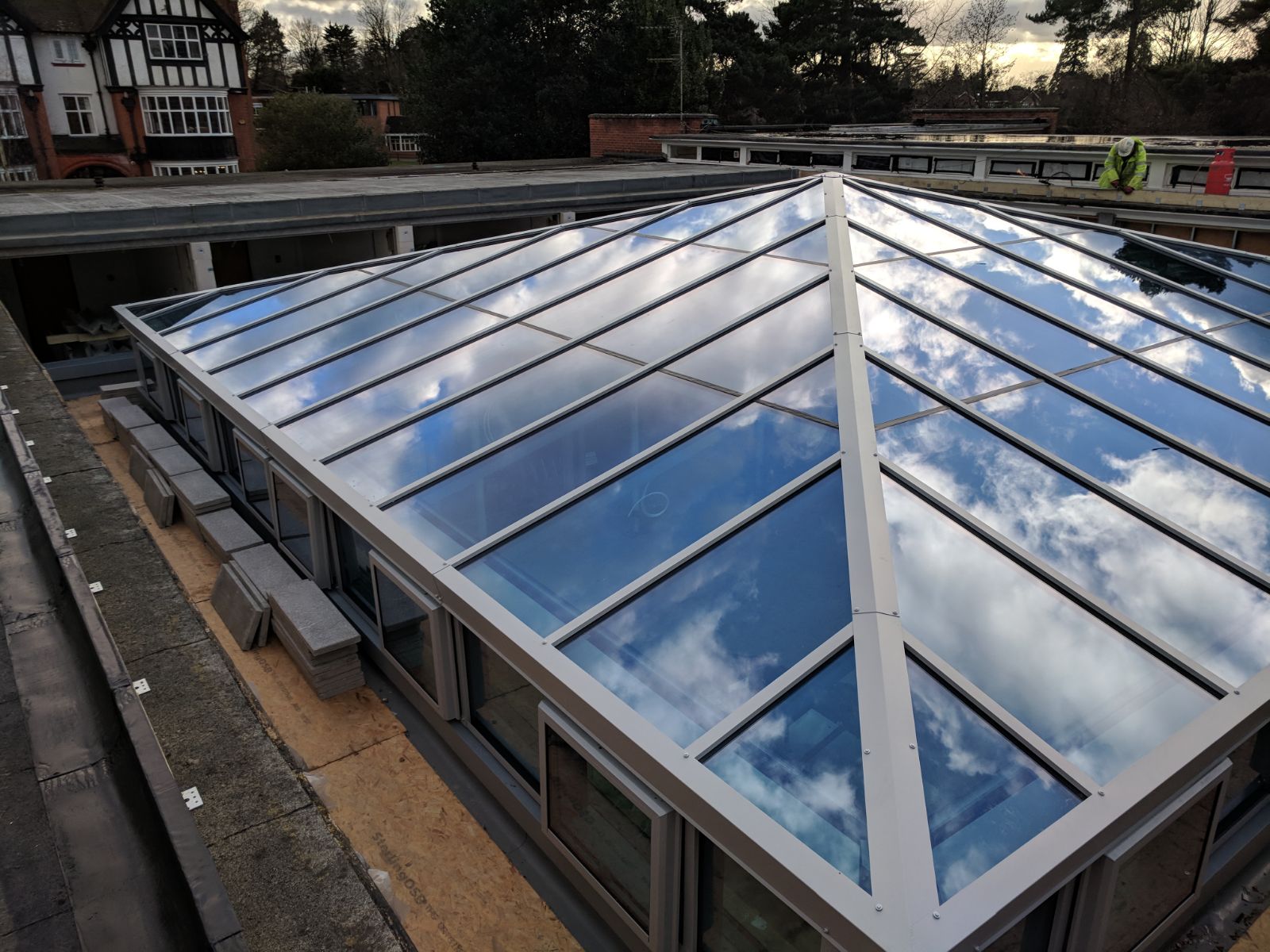

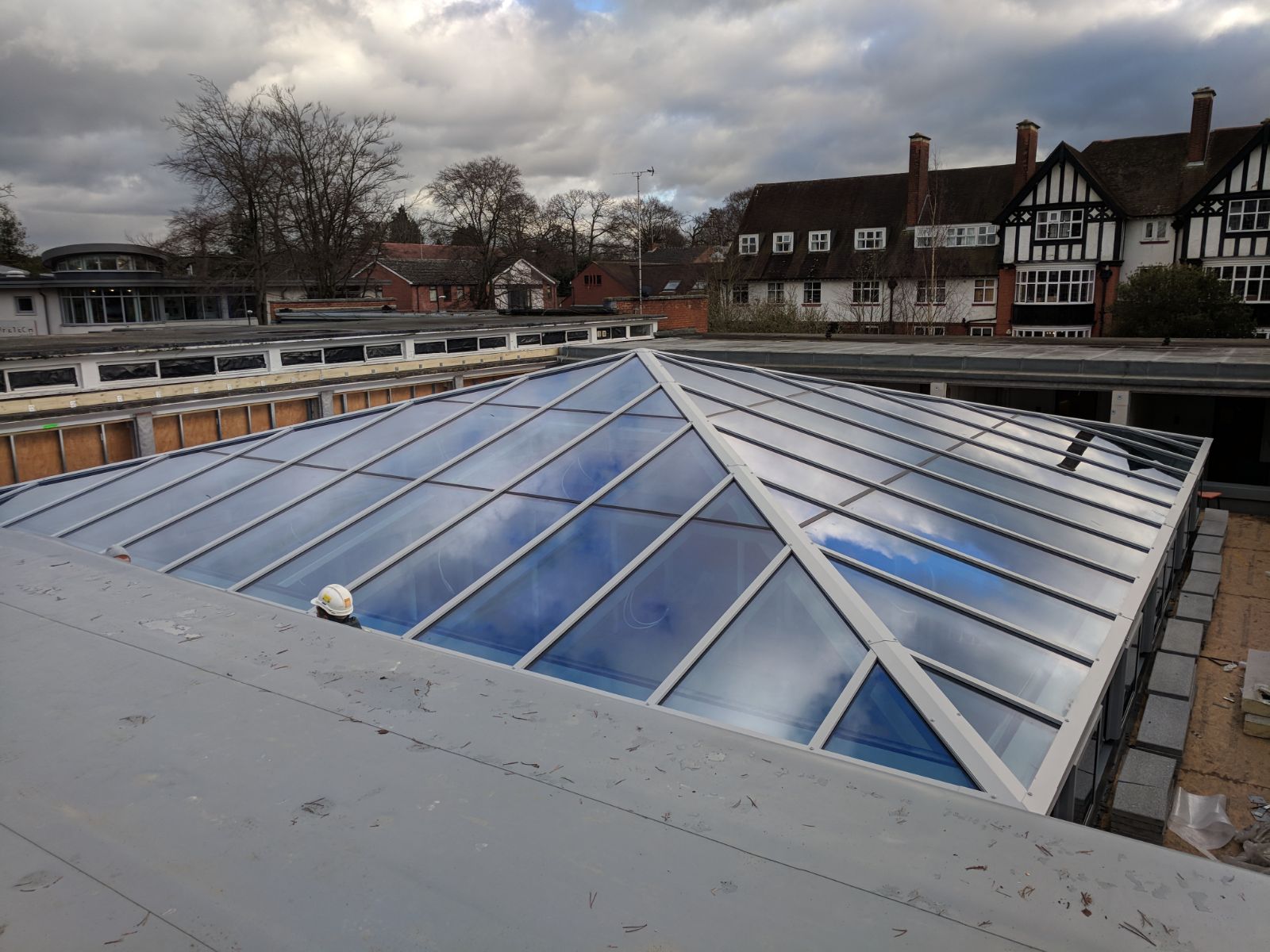

Naturalspan Pyramid Lanternlight
Project Description

Project: Reed’s School – Sixth form

Location: Cobham, England

Main contractor: Naturalight Systems Ltd

Specification: 1No 11505mm x 11505mm external kerb, NLS NaturalSpan 15° glass pyramid lanternlight with 850mm high vertically glazed sidewalls, aluminium glazing bar gasketed system with secondary water management including aluminium flashings to suit. All polyester powder coated paint finished to BS 6496 colour tint White. Fixing onto prepared upstand provided by others.

Glazing Specification

32.8mm double glazed low e glass units comprising of 8mm neutral solar control toughened outer, 16mm argon cavity and 8.8mm clear laminated inner
