Robin Hoods Chase
NLS Safelock Mono-Pitch
Project Description

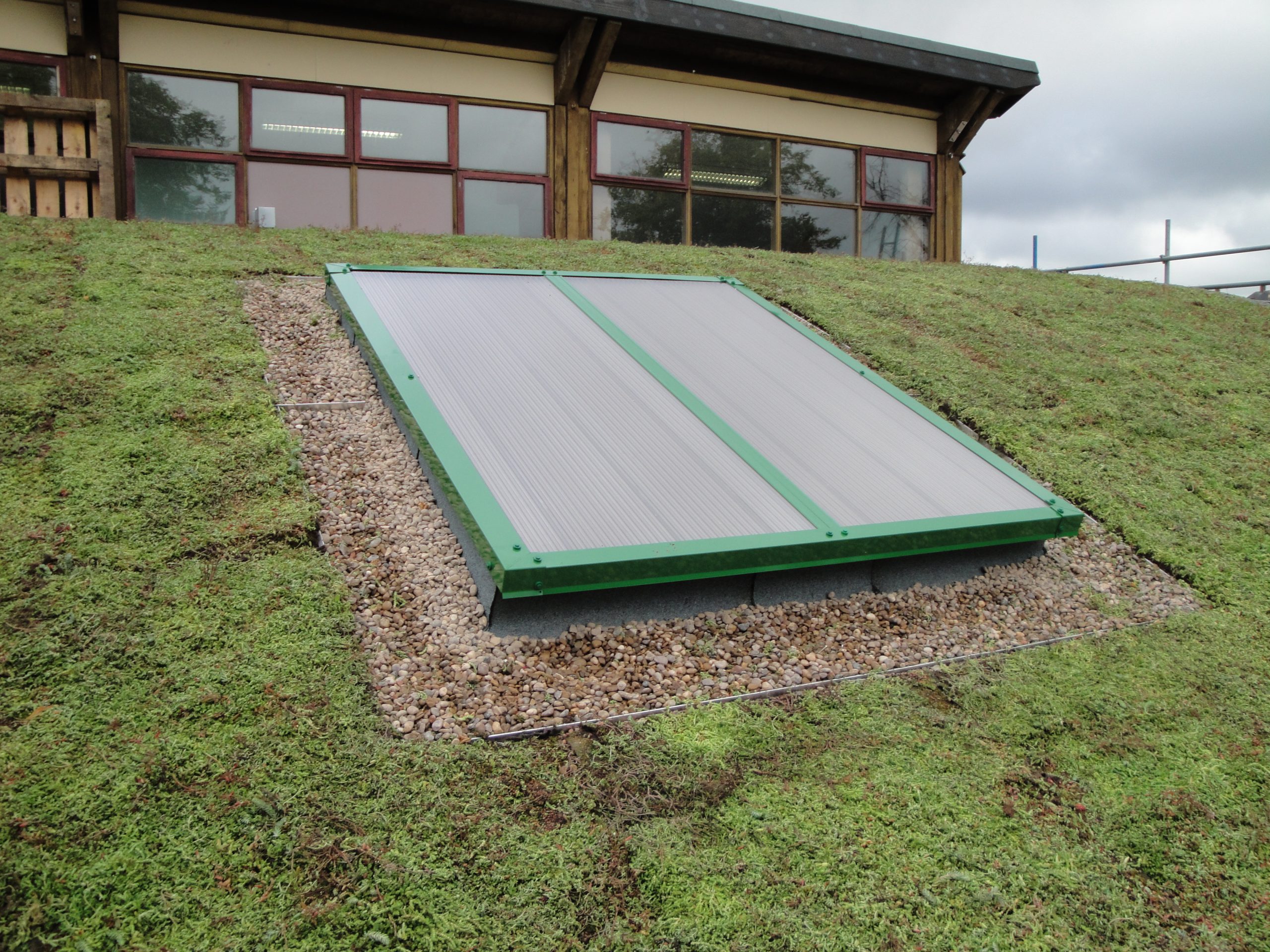

Project: Robin Hoods Chase

Location: Nottingham, England

Main contractor: Naturalight Systems Ltd

Specification: 4NO 2200mm x 2200mm, 25mm SafeLock glazing system, glazing bar factory assembled interlocking panels, glazed with 25mm UV protected multi-wall polycarbonate colour Bronze.  All panels are fitted with integral stainless steel safety rods and special locking fittings. These panels have been extensively tested by the BRE and have a ‘Class B non-fragile assembly’ classification with panel sizes up to 2.000m in length unsupported or 6.000m in length with supports at 1.500¢s, maximum 1.000m panel width. All aluminium to be polyester powder coated paint finish to BS/6496 colour Green.
