The Sele First School

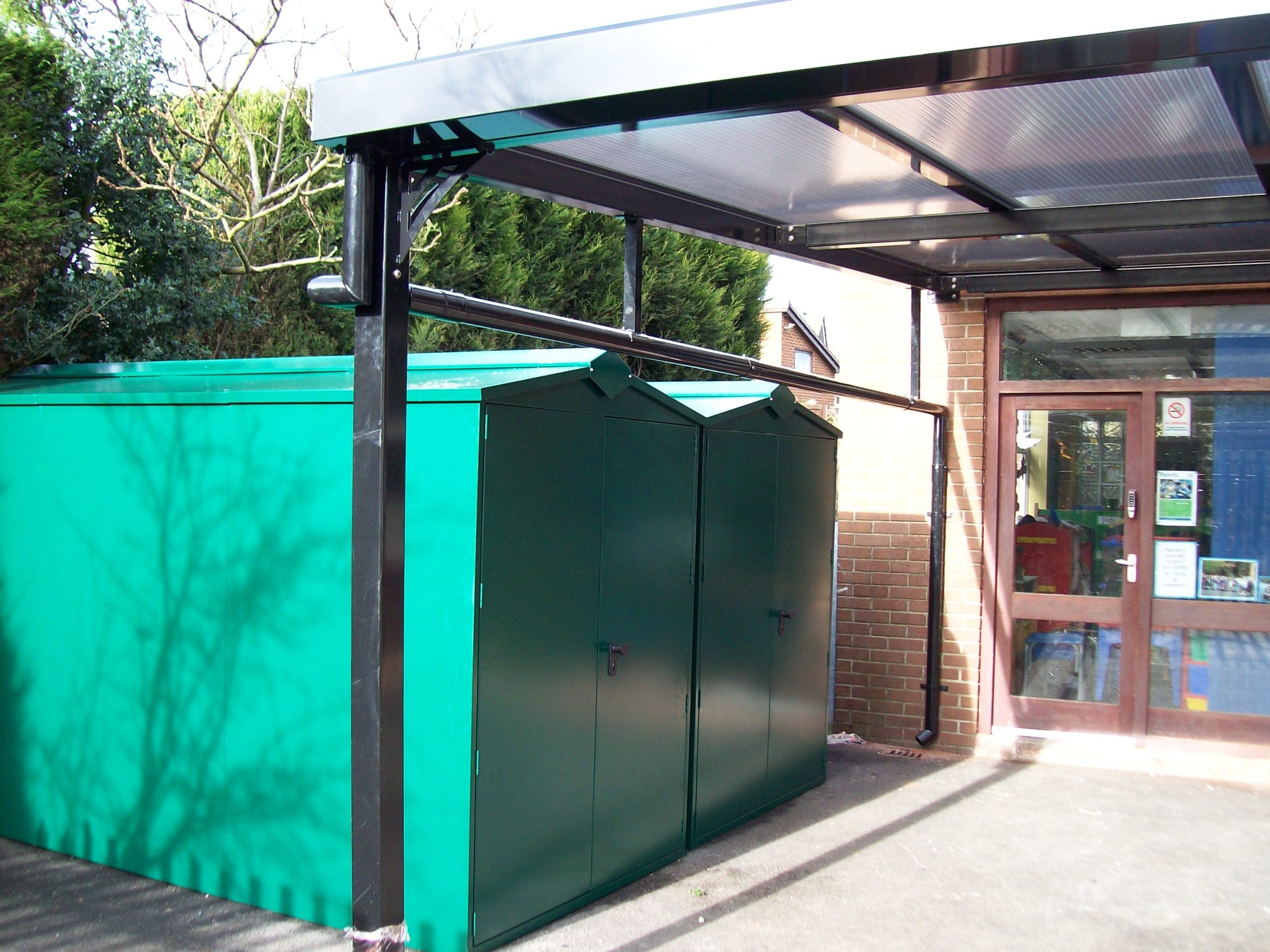

Fastlock Mono-pitch Canopy
Project Description

Project: The Sele First School

Location: Hexham, England

Main contractor: Naturalight Systems Ltd

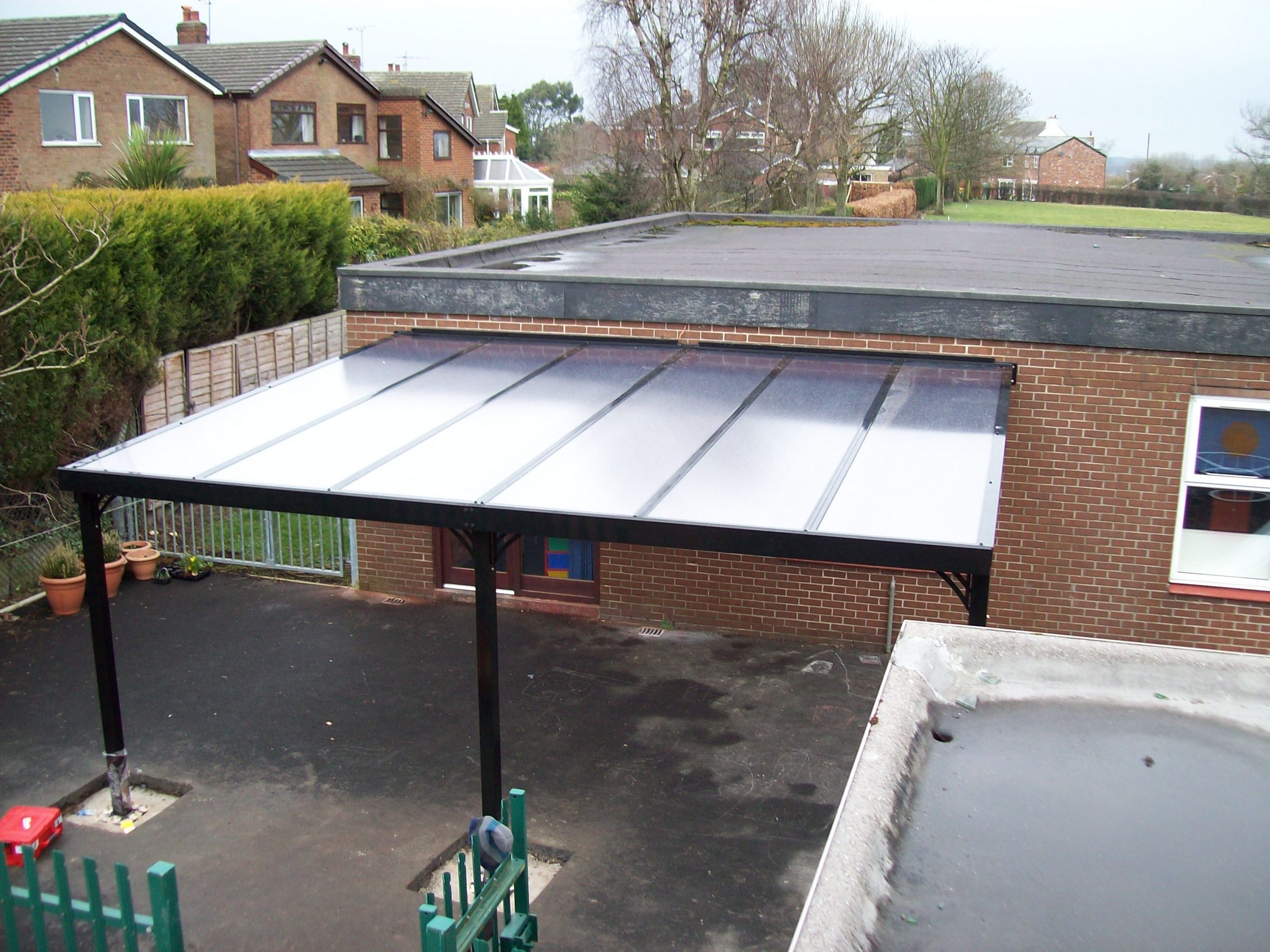

Specification: 1No 4.600m Length x 3.400m wide x 2.700m height at front of canopy with approximately 5º fall onto existing flat roof, NLS mono-pitch 16mm FastLock structural steel canopy, constructed from 80 x 80 x 3mm steel box section uprights (1no), wall plates (3 no) steel box section cross ties, ring beam and support framework, 300 x 300 x 10mm base plates for bolting to concrete pad supplied by NLS. All steelwork to be shot blasted, zinc primed to inter zinc 72, all polyester powder coated paint finish to BS 6496 colour, Black.

Glazing Specification

16mm FastLock glazing system to the roof of canopy, factory assembled interlocking panels with secondary water management including aluminium flashings to suit, glazed with 16mm UV protected triple-wall polycarbonate colour tint Opal.
