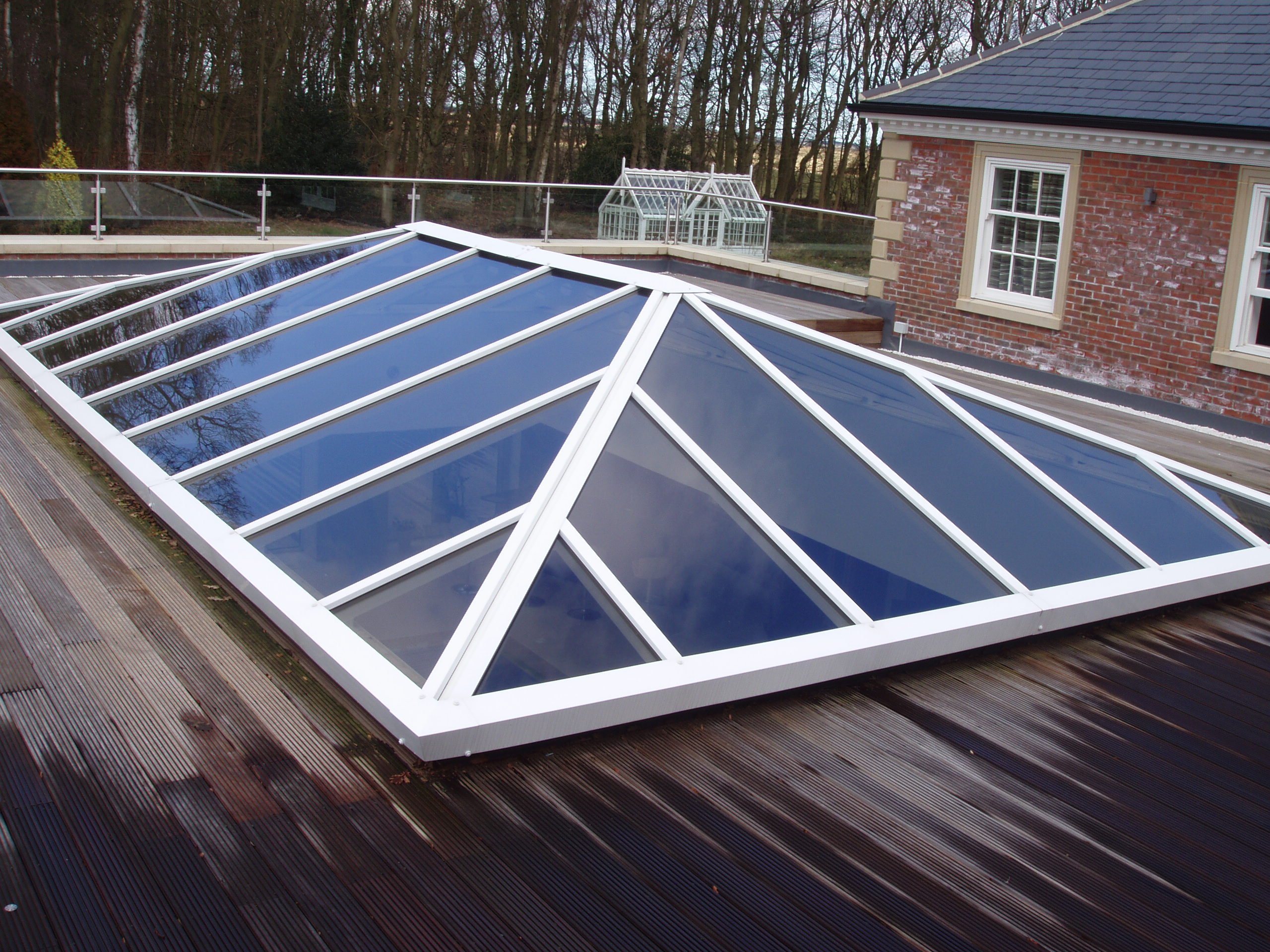

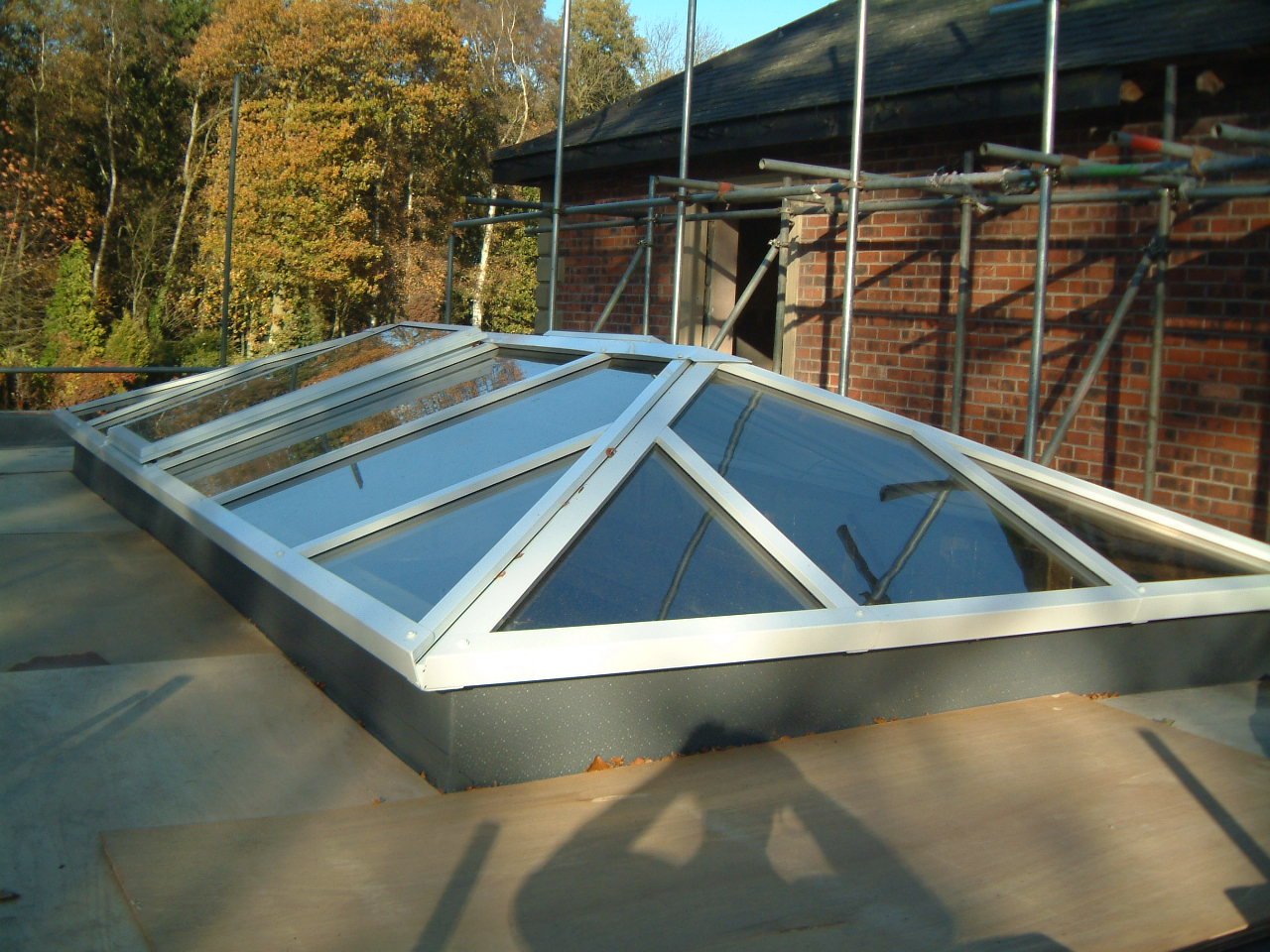

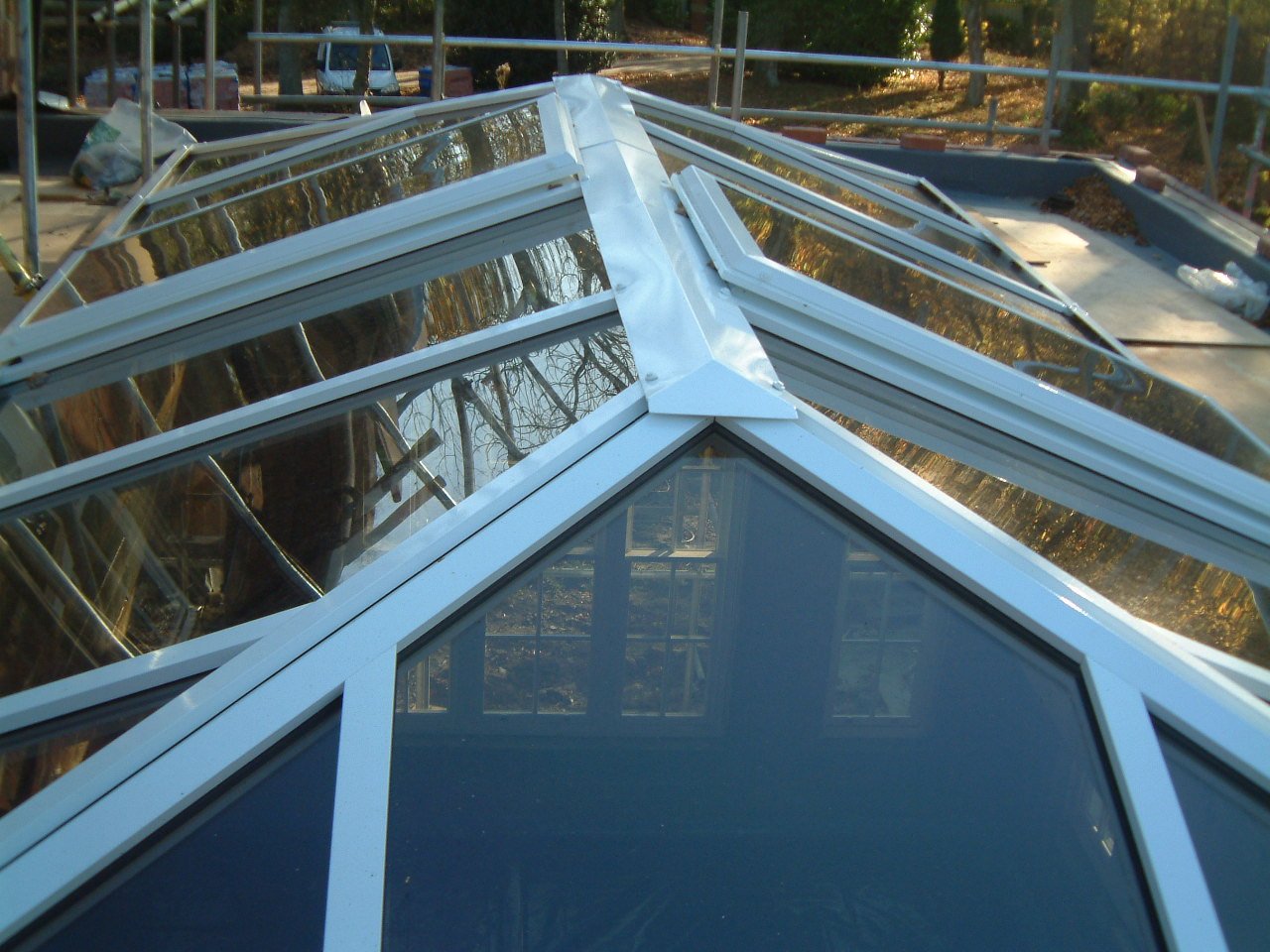

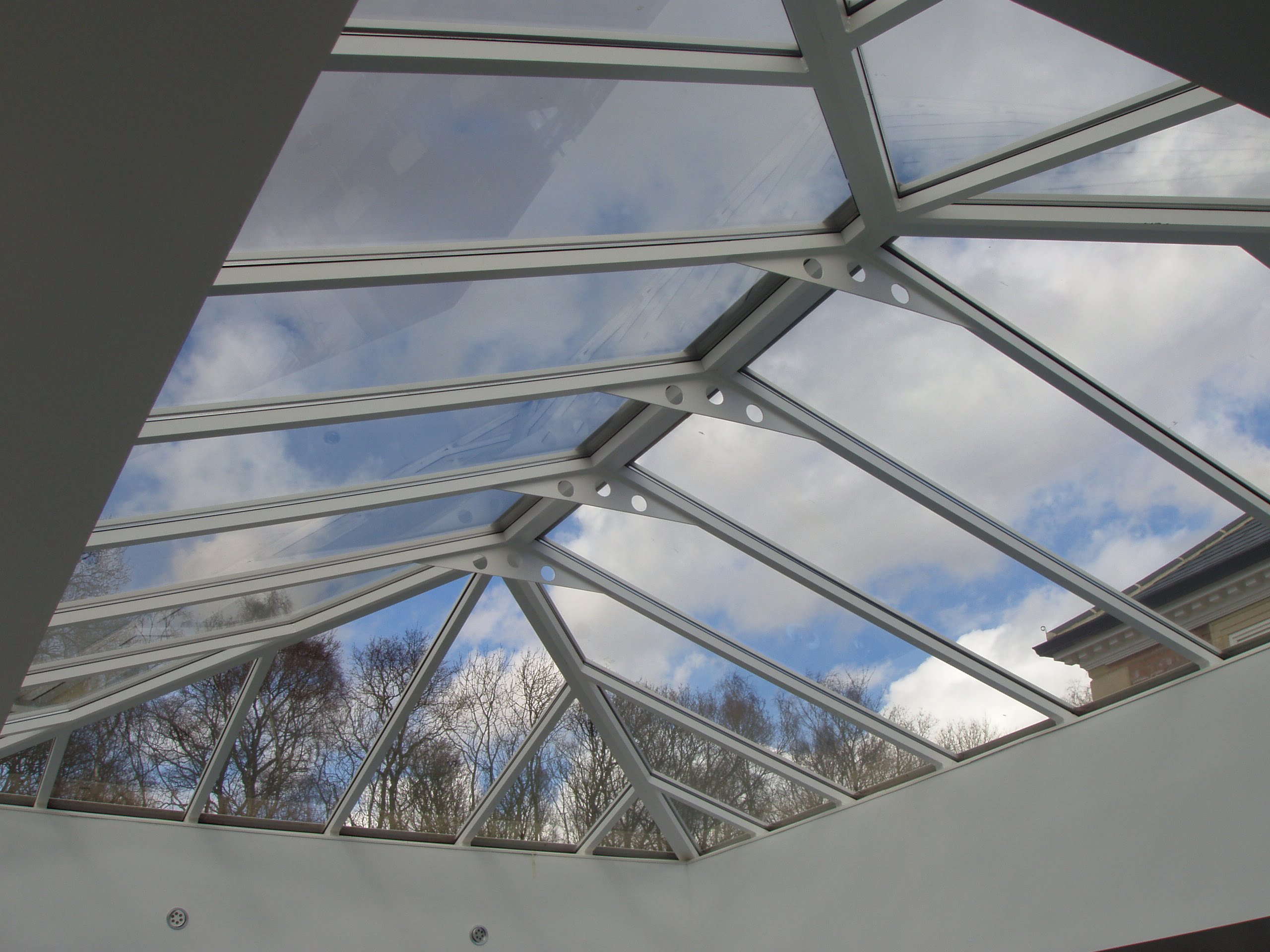

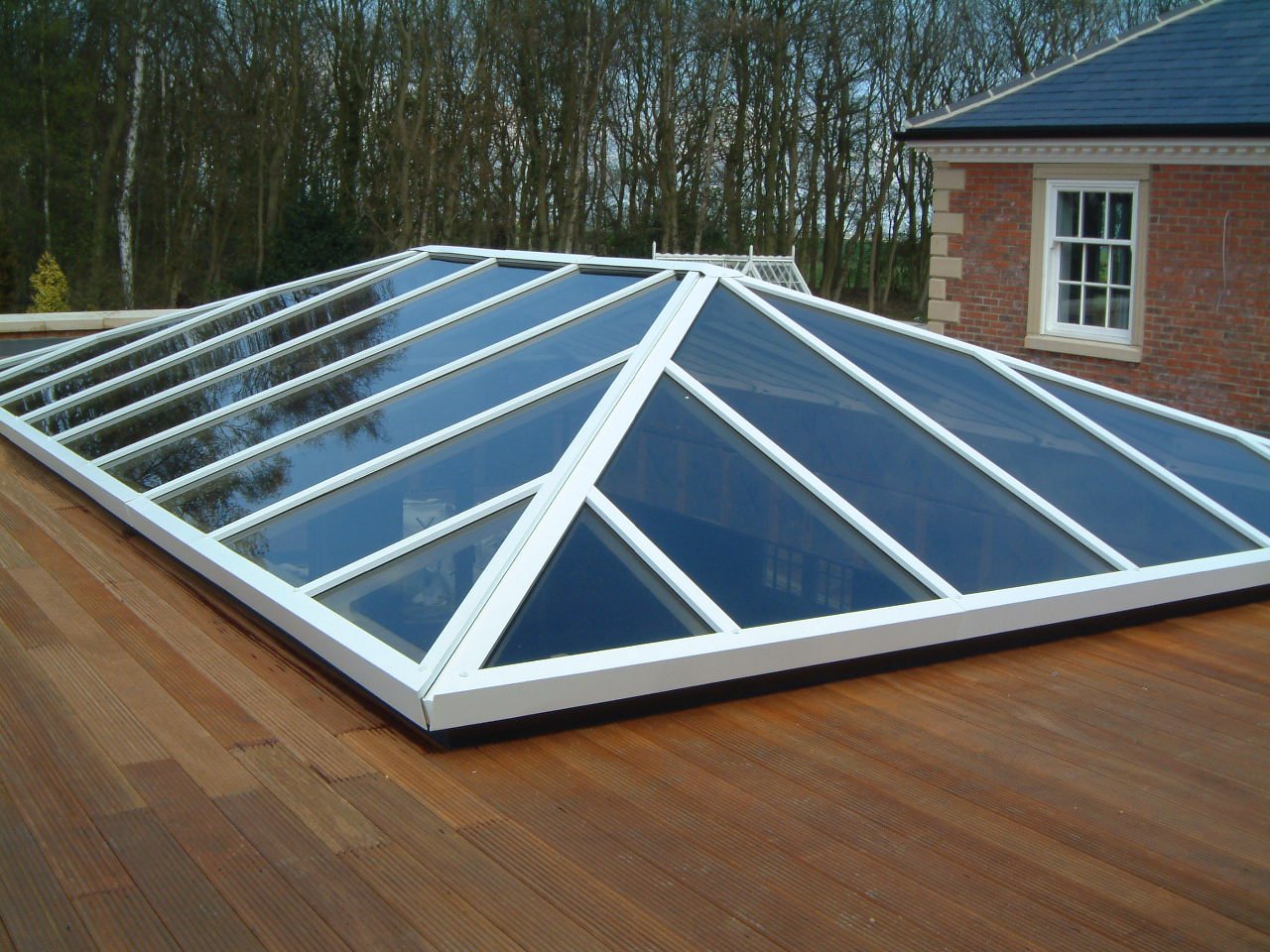

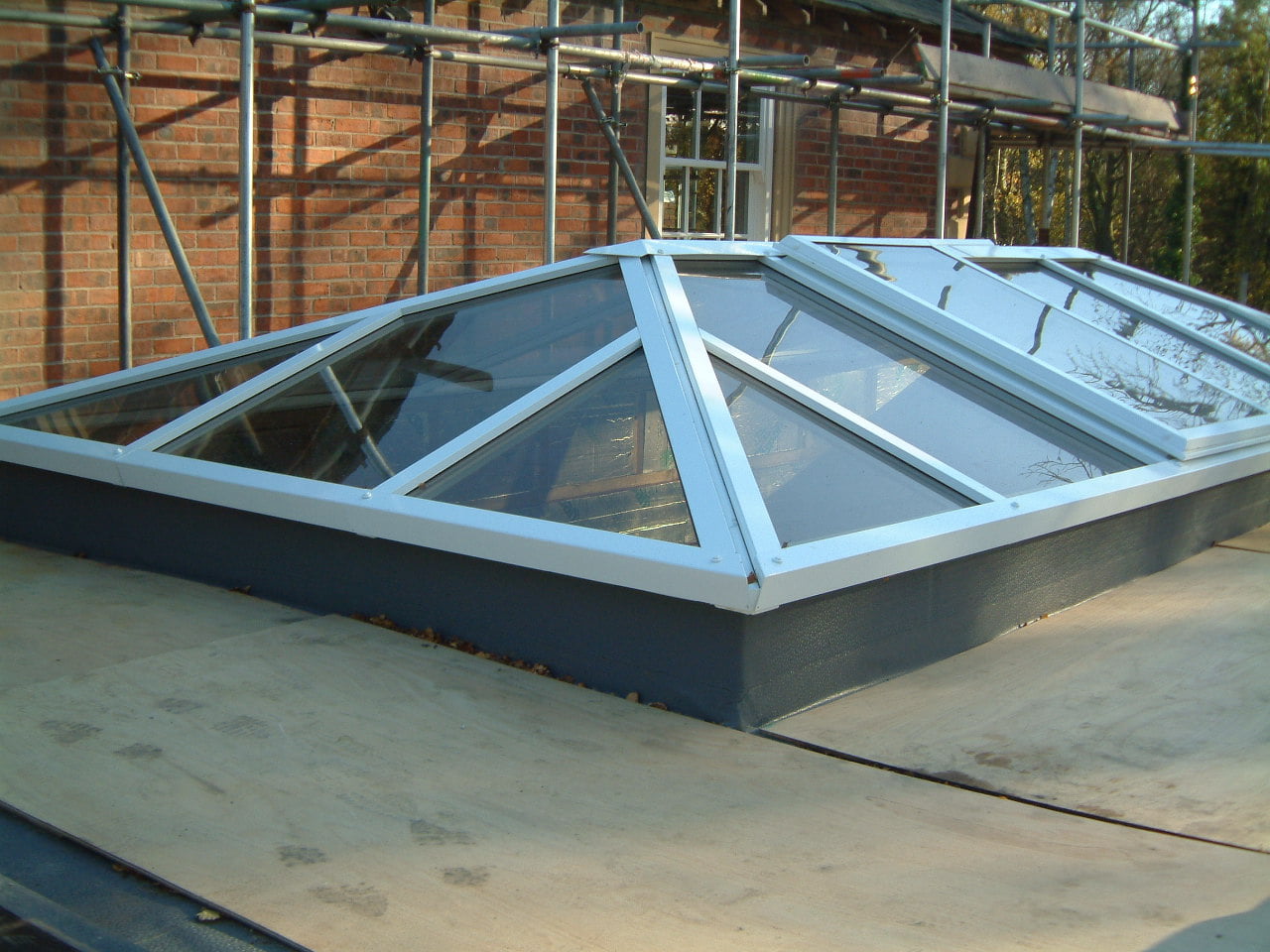

Private Residence – Darras Hall
NaturalSpan Ridgelight
Project Description

Project: Private Residence

Location: Ponteland, England

Main contractor: Naturalight Systems Ltd

Specification: 1No 3000mm x 6000mm overall frame size, NLS NaturalSpan Ridgelight with hipped ends. Manufactured from NaturalSpan aluminium glazing bar gasketed system with secondary water management including aluminium flashings to suit. All polyester powder coated paint finished to BS 6496 external colour tint White. The rooflight comes with 2No chain operated opening vents.

1No 6000mm x 9000mm overall frame size, NLS NaturalSpan Ridgelight with hipped ends. Manufactured from NaturalSpan aluminium glazing bar gasketed system with secondary water management including aluminium flashings to suit. All polyester powder coated paint finished to BS 6496 external colour tint White.

Glazing Specification

28.4mm double glazed glass units, consisting of 6mm clear toughened outer, 16mm argon cavity, 6.4mm clear laminated inner.
