Shilbottle First School
Fastlock
Project Description

Project: Shilbottle First School

Location: Shilbottle, Northumberland, England

Main contractor: Naturalight Systems Ltd

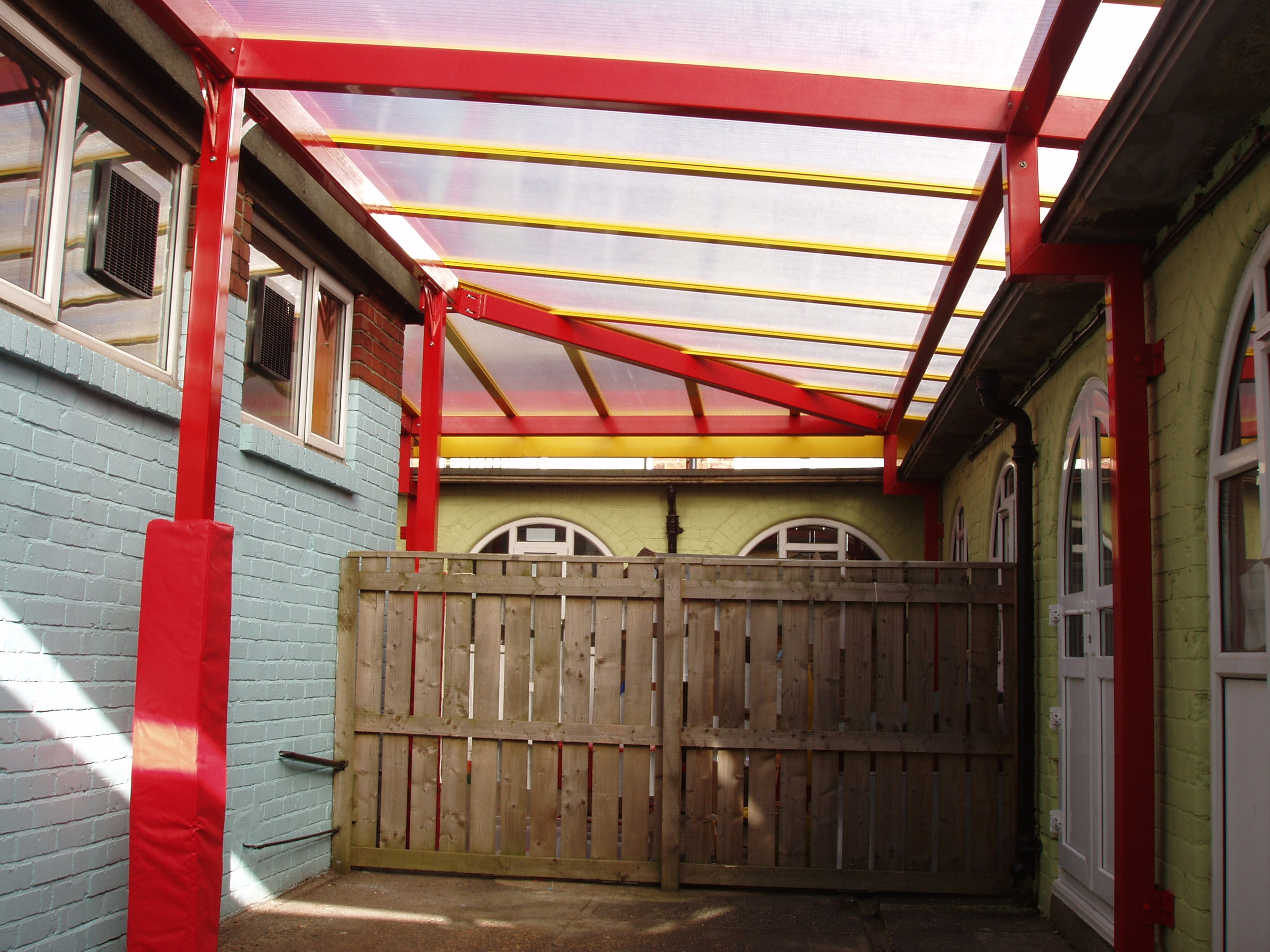

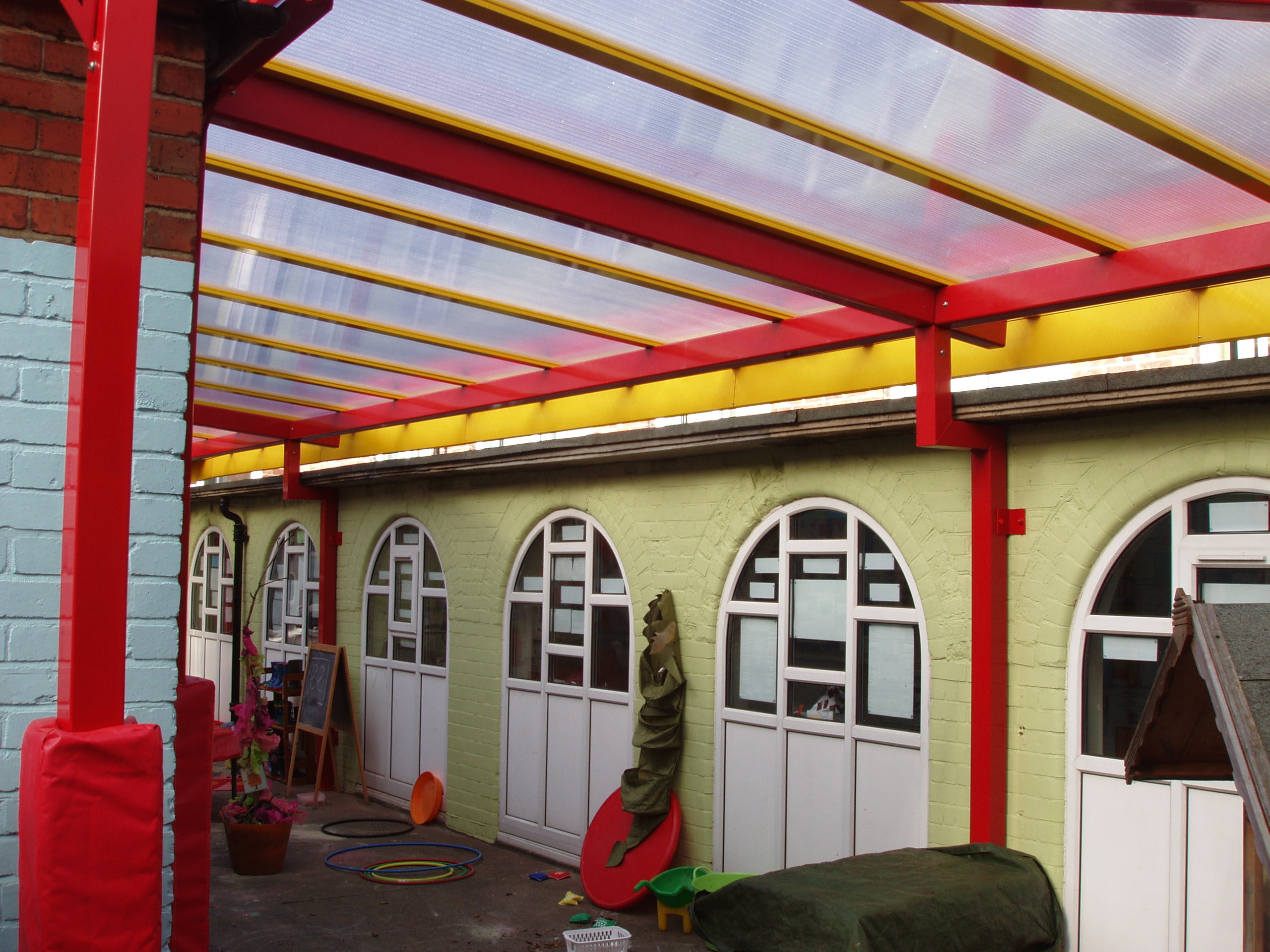

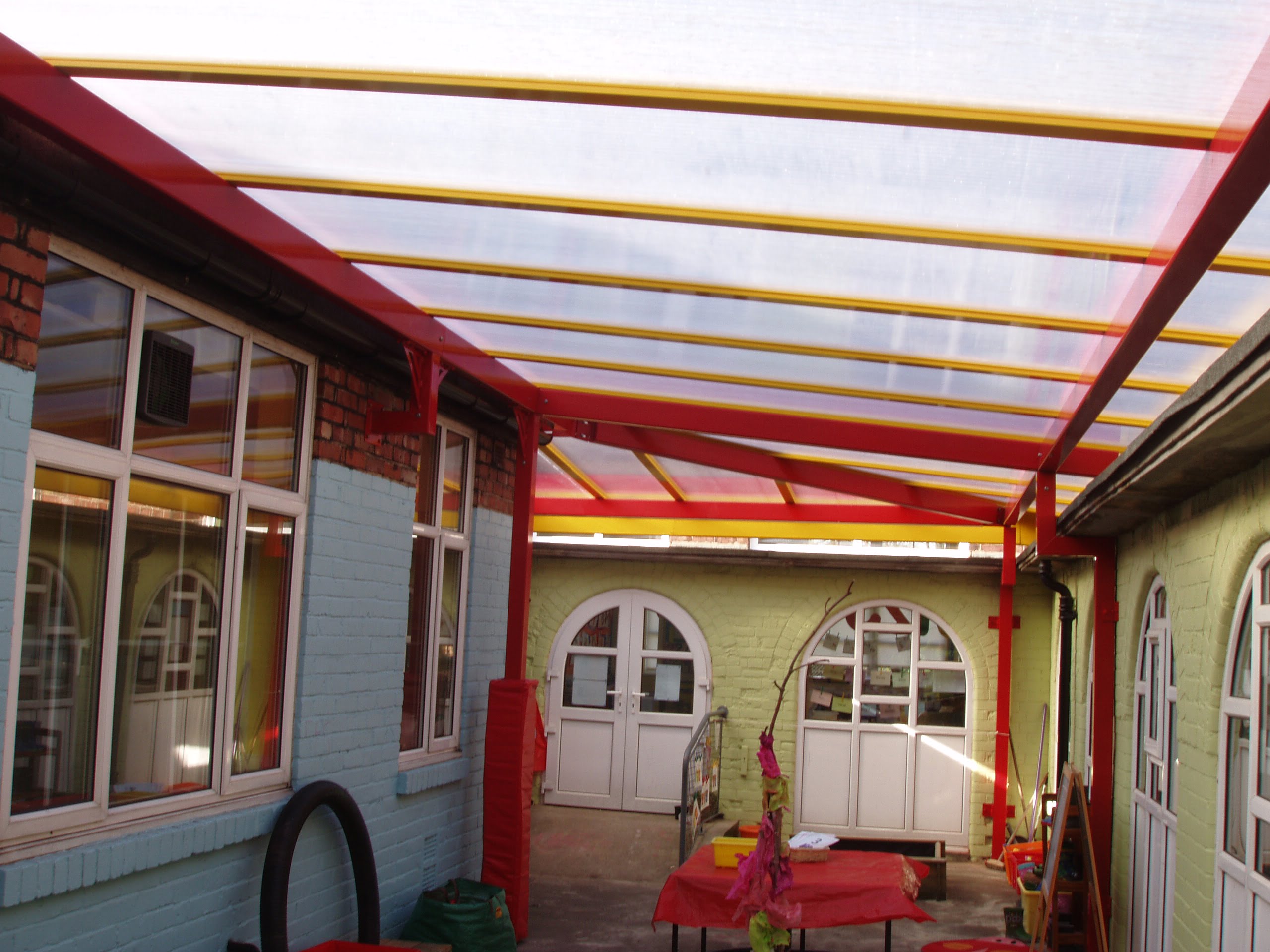

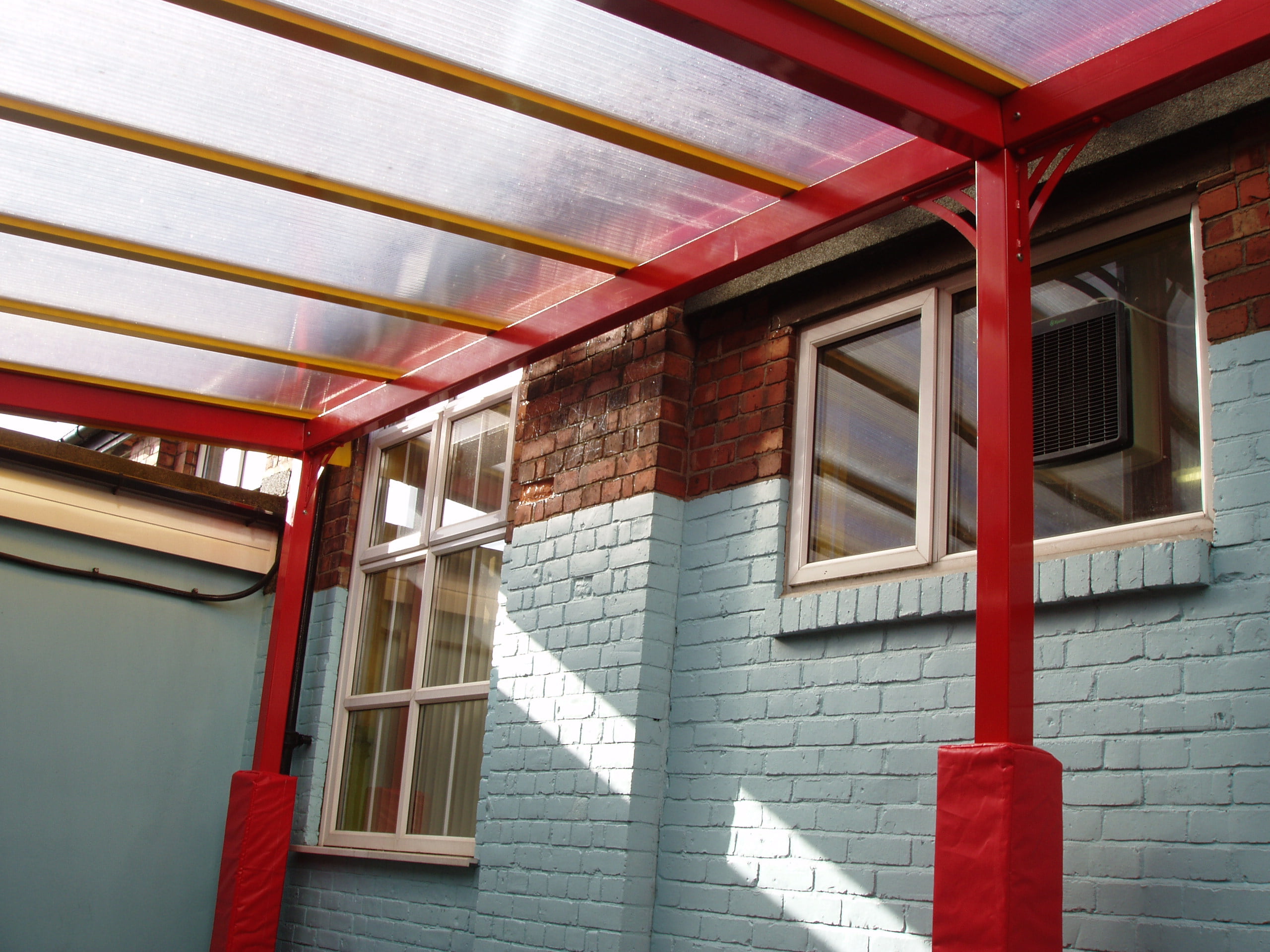

Specification: 1No 14960mm x 3150mm main body and 7150mm x 2930mm, 1150mm x 2980mm legs, NLS ‘U’ shaped 16mm FastLock structural steel canopy, constructed from 100 x 100 x 3mm steel box section uprights, 6No straight and 6No with dog leg, cross ties and ring beam, 300 x 300 x 10mm base plates for bolting to concrete pads, all steelwork to be shot blasted, zinc primed to inter zinc 72, all polyester powder coated paint finished to BS 6496 colour Red & Yellow.

Glazing Specification

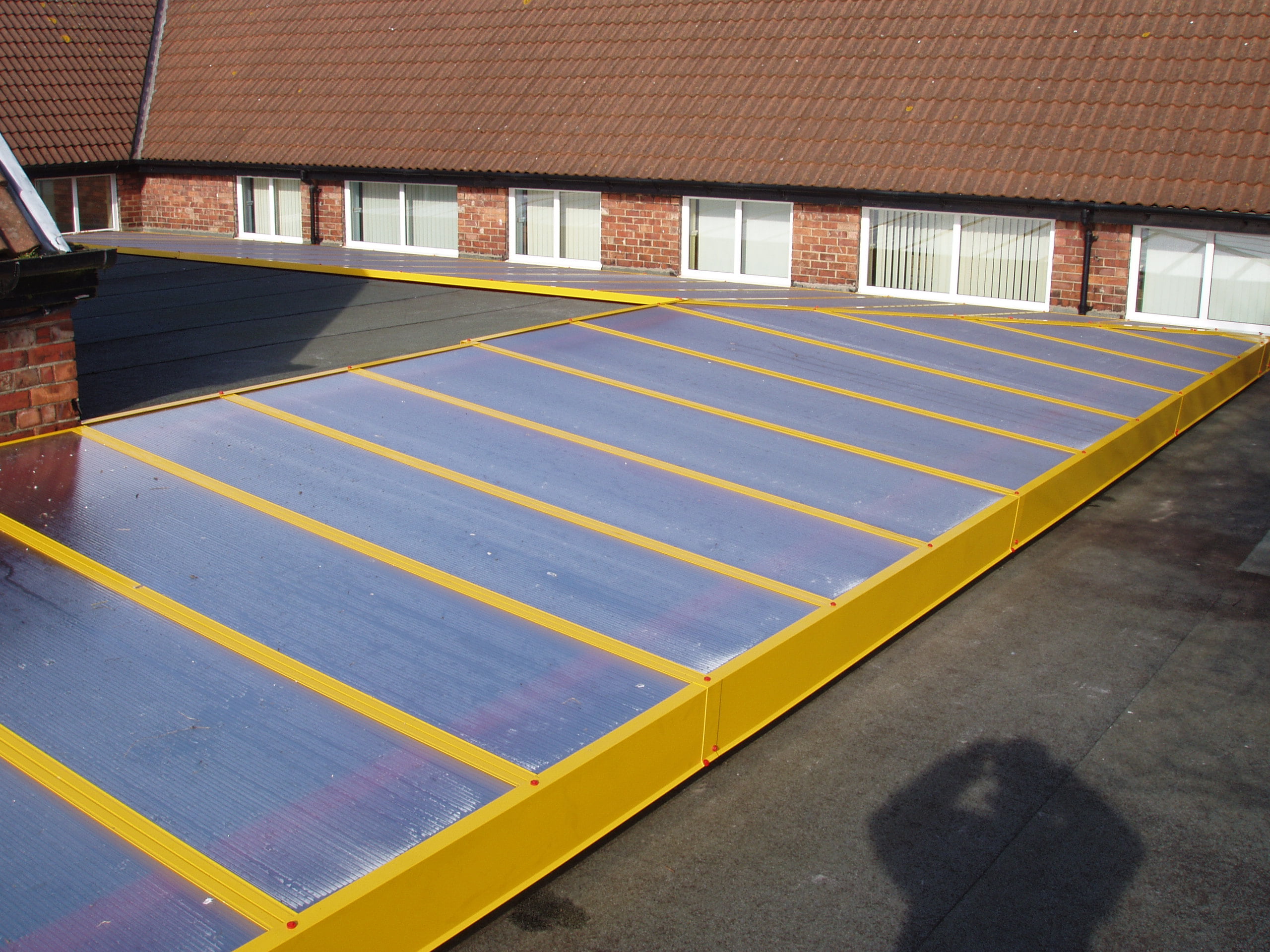

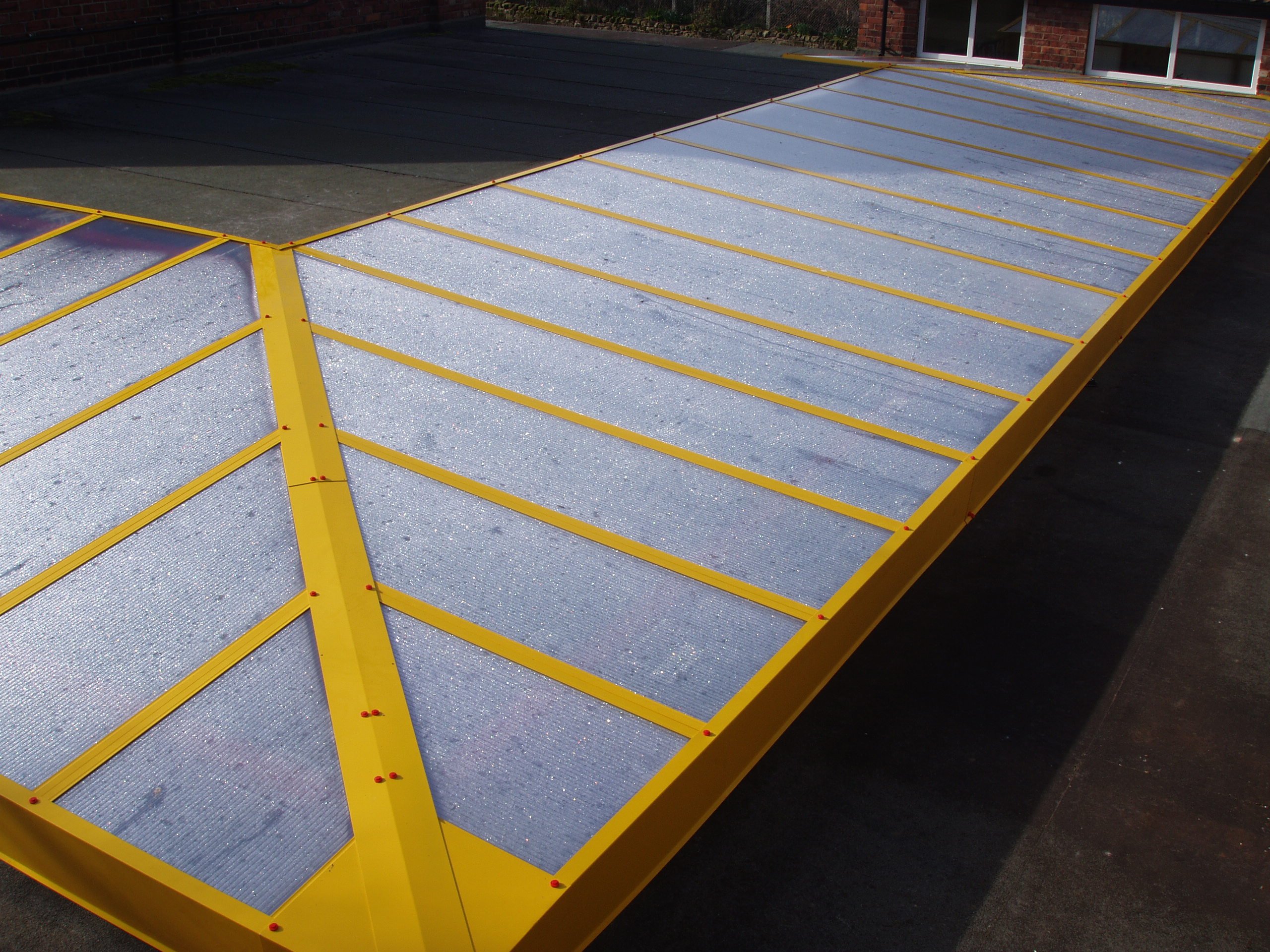

16mm FastLock glazing system, factory assembled interlocking panels with secondary water management including aluminium flashings to suit, glazed with 16mm UV protected triple-wall polycarbonate colour tint Opal.
