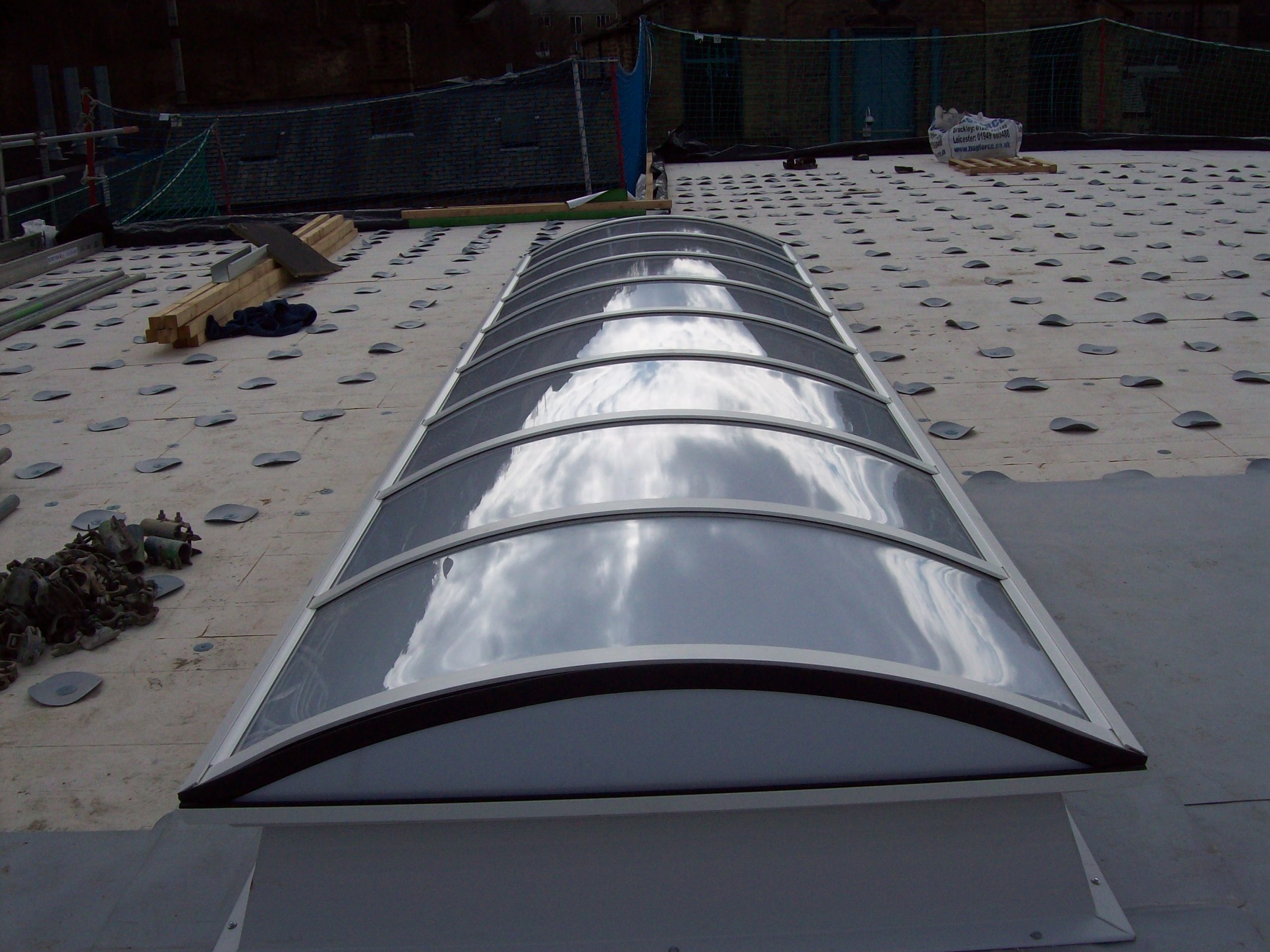

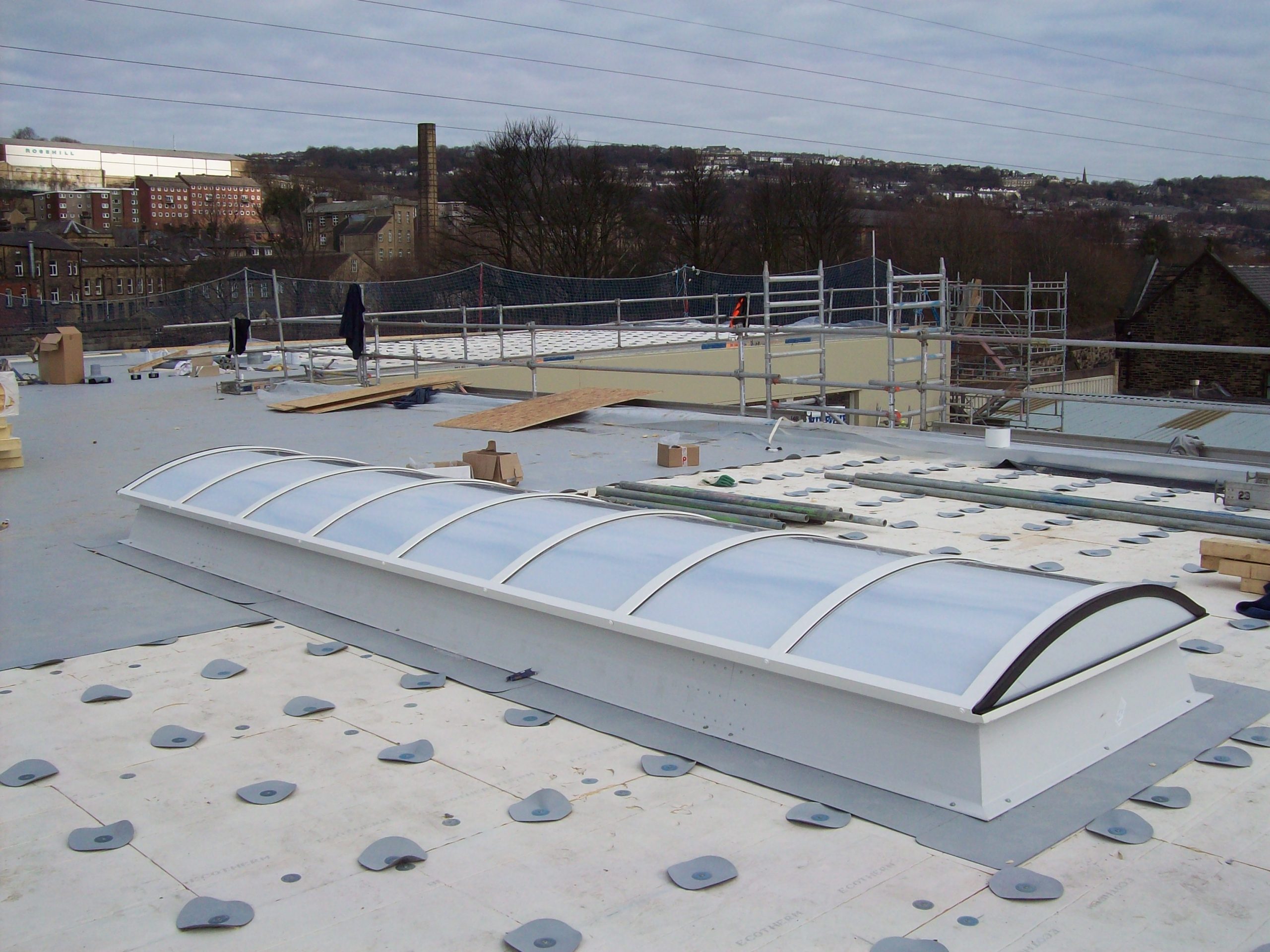

Sowerby Bridge Leisure Centre
Naturalspan Barrel vault
Project Description

Project: Sowerby Bridge Leisure Centre

Location: Thirsk, England

Main contractor: Thistle Roofing

Specification: 1NO 1.500m x 6.000m NLS Naturalspan barrel vault with vertically glazed ends, aluminium glazing bar gasketed system with secondary water management, supplied with NLS 300 uPVC insulated, unventilated kerb, 300mm, high, aluminium to be polyester powder coated paint finish to BS/6496 colour White.

Glazing Specification

Triple skin factory assembled cassettes comprising of 3mm UV protected polycarbonate outer, Colour  Opal, 3mm UV protected polycarbonate centre, Colour Opal and 3mm UV protected polycarbonate inner, Colour  Opal.
