Our Lady & St Bede Catholic Academy

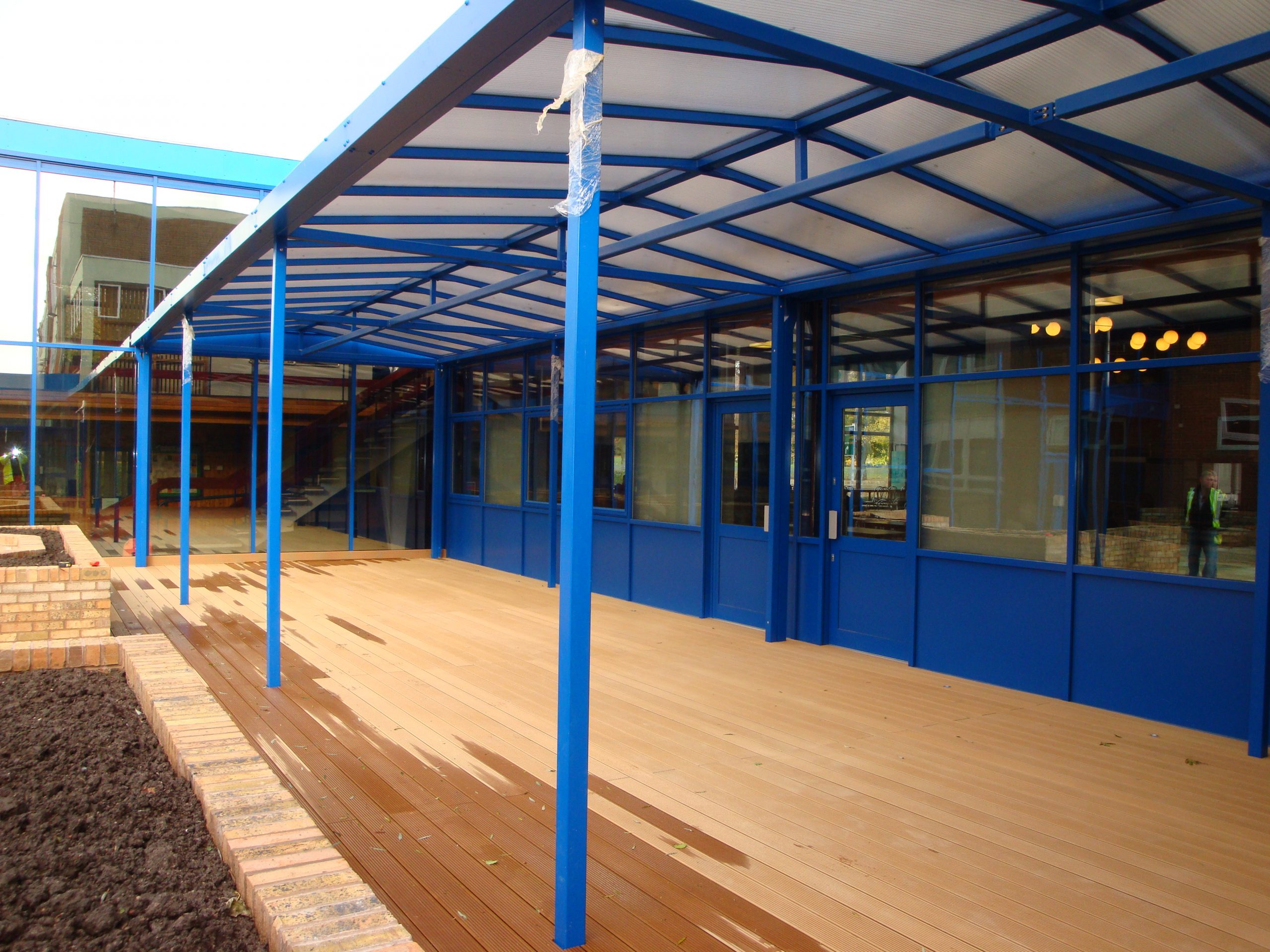

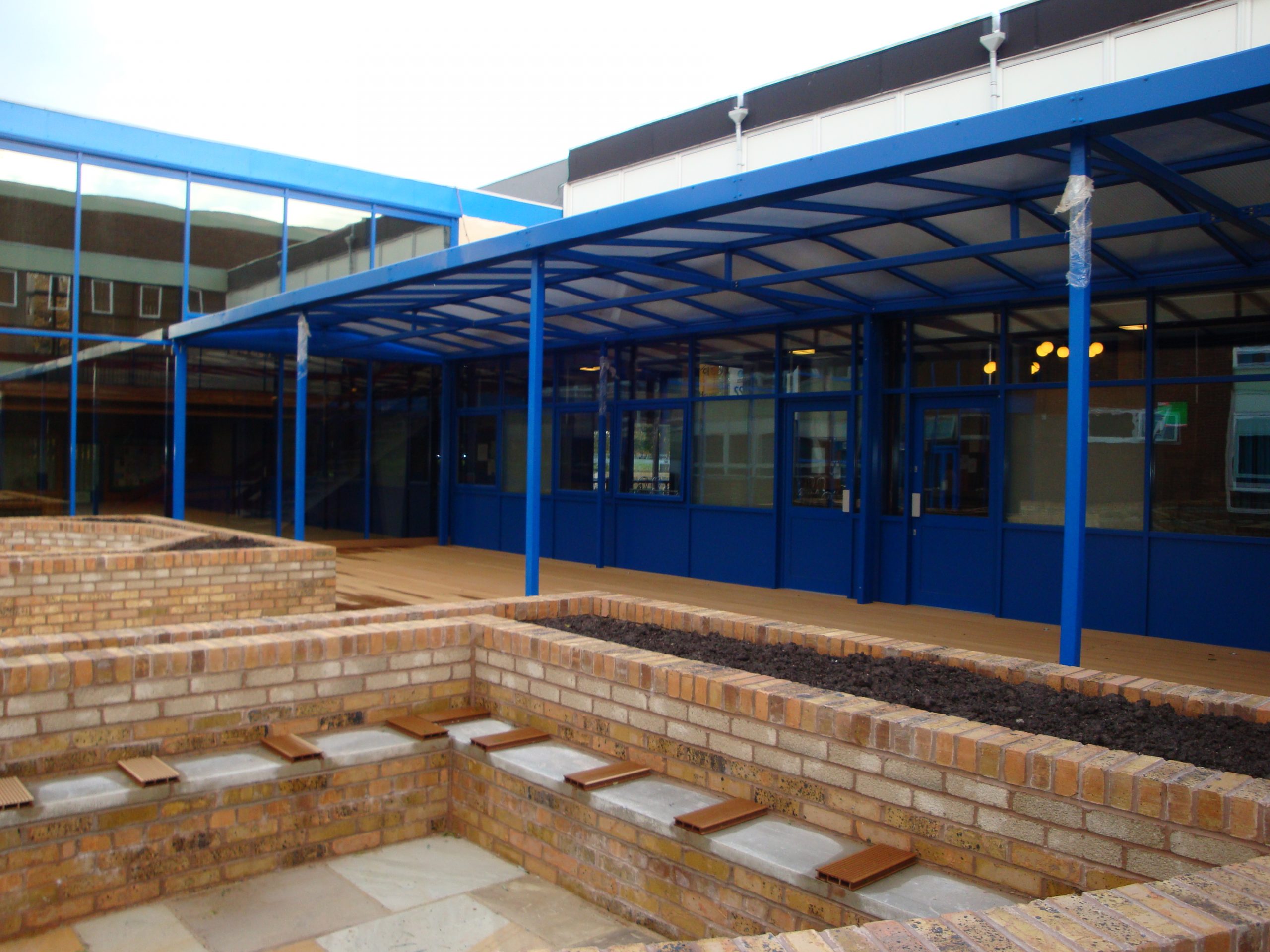

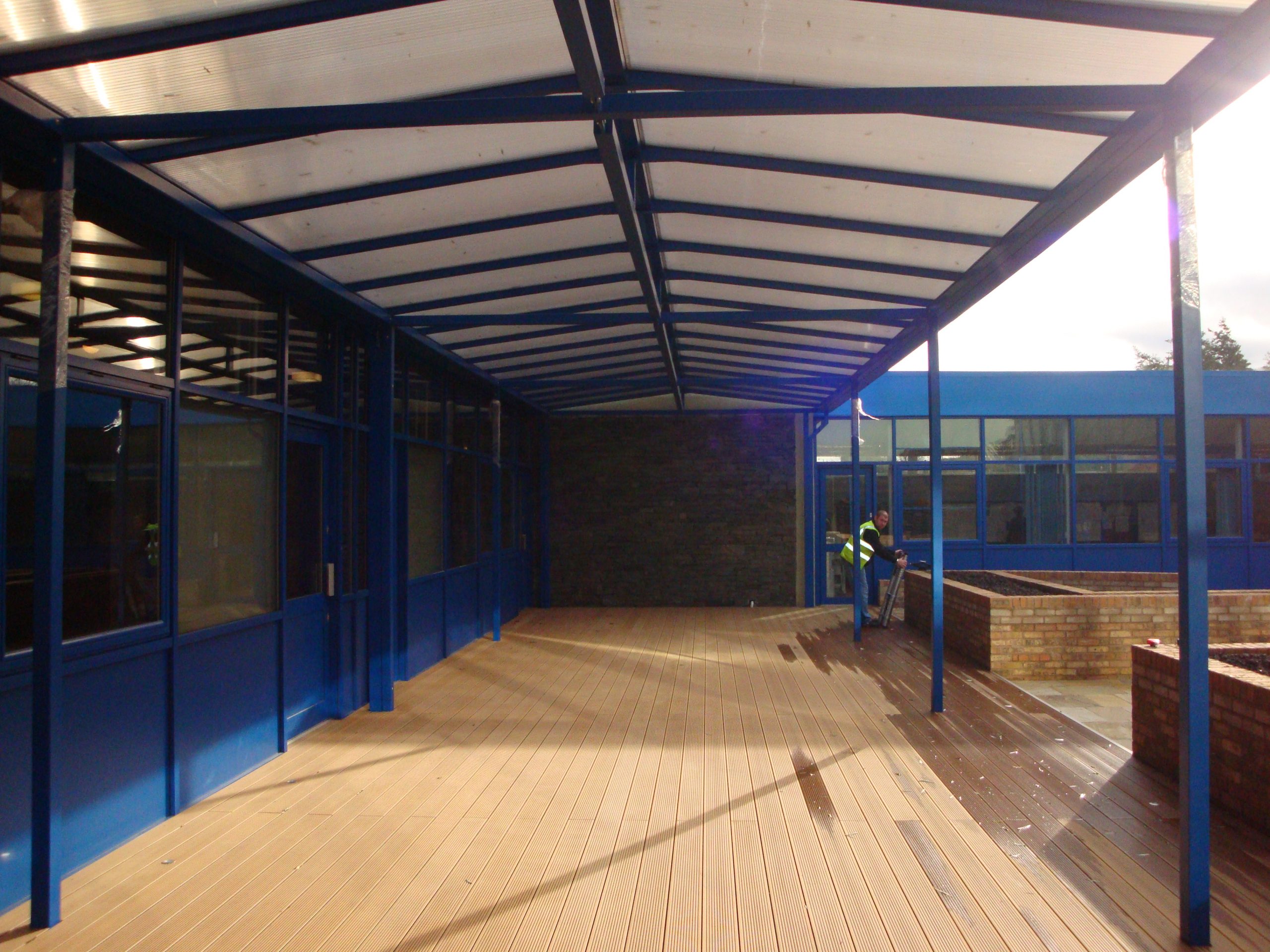

Fastlock Dual pitch Canopy
Project Description

Project: Our Lady & St Bede Catholic Academy

Location: Stockton, England

Main contractor: Naturalight Systems Ltd

Specification: 1No 14000mm length x 8000mm wide x 3900mm high at the centre of canopy with approximately 10º fall to each side, NLS dual-pitch 16mm FastLock structural steel canopy, constructed from 100 x 100 x 5mm steel box section uprights (9no), steel box section cross ties, ring beam and support framework, 500 x 500 x 10mm base plates for bolting to concrete pad supplied by others. All steelwork to be shot blasted, zinc primed to inter zinc 72, all polyester powder coated paint finish to BS 6496 colour Blue.

Glazing Specification

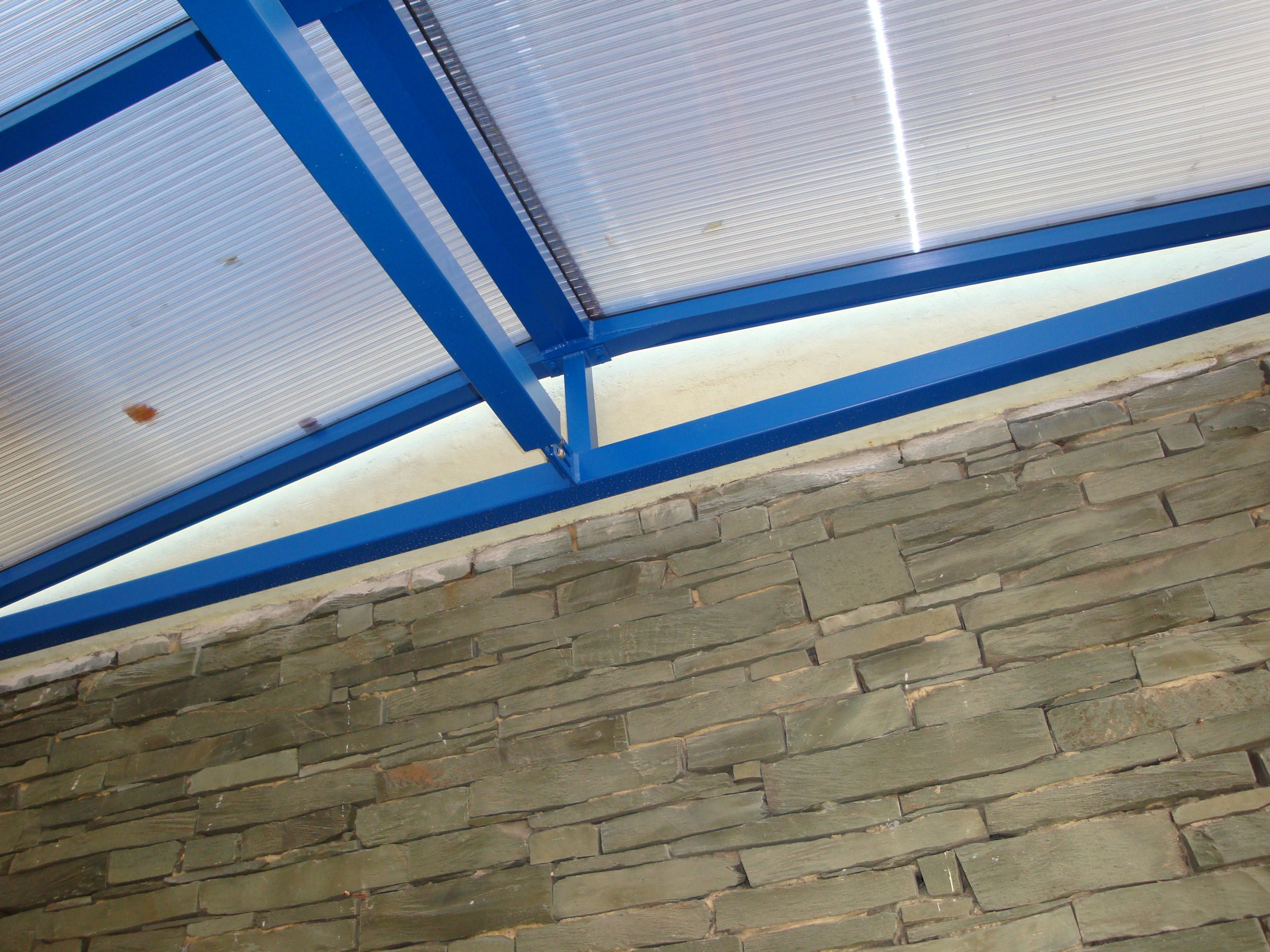

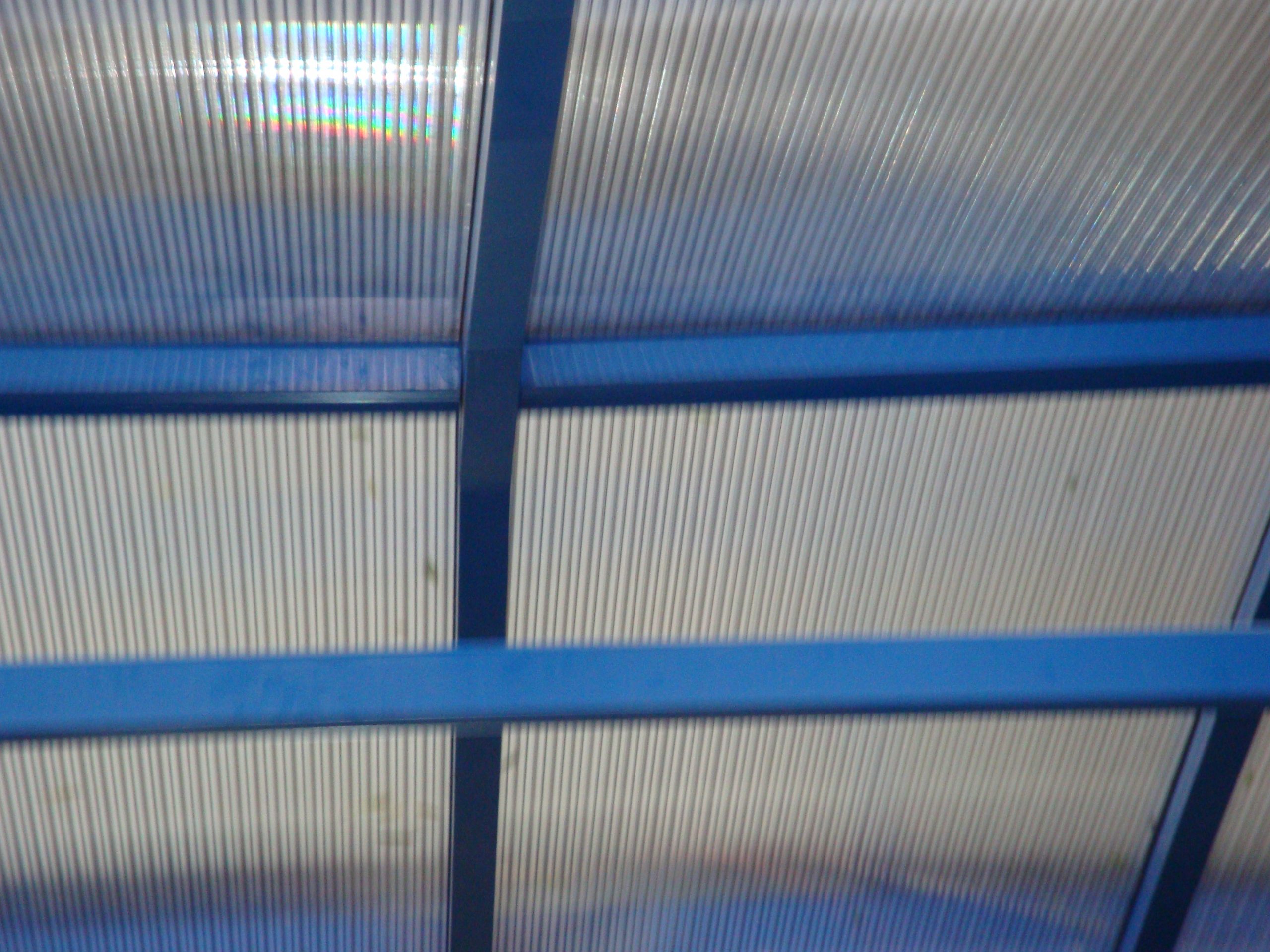

Dual pitch approx 10º pitch..16mm FastLock glazing system, factory assembled interlocking panels with secondary water management including aluminium flashings to suit, glazed with 16mm UV protected triple-wall polycarbonate colour tint Opal
