St Mary’s

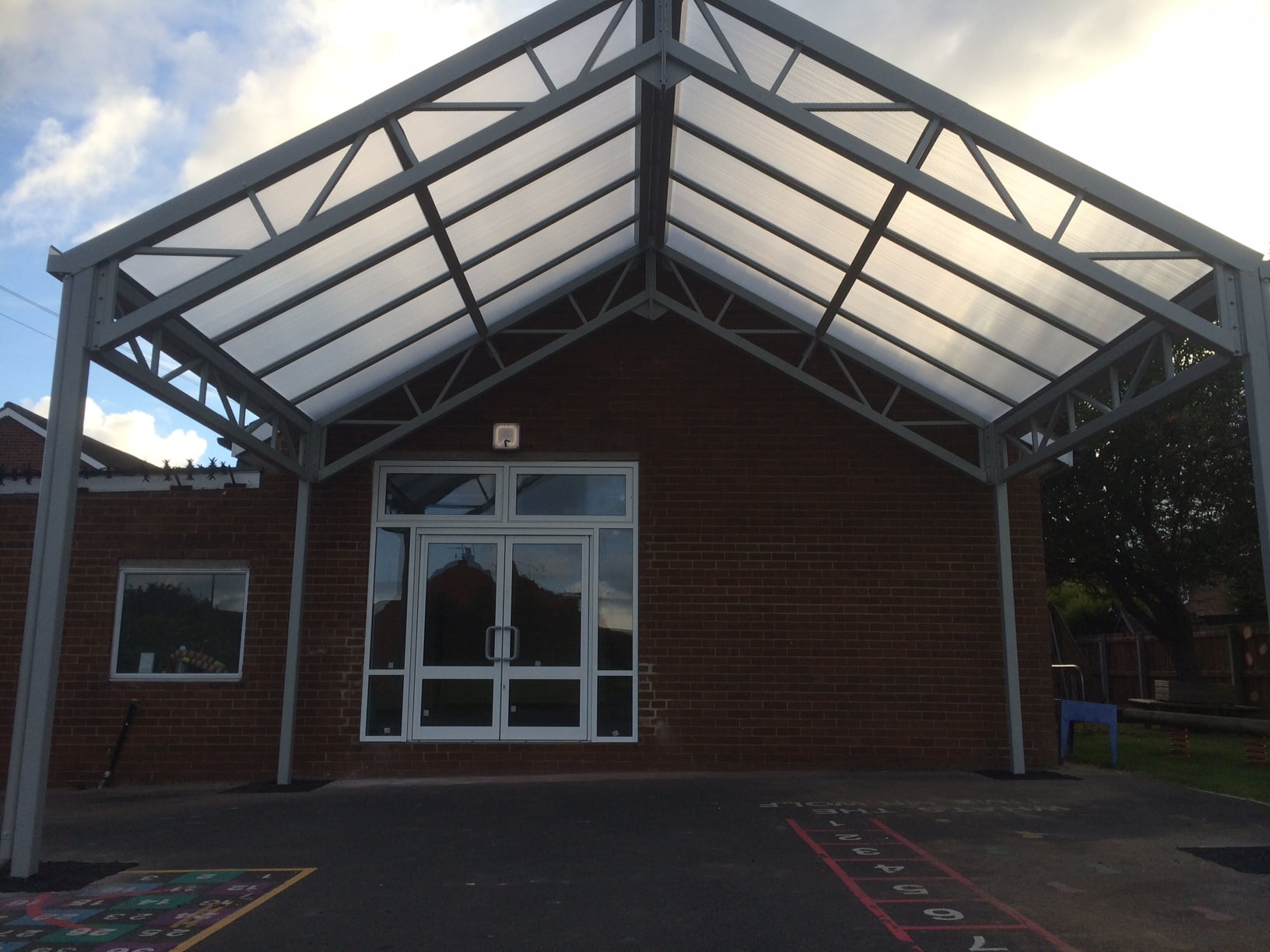

Fastlock Dual Pitch Canopy
Project Description

Project: St Mary’s

Location: ???? , England

Main contractor: Roofglaze Ltd

Specification: 1NO    7200 x 2400 x 2700mm high NLS steel canopy constructed from 80 x 80mm steel box section uprights, cross ties and ring beam, 200 x 200 x 10 mm base plates for bolting to concrete pads 1no 7.200m continuous gutter including 1no outlet and downpipe, all steelwork shot blasted, zinc primed to inter zinc 72, polyester powder coated paint finish BS/6496 colour T.B.C.

Glazing Specification

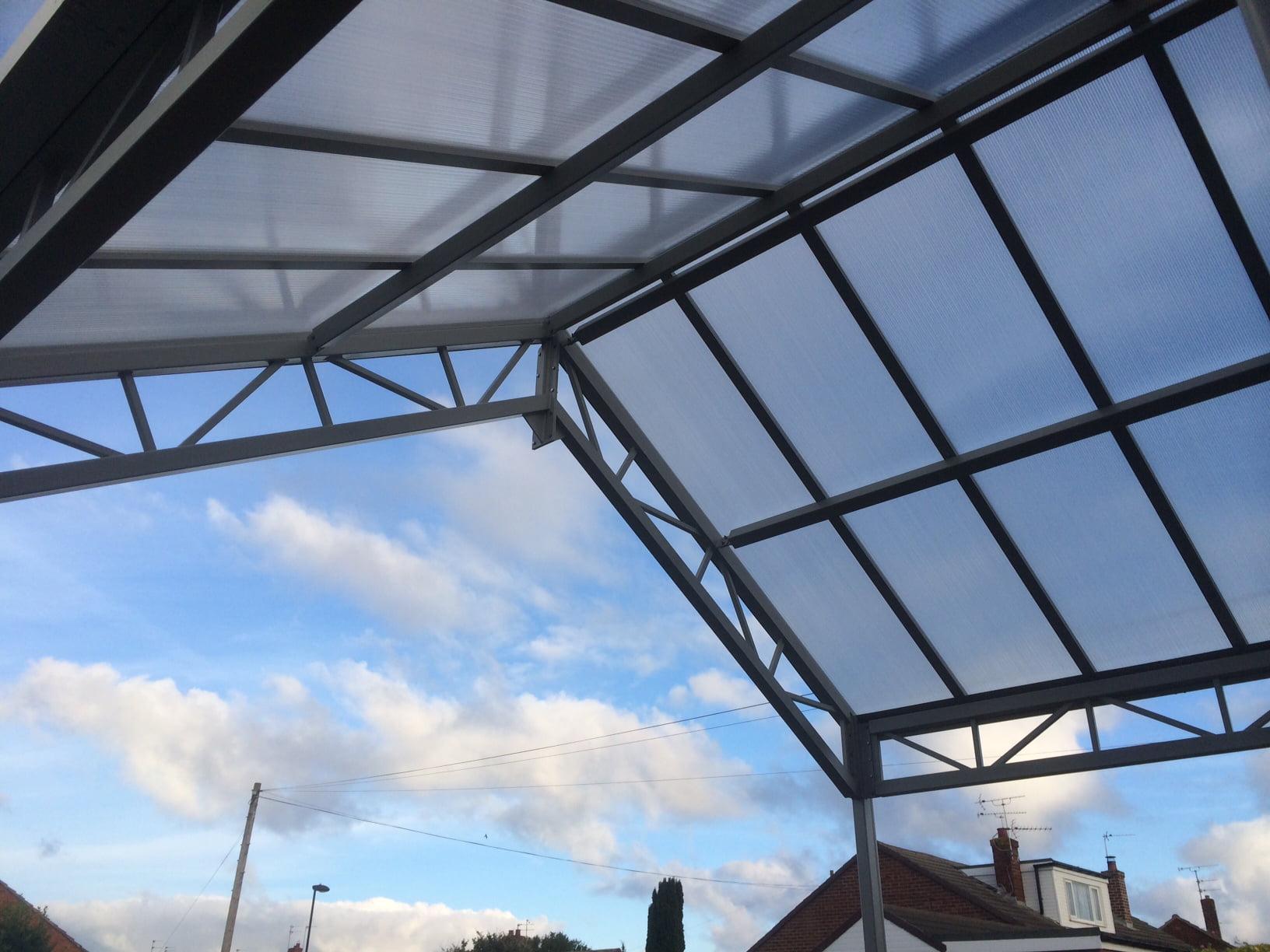

NLS Fastlock with factory assembled interlocking panels glazed with 16mm UV protected structural polycarbonate, colour T.B.C.
