St Mary’s Field Infants School

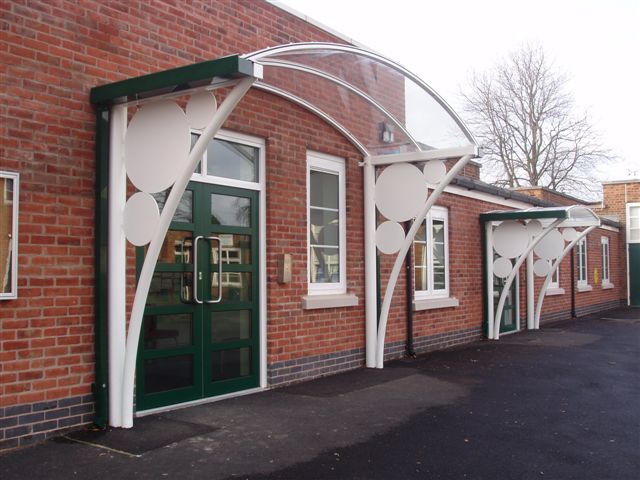

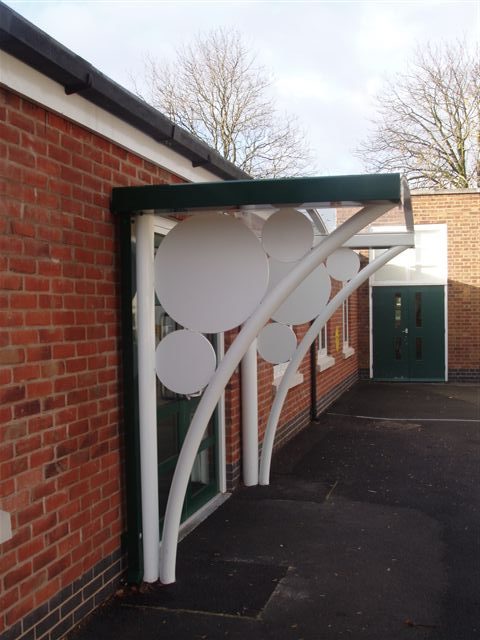

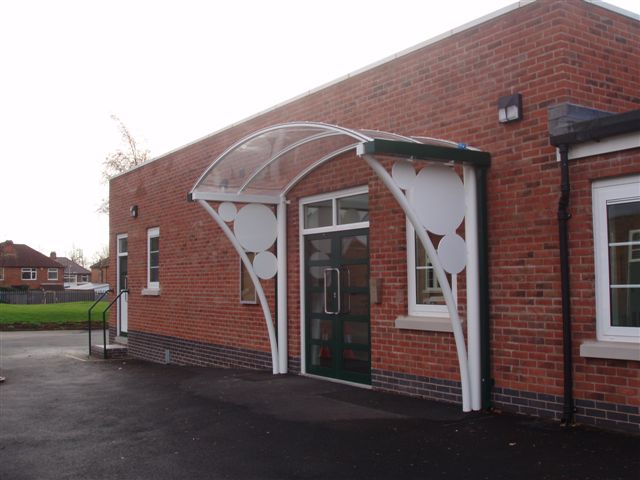

Naturalspan Canopy
Project Description

Project: St Mary’s Field Infant School

Location: Leicestershire, England

Main contractor: Naturalight Systems Ltd

Specification: 2NO 2500mm x 2500mm x 2700mm high to underside of ring beam, NLS independent NaturalSpan structural steel canopy, constructed from 88.9mm diameter CHS steel uprights (2no uprights to be curved), cross ties and ring beam, 300 x 300 x 10mm base plates for bolting to concrete pads supplied by others, 1no 2.500m long gutter to the front side of canopy with 1no downpipe outlet, steelwork to be shot blasted, zinc primed to inter zinc 72, polyester powder coated paint finish to BS 6496 colour White & Green

Glazing Specification

 NLS NaturalSpan glazing bar gasketed system with secondary water management, glazed with 3mm clear UV protected solid sheet polycarbonate.
