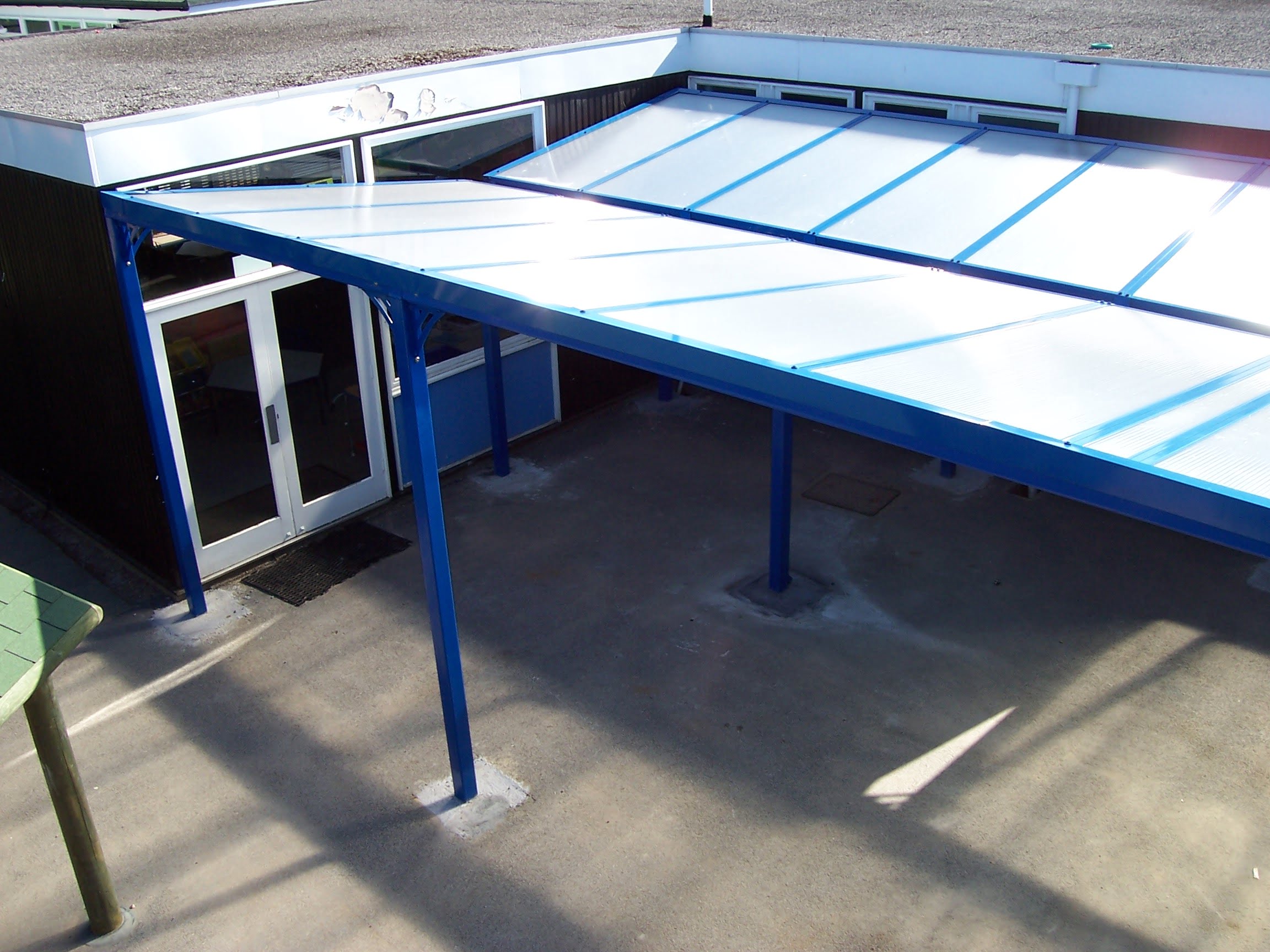

Telford Infants School
Naturalight Multi-Pitched Canopy
Project Description

Project: Telford Infants School

Location: Leamington Spa, England

Main contractor: Naturalight Systems Ltd

Specification: 1No 9650mm x 11420mm x 2400mm high to underside of ring beam Naturalight Fastlock canopy, constructed from 100 x 100mm steel box section uprights, cross ties, diagonal ties and ring beam with ridge section, 200 x 200 x 10mm base plates for bolting to concrete pads supplied by others, with all necessary flashing and structural gutters at 200mm wide to allow access for cleaning, all steelwork shot blasted, zinc primed to inter zinc 72, polyester powder coated paint finish BS/6496 colour Blue.

Glazing Specification

NLS Fastlock factory assembled interlocking panels with secondary water management glazed with 16mm UV protected structural polycarbonate, colour Opal. Glazing bars to be polyester powder coated BS/6496 colour Blue.
