The Spike
Naturalspan Lanternlight's
Project Description

Project: The Spike

Location: Guildford, Surrey, England

Main contractor: Pinnacle

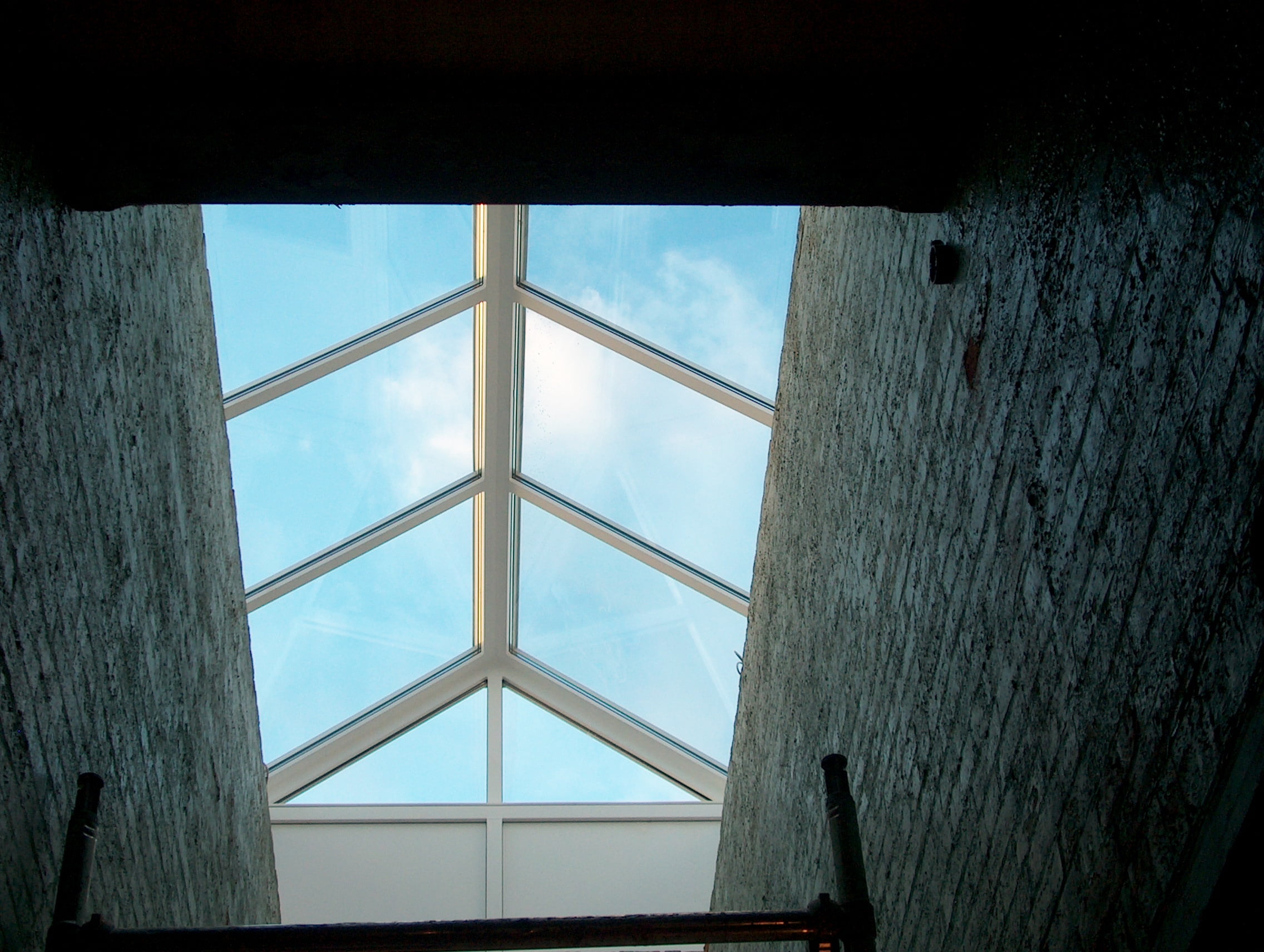

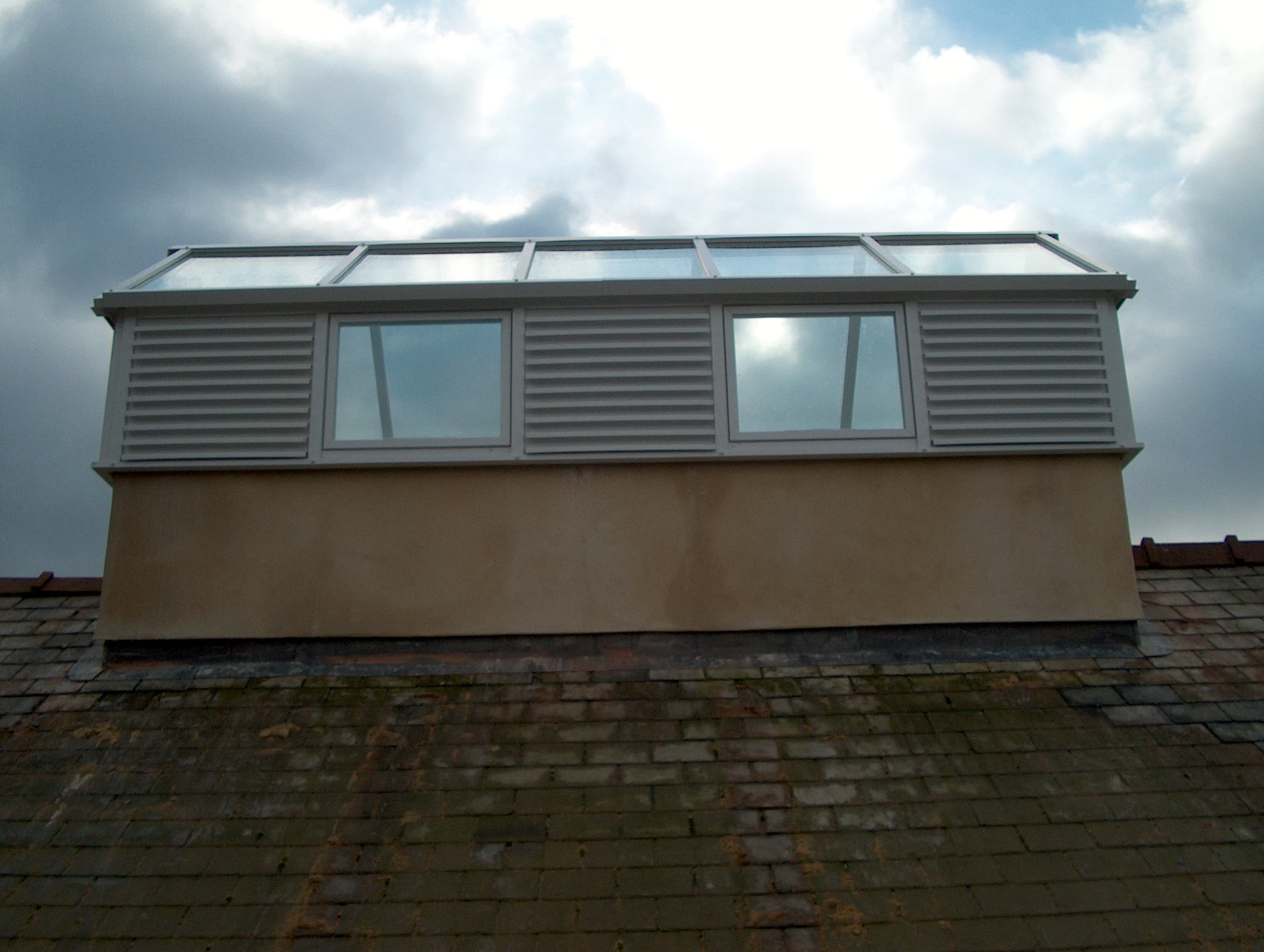

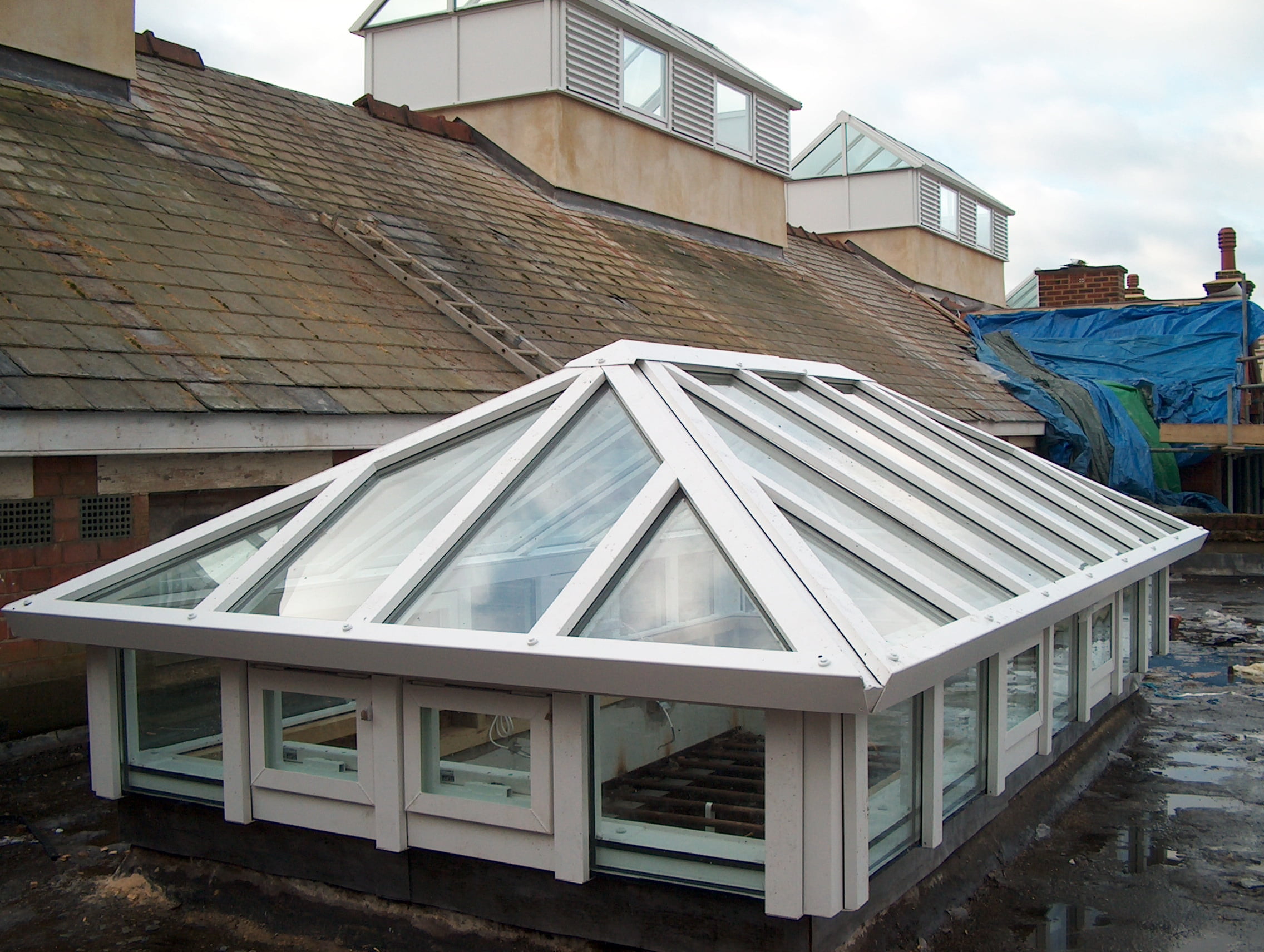

Specification: 5NO 5.050 x 1.950 x 0.750m, 1NO 1.500 x 1.500 x 0.750m, 1NO 3.450 x 1.850 x 0.750m high NLS 30º NaturalSpan lanternlight, aluminium glazing bar gasketed system with secondary water management including aluminium flashings to suit, eight electrically operated top hung opening bays per unit, operated using 240V linear motors (all wiring to mains by others), polyester powder coated paint finish to BS 6496 colour White/Cream.

Glazing Specification: 22.4mm double glazed units comprising of 4mm clear toughened outer, 6.4mm clear laminated inner with 12mm air cavity.
