The Woodlands Hotel
NaturalSpan Lantern light - Naturalspan Pyramid
Project Description

Project: The Woodlands Hotel

Location: Leeds, England

Main contractor: Medlock FRB

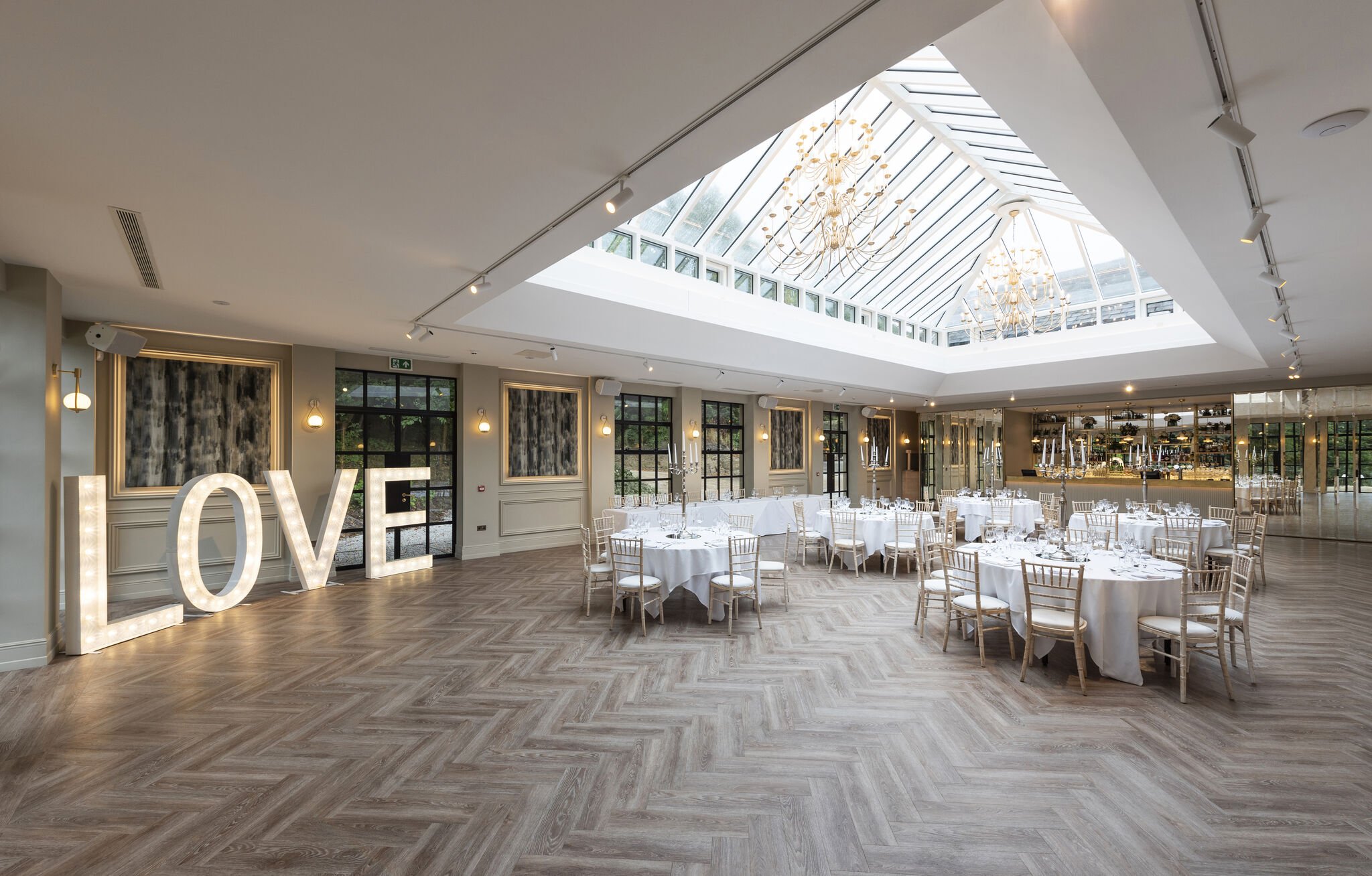

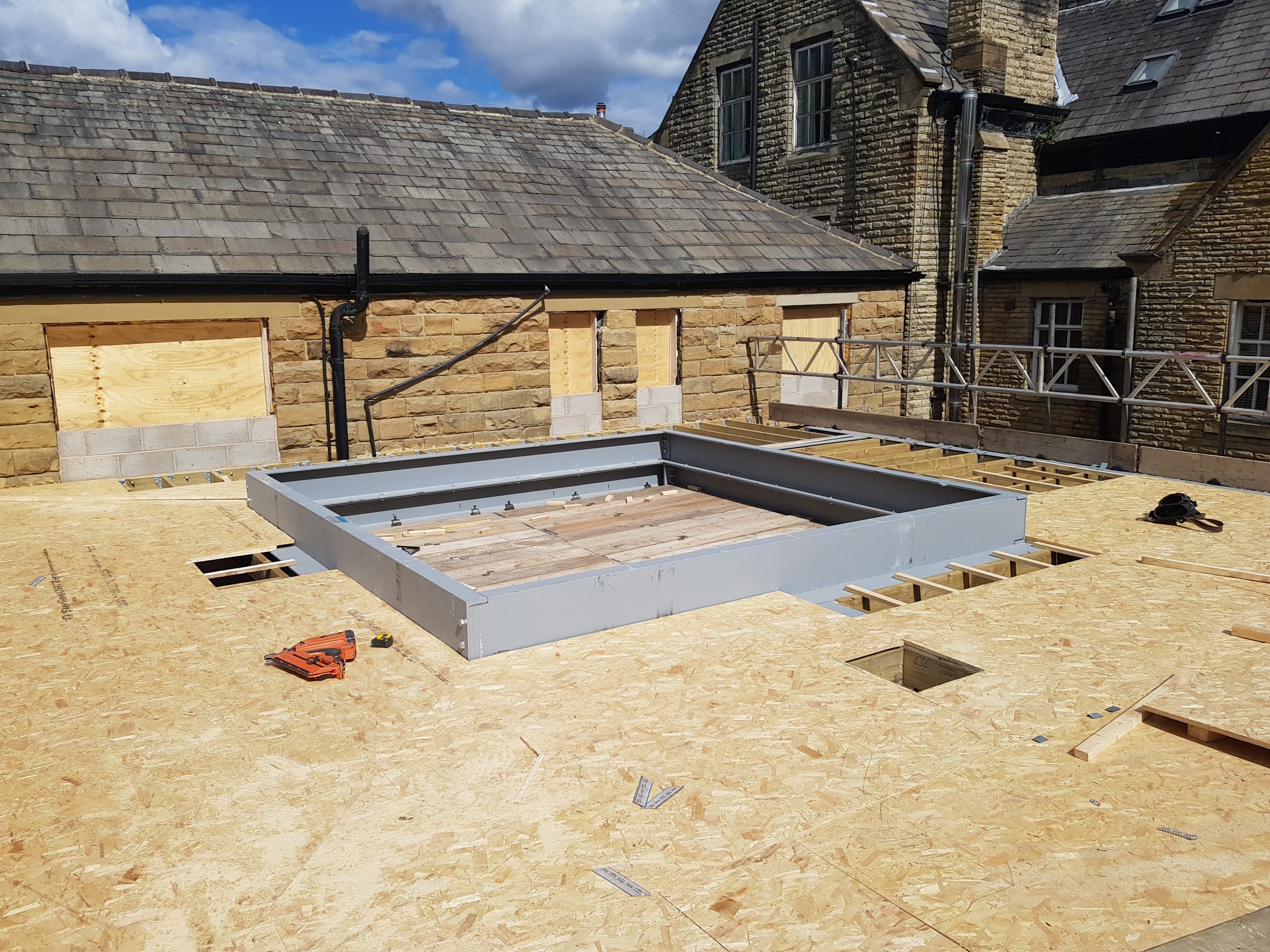

Specification: 1No 10800mm x 4800mm Overall size NLS NaturalSpan glass Lanternlight with hipped ends and 500mm vertically glazed sidewalls, aluminium glazing bar gasketed system with secondary water management including aluminium flashings to suit. Glazing bars on 600mm centre. All aluminium polyester powder coated paint finished to BS 6496 colour tint White. Unit fixing to a prepared upstand supplied by others.   Unit comes with 8No chain operated openers.

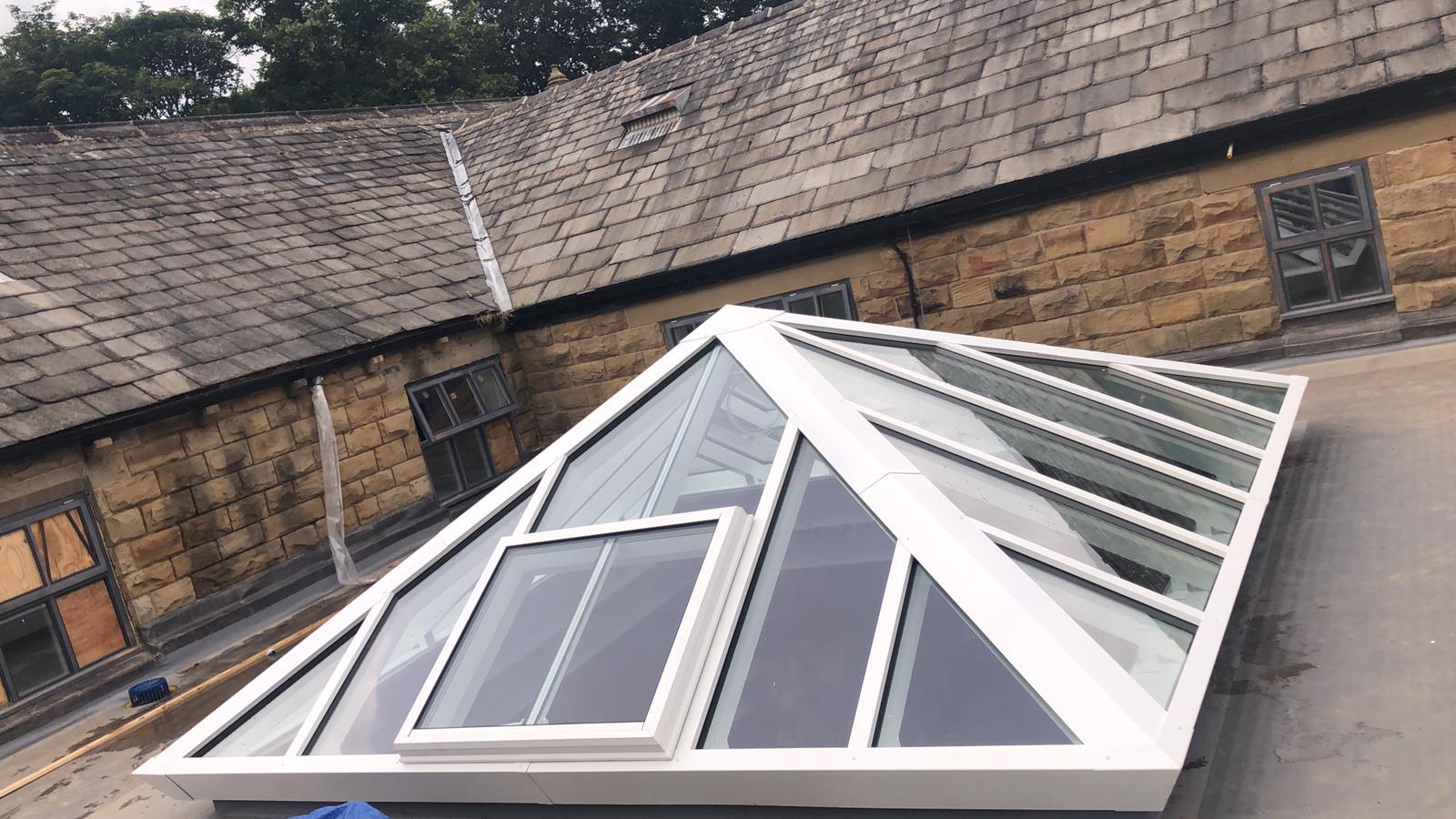

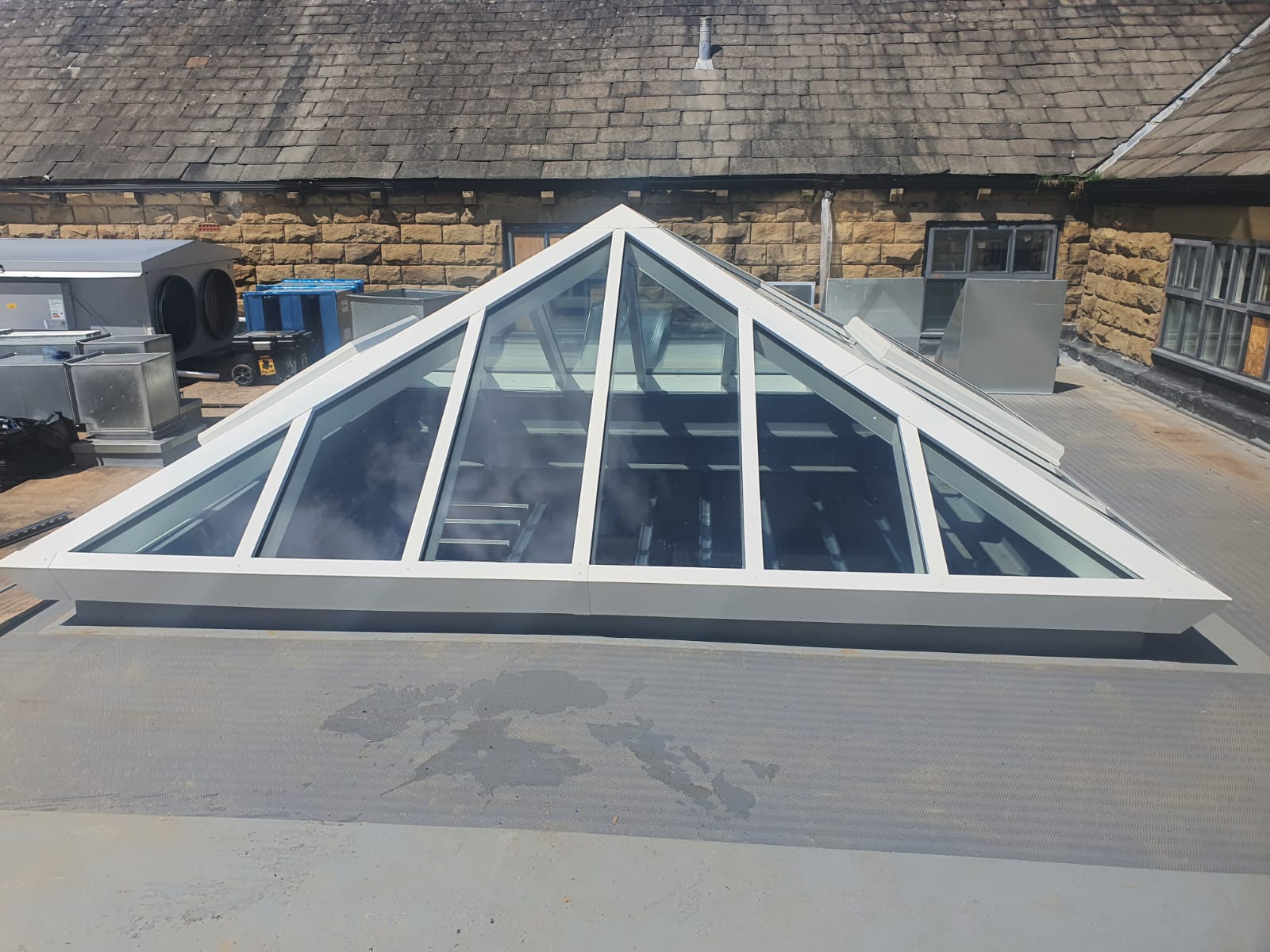

1No 3600mm x 3600mm Overall size NLS NaturalSpan glass Pyramid rooflight, aluminium glazing bar gasketed system with secondary water management including aluminium flashings to suit. Glazing bars on 600mm centre. All aluminium polyester powder coated paint finished to BS 6496 colour tint White. Unit fixing to a prepared upstand supplied by others. Unit comes with 2No chain operated openers.

Glazing Specification

32.8mm double glazed low e glass units comprising of 6mm clear toughened outer, 10.8mm clear laminated inner with 16mm argon filled cavity



Credit to Medlock FRB for three of the photographs.
