Westgate House
Naturalspan Lantern
Project Description

Project: Westgate House

Location: London, England

Main contractor: C.J O’Shea & Company Ltd

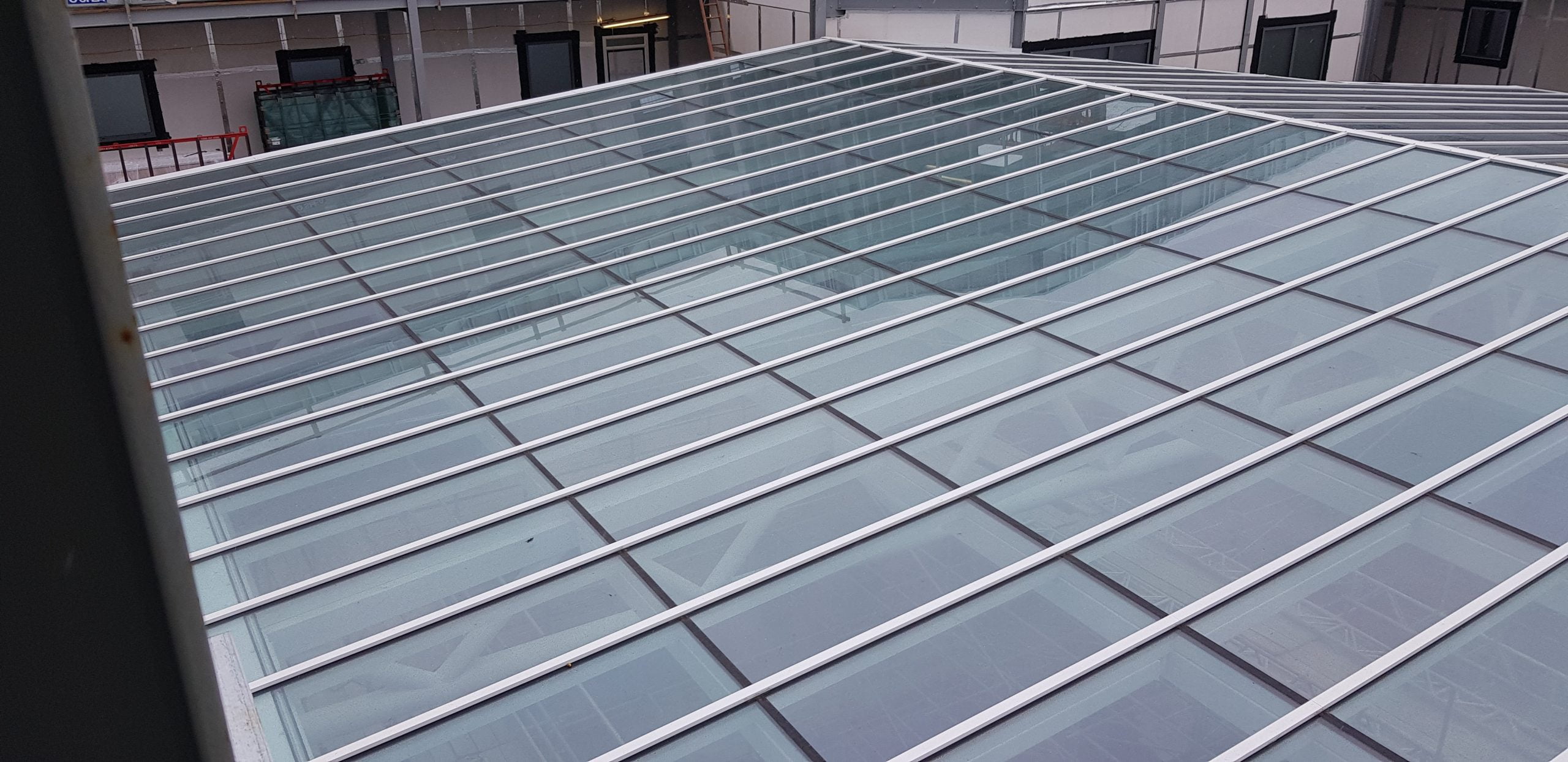

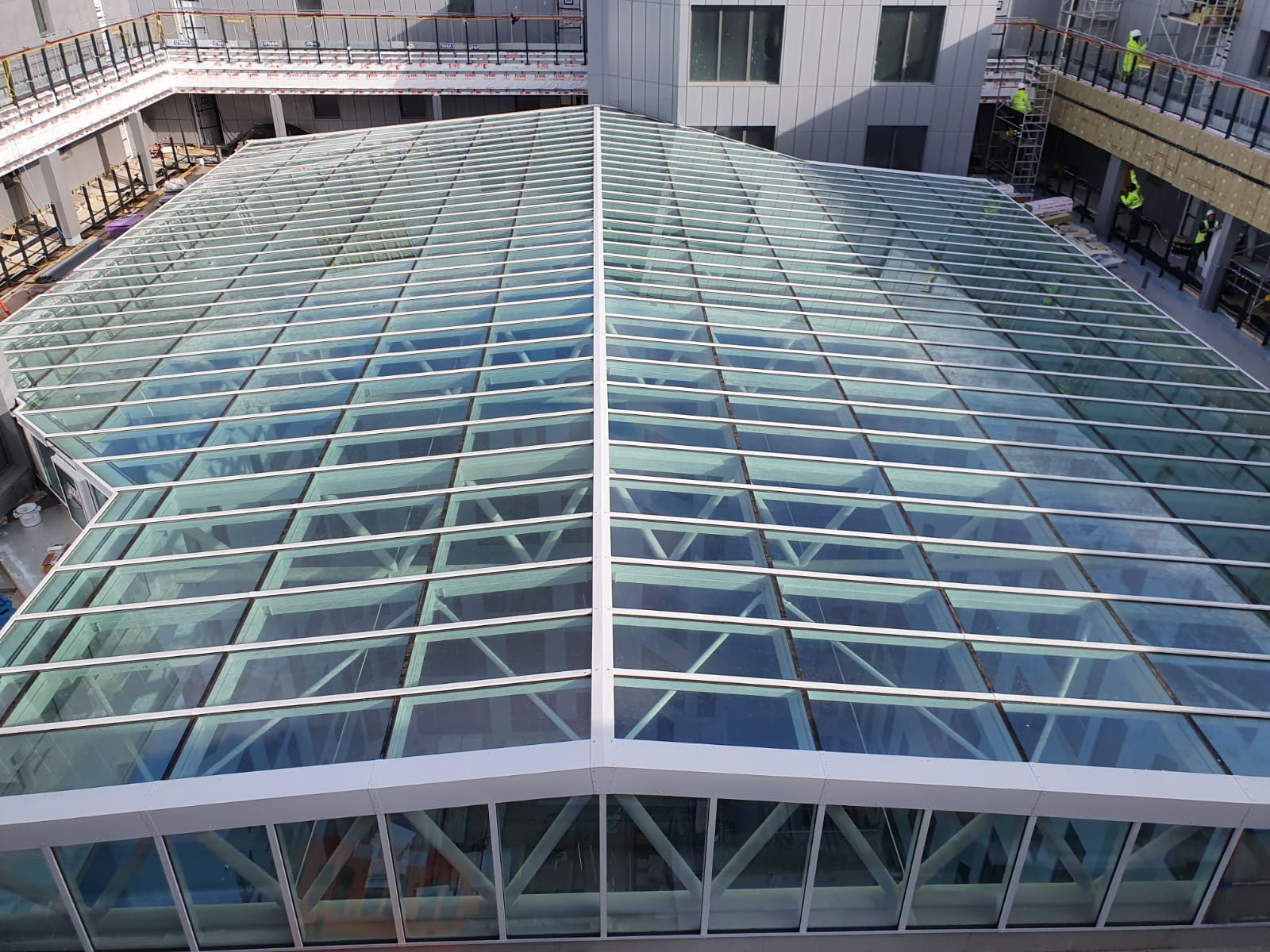

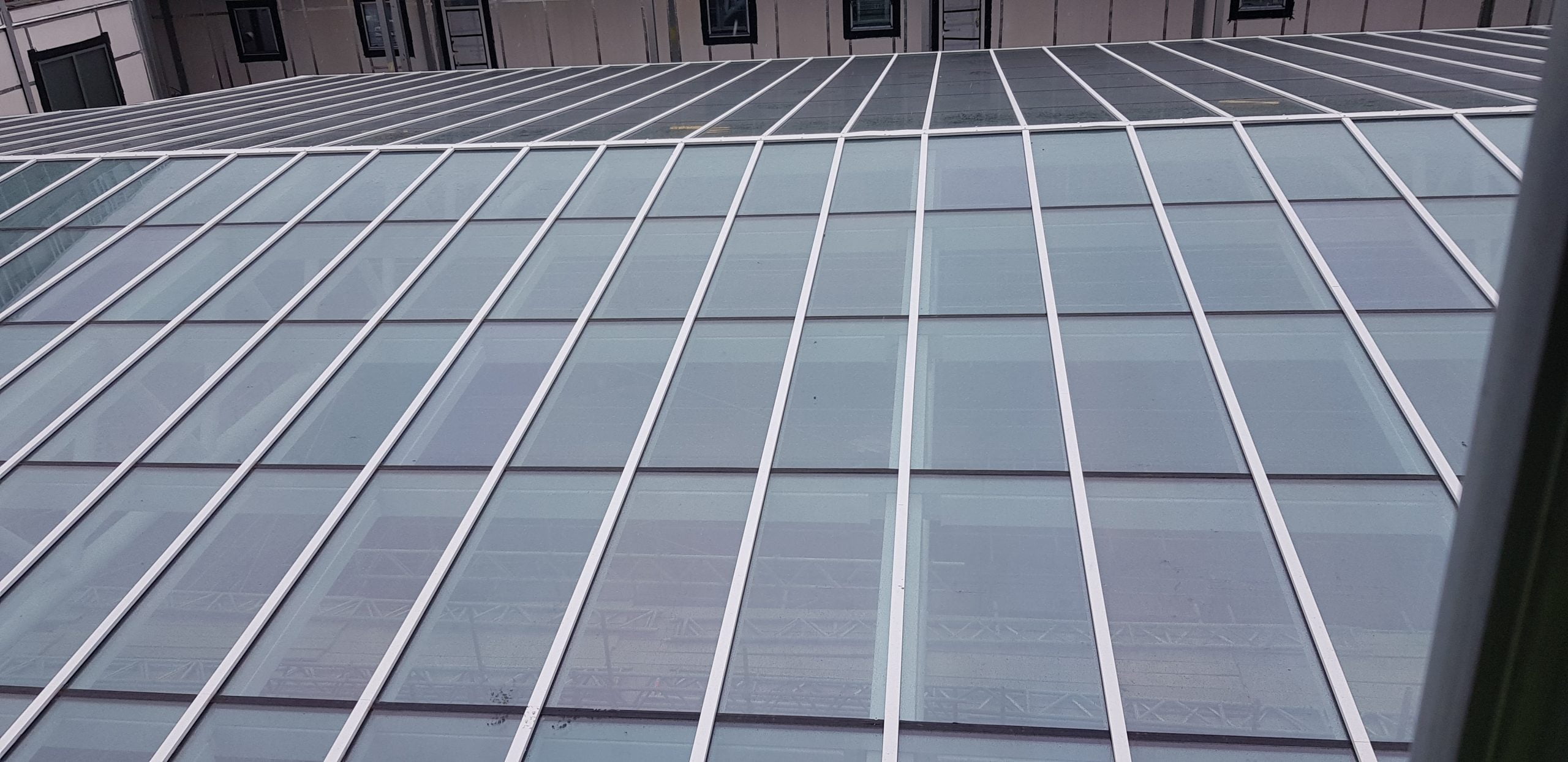

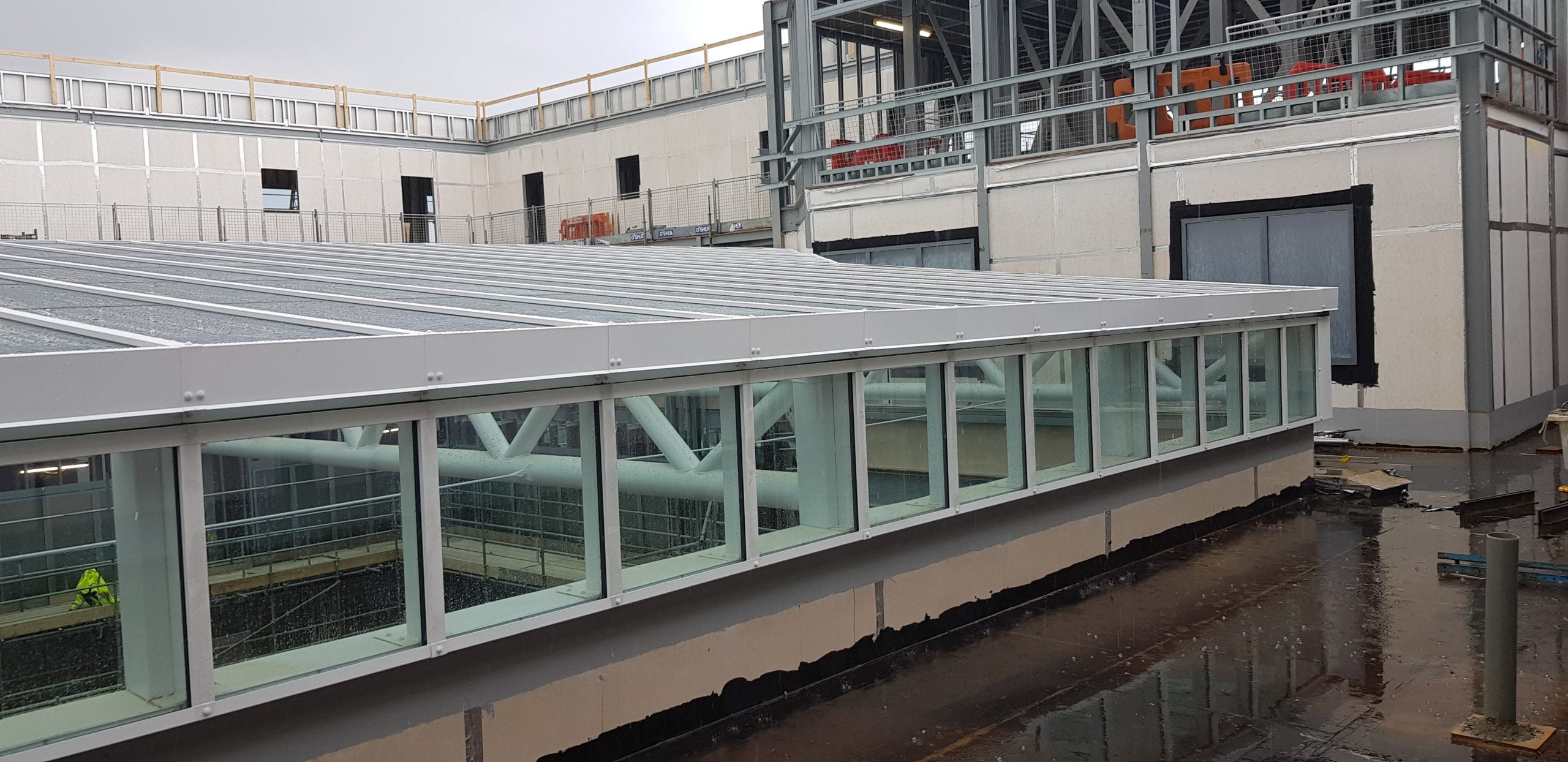

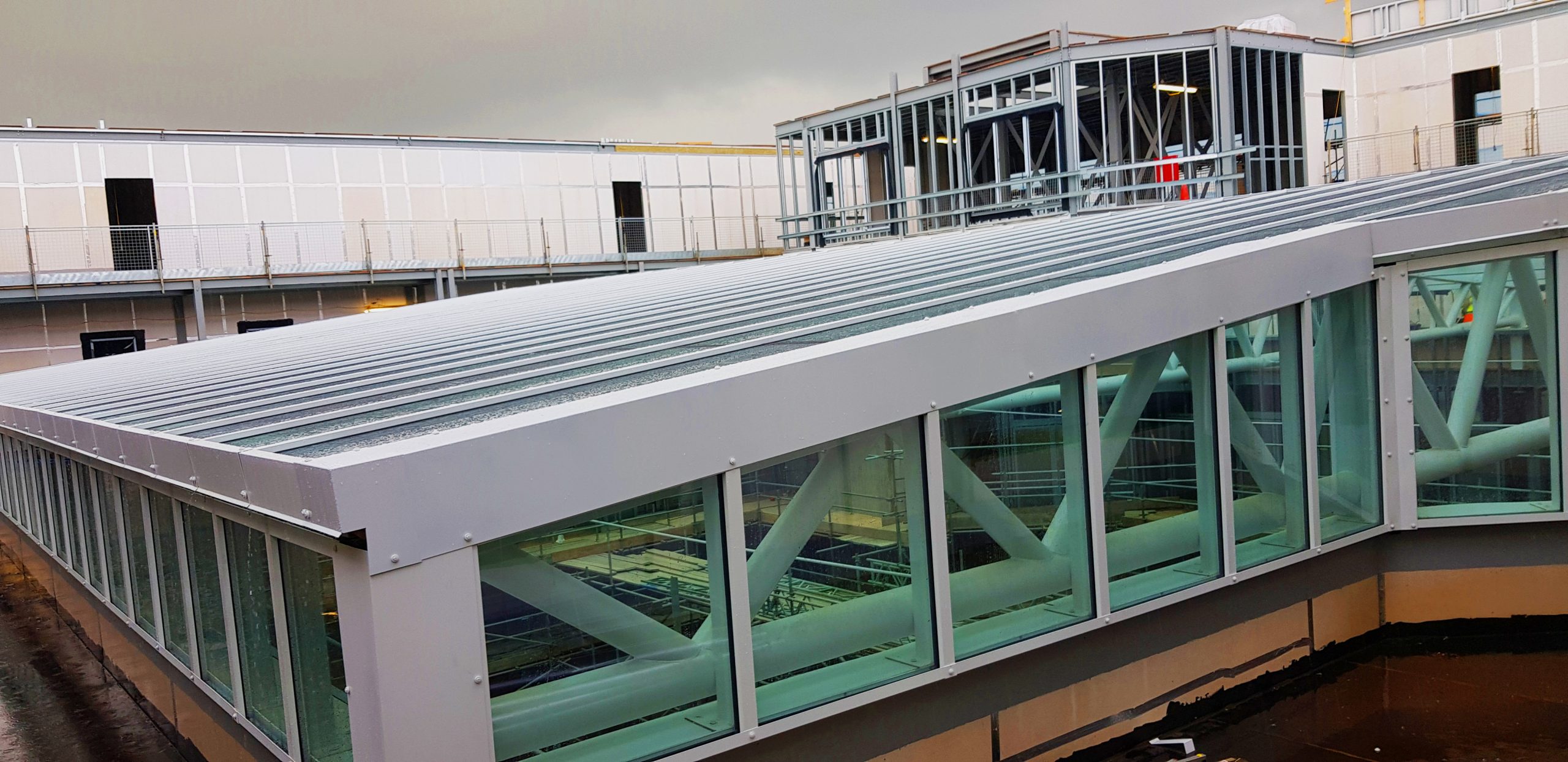

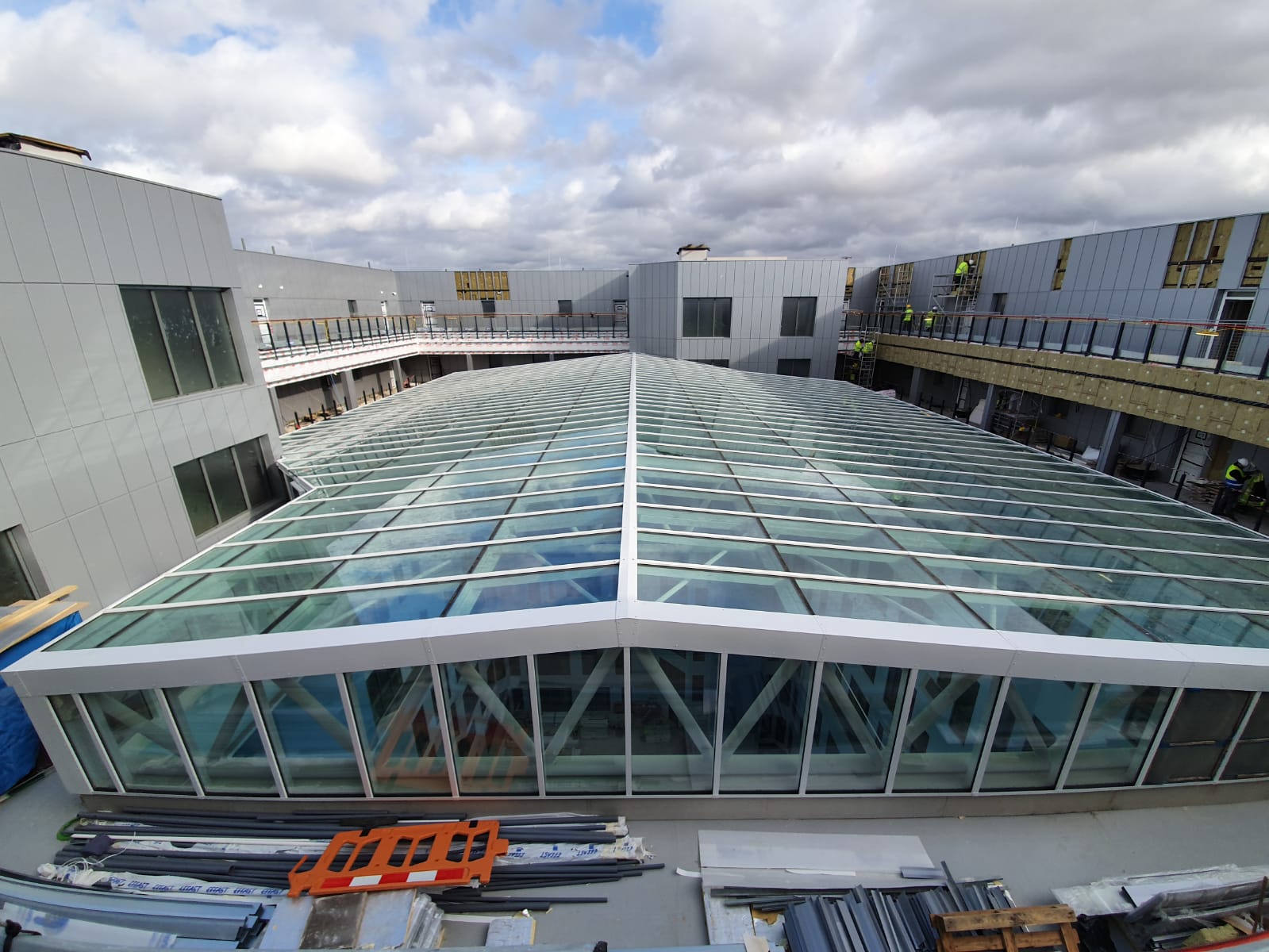

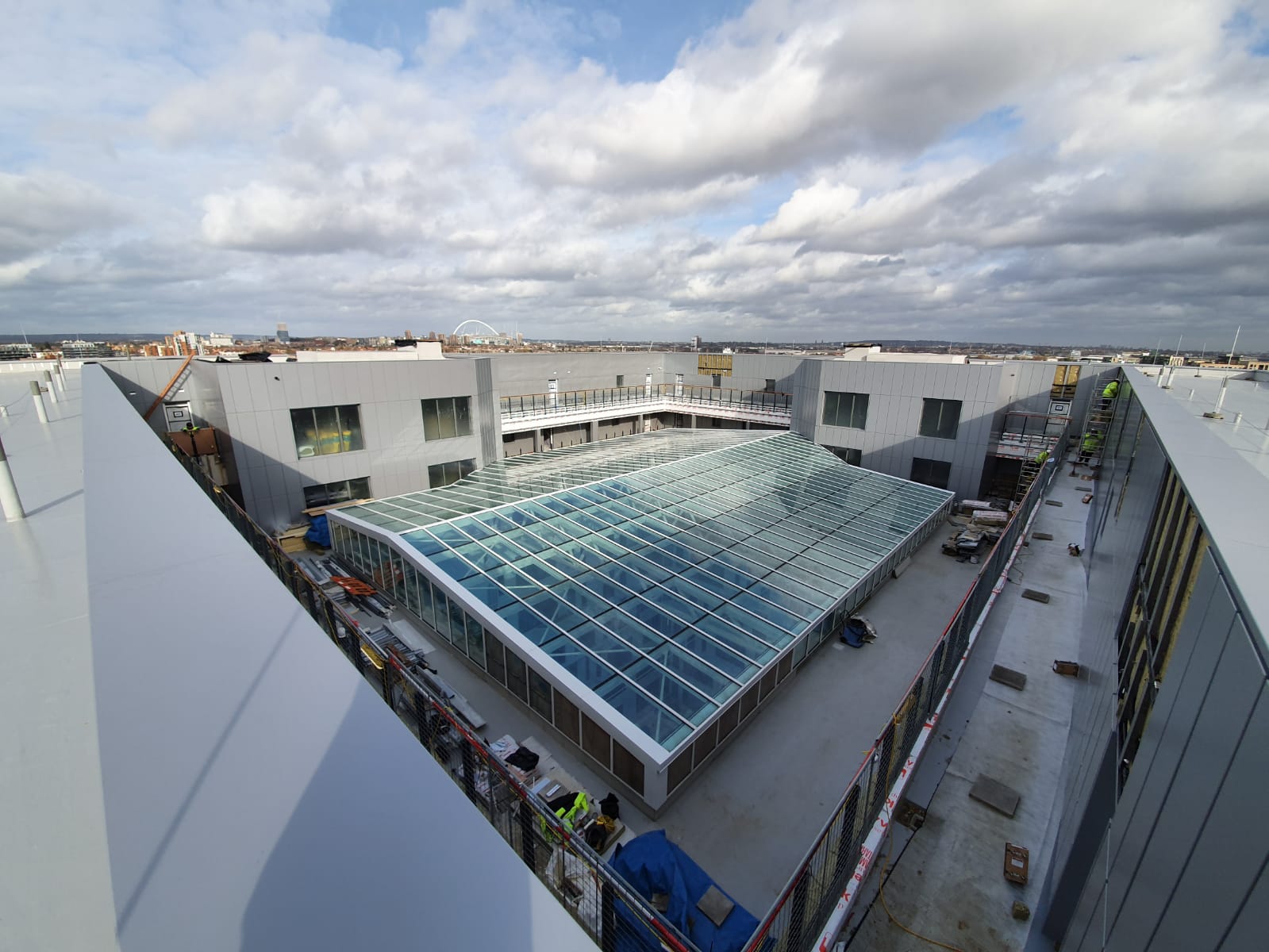

Specification: 1No 30000mm x 24006mm Overall plan size, NLS NaturalSpan dual pitch lantern rooflight with gable ends and 1000mm vertical side walls. Manufactured from NaturalSpan aluminium glazing bar gasketed system with secondary water management including aluminium flashings to suit. All polyester powder coated paint finished to BS 6496 colour tint T.B.C.

Unit fixing onto a prepared upstand supplied by others.

Glazing bars to be on approx. 1000mm Centres.

Glazing Specification  – Roof section

32.8mm double glazed low ‘E’ glass units comprising of 8mm SGG Coolite Xtreme 60/28 toughened outer, 8.8mm clear laminated inner with 16mm argon cavity.

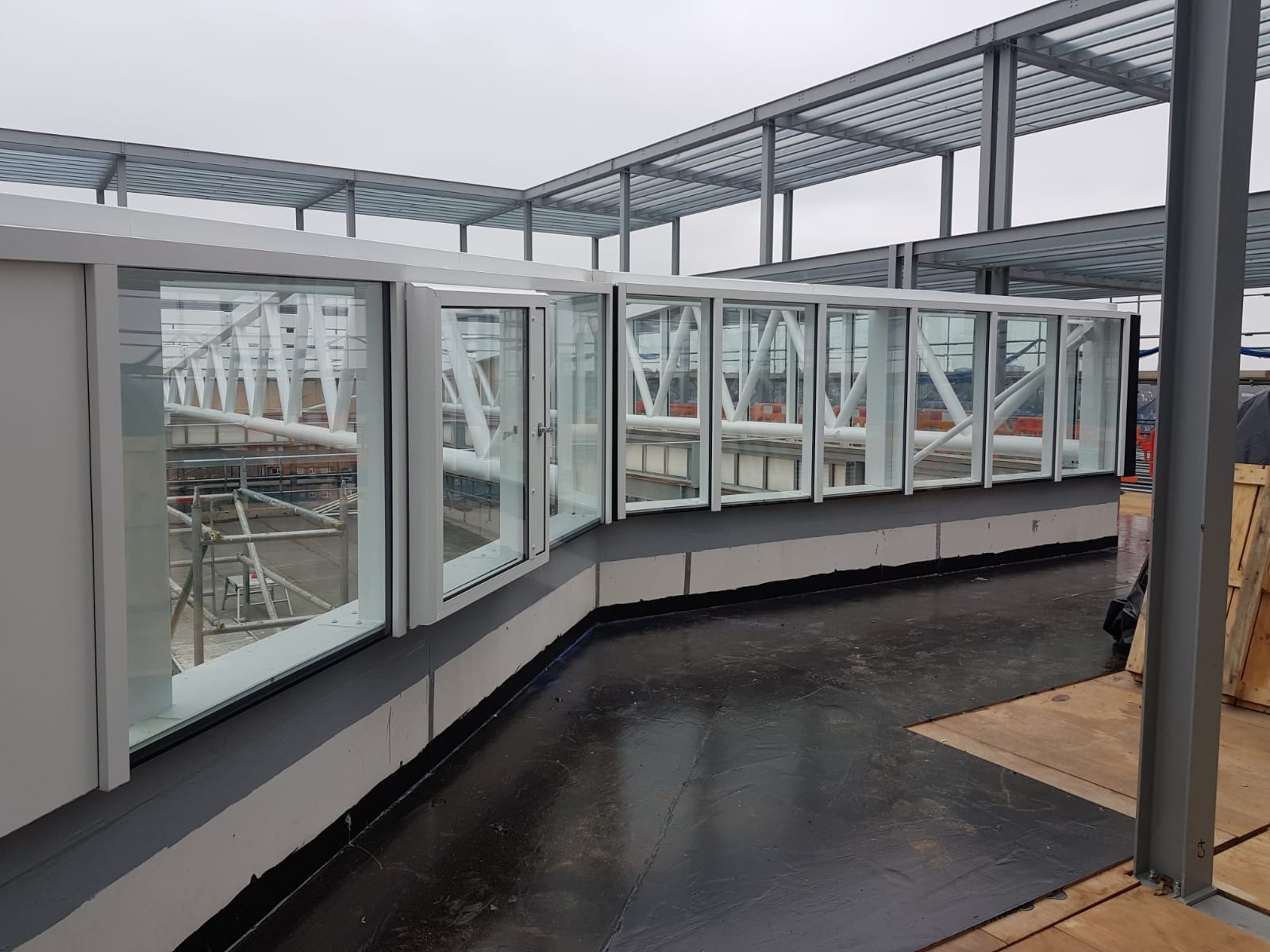

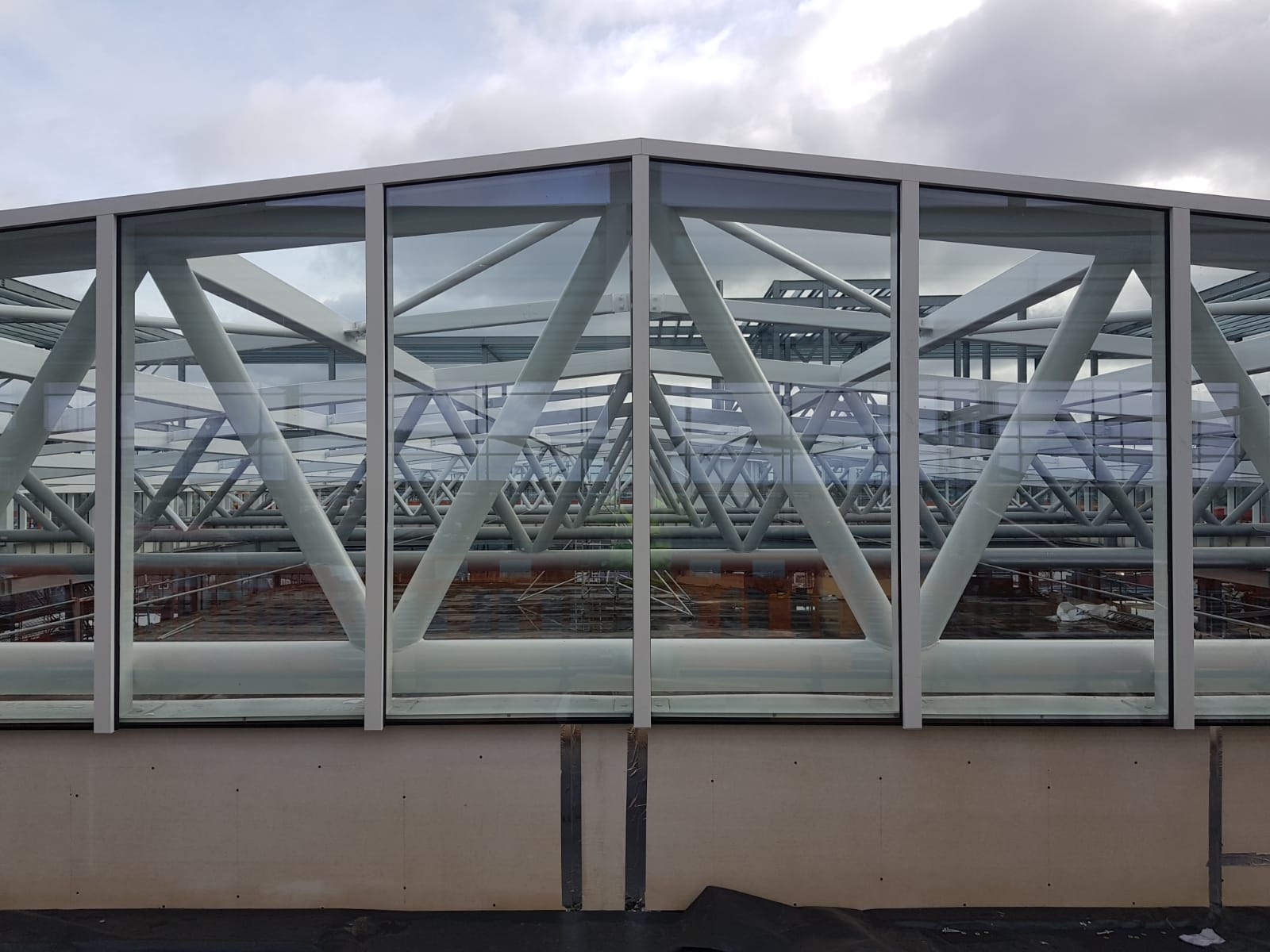

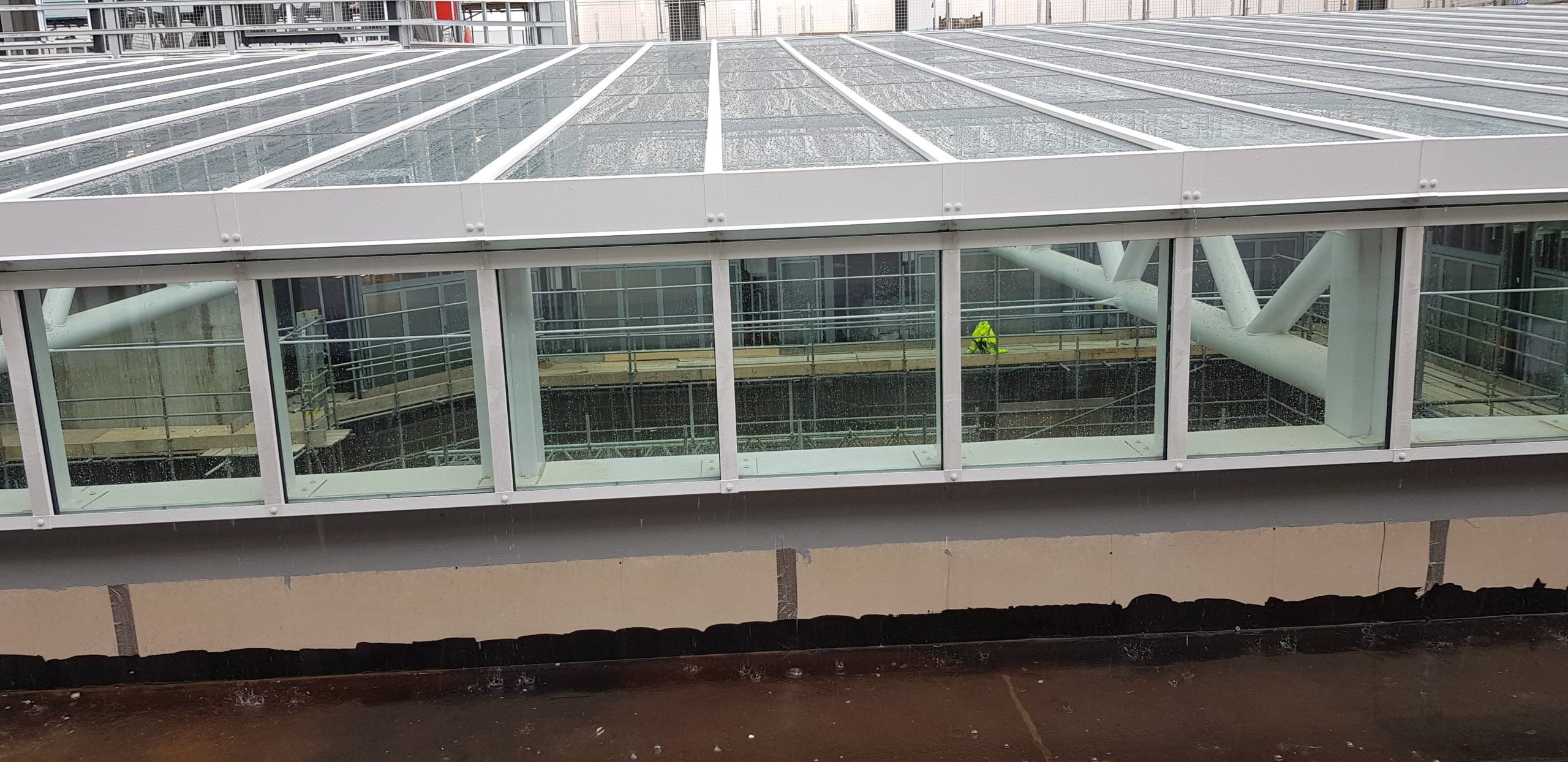

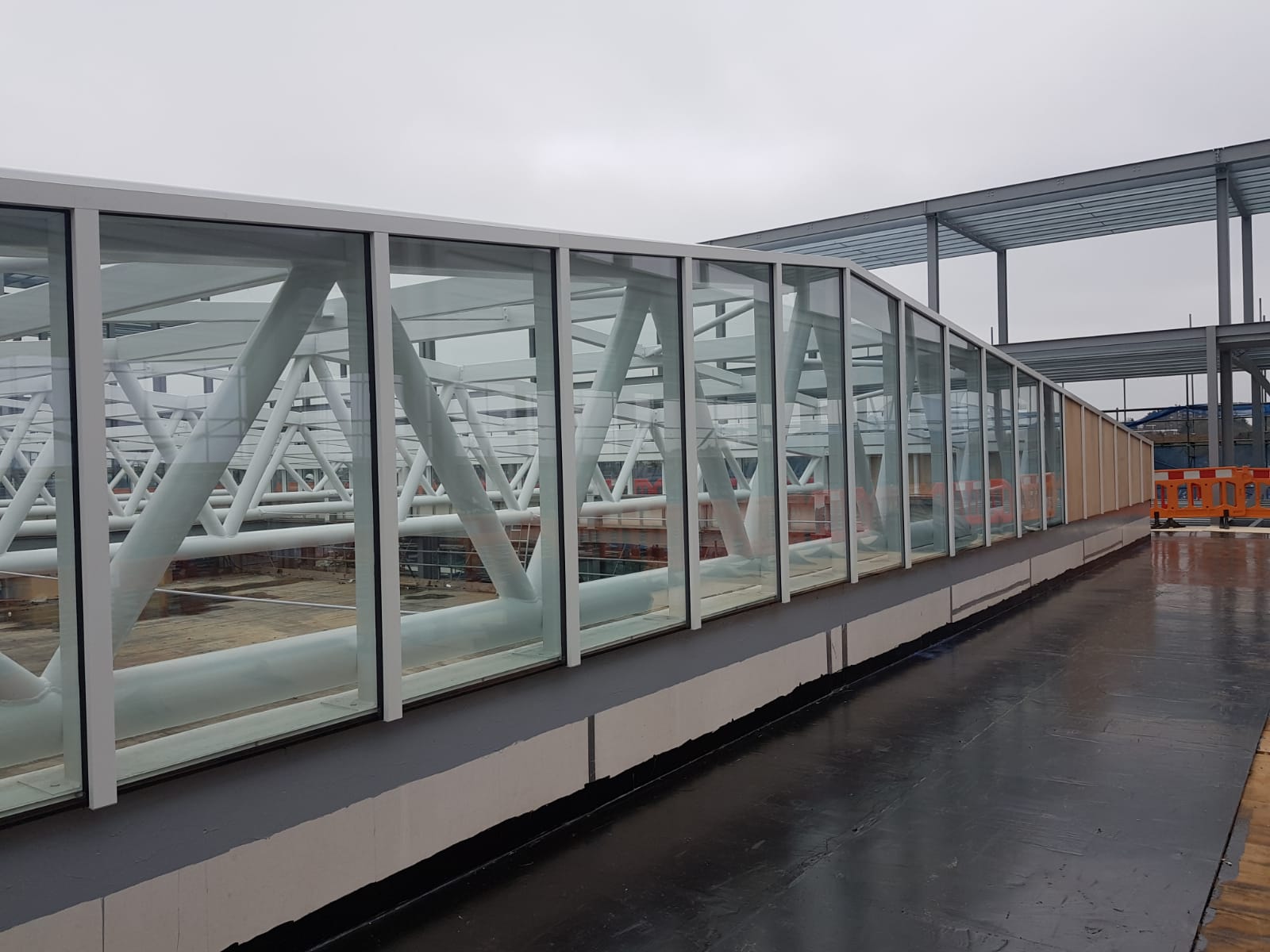

Glazing Specification – Vertical walls

32.8mm double glazed low ‘E’ glass units comprising of 8mm Clear toughened outer, 8.8mm clear laminated inner with 16mm argon cavity.
