Whitehill Primary School

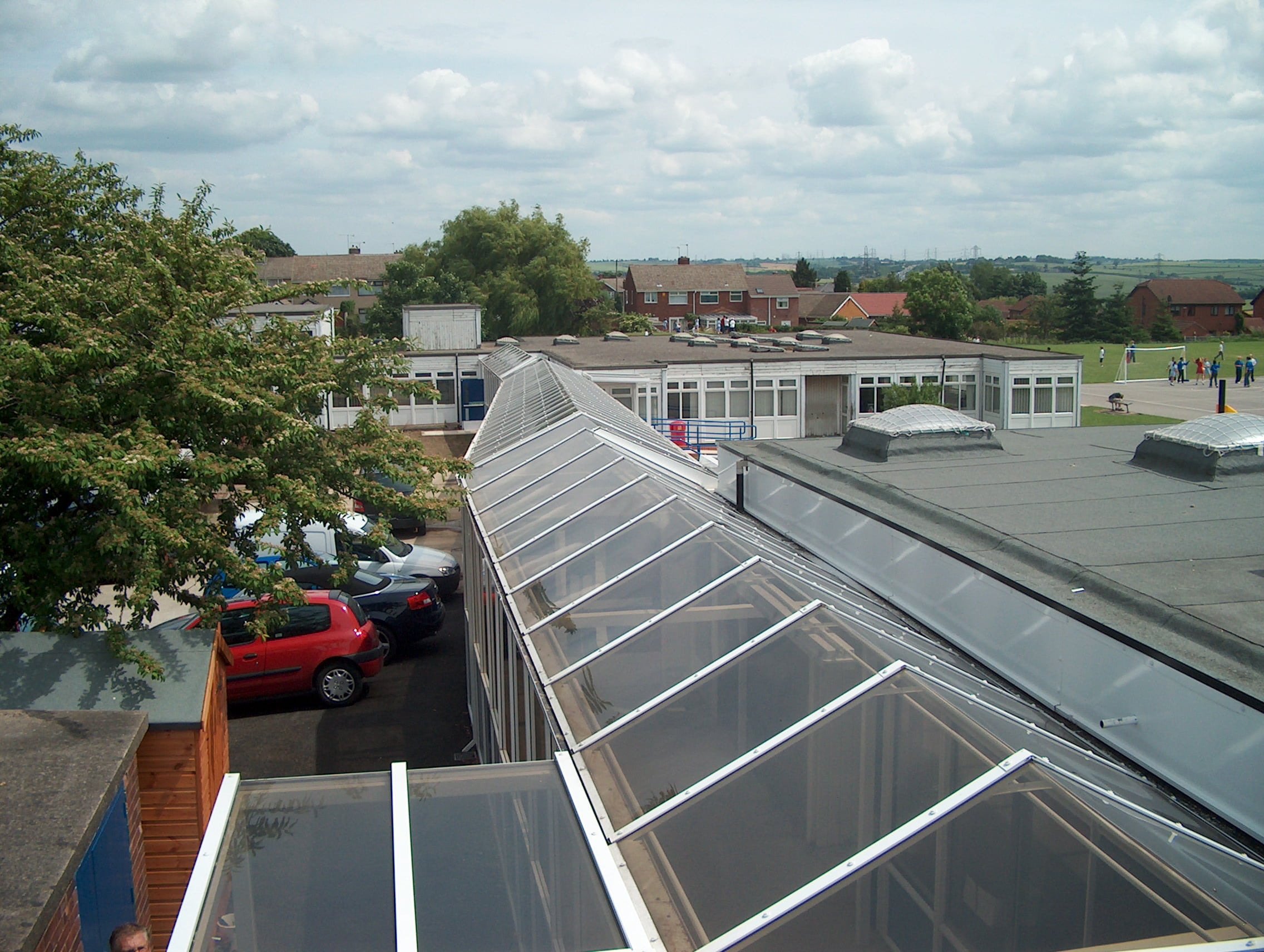

Naturalspan glazed walkway
Project Description

Project: Whitehill Primary School

Location: Brinsworth, Rotherham, Northumberland, England

Main contractor: Naturalight Systems Ltd

Specification: 1NO  62.000m long x 3.000m high x 3.000m overall width with steel uprights at 2.550 overall width, fabricated from 80 x 80mm steel box section, All steelwork to be shot blasted zinc primed to inter zinc 72 polyester powder coated to BS 6496 colour White.

Roof Glazing

NLS Naturalspan at 30-degree pitch, glazing bar gasket system with secondary water management including sill adaptor and exposed fixing cap. All to be polyester powder coated BS 6496 colour T.B.C. 5mm UV protected solid sheet polycarbonate, colour T.B.C.

Vertical Glazing

86.500 x 1.800mm vertical glazed sides as per drawing provided, glazed with NLS natural span glazing bar gasketed system with secondary water management and concealed fixing cap at

approximately 1m centres and 200mm above ground level, glazed with  Pilkington’s clear toughened glass, all aluminium glazing panels polyester powder coated BS/6496 colour Blue.
