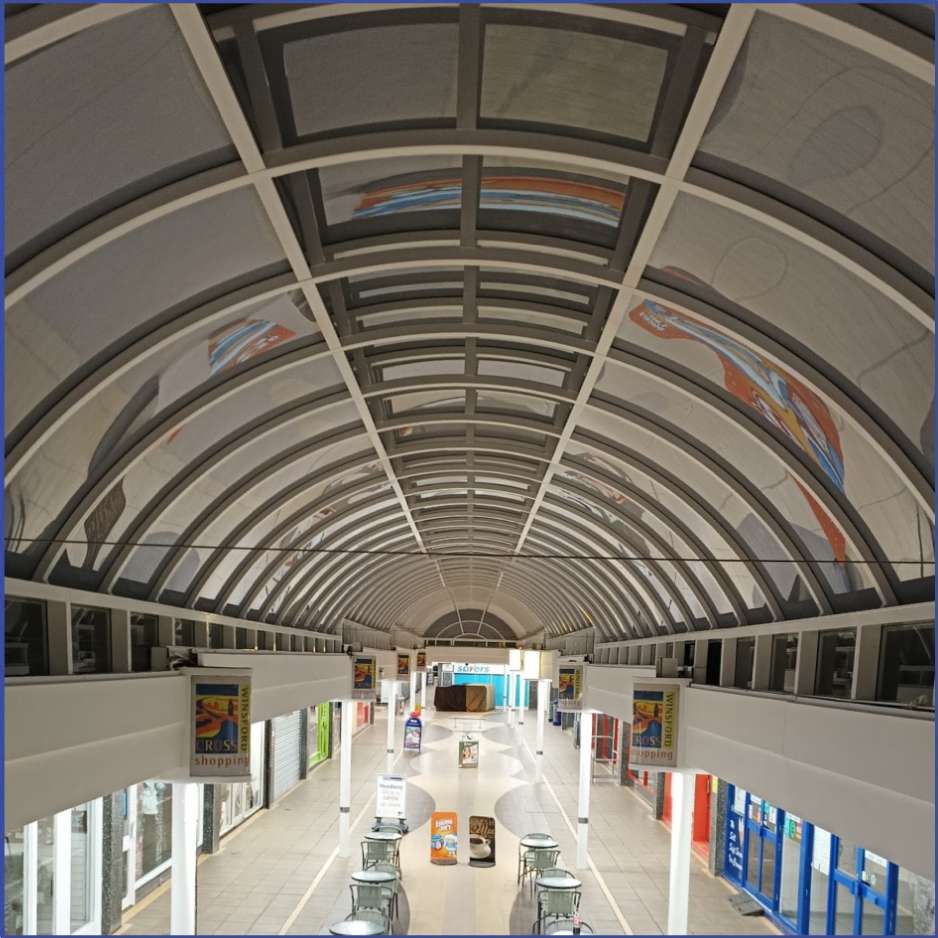

Project: Winsford Cross Shopping Centre
Location: Winsford, England
Main contractor: RMLFS

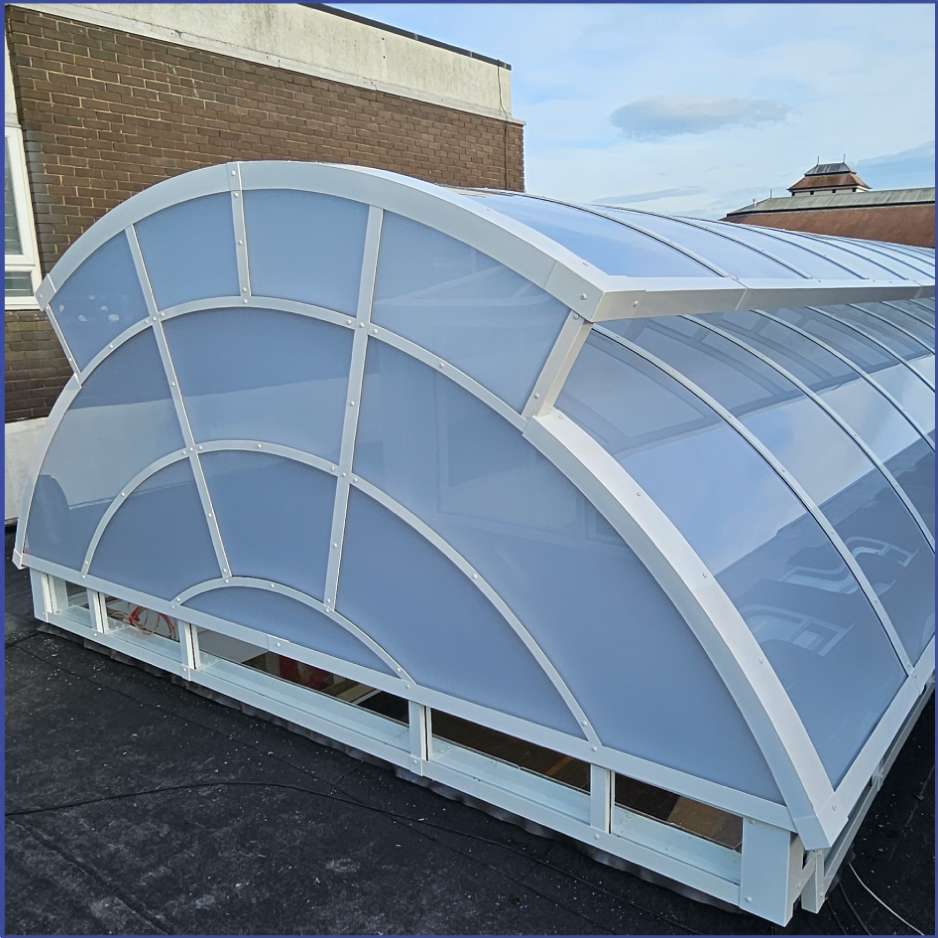

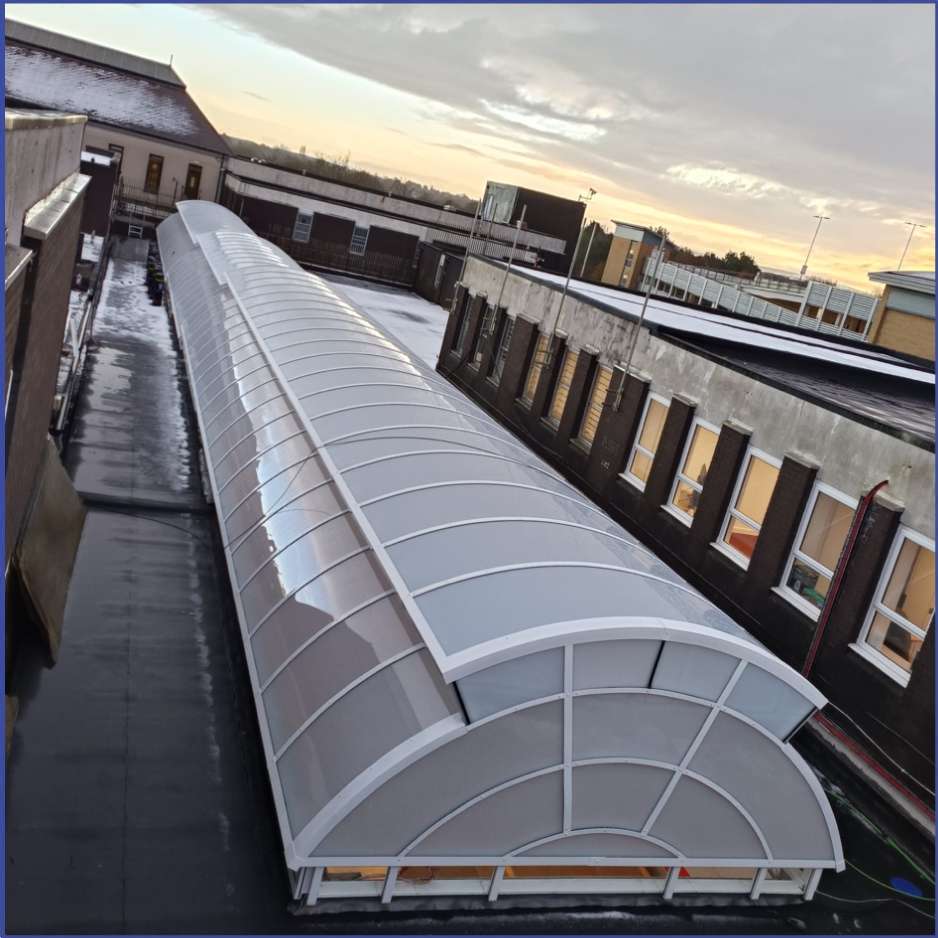

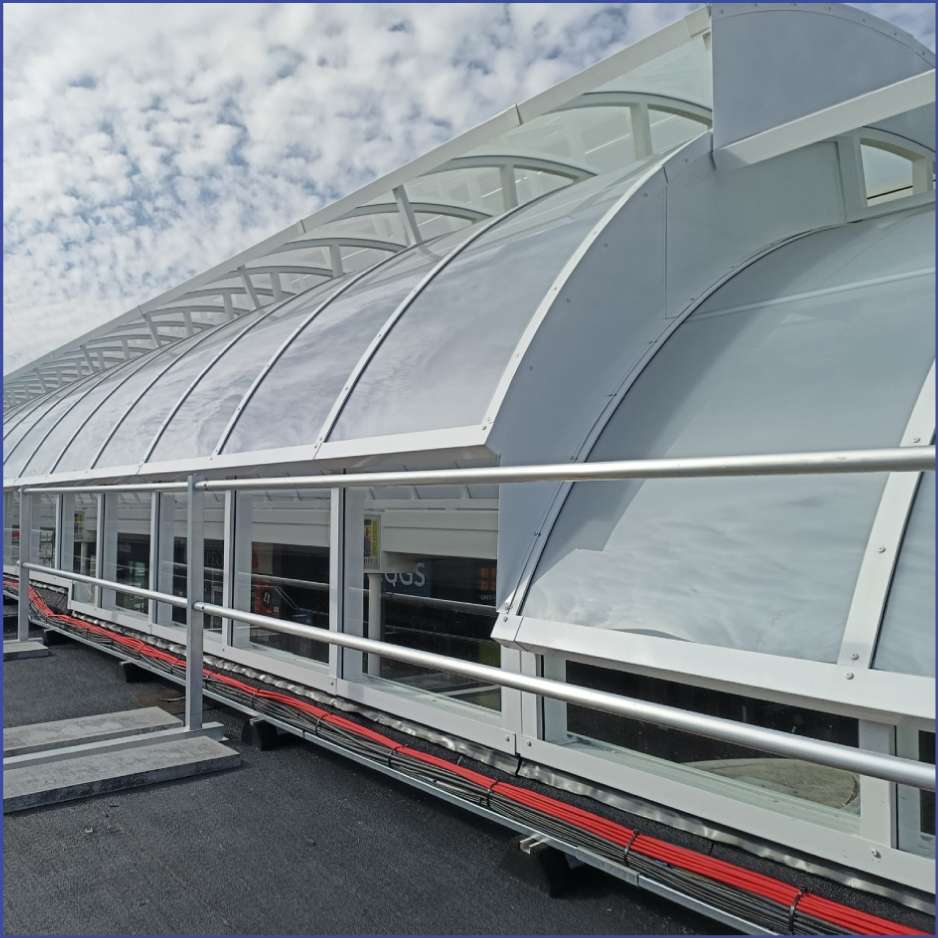

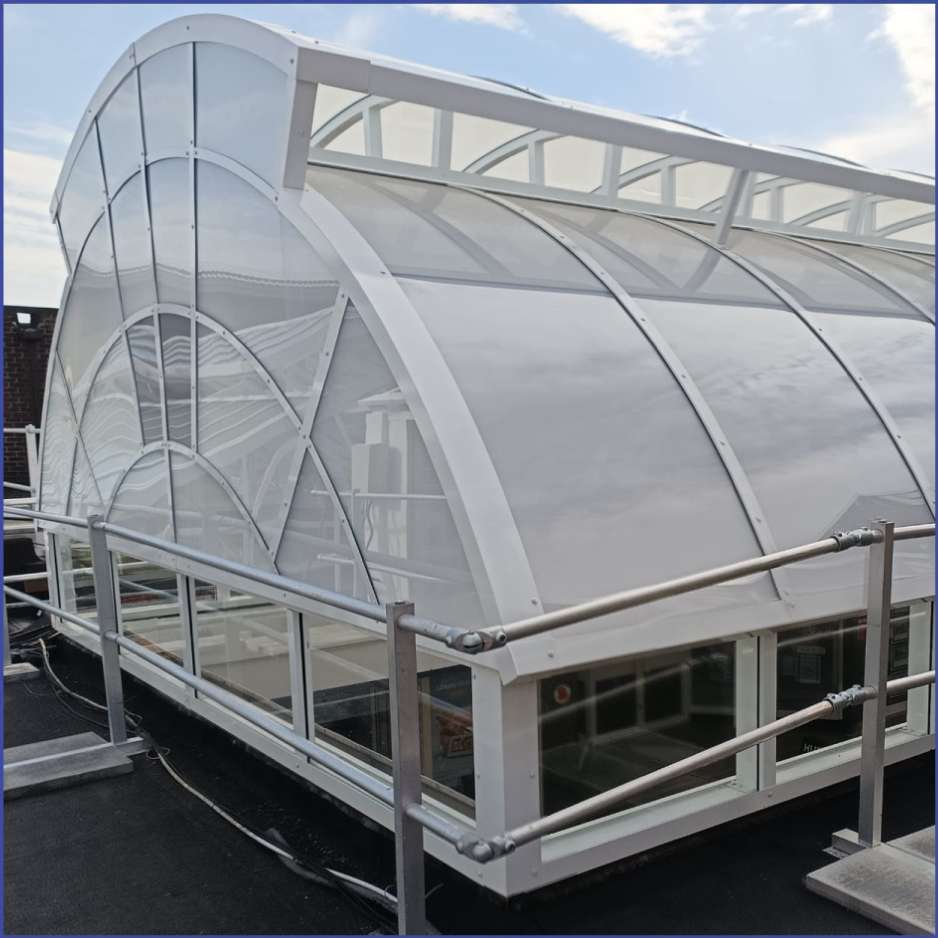

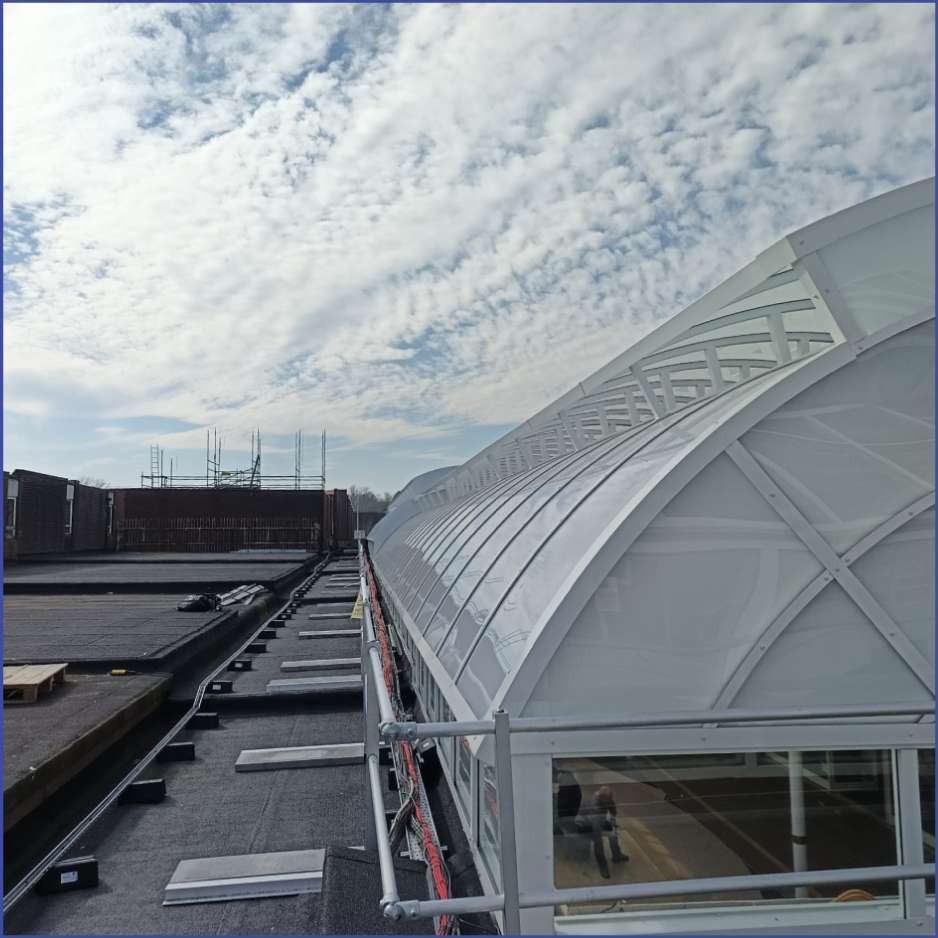

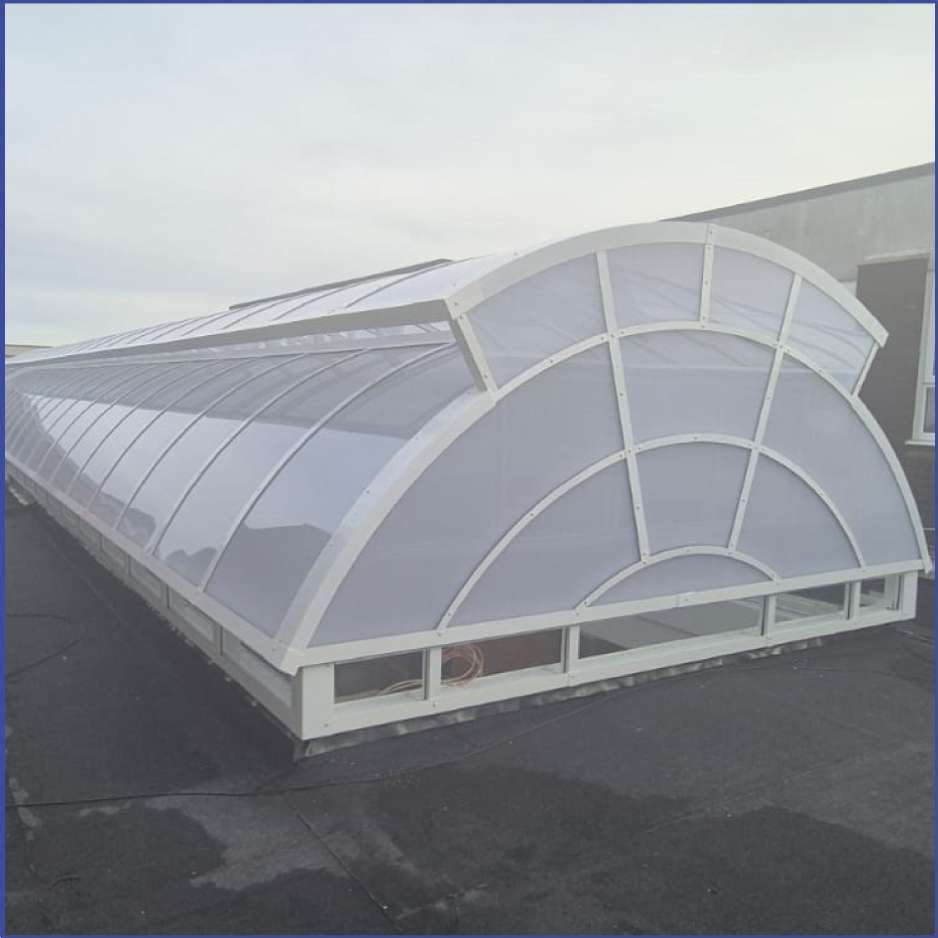

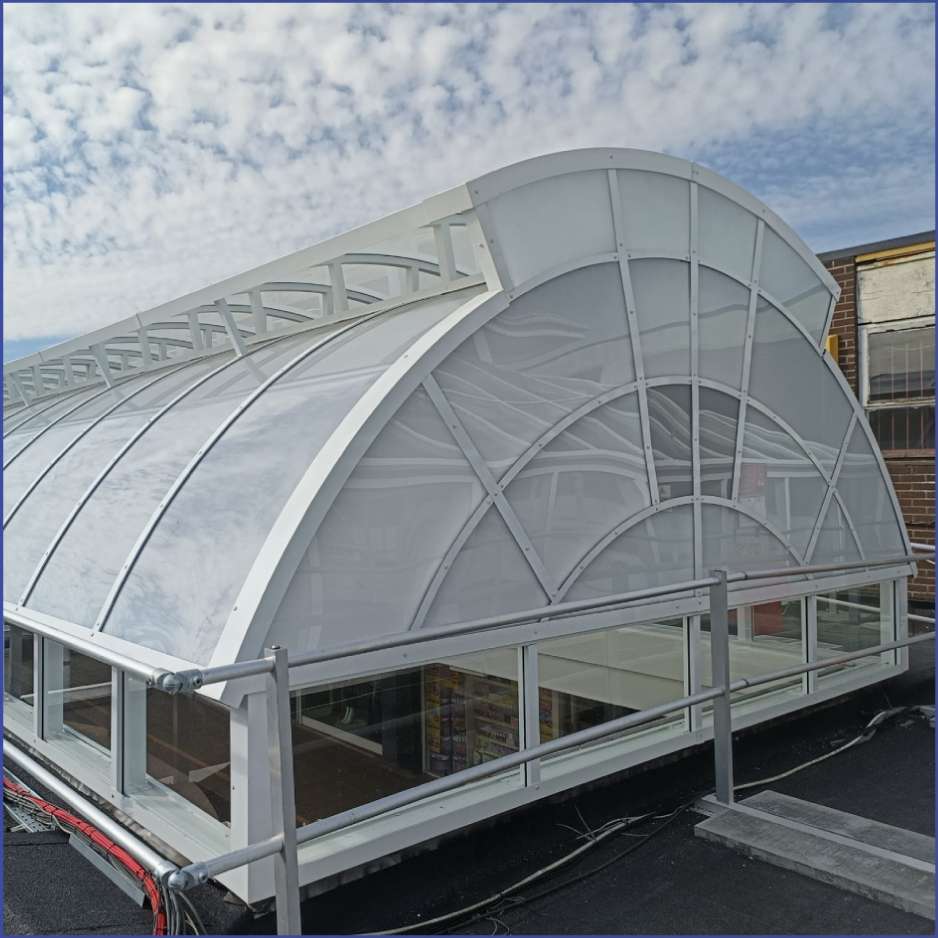

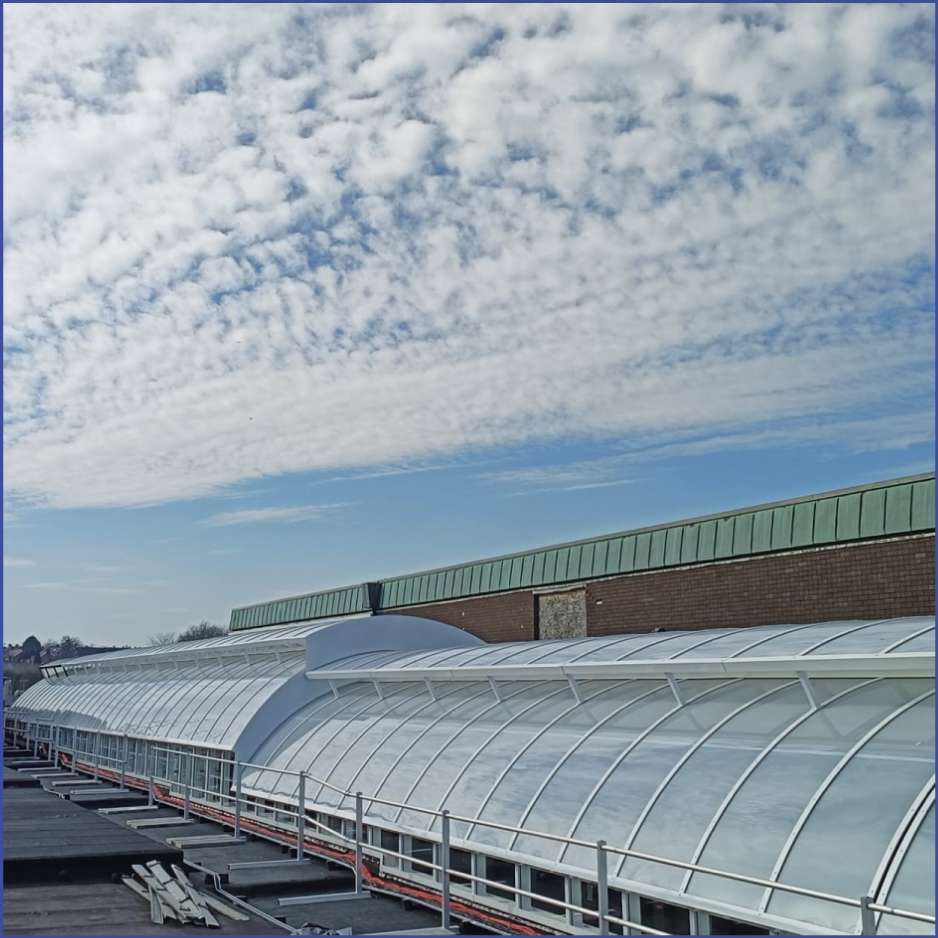

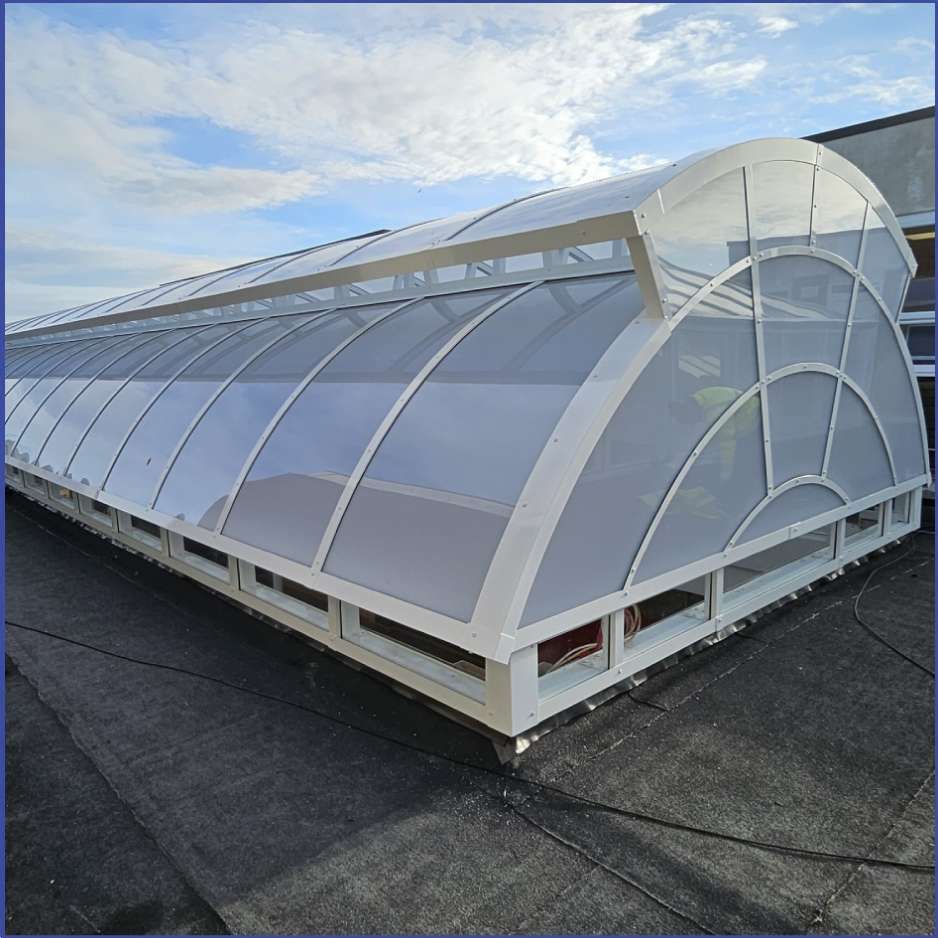

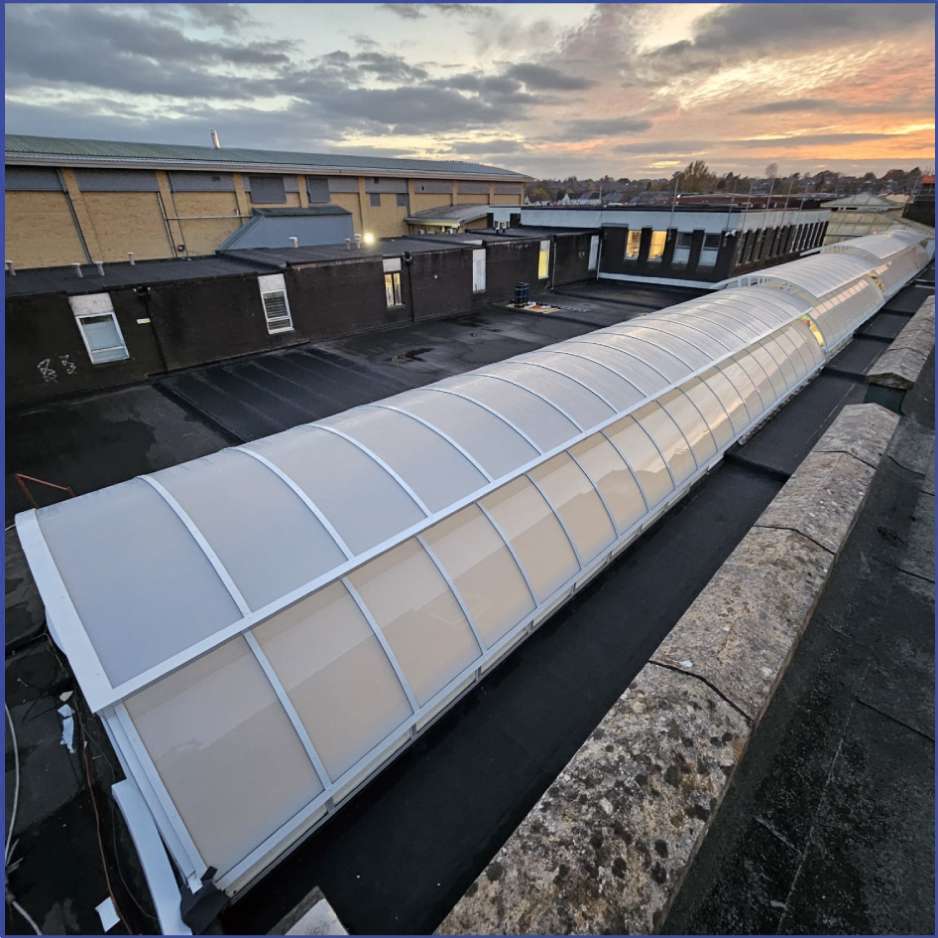

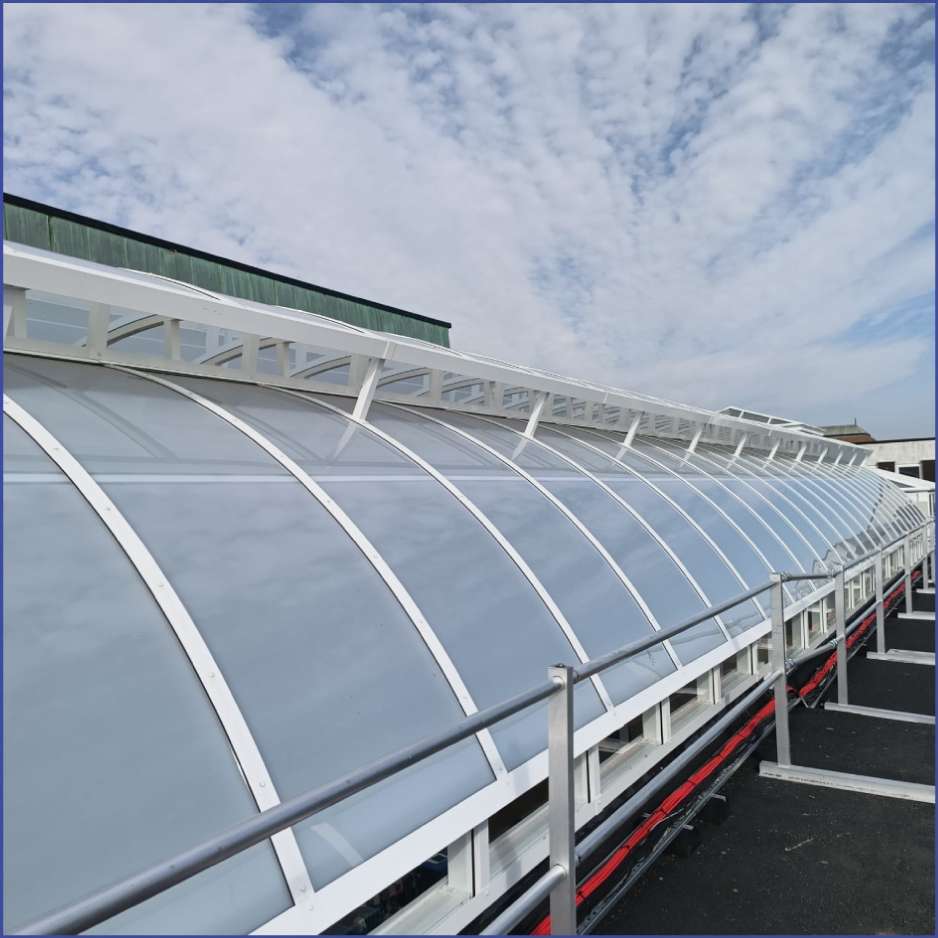

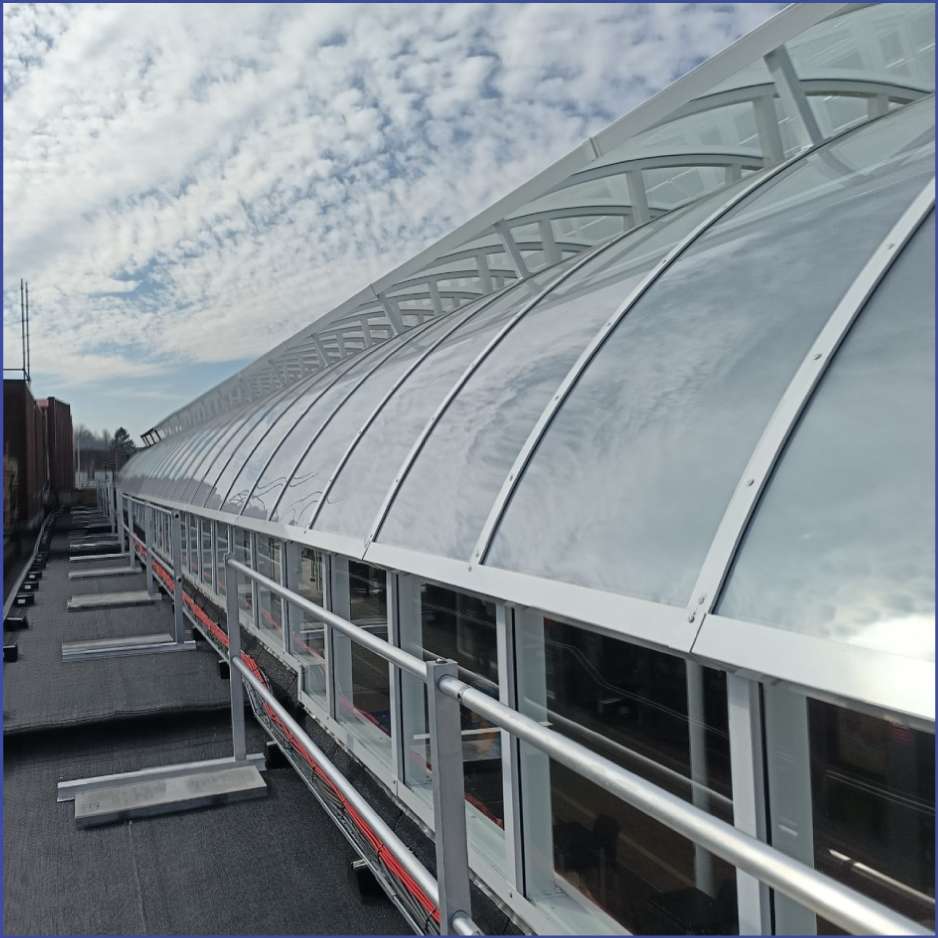

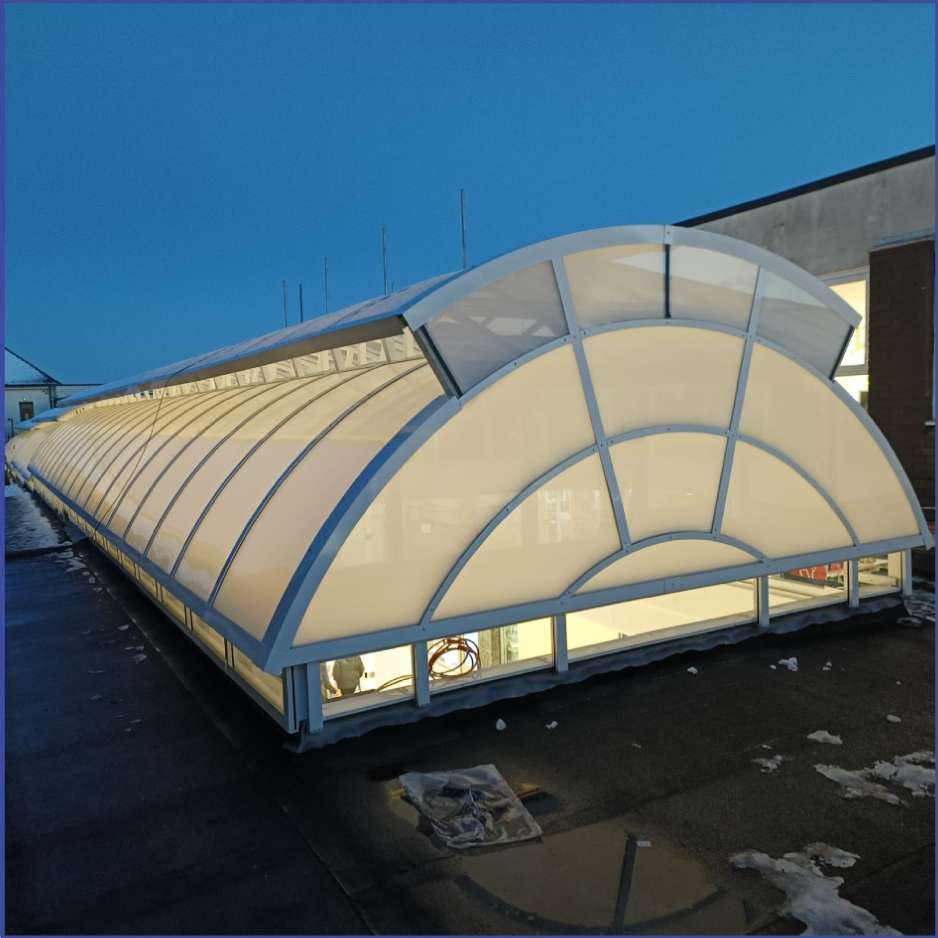

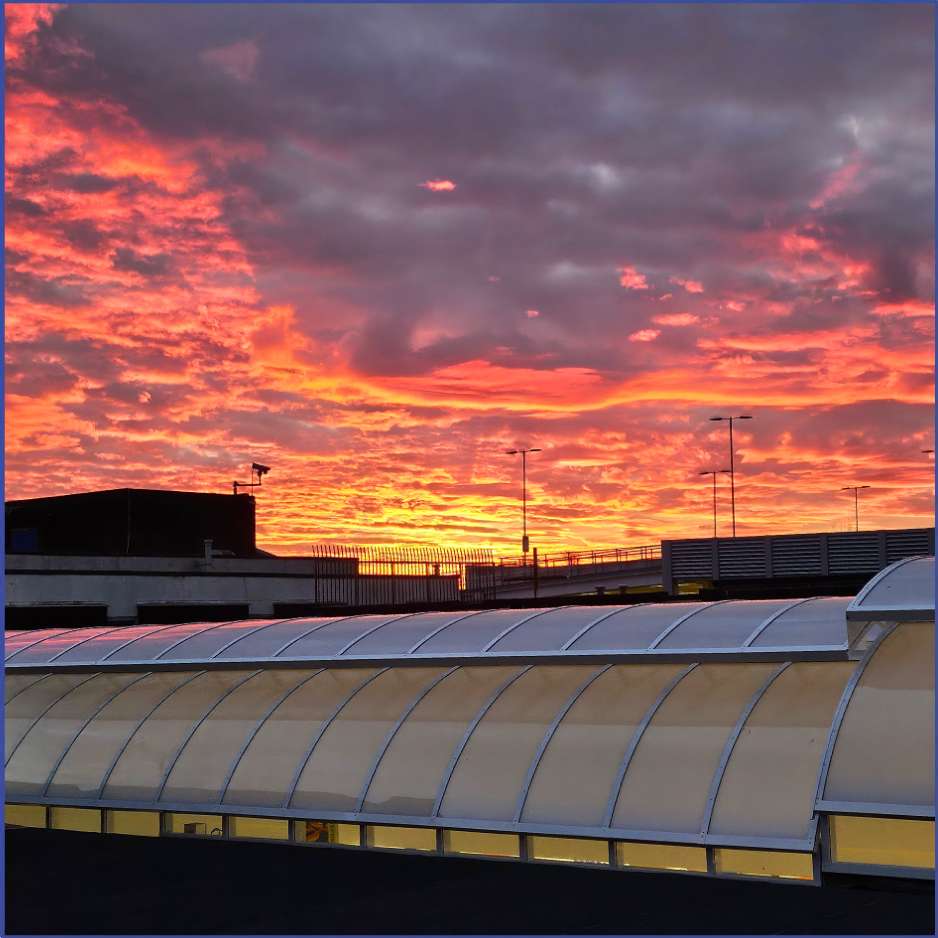

NLS NaturalSpan Twin Barrel Vault Rooflight
1No 53,425mm x 5,330mm external kerb size, NLS NaturalSpan Twin 70° barrel vault rooflights with 500mm separation. Unit with vertically glazed sidewalls and ends, aluminium glazing bar gasketed system with secondary water management including cill adapter condensation trays, glazing bars on approximate 1,000mm centres. Rooflight on a split level with 7no different side wall heights. All aluminium polyester powder-coated paint finished to BS 6496 colour tint – Traffic White RAL 9016. The unit was installed using a prepared upstand supplied by others.
Glazing Specification

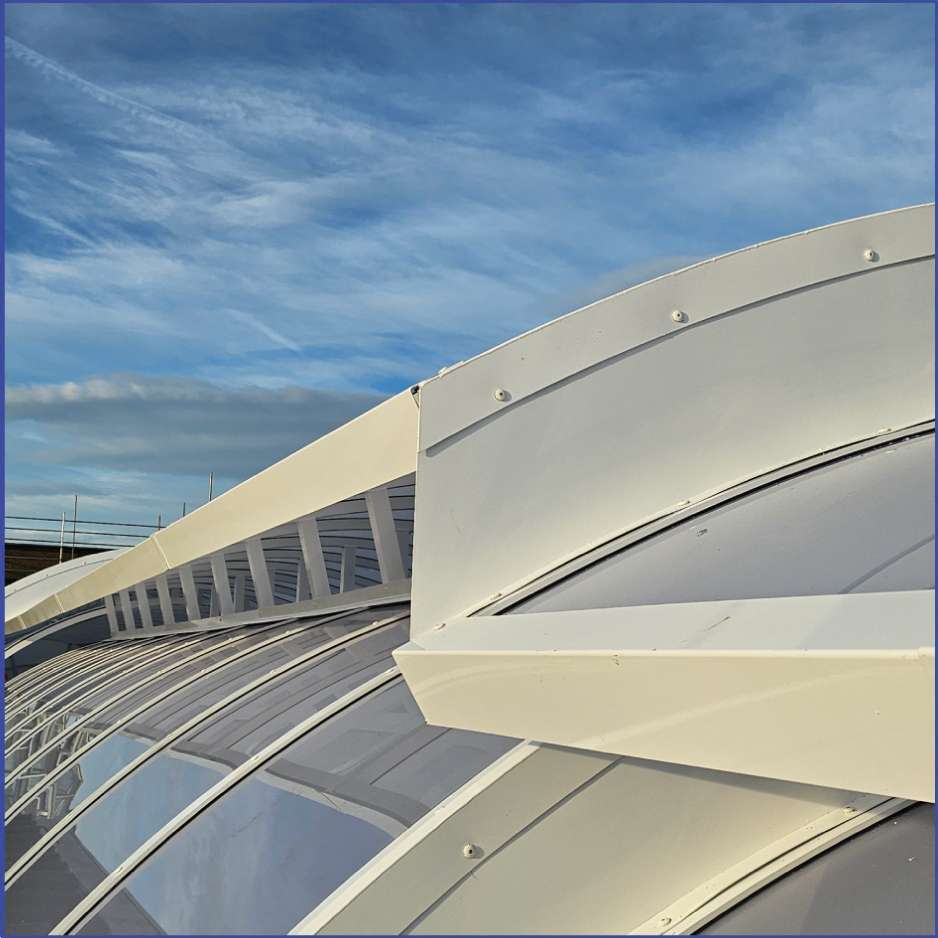

Top Barrel
Fully glazed with 6mm UV-protected solid wall polycarbonate colour tint Opal
Lower Barrel
80% glazed with 6mm UV-protected solid wall polycarbonate colour tint Opal. The centre section is open for ventilation.

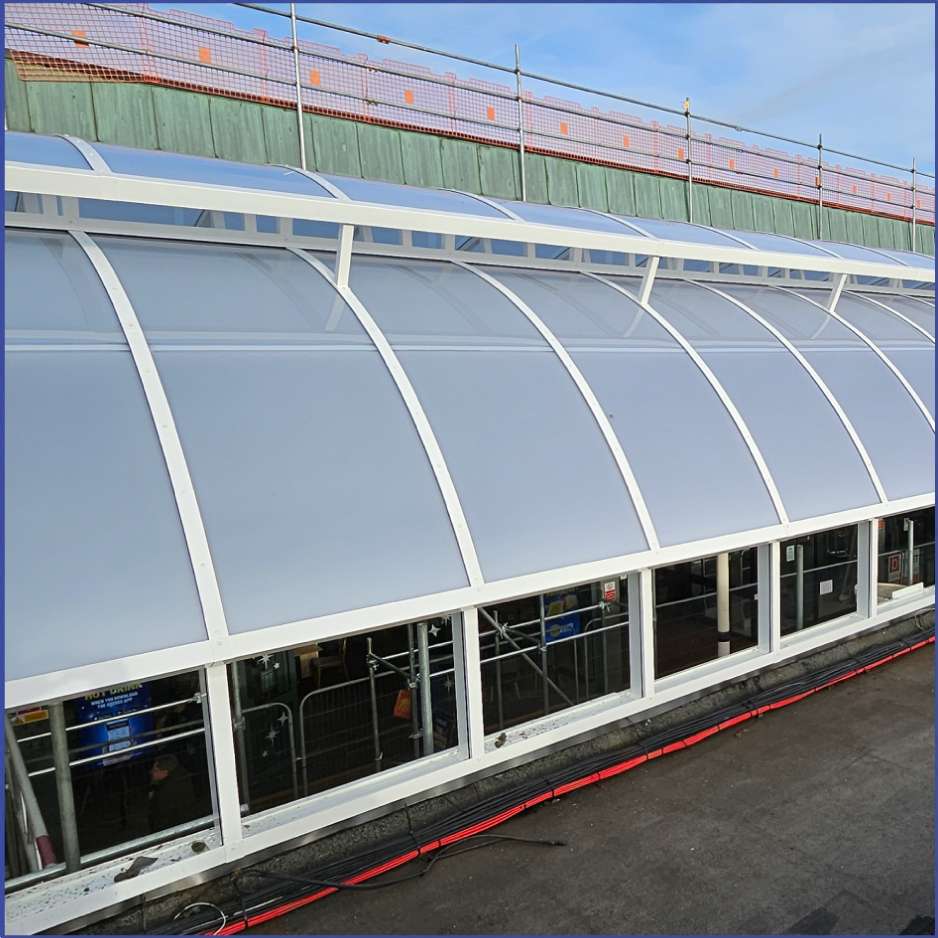

Sidewalls
Glazed with 6mm clear toughened glass

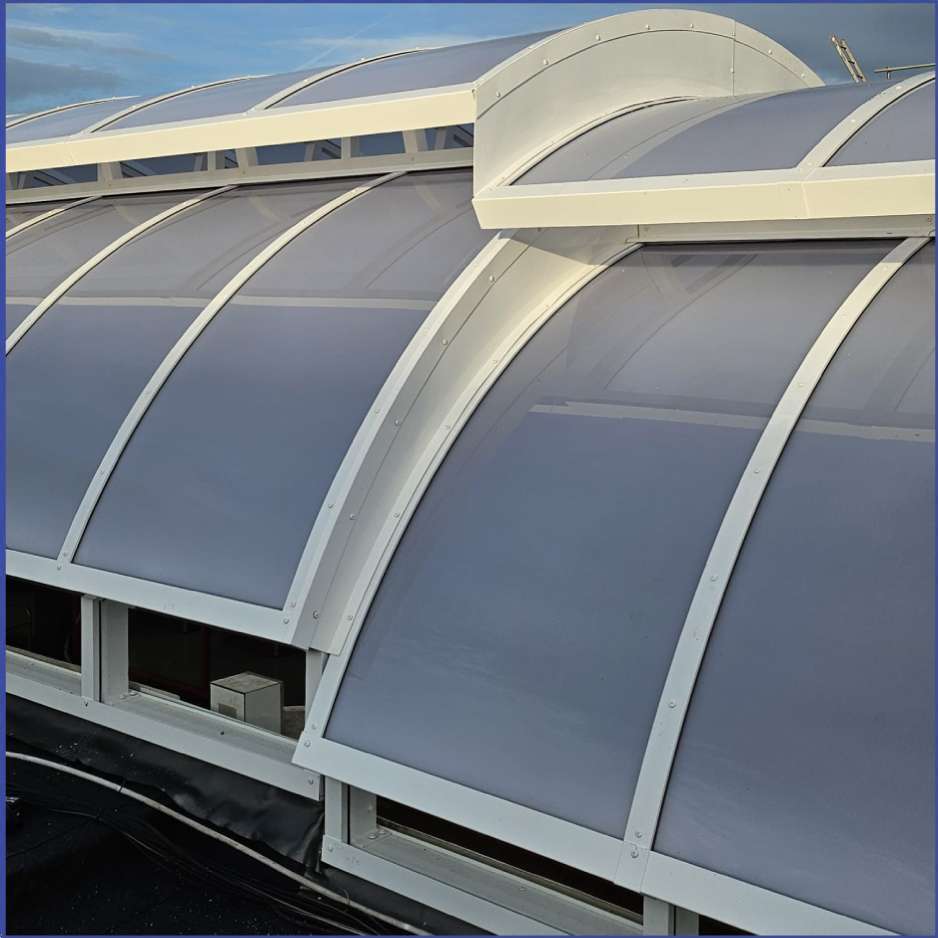

NLS NaturalSpan Twin Barrel Vault Rooflight
1No 47,575mm x4,335mm external kerb size, NLS NaturalSpan Twin 70° barrel vault rooflights with 500mm separation. Unit with vertically glazed sidewalls and ends, aluminium glazing bar gasketed system with secondary water management including cill adapter condensation trays, glazing bars on approximate 1,000mm centres. Rooflight on split level with 4no different side wall heights. All aluminium polyester powder-coated paint finished to BS 6496 colour tint – Traffic White RAL 9016. The unit was installed using a prepared upstand supplied by others.
Glazing Specification
Top Barrel
Fully glazed with 6mm UV-protected solid wall polycarbonate colour tint Opal
Lower Barrel
80% glazed with 6mm UV-protected solid wall polycarbonate colour tint Opal. The centre section is open for ventilation.
Sidewalls
Glazed with 6mm clear toughened glass
