World Museum
Fastlock Mono-pitch, Naturalspan Barrel vault
Project Description

Project: World Museum

Location: Liverpool, England

Main contractor: Naturalight Systems Ltd

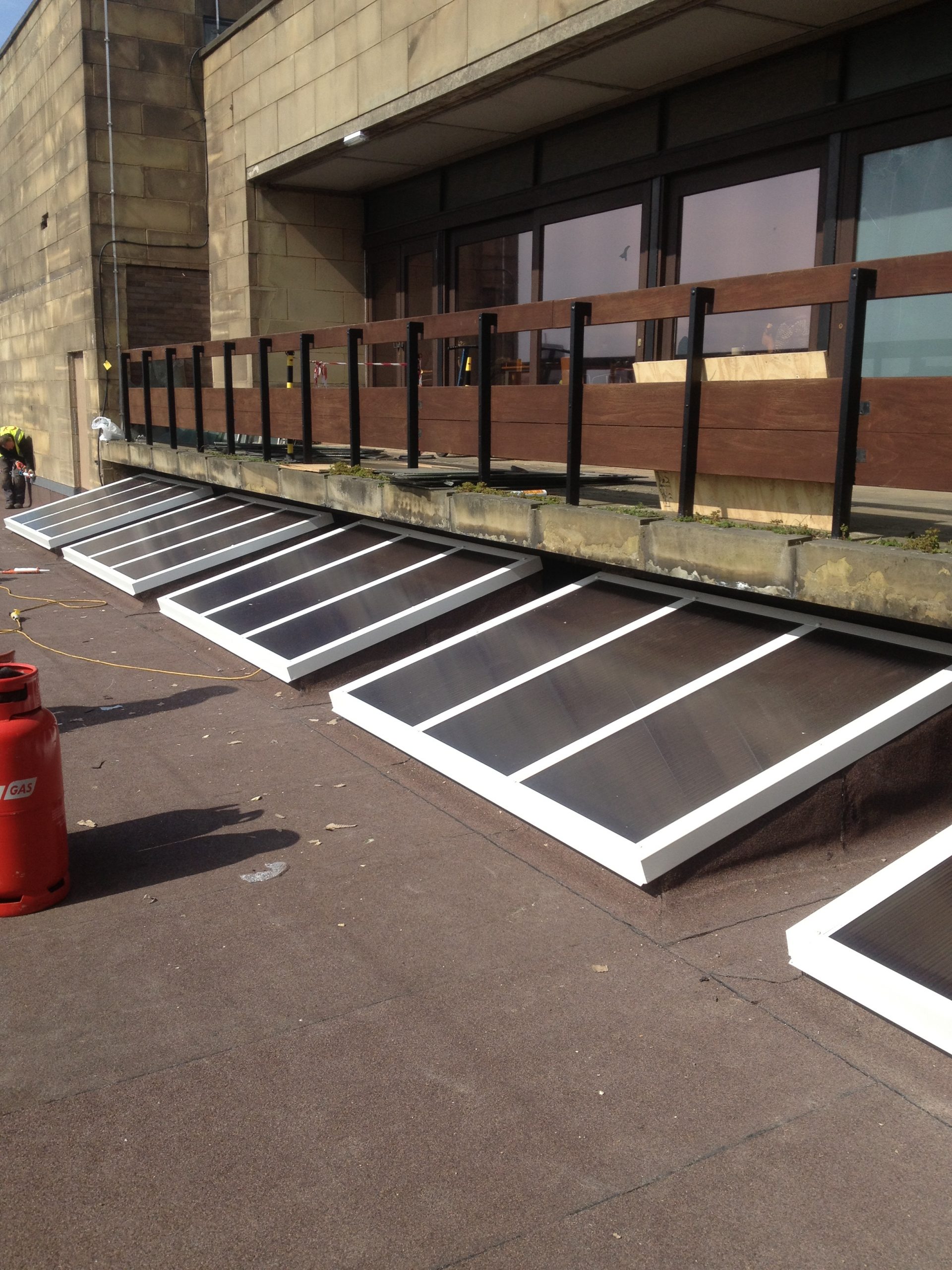

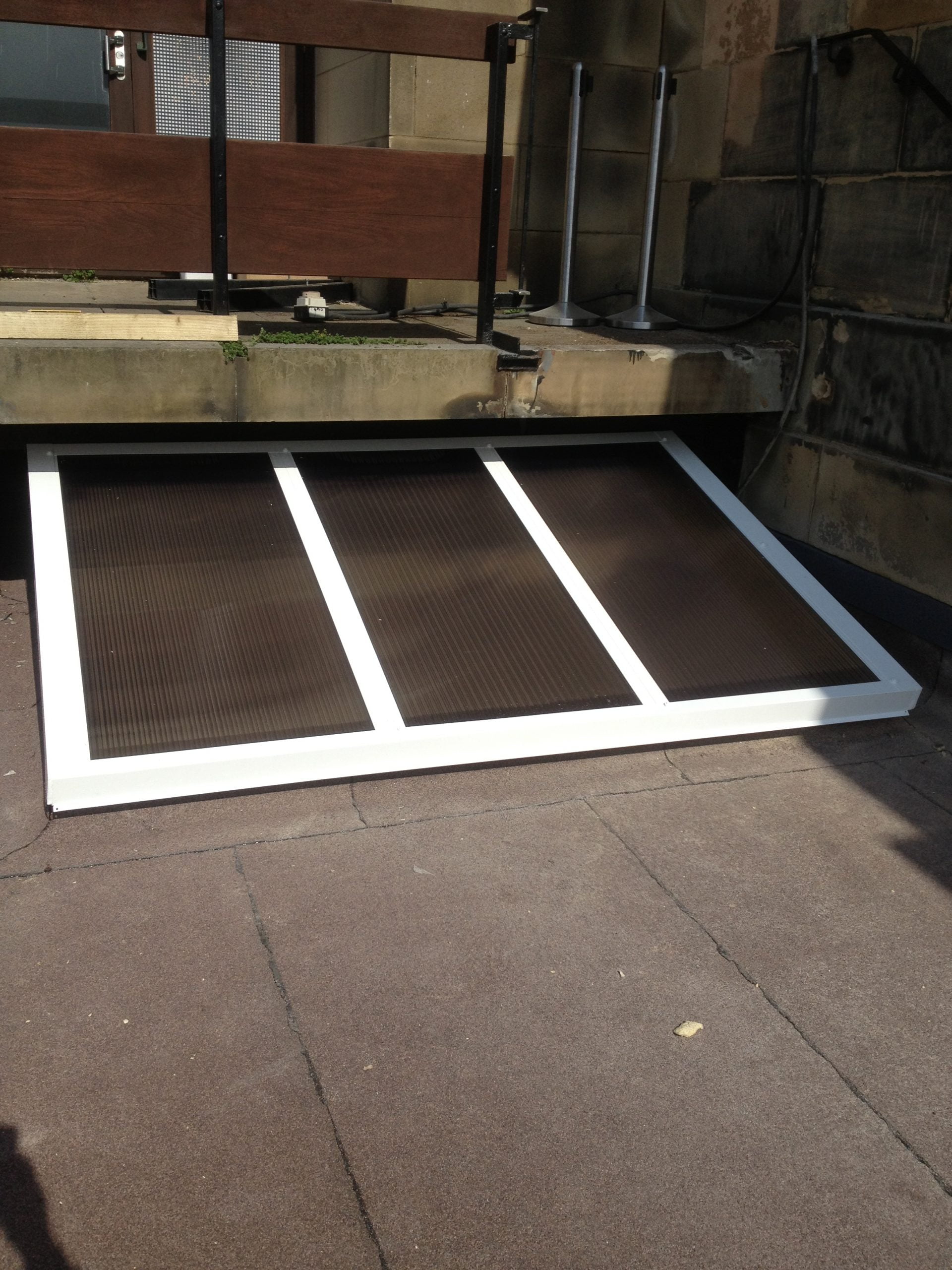

Specification: 5No  2500mm x 1650mm o.a.s 25mm FastLock glazing system, factory assembled interlocking panels with secondary water management including aluminium flashings to suit, glazed with 25mm UV protected multi-wall polycarbonate colour tint Bronze. Fixing to a prepared support frame supplied by others.

1No 2750mm x 1850mm overall size, NLS NaturalSpan barrel vault rooflight with vertically glazed gable ends, aluminium glazing bar gasketed system with secondary water management including cill adapter condensation tray. All aluminium polyester powder coated paint finished to BS 6496 colour tint white. Unit fixing to an upstand supplied by others

Glazing Specification

16mm UV protected triple-wall polycarbonate colour tint opal.
