Yewlands School

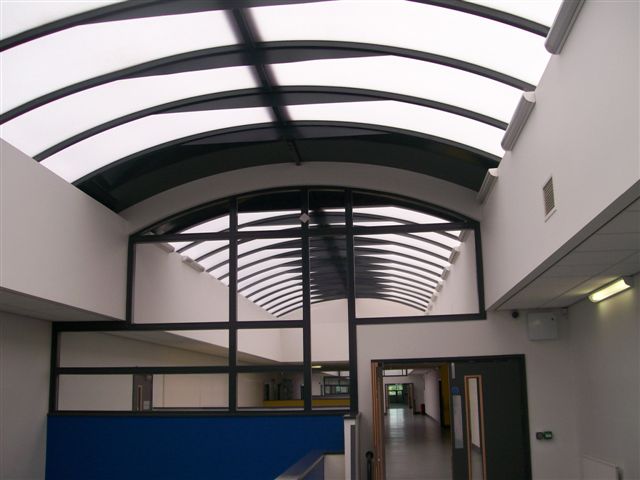

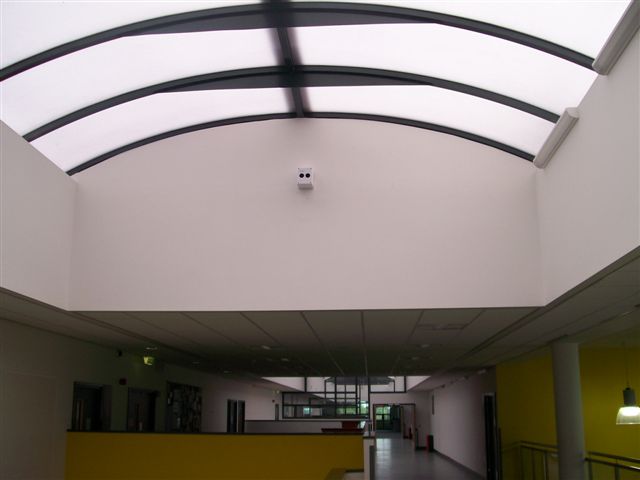

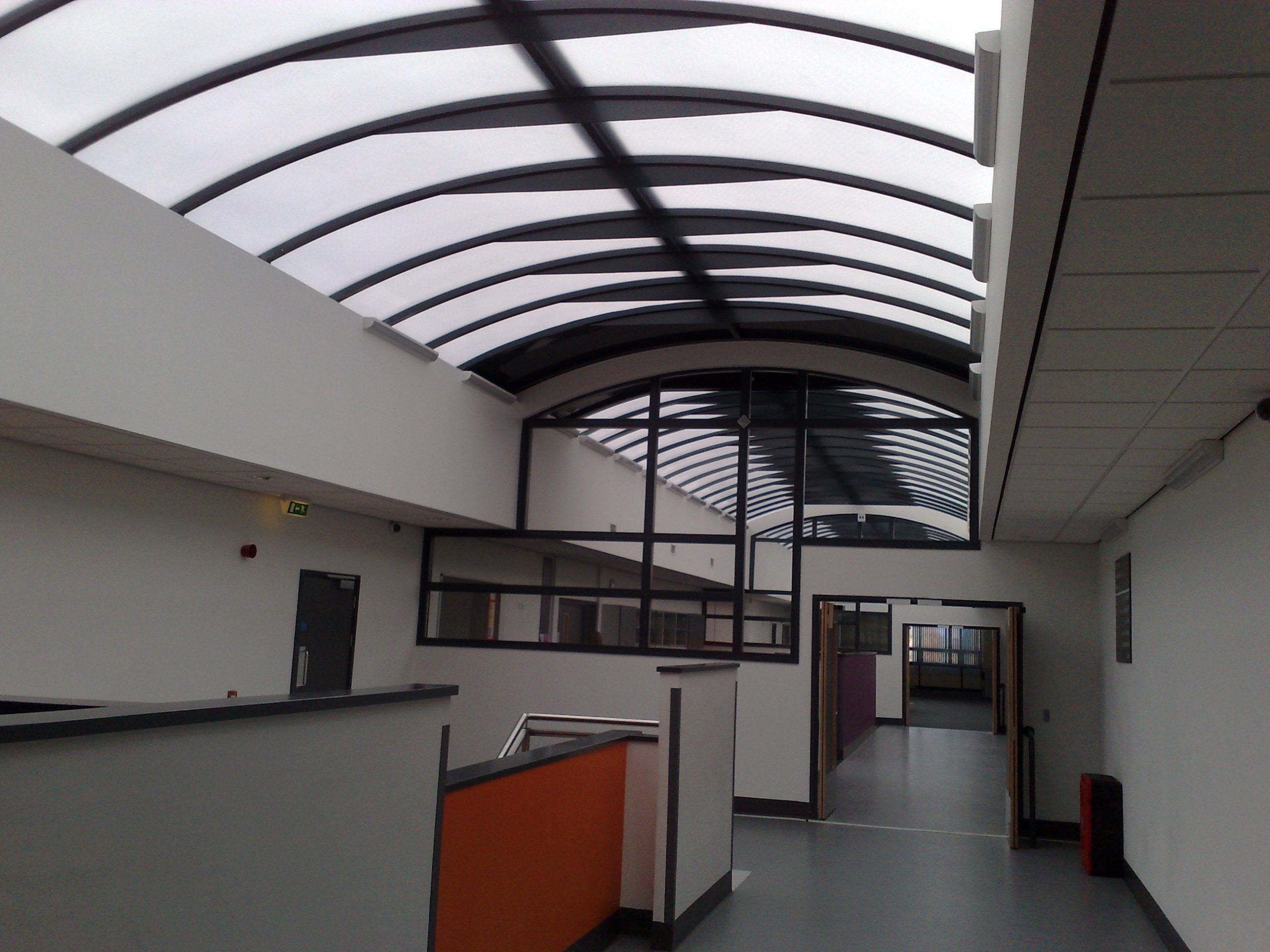

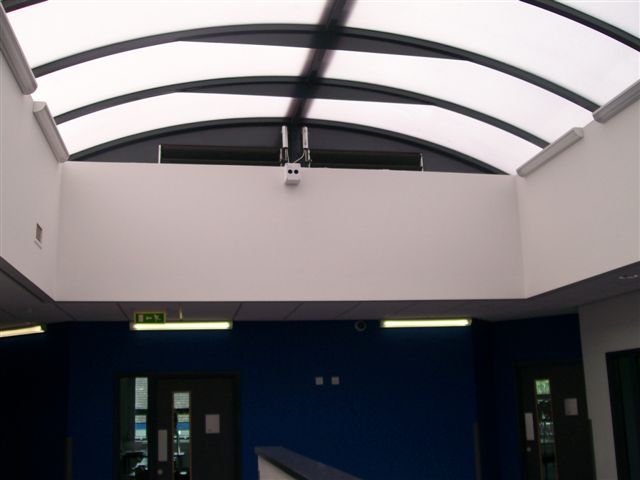

Naturalspan Barrel vault
Project Description

Project: Yewlands School

Location: Kidderminster, England

Main contractor: Naturalight Systems Ltd

Specification: 2NO10,200mm x 3.880mm, 1NO42,650mm x 5,420mm, 1NO 28,460mm x 5,420mm NLS triple skin low-rise NaturalSpan barrel vault with vertically glazed ends, aluminium glazing bar gasketed system with secondary water management, polyester powder coated paint finish to BS 6496 colour T.B.C., aluminium perimeter flashing fixing to existing upstand prepared by others.

Glazing Specification

NLS triple skin Glazing consisting of GPR BS476 Part 6 Class ‘O’ inner skin, 3mm opal middle skin and 3mm Opal outer skin. Achieving 20% Light Transmittance.
