Description

 Key Features

 –               A fully assembled, self-supported system, for applications in commercial or residential buildings.

 –               The system is designed to be installed onto a builder’s kerb, finished by roofing membrane. The unit is manufactured to incorporate a 30° Pitch.

 –               Double-glazed with hermetically sealed glass.

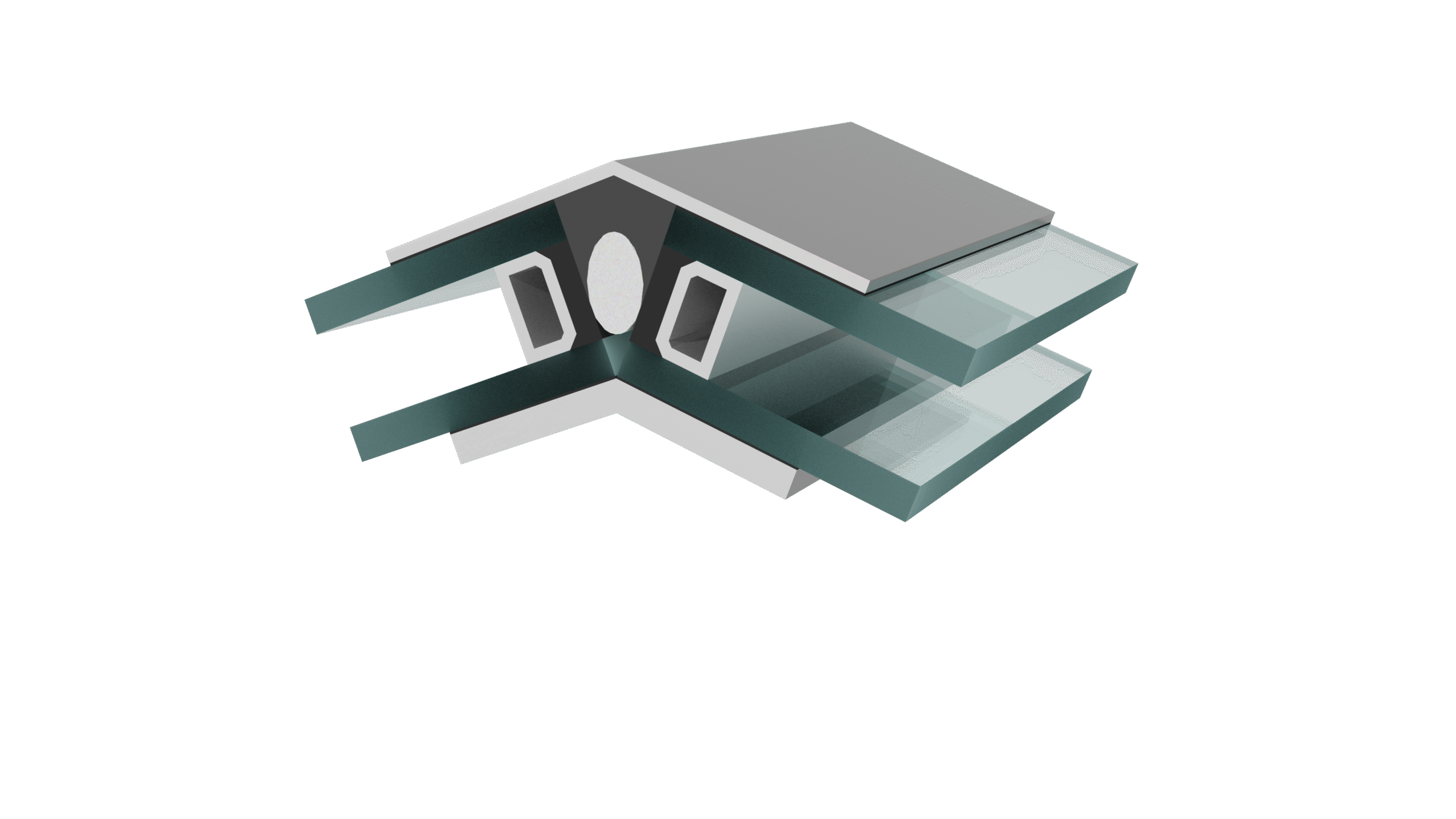

 –               Internal support frame comprising of 5mm thick aluminium glazing bar angles, fully assembled in a factory (pre-glazed)

 Fixed Slimline Ridgelight

 Frame Material: Aluminium to BS 1474:1987 Alloy 6063-T6

 Frame: Fabricated aluminium angles using a 5mm thick glazing bar.

 Kerb: Minimum 150mm high (to meet UK building regulations), minimum 75mm wide excluding finishes – Builders kerb to be supplied by others.

 Glazing Options

 6mm Toughened Clear ‘Low E’ Outer – 16mm Argon Filled Cavity – 6mm Clear Toughened inner (28mm Double Glazed unit)

 8mm Toughened Clear ‘Low E’ Outer – 16mm Argon Filled Cavity – 8mm Clear Toughened inner (32mm Double Glazed unit)

 High-performance glazing options:

 ‘Self Clean’ Coating with a Solar-Controlled Coating

Laminated inner pane

 Bespoke sizes are available with alternative glass specifications and orientation choices on request, we also offer an installation service, to an upstand that others have prepared (for these services, don’t hesitate to get in touch with our sales office on   01670 530333 – Option 1)

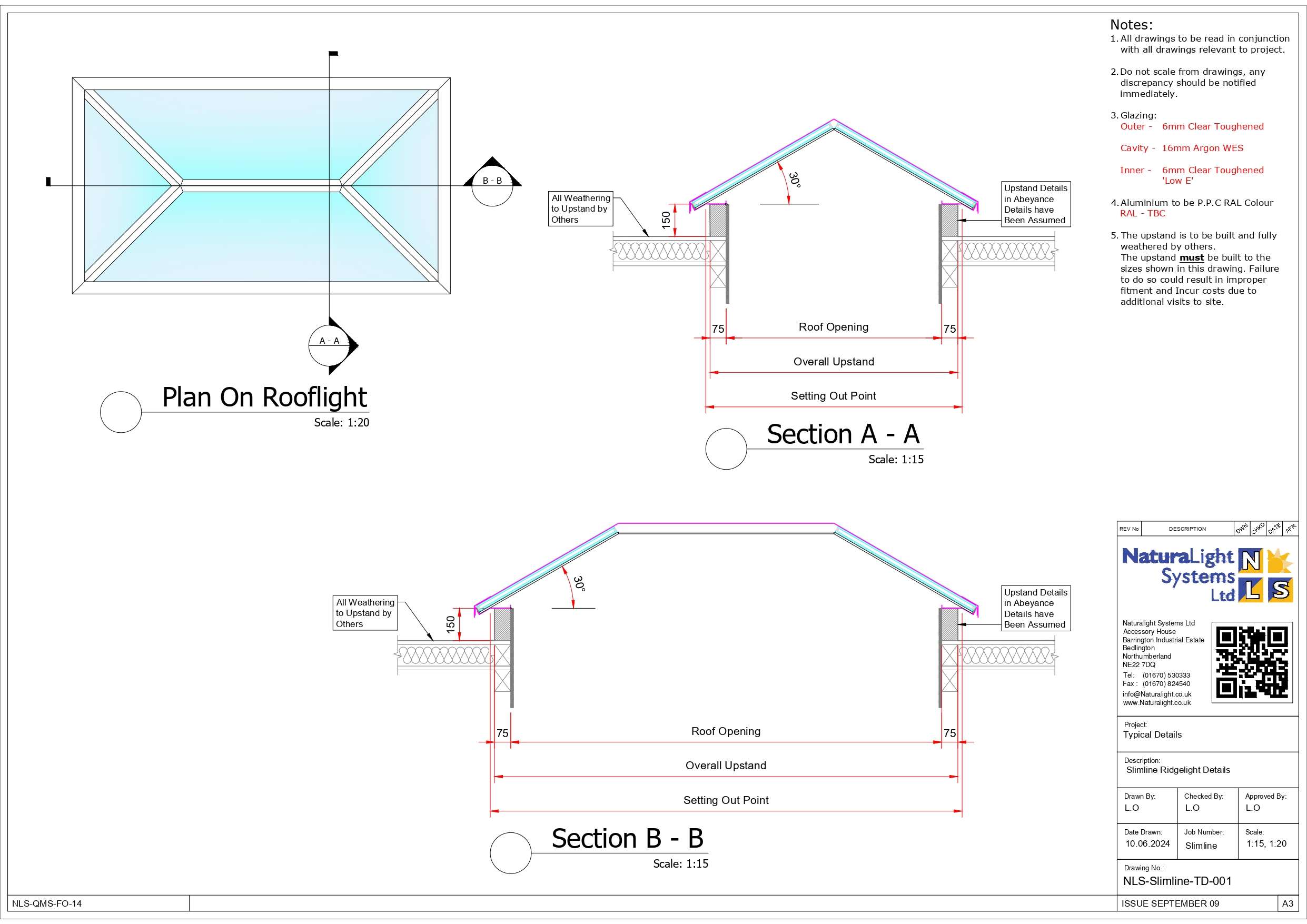

A datasheet, drawings, and installation instructions for this product are available in the resources section of this site. Slimline Data Sheet

 It is the buyer’s responsibility to ensure the rooflight size purchased is suitable for the intended installation, all rooflights are made to order and are non-returnable.
