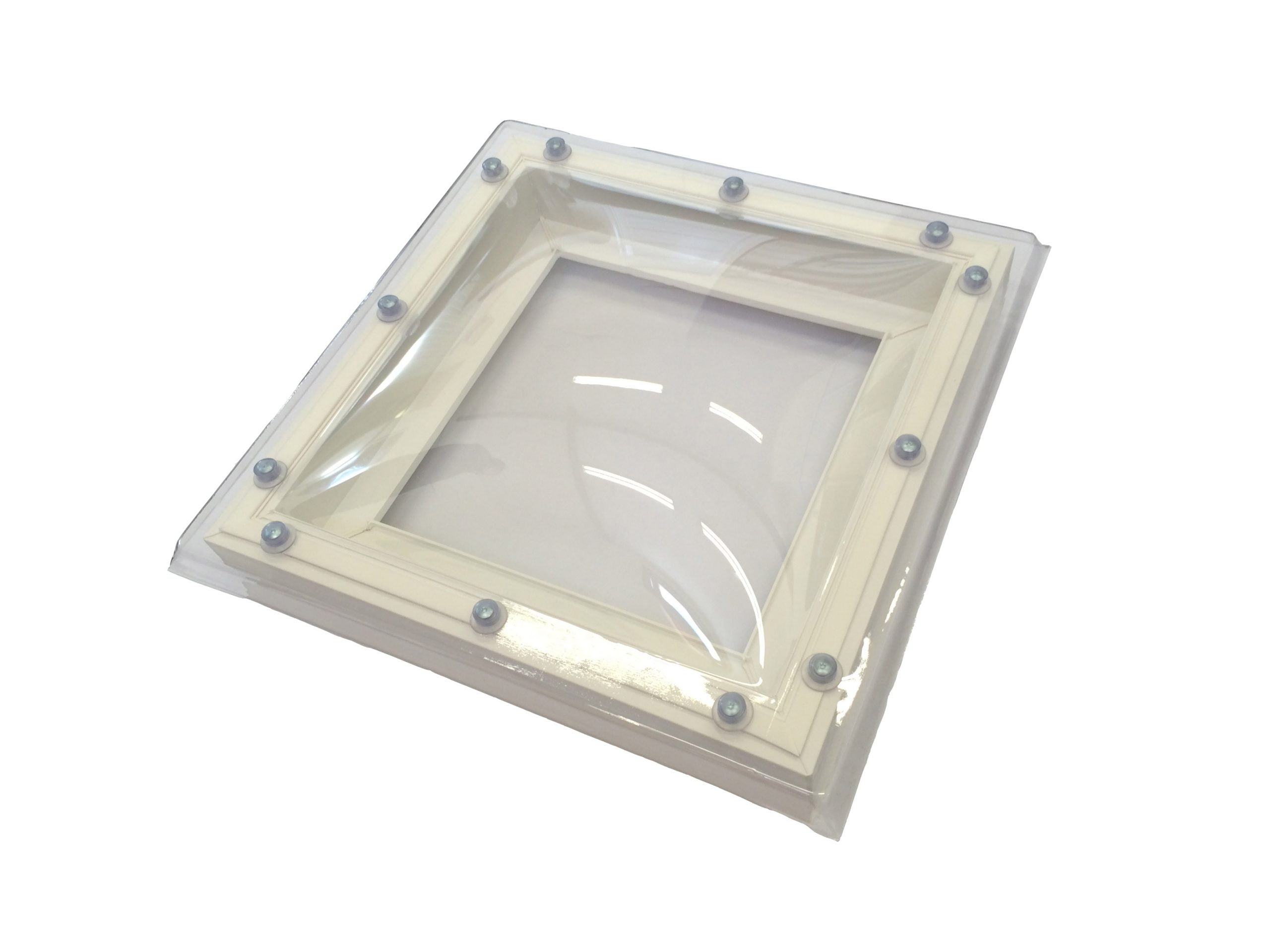

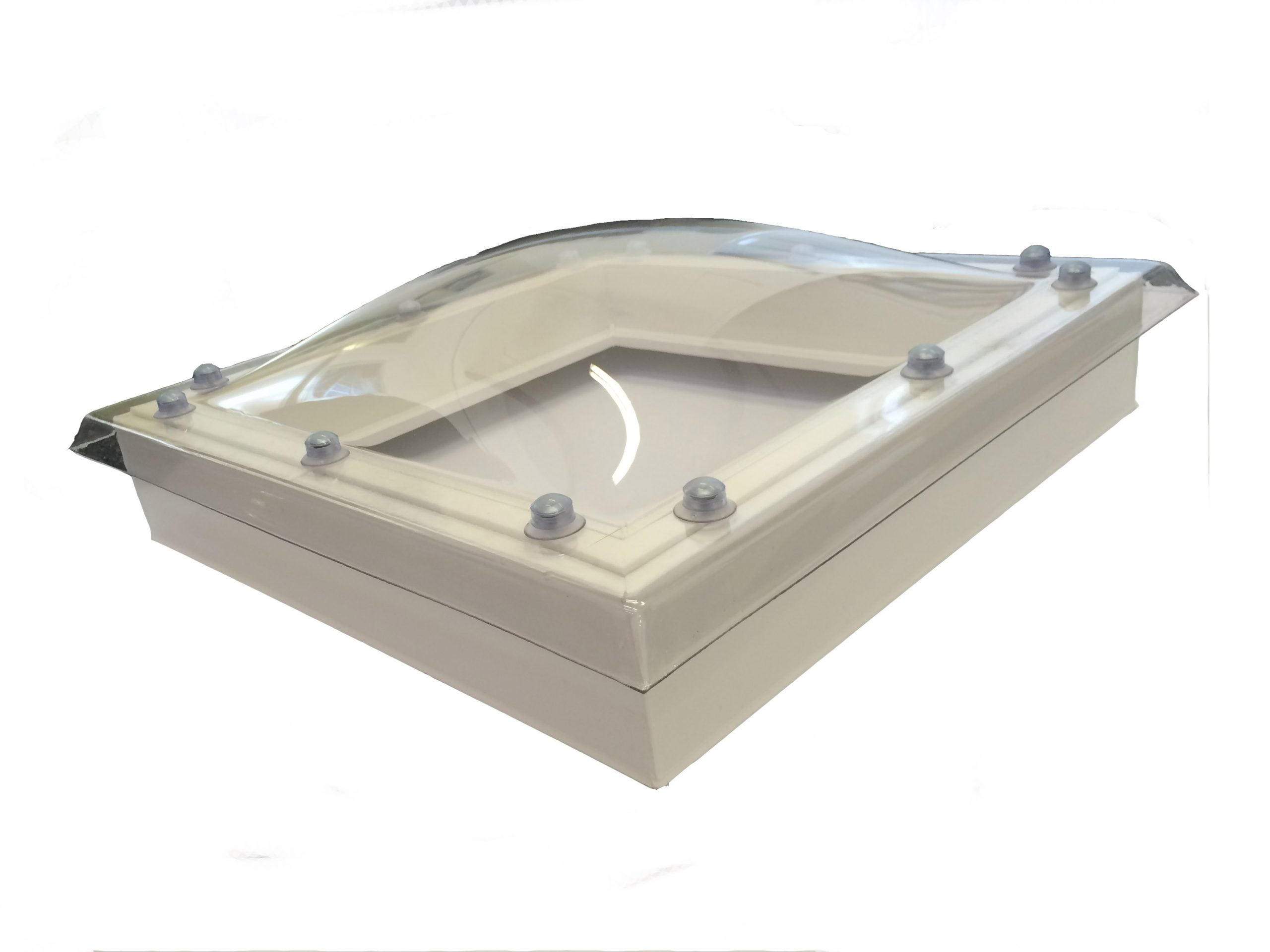

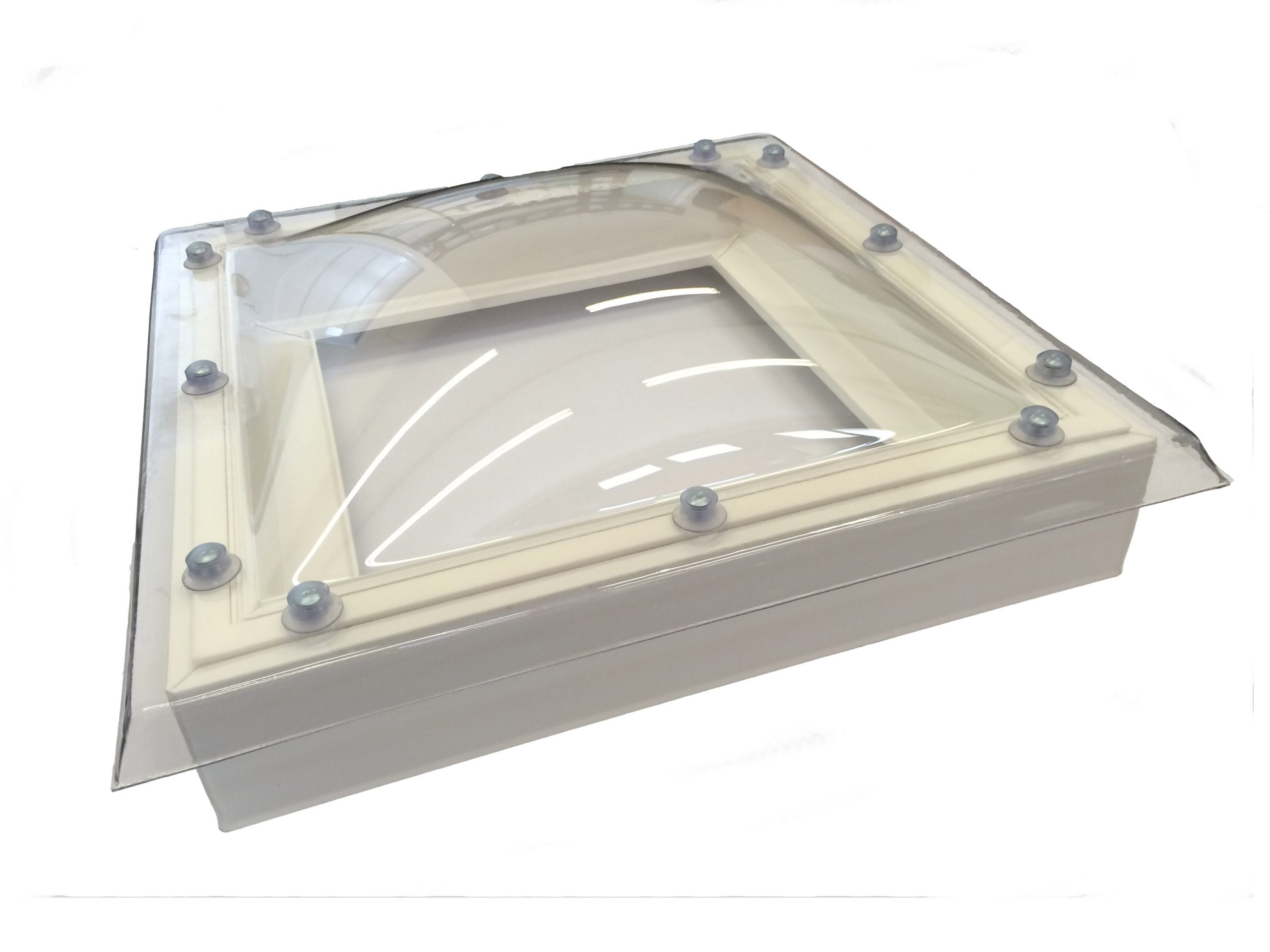

Security Adapter

NaturaLights UPVC L2 Security Adaptor range is one of the most secure UPVC kerbs on the market.

The L2 Security Adaptor has been designed to meet the needs of ‘security conscious’ projects and boasts a method of internally fixing the rooflight kerb to the structure. As a result of this, when it is installed, no fixings are visible or accessible from the external of the kerb.

The UPVC L2 Security Range is available in a range of ventilation, security, opening and access options.



Unvented

Product code: NLS300

A fixed rooflight and unvented kerb. This product should be used for areas that require natural light only.



Hit and Miss Titon Vents

Product code: NLS320

This product offers manually operated ventilation via a sliding mechanism mounted internally to the kerb. The vents are opened and closed as required by hand or by pole. The vents can be installed on 2 or 4 sides of the kerb. This product is ideally suited for areas that do not require a high volume of ventilation.



Rotary Vents

Product code: NLS330

Rotary vents offer manually operated ventilation via a rotating internal vent which allows the user to open and close the vent as required by hand or by pole. The vents can be installed on 2 or 4 sides of the kerb. This product is ideally suited to areas that do not require a high volume of ventilation.



SecuriLight

Product code: NLS600

To fulfil the requirements of security conscious rooflight applications the ‘SecuriLight’ offers additional defence against intrusion through use of a continuous polyester powder coated perimeter clip to the external flange of rooflights. The perimeter clip removes the need for visible fixings to secure the rooflight to the kerb. Once installed the clip cannot be removed even by the use of hand tools by a potential opportunist intruder.

This product is certified PAS24: 2012, annex C.4.3 due to enhance security performance. An additional option of a high tensile burglar bar grid is available and can be integrated into the kerb assembly under the rooflight if required.



Wormgear

Product code: NLS340

A brass telescopic winding mechanism is mounted internally to a 40mm high UPVC lifting frame which is fitted with galvanised steel reinforcement bars. This mechanism allows the user to remain at ground level and operate the unit with a winding rod. Wormgear rooflights offer a higher level of ventilation and can be opened up to approximately 300mm.



Access Hatch

Product code: NLS350

An opening hatch that utilises 2no gas rams to assist opening, mounted internally to a 40mm high UPVC lifting frame which is fitted with galvanised steel reinforcement bars. The hatch will open to between 80-90 degrees to give ease of access to floor level. The Access Hatch is available with Brighton Catch, Hasp and Staple or key operated locking mechanism.



Chain Motor

Product code: NLS370

Utilises an electrically operated chain motor that is mounted to a 40mm high UPVC listing frame fitted with galvanised steel reinforcement bars. The motor is available in 24V or 230V options and has the capacity to either be wired to an open/close switch or to a control panel (please note the rooflight will be supplied as standard with the motor only, controls are available at an extra cost). Chain actuated rooflights offer a higher level of ventilation and can be opened to approximately 300mm.

Height: 80mm
Splay from base section: N/A
Base Fixing Flange: 100mm
