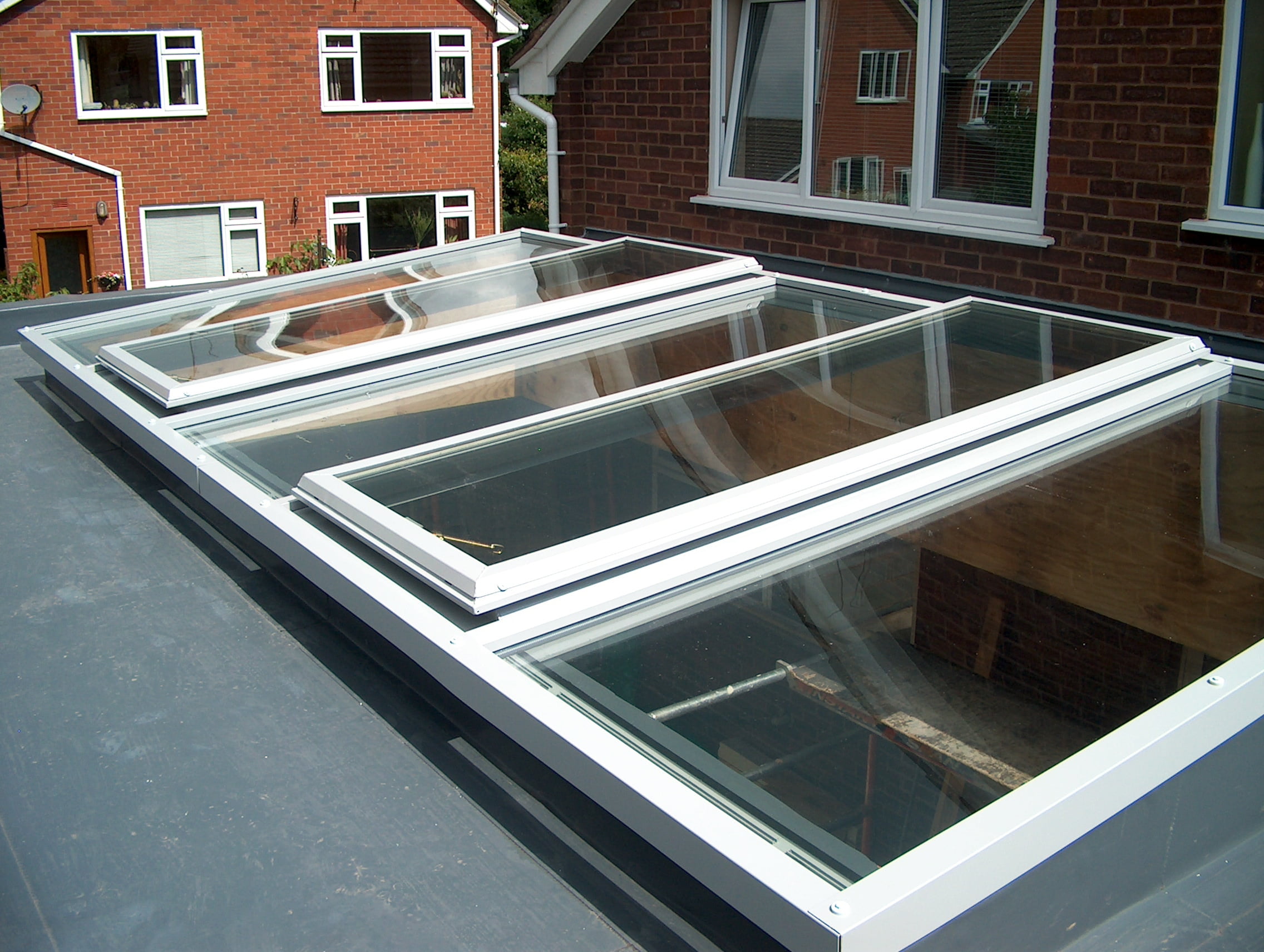

Naturalight have developed a sleek glazing bar system available in a range of sizes to suit all requirements. The Monopitch rooflight can deliver a simple and unrivalled aesthetic to your project.

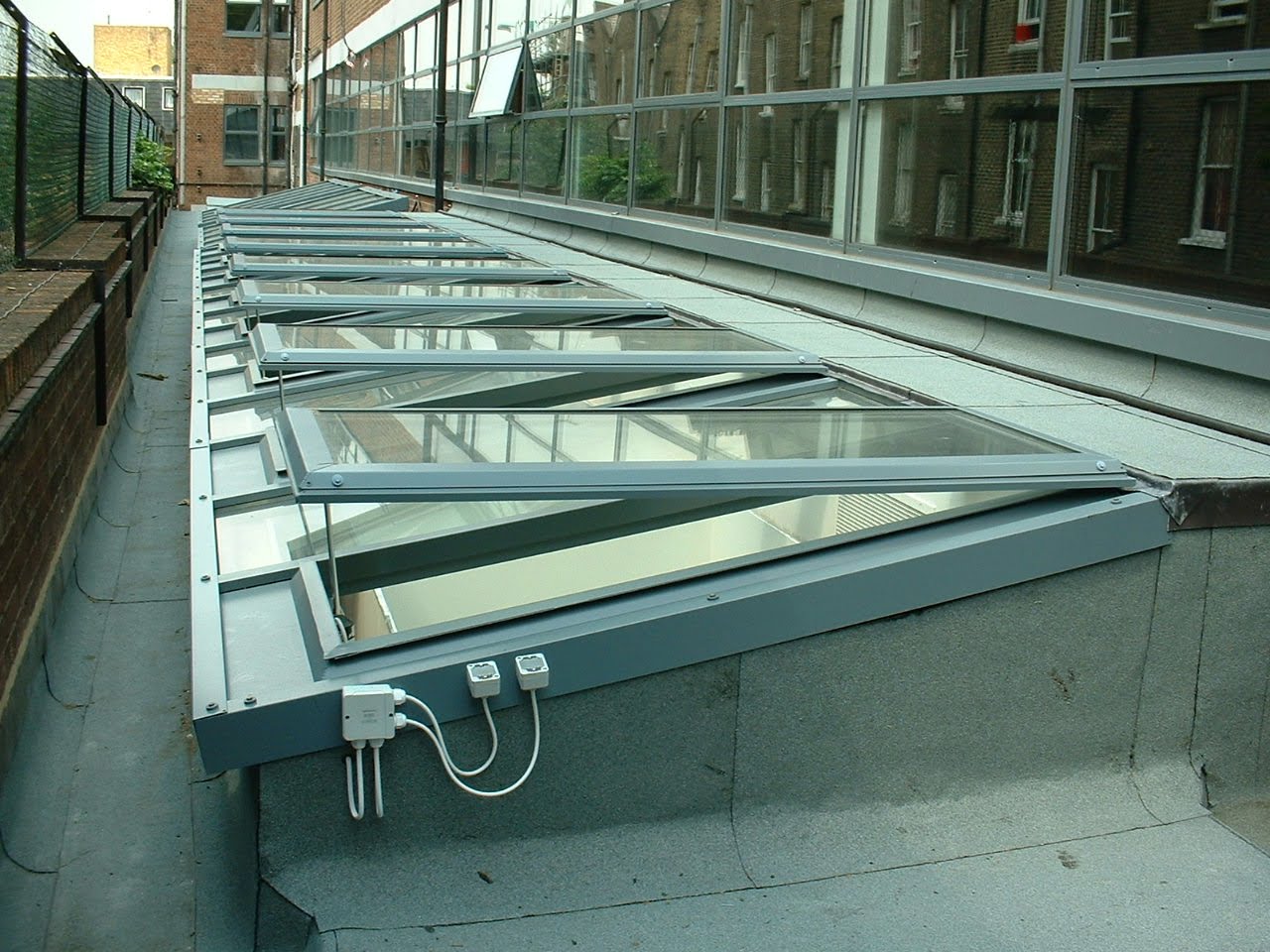

The system has the additional ability to incorporate a range of high performance glazing options to suit architect requirements as well as a range of glazing bar colours making the system suitable for professional environments as well as schools and private homes. Various ventilation methods are also available including manual and electric options.
Glazing Options
A Full range of high performance glasses to suit the specific requirements of any project are available, single, double or triple glazing.
Polycarbonate glazing is also offered in 3 different colour tints of clear, opal or bronze.
Polycarbonate options are:
- 16mm multi-wall structural polycarbonate
- 25mm multi-wall structural polycarbonate
- Factory assembled double or triple skin cassettes manufactured from 3mm polycarbonate
Non-Fragility
Naturalight Systems Limited have recognised the importance of non-fragility of glass roof assemblies and extensively researched the need for such within the current marketplace. As ACR(M) 2005:001 ‘non-fragility of roofing assemblies’ cannot be applied to glass rooflight structures where many thought it could be, advice was sought from CWCT and the outcome was that Naturalight Systems Limited tested and had passed a NaturalSpan rooflight assembly to TN66 / TN67. (Please contact the design office for design constraints)
